REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 550 Maranello (2011-2012)

View All

Ferrari 550 Maranello (2011-2012) - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

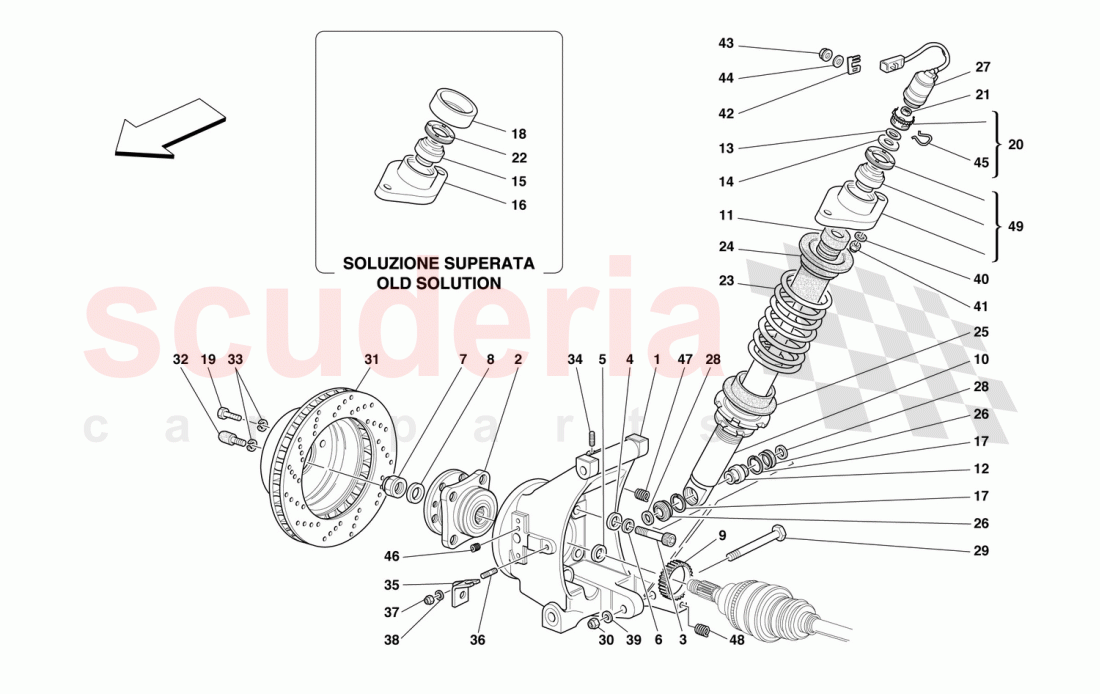

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	173711	COMPLETE RH REAR HUB HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157901	HUB COMPLETE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14331974	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10732531	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153355	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152250	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167259	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143332	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165101	REAR TOOTHED WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181710	REAR SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149857	RUBBER SHOCK ABSORBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	160461	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170144	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170610	UPPER BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172354	CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145478	Snap Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172355	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137824	ACTUATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137826	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170143	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163652	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156978	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113581	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153286	Rubber Pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158732	SHOCK ABSORBER ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153495	SPACER WASHER mm. 3.00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159309	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184655	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157841	BRAKE DISC FIXING SCREW AND WHEEL CENRTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168383	R.H. SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142079	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133771	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13526170	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173901	COMPLETE SPRING RETAINING CUP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	173901	COMPLETE SPRING RETAINING CUP	173901 COMPLETE SPRING RETAINING CUP	-	2	Enquire
-	104370	SCREW	104370 SCREW Valid from car Ass. Nr. 33718 / Valid for aluminium rims	-	2	Enquire
-	168384	L.H. SUPPORT	168384 L.H. SUPPORT	-	1	Enquire

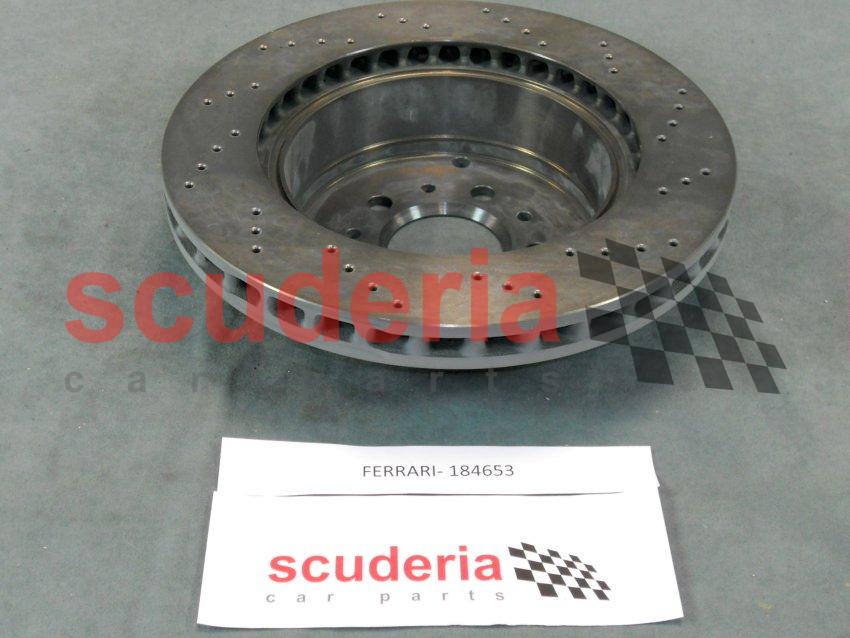

-	184653	Rear Brake Disc	184653 Rear Brake Disc Valid for aluminium rims / With 4 mm. diameter holes / Valid from car Ass. Nr. 37505	-	2	Enquire
-	153497	SPACER WASHER mm.3.10 -As	153497 SPACER WASHER mm.3.10 -As As an alternative of 153495	-	-	Enquire
-	153496	SPACER WASHER mm.2.90 -As	153496 SPACER WASHER mm.2.90 -As As an alternative of 153495	-	-	Enquire
-	169986	SPRING	169986 SPRING Sold in pair / As an alternative / Not for cars with handling "Fiorano equipment"	-	2	Enquire
-	175887	SPRING -Cagnola-	175887 SPRING -Cagnola- Sold in pair / Valid for cars with handling "Fiorano equipment" / Optional	-	2	Enquire
-	181710	REAR SHOCK ABSORBER	181710 REAR SHOCK ABSORBER	-	2	Enquire
-	178377	L.H. REAR HUB HOLDER	178377 L.H. REAR HUB HOLDER Valid from car Ass. Nr. 30708 / Not as spare part / With complete L.H. hub holder	-	1	Enquire
-	173712	COMPLETE LH REAR HUB HOLDER	173712 COMPLETE LH REAR HUB HOLDER HOLDER / Valid till car Ass. Nr. 30707	-	1	Enquire
-	178371	COMPLETE L.H. REAR HUB	178371 COMPLETE L.H. REAR HUB HOLDER / Valid from car Ass. Nr. 30708	-	1	Enquire
-	178376	R.H. REAR HUB HOLDER	178376 R.H. REAR HUB HOLDER Valid from car Ass. Nr. 30708 / Not as spare part / With complete R.H. hub holder	-	1	Enquire
-	173711	COMPLETE RH REAR HUB HOLDER	173711 COMPLETE RH REAR HUB HOLDER HOLDER / Valid till car Ass. Nr. 30707	-	1	Enquire
-	178370	COMPLETE R.H. REAR HUB	178370 COMPLETE R.H. REAR HUB HOLDER / Valid from car Ass. Nr. 30708	-	1	Enquire
1	173711	COMPLETE RH REAR HUB HOLDER	173711 COMPLETE RH REAR HUB HOLDER Valid till car Ass. Nr. 30707 / Not as spare part / With complete R.H. hub holder	-	1	Enquire
2	157901	HUB COMPLETE BEARING	157901 HUB COMPLETE BEARING	-	2	Enquire
3	14331974	SCREW	14331974 SCREW	-	8	Enquire
4	10732531	WASHER	10732531 WASHER	-	6	Enquire
5	153355	WASHER	153355 WASHER	-	2	Enquire
6	152250	WASHER	152250 WASHER	-	8	Enquire
7	167259	NUT	167259 NUT	-	2	Enquire
8	143332	WASHER	143332 WASHER	-	2	Enquire
9	165101	REAR TOOTHED WHEEL	165101 REAR TOOTHED WHEEL	-	2	Enquire
10	181710	REAR SHOCK ABSORBER	181710 REAR SHOCK ABSORBER Not as spare part now / Replaced by 178289	-	2	Enquire
11	149857	RUBBER SHOCK ABSORBER PAD	149857 RUBBER SHOCK ABSORBER PAD	-	2	Enquire
12	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
13	160461	WASHER	160461 WASHER	-	2	Enquire
14	170144	WASHER	170144 WASHER	-	2	Enquire
15	170610	UPPER BALL JOINT	170610 UPPER BALL JOINT Not as spare part now	-	2	Enquire
16	172354	CUP	172354 CUP Not as spare part now	-	2	Enquire
17	145478	Snap Ring	145478 Snap Ring	-	4	Enquire
18	172355	SEAL RING	172355 SEAL RING Not as spare part now	-	2	Enquire
19	14306924	SCREW	14306924 SCREW	-	2	Enquire
20	137824	ACTUATOR SUPPORT	137824 ACTUATOR SUPPORT	-	2	Enquire
21	137826	NUT	137826 NUT	-	2	Enquire
22	170143	RING NUT	170143 RING NUT Not as spare part now	-	2	Enquire
23	163652	SPRING	163652 SPRING Sold in pair / Not for cars with handling "Fiorano equipment"	-	2	Enquire
24	156978	UPPER SPACER	156978 UPPER SPACER	-	2	Enquire
25	113581	LOWER SPACER	113581 LOWER SPACER	-	2	Enquire
26	153286	Rubber Pad	153286 Rubber Pad	-	4	Enquire
27	158732	SHOCK ABSORBER ACTUATOR	158732 SHOCK ABSORBER ACTUATOR ABSORBER	-	2	Enquire
28	153495	SPACER WASHER mm. 3.00	153495 SPACER WASHER mm. 3.00	-	2	Enquire
29	159309	SCREW	159309 SCREW	-	2	Enquire
30	148020	NUT	148020 NUT	-	2	Enquire
31	184655	REAR BRAKE DISC	184655 REAR BRAKE DISC Valid for magnesium rims	-	2	Enquire
32	157841	BRAKE DISC FIXING SCREW AND WHEEL CENRTERING	157841 BRAKE DISC FIXING SCREW AND WHEEL CENRTERING Valid till car Ass. Nr. 33717 / Valid for magnesium rims	-	2	Enquire
33	127496	WASHER	127496 WASHER	-	4	Enquire
34	11500124	STUD BOLT	11500124 STUD BOLT	-	2	Enquire
35	168383	R.H. SUPPORT	168383 R.H. SUPPORT	-	1	Enquire
36	11500124	STUD BOLT	11500124 STUD BOLT	-	2	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
38	10519424	WASHER	10519424 WASHER	-	2	Enquire
39	84653800	WASHER	84653800 WASHER	-	2	Enquire
40	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	4	Enquire
41	12574521	Nyloc Nut	12574521 Nyloc Nut	-	4	Enquire
42	155751	CLIP	155751 CLIP	-	2	Enquire
43	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
44	14496324	WASHER	14496324 WASHER	-	2	Enquire
45	142079	CLIP	142079 CLIP	-	2	Enquire
46	13525470	THREADED INSERT	13525470 THREADED INSERT	-	6	Enquire
47	133771	THREADED INSERT	133771 THREADED INSERT	-	4	Enquire
48	13526170	THREADED INSERT	13526170 THREADED INSERT	-	2	Enquire
49	173901	COMPLETE SPRING RETAINING CUP	173901 COMPLETE SPRING RETAINING CUP Not as spare part now / Replaced by 173901	-	2	Enquire
