Rear Suspension - Wishbones And Stabilizer Bar

Ferrari 550 Maranello (2011-2012)

Find Your Part

Ferrari 550 Maranello (2011-2012) - REAR SUSPENSION - WISHBONES AND STABILIZER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
169796 LOWER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
169573 FLAMBLOCK FOR LOWER FORK Enquire To Order
Photo Part No Description Price (each) Stock
169574 FLAMBLOCK FOR LOWER FORK Enquire To Order
Photo Part No Description Price (each) Stock
168445 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire To Order
Photo Part No Description Price (each) Stock
105434 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
171812 TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
102901 SPACER WASHER Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
153148 PAD FASTENING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
212936 BAR BUFFER -Diam. 17- Enquire To Order
Photo Part No Description Price (each) Stock
169797 UPPER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
169574 FLAMBLOCK FOR LOWER FORK Enquire To Order
Photo Part No Description Price (each) Stock
186493 RH FLANBLOC UPPER FORK 12-30X47 Enquire To Order
Photo Part No Description Price (each) Stock
144747 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
150789 ECCENTRIC SCREW Enquire To Order
Photo Part No Description Price (each) Stock
106422 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire To Order
Photo Part No Description Price (each) Stock
128509 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
175077 ECCENTRIC WASHER Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire To Order
Photo Part No Description Price (each) Stock
169120 REAR ANTI-ROLL BAR -Diam. 17- Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
View All

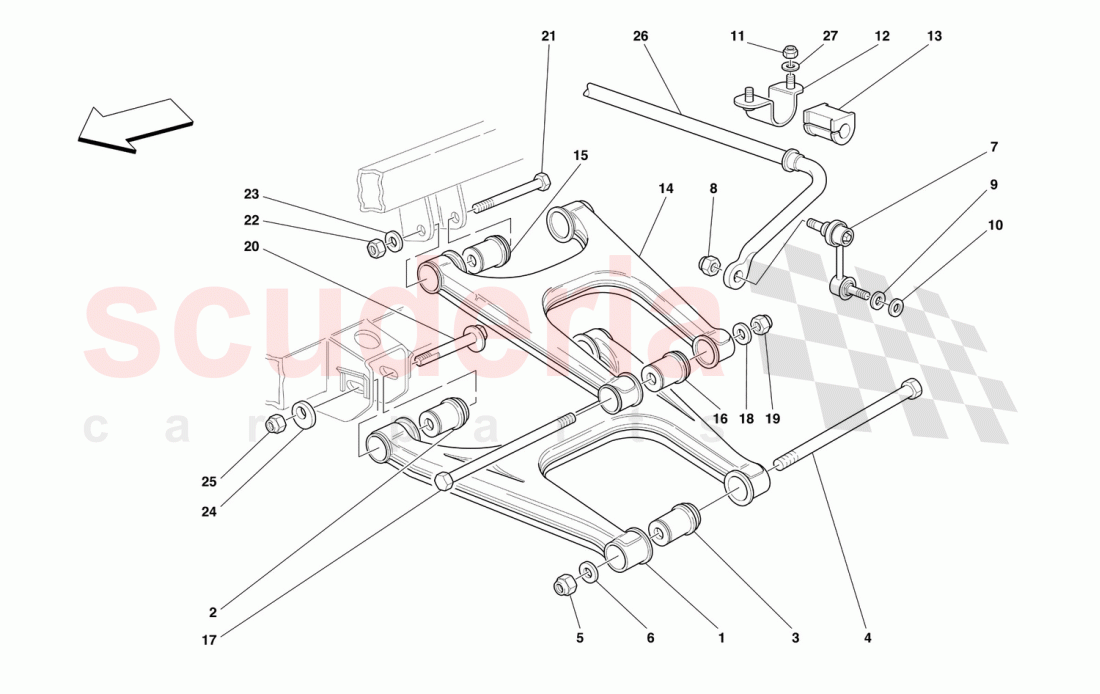

REAR SUSPENSION - WISHBONES AND STABILIZER BAR of Ferrari Ferrari 550 Maranello (2011-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 210888
Rear anti roll bar Ø 19.5 mm
Valid for cars with handling "Fiorano equipment" / Optional / 		- 1 Enquire
- 175077
ECCENTRIC WASHER
Valid after stock exhaustion of 150790 		- 4 Enquire
- 210897
BAR BUFFER-Diam. 19.5-
Valid for cars with handling "Fiorano equipment" / Optional 		- 2 Enquire
1 169796
LOWER LEVER 		- 2 Enquire
2 169573
FLAMBLOCK FOR LOWER FORK 		- 4 Enquire
3 169574
FLAMBLOCK FOR LOWER FORK 		- 4 Enquire
4 168445
SCREW 		- 2 Enquire
5 150238
Nut -For car with lifting 		- 2 Enquire
6 105434
WASHER 		- 2 Enquire
7 171812
TIE ROD 		- 2 Enquire
8 102742
Nyloc Nut M10 x 1.25 x 10mm
ARRIVING SOON 		- 2 Enquire
9 102901
SPACER WASHER 		- 2 Enquire
10 160092
WASHER 		- 2 Enquire
11 147985
NUT 		- 4 Enquire
12 153148
PAD FASTENING PLATE 		- 2 Enquire
13 212936
BAR BUFFER -Diam. 17-
Not for cars with handling "Fiorano equipment" 		- 2 Enquire
14 169797
UPPER LEVER 		- 2 Enquire
15 169574
FLAMBLOCK FOR LOWER FORK 		- 4 Enquire
16 186493
RH FLANBLOC UPPER FORK 12-30X47 		- 4 Enquire
17 144747
SCREW 		- 2 Enquire
18 84653800
WASHER 		- 2 Enquire
19 148020
NUT 		- 2 Enquire
20 150789
ECCENTRIC SCREW 		- 4 Enquire
21 106422
SCREW 		- 4 Enquire
22 150238
Nut -For car with lifting 		- 4 Enquire
23 128509
WASHER 		- 4 Enquire
24 175077
ECCENTRIC WASHER 		- 4 Enquire
25 150238
Nut -For car with lifting 		- 4 Enquire
26 169120
REAR ANTI-ROLL BAR -Diam. 17-
Not for cars with handling "Fiorano equipment" / 		- 1 Enquire
27 84653800
WASHER 		- 4 Enquire
