Front Suspension - Wishbones And Stabilizer Bar

Ferrari 550 Maranello (2011-2012)

Find Your Part

Ferrari 550 Maranello (2011-2012) - FRONT SUSPENSION - WISHBONES AND STABILIZER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
132776 UPPER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
168727 L.H. LOWER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
169326 FLAMBLOCK FOR LOWER FORK Enquire To Order
Photo Part No Description Price (each) Stock
154396 LOWER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
149807 NUT Enquire To Order
Photo Part No Description Price (each) Stock
155002 Washer Enquire To Order
Photo Part No Description Price (each) Stock
15971734 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut Enquire To Order
Photo Part No Description Price (each) Stock
153504 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
101022 SETTING PLATE -mm. 1.50- Enquire To Order
Photo Part No Description Price (each) Stock
101022 SETTING PLATE -mm. 1.50- Enquire To Order
Photo Part No Description Price (each) Stock
152868 R.H. COMPLETE TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
152871 FEMALE BALL JOINT TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
152870 MALE BALL JOINT TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
10717311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
148772 BALL JOINT PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
148773 SPACER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
105962 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
157812 BALL JOINT PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
168712 L.H. UPPER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
186493 RH FLANBLOC UPPER FORK 12-30X47 Enquire To Order
Photo Part No Description Price (each) Stock
16043634 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
106419 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
150789 ECCENTRIC SCREW Enquire To Order
Photo Part No Description Price (each) Stock
175077 ECCENTRIC WASHER Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire To Order
Photo Part No Description Price (each) Stock
163204 FRONT ANTI-ROLL BAR -¯ 27- Enquire To Order
Photo Part No Description Price (each) Stock
208324 BAR BUFFER -¯ 27- Enquire To Order
Photo Part No Description Price (each) Stock
239775 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
16045024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
190282 COMPLETE SPACER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
152249 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148773 SPACER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
149063 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
183831 R.H. BALL JOINT TIE ROD Enquire To Order
View All

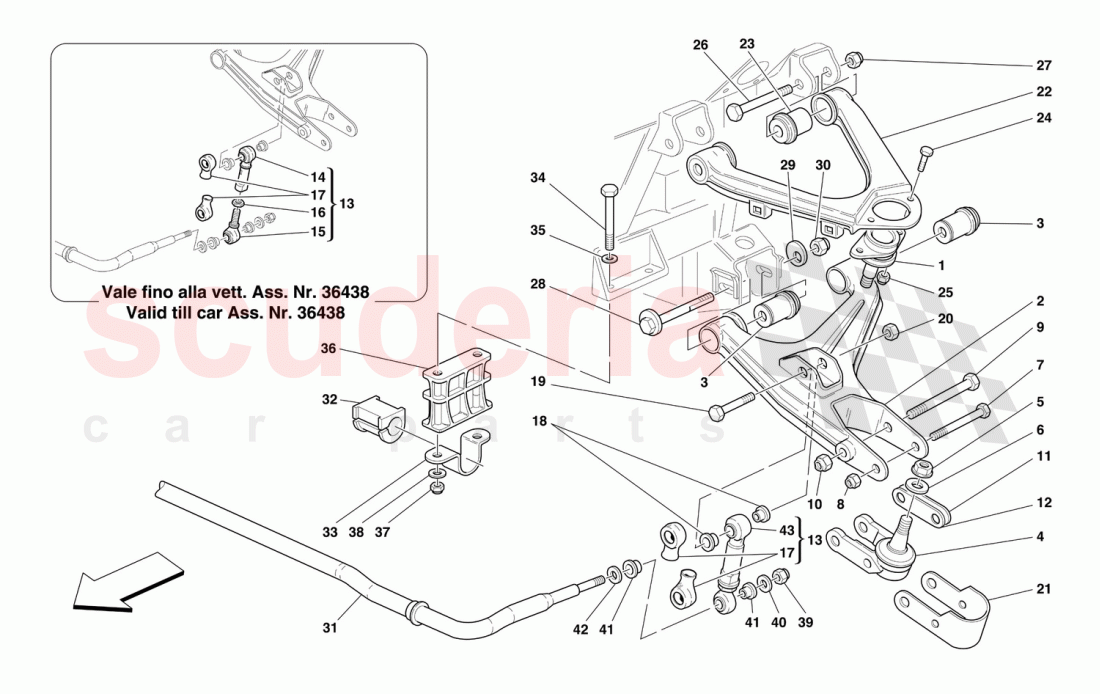

FRONT SUSPENSION - WISHBONES AND STABILIZER BAR of Ferrari Ferrari 550 Maranello (2011-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 183832
L.H. BALL JOINT TIE ROD
Valid from car Ass. Nr. 36439 		- 1 Enquire
- 175077
ECCENTRIC WASHER
Valid after stock exhaustion of 150790 		- 4 Enquire
- 175801
L.H. UPPER LEVER
Valid from car Ass. Nr. 27044 		- 1 Enquire
- 168711
R.H. UPPER LEVER
Valid till car Ass. Nr. 27043 		- 1 Enquire
- 175800
R.H. UPPER LEVER
Valid from car Ass. Nr. 27044 		- 1 Enquire
- 183711
R.H. COMPLETE TIE ROD
Valid from car Ass. Nr. 36439 		- 1 Enquire
- 152869
L.H. COMPLETE TIE ROD
Valid till car Ass. Nr. 36438 		- 1 Enquire
- 183712
L.H. COMPLETE TIE ROD
Valid from car Ass. Nr. 36439 		- 1 Enquire
- 115073
SETTING PLATE -mm. 1.20-
Possible fitting 		- - Enquire
- 164484
SETTING PLATE -mm. 1.00-
Possible fitting 		- - Enquire
- 164485
SETTING PLATE -mm. 2.00-
Possible fitting 		- - Enquire
- 168388
R.H. LOWER LEVER 		- 1 Enquire
1 132776
UPPER BALL JOINT 		- 2 Enquire
2 168727
L.H. LOWER LEVER 		- 1 Enquire
3 169326
FLAMBLOCK FOR LOWER FORK 		- 4 Enquire
4 154396
LOWER BALL JOINT 		- 2 Enquire
5 149807
NUT 		- 4 Enquire
6 155002
Washer 		- 4 Enquire
7 15971734
SCREW 		- 2 Enquire
8 12574521
Nyloc Nut 		- 2 Enquire
9 153504
SCREW 		- 2 Enquire
10 148020
NUT 		- 2 Enquire
11 101022
SETTING PLATE -mm. 1.50- 		- - Enquire
12 101022
SETTING PLATE -mm. 1.50-
Possible fitting 		- - Enquire
13 152868
R.H. COMPLETE TIE ROD
Valid till car Ass. Nr. 36438 		- 1 Enquire
14 152871
FEMALE BALL JOINT TIE ROD
Valid till car Ass. Nr. 36438 		- 2 Enquire
15 152870
MALE BALL JOINT TIE ROD
Valid till car Ass. Nr. 36438 		- 2 Enquire
16 10717311
NUT
Valid till car Ass. Nr. 36438 		- 2 Enquire
17 148772
BALL JOINT PROTECTION 		- 4 Enquire
18 148773
SPACER BUSHING 		- 4 Enquire
19 105962
SCREW 		- 2 Enquire
20 148020
NUT 		- 2 Enquire
21 157812
BALL JOINT PROTECTION 		- 2 Enquire
22 168712
L.H. UPPER LEVER
Valid till car Ass. Nr. 27043 		- 1 Enquire
23 186493
RH FLANBLOC UPPER FORK 12-30X47
SUPPORT 		- 4 Enquire
24 16043634
SCREW 		- 4 Enquire
25 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
26 106419
SCREW 		- 4 Enquire
27 148020
NUT 		- 4 Enquire
28 150789
ECCENTRIC SCREW 		- 4 Enquire
29 175077
ECCENTRIC WASHER 		- 4 Enquire
30 150238
Nut -For car with lifting 		- 4 Enquire
31 163204
FRONT ANTI-ROLL BAR -¯ 27- 		- 1 Enquire
32 208324
BAR BUFFER -¯ 27- 		- 2 Enquire
33 239775
PLATE 		- 2 Enquire
34 16045024
SCREW 		- 4 Enquire
35 14496524
WASHER 		- 4 Enquire
36 190282
COMPLETE SPACER 		- 2 Enquire
37 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
38 14496524
WASHER 		- 4 Enquire
39 148020
NUT 		- 2 Enquire
40 152249
WASHER 		- 2 Enquire
41 148773
SPACER BUSHING 		- 4 Enquire
42 149063
WASHER 		- 2 Enquire
43 183831
R.H. BALL JOINT TIE ROD
Valid from car Ass. Nr. 36439 		- 1 Enquire
