Front Suspension - Shock Absorber And Brake Disc

Ferrari 550 Maranello (2011-2012)

Find Your Part

Ferrari 550 Maranello (2011-2012) - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
176184 R.H. STEERING KNUCKLE Enquire To Order
Photo Part No Description Price (each) Stock
133771 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
11000924 Stud bolt Enquire To Order
Photo Part No Description Price (each) Stock
157900 HUB COMPLETE BEARING Enquire To Order
Photo Part No Description Price (each) Stock
174045 FRONT TOOTHED WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
209184 NUT Enquire To Order
Photo Part No Description Price (each) Stock
16324034 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
102901 SPACER WASHER Enquire To Order
Photo Part No Description Price (each) Stock
164925 R.H. COVER Enquire To Order
Photo Part No Description Price (each) Stock
170177 R.H. SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
143405 FASTON TONGUE Enquire To Order
Photo Part No Description Price (each) Stock
149951 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
153495 SPACER WASHER mm. 3.00 Enquire To Order
Photo Part No Description Price (each) Stock
183334 FRONT SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
152329 SHOCK ABSORBER PAD Enquire To Order
Photo Part No Description Price (each) Stock
11021111 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
153285 Ball-Joint Enquire To Order
Photo Part No Description Price (each) Stock
145478 Snap Ring Enquire To Order
Photo Part No Description Price (each) Stock
153286 Rubber Pad Enquire To Order
Photo Part No Description Price (each) Stock
172356 CUP Enquire To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
170611 BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
172357 UPPER JOINT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
170143 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
137824 ACTUATOR SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
137826 NUT Enquire To Order
Photo Part No Description Price (each) Stock
163648 SPRING -Sold in pair- Enquire To Order
Photo Part No Description Price (each) Stock
127991 COMPLETE SPACER Enquire To Order
Photo Part No Description Price (each) Stock
152655 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
152842 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
184654 FRONT BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
157841 BRAKE DISC FIXING SCREW AND WHEEL CENRTERING Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
158732 SHOCK ABSORBER ACTUATOR Enquire To Order
Photo Part No Description Price (each) Stock
160461 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
170144 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
155751 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
14496324 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
142079 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
173900 COMPLETE SPRING RETAINING CUP Enquire To Order
Photo Part No Description Price (each) Stock
12354524 Stud Securing Exhaust Enquire To Order
View All

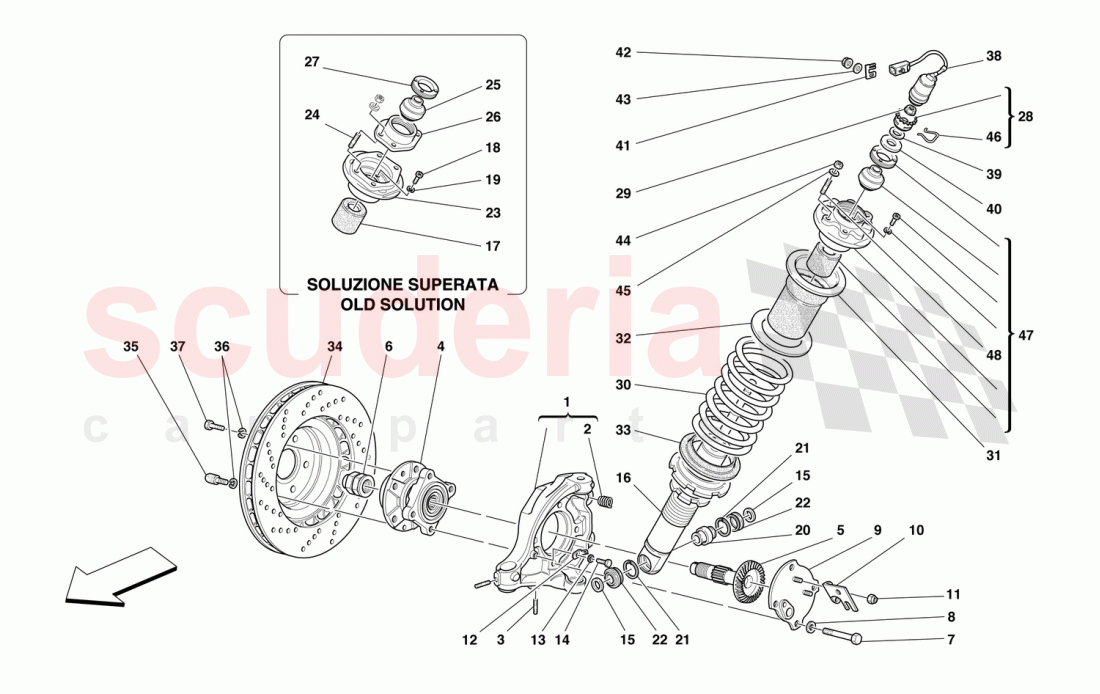

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 550 Maranello (2011-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 173900
COMPLETE SPRING RETAINING CUP 		- 2 Enquire
- 104370
SCREW
Valid from car Ass. Nr. 33718 / Valid for aluminium rims 		- 2 Enquire
- 184652
Front Brake Disc
Valid for aluminium rims / With 4 mm. diameter holes / Valid from car Ass. Nr. 37505 		- 2 Enquire
- 169985
SPRING -Sold in pair-
As an alternativa / Not for cars with handling "Fiorano equipment" 		- 2 Enquire
- 175886
SPRING -Sold in pair-
Valid for cars with handling "Fiorano equipment" / Optional 		- 2 Enquire
- 153497
SPACER WASHER mm.3.10 -As
As an alternative of 153495 		- - Enquire
- 183334
FRONT SHOCK ABSORBER 		- 2 Enquire
- 153496
SPACER WASHER mm.2.90 -As
As an alternative of 153495 		- - Enquire
- 164926
L.H. COVER 		- 1 Enquire
- 170178
L.H. SUPPORT 		- 1 Enquire
- 209184
NUT
of 148851 		- 2 Enquire
- 176185
L.H. STEERING KNUCKLE
Not as spare part / With complete L.H. steering / knuckle 178887 		- 1 Enquire
- 184627
COMPLETE L.H. STEERING KNUCKLE 		- 1 Enquire
- 184626
COMPLETE R.H. STEERING KNUCKLE 		- 1 Enquire
1 176184
R.H. STEERING KNUCKLE
Not as spare part / With complete R.H. steering / knuckle 178886 		- 1 Enquire
2 133771
THREADED INSERT 		- 4 Enquire
3 11000924
Stud bolt 		- 4 Enquire
4 157900
HUB COMPLETE BEARING 		- 2 Enquire
5 174045
FRONT TOOTHED WHEEL 		- 2 Enquire
6 209184
NUT 		- 2 Enquire
7 16324034
SCREW 		- 8 Enquire
8 102901
SPACER WASHER 		- 8 Enquire
9 164925
R.H. COVER 		- 1 Enquire
10 170177
R.H. SUPPORT 		- 1 Enquire
11 14059290
FLANGED NUT M6 		- 4 Enquire
12 143405
FASTON TONGUE 		- 2 Enquire
13 149951
WASHER 		- 2 Enquire
14 10977524
SCREW 		- 2 Enquire
15 153495
SPACER WASHER mm. 3.00 		- 4 Enquire
16 183334
FRONT SHOCK ABSORBER
Not as spare now / Replaced by 183334 		- 2 Enquire
17 152329
SHOCK ABSORBER PAD
Not as spare now 		- 2 Enquire
18 11021111
SCREW
Not as spare part now 		- 8 Enquire
19 10519224
WASHER
Not as spare part now 		- 8 Enquire
20 153285
Ball-Joint 		- 2 Enquire
21 145478
Snap Ring 		- 4 Enquire
22 153286
Rubber Pad 		- 4 Enquire
23 172356
CUP
Not as spare part now 		- 2 Enquire
24 13543524
STUD BOLT
Not as spare part now 		- 8 Enquire
25 170611
BALL JOINT
Not as spare part now 		- 2 Enquire
26 172357
UPPER JOINT SUPPORT
Not as spare part now 		- 2 Enquire
27 170143
RING NUT
Not as spare part now 		- 2 Enquire
28 137824
ACTUATOR SUPPORT 		- 2 Enquire
29 137826
NUT 		- 2 Enquire
30 163648
SPRING -Sold in pair-
Not for cars with handling "Fiorano equipment" 		- 2 Enquire
31 127991
COMPLETE SPACER 		- 2 Enquire
32 152655
WASHER 		- 2 Enquire
33 152842
WASHER 		- 2 Enquire
34 184654
FRONT BRAKE DISC
Valid for magnesium rims 		- 2 Enquire
35 157841
BRAKE DISC FIXING SCREW AND WHEEL CENRTERING
Valid till car Ass. Nr. 33717 / Valid for magnesium rims 		- 2 Enquire
36 127496
WASHER 		- 4 Enquire
37 14306924
SCREW 		- 2 Enquire
38 158732
SHOCK ABSORBER ACTUATOR
ABSORBER 		- 2 Enquire
39 160461
WASHER 		- 2 Enquire
40 170144
WASHER 		- 2 Enquire
41 155751
CLIP 		- 2 Enquire
42 319201
FUEL FILLER PIPE ASSEMBLY 		- 2 Enquire
43 14496324
WASHER 		- 2 Enquire
44 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 8 Enquire
45 12638524
WASHER 		- 8 Enquire
46 142079
CLIP 		- 2 Enquire
47 173900
COMPLETE SPRING RETAINING CUP
Not as spare part now / Replaced by 173900 		- 2 Enquire
48 12354524
Stud Securing Exhaust 		- 8 Enquire
