Windshield wiper, washer and horns

Find Your Part

Ferrari 512 M - Windshield wiper, washer and horns

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
63467900 Windshield wiper leverage $428.17 To Order
Photo Part No Description Price (each) Stock
63112200 Water reservoir, complete $161.66 To Order
Photo Part No Description Price (each) Stock
61578100 Horn, complete $192.41 To Order
Photo Part No Description Price (each) Stock
61528100 WINDSHIELD WIPER MOTOR $1,045.23 To Order
Photo Part No Description Price (each) Stock
63080900 Plate $54.91 To Order
Photo Part No Description Price (each) Stock
225757 COMPLETE HORN COMPRESSOR $278.68 To Order
Photo Part No Description Price (each) Stock
189428 ELECTRO PNEUMATIC HORN $24.36 To Order
Photo Part No Description Price (each) Stock
60741100 3 WAYS UNION $0.63 To Order
Photo Part No Description Price (each) Stock
63243200 Air duct $1.20 To Order
Photo Part No Description Price (each) Stock
81061000 COMPLETE WINDSCREEN WASHER PIPE $172.00 To Order
Photo Part No Description Price (each) Stock
61648200 Pipe $15.77 To Order
Photo Part No Description Price (each) Stock
62461600 Wiper arm driver seat side complete $107.41 To Order
Photo Part No Description Price (each) Stock
61647600 Wiper arm passenger side complete $90.68 To Order
Photo Part No Description Price (each) Stock
63118500 Plug with filter $1.54 To Order
Photo Part No Description Price (each) Stock
63449500 FULLFILLING UNION $147.62 To Order
Photo Part No Description Price (each) Stock
63969500 PLASTIC HOSE $6.39 To Order
Photo Part No Description Price (each) Stock
61537500 R.H. AND L.H. JET FOR WINDOW $36.89 To Order
Photo Part No Description Price (each) Stock
61537600 BOOT $0.52 To Order
Photo Part No Description Price (each) Stock
61537700 Spacer $0.58 To Order
Photo Part No Description Price (each) Stock
61559400 Spring $2.61 To Order
Photo Part No Description Price (each) Stock
61648000 UNION ASSEMBLY $6.77 To Order
Photo Part No Description Price (each) Stock
62488800 GLASS WASHER PIPE FROM $14.94 To Order
Photo Part No Description Price (each) Stock
65661700 WINDSCREEN WIPER BLADE PASSENGER SIDE $57.86 To Order
Photo Part No Description Price (each) Stock
65661700 WINDSCREEN WIPER BLADE PASSENGER SIDE $57.86 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
63453700 Plug $1.78 To Order
Photo Part No Description Price (each) Stock
61535400 Pump for water reservoir $372.69 To Order
Photo Part No Description Price (each) Stock
63290800 PUMP FASTENING SPRING $42.32 To Order
Photo Part No Description Price (each) Stock
63290900 RUBBER BUSHING $0.65 To Order
Photo Part No Description Price (each) Stock
60630000 Water reservoir retainer spring $15.17 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14054577 CAP NUT $0.32 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
64291000 Seal ring $1.35 To Order
Photo Part No Description Price (each) Stock
64291100 Washer $4.46 To Order
Photo Part No Description Price (each) Stock
62885600 NUT $2.25 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10396380 CABLE GROMMET $0.16 To Order
Photo Part No Description Price (each) Stock
60310703 RIVET $0.41 To Order
Photo Part No Description Price (each) Stock
64475200 Bracket $7.28 To Order
View All

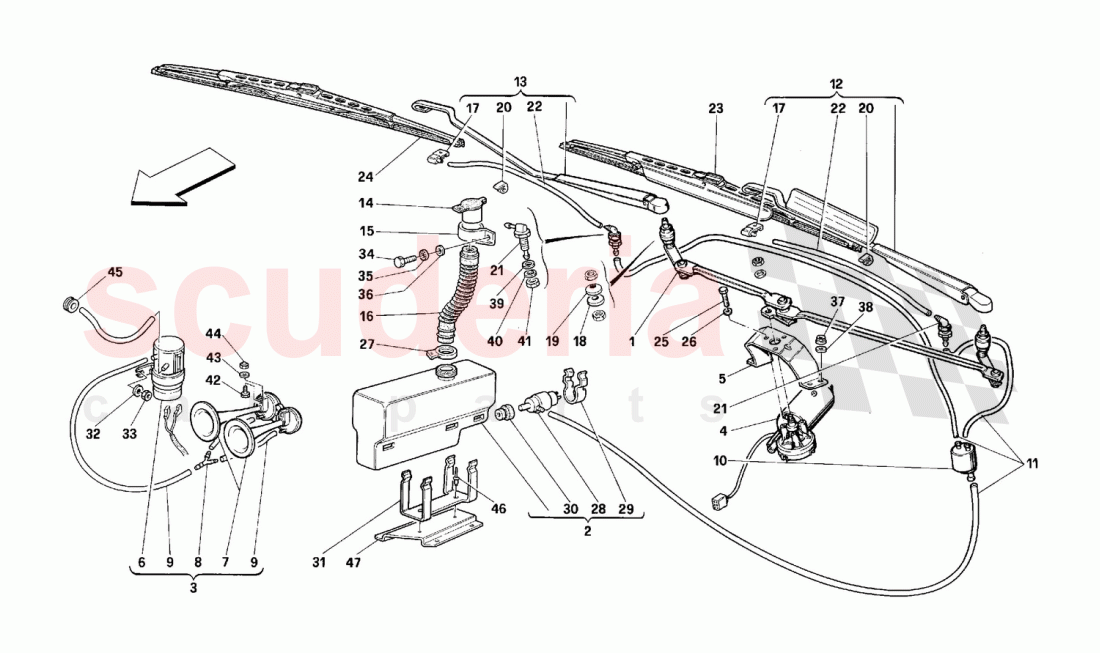

Windshield wiper, washer and horns of Ferrari Ferrari 512 M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 67546400
Wiper brushes - passenger side
Valid for GD 		$68.35 (38.2% off) 1
- 61541500
L.H. JET FOR WINDOW WASHING
Valid for GD 		$33.68 (20.1% off) 2
- 61725700
Wiper arm passenger side complete
complete -Valid for GD 		$87.56 1
- 63991900
Pipe
Valid for GD 		$23.11 1
- 61725600
Wiper arm driver seat side complete
complete -Valid for GD 		$83.60 1
- 162304
ELECTRO PNEUMATIC HORN
Valid for CH 		$24.02 1
- 63468000
Windshield wiper leverage
Valid for GD 		$522.56 1
1 63467900
Windshield wiper leverage
Not for GD 		$428.17 1
2 63112200
Water reservoir, complete 		$161.66 (35.3% off) 1
3 61578100
Horn, complete 		$192.41 1
4 61528100
WINDSHIELD WIPER MOTOR 		$1,045.23 (33.1% off) 1
5 63080900
Plate 		$54.91 1
6 225757
COMPLETE HORN COMPRESSOR 		$278.68 (4.9% off) 1
7 189428
ELECTRO PNEUMATIC HORN
Not for CH 		$24.36 (45.8% off) 1
8 60741100
3 WAYS UNION 		$0.63 (21.3% off) 1
9 63243200
Air duct 		$1.20 1
10 81061000
COMPLETE WINDSCREEN WASHER PIPE 		$172.00 1
11 61648200
Pipe
Not for GD 		$15.77 (62.3% off) 1
12 62461600
Wiper arm driver seat side complete
complete -Not for GD 		$107.41 (36.6% off) 1
13 61647600
Wiper arm passenger side complete
complete -Not for GD 		$90.68 1
14 63118500
Plug with filter 		$1.54 (79.5% off) 1
15 63449500
FULLFILLING UNION 		$147.62 (34.9% off) 1
16 63969500
PLASTIC HOSE 		$6.39 1
17 61537500
R.H. AND L.H. JET FOR WINDOW
Not for GD 		$36.89 (15.6% off) 2
18 61537600
BOOT 		$0.52 (89.2% off) 2
19 61537700
Spacer 		$0.58 (71% off) 2
20 61559400
Spring 		$2.61 (34.1% off) 5
21 61648000
UNION ASSEMBLY 		$6.77 (59.4% off) 2
22 62488800
GLASS WASHER PIPE FROM 		$14.94 2
23 65661700
WINDSCREEN WIPER BLADE PASSENGER SIDE
Not for GD 		$57.86 (39.1% off) 1
24 65661700
WINDSCREEN WIPER BLADE PASSENGER SIDE
Not for GD 		$57.86 (39.1% off) 1
25 10902224
SCREW M6 X 16 		$0.06 (86.7% off) 3
26 127494
WASHER 		$0.08 (88.2% off) 3
27 63453700
Plug 		$1.78 1
28 61535400
Pump for water reservoir 		$372.69 1
29 63290800
PUMP FASTENING SPRING 		$42.32 1
30 63290900
RUBBER BUSHING 		$0.65 (84.1% off) 1
31 60630000
Water reservoir retainer spring 		$15.17 (69.2% off) 1
32 12643724
WASHER 		$0.06 (88% off) 2
33 14059290
FLANGED NUT M6 		$1.51 2
34 10902424
SCREW 		$0.15 (78.6% off) 2
35 12601374
WASHER 		$0.02 (92% off) 2
36 12643724
WASHER 		$0.06 (88% off) 2
37 14054577
CAP NUT 		$0.32 4
38 12643724
WASHER 		$0.06 (88% off) 4
39 64291000
Seal ring 		$1.35 (57.8% off) 2
40 64291100
Washer 		$4.46 (63.6% off) 2
41 62885600
NUT 		$2.25 (58.7% off) 2
42 10902424
SCREW 		$0.15 (78.6% off) 2
43 10519424
WASHER 		$0.02 (92% off) 2
44 14059290
FLANGED NUT M6 		$1.51 2
45 10396380
CABLE GROMMET 		$0.16 1
46 60310703
RIVET 		$0.41 3
47 64475200
Bracket 		$7.28 1
