Ferrari 512 M - Headlight

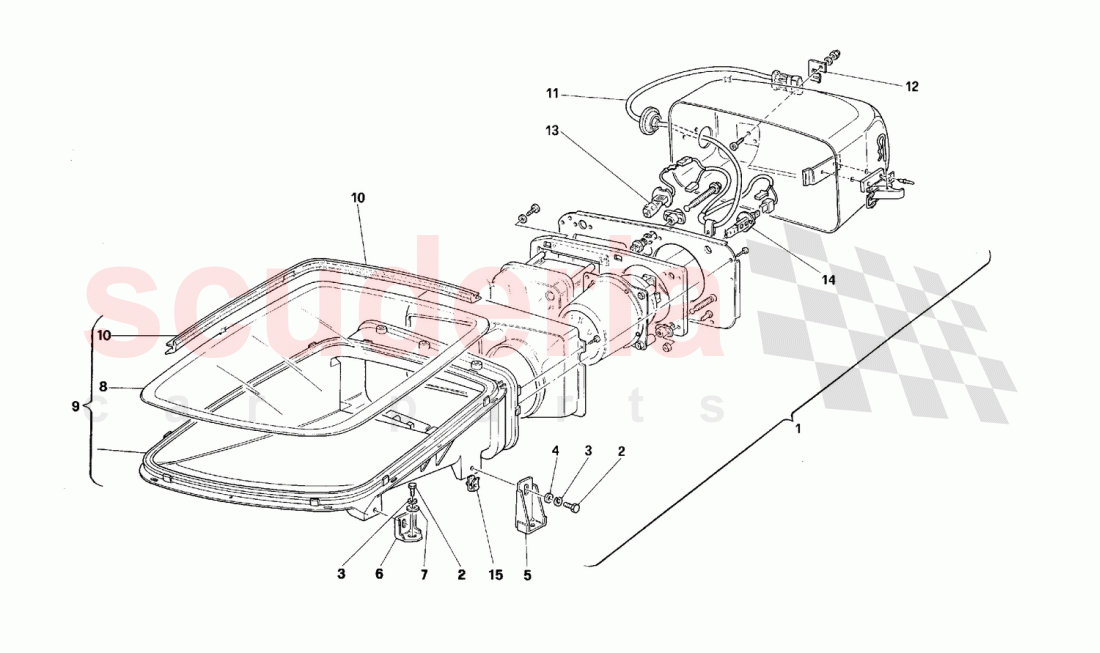

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	161543	RH main and dipped beams light unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902287	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162943	Rear bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162944	Front bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165913	L.H. transparent	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171654	Complete R.H. front light case	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165915	L.H. gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164350	Headlight cable connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14151590	Lamp -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14151095	Lamp -Valid for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165911	Spring	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	14151095	Lamp -Valid for USA-	14151095 Lamp -Valid for USA-	-	2	Enquire
-	165914	R.H. gasket	165914 R.H. gasket	-	1	Enquire
-	164450	Headlight cable connection	164450 Headlight cable connection Not for USA, CDN and J	-	2	Enquire
-	171656	Complete R.H. front light case	171656 Complete R.H. front light case Valid for USA and J /	-	1	Enquire
-	171655	Complete L.H. front light case	171655 Complete L.H. front light case Not for USA and J /	-	1	Enquire
-	171657	Complete L.H. front light case	171657 Complete L.H. front light case Valid for USA and J /	-	1	Enquire
-	178502	L.H. transparent	178502 L.H. transparent Valid for USA and J	-	1	Enquire
-	165912	R.H. transparent	165912 R.H. transparent Not for USA and J	-	1	Enquire
-	178501	R.H. transparent	178501 R.H. transparent Valid for USA and J	-	1	Enquire
-	163794	LH main and dipped beams light unit	163794 LH main and dipped beams light unit light unit / Valid for GD	-	1	Enquire
-	163765	RH main and dipped beams light unit	163765 RH main and dipped beams light unit light unit / Valid for J	-	1	Enquire
-	163766	LH main and dipped beams light unit	163766 LH main and dipped beams light unit light unit / Valid for J	-	1	Enquire
-	161949	RH main and dipped beams light unit	161949 RH main and dipped beams light unit light unit / Valid for USA and CDN	-	1	Enquire
-	161950	LH main and dipped beams light unit	161950 LH main and dipped beams light unit light unit / Valid for USA and CDN	-	1	Enquire
-	163793	RH main and dipped beams light unit	163793 RH main and dipped beams light unit light unit / Valid for GD	-	1	Enquire
-	161544	LH main and dipped beams light unit	161544 LH main and dipped beams light unit light unit / Not for USA, CDN, J and GD	-	1	Enquire
1	161543	RH main and dipped beams light unit	161543 RH main and dipped beams light unit light unit / Not for USA, CDN, J and GD	-	1	Enquire
2	10902287	Screw	10902287 Screw	-	16	Enquire
3	127494	WASHER	127494 WASHER	-	16	Enquire
4	12643724	WASHER	12643724 WASHER	-	8	Enquire
5	162943	Rear bracket	162943 Rear bracket	-	4	Enquire
6	162944	Front bracket	162944 Front bracket	-	4	Enquire
7	12647724	WASHER	12647724 WASHER	-	8	Enquire
8	165913	L.H. transparent	165913 L.H. transparent Not for USA and J	-	1	Enquire
9	171654	Complete R.H. front light case	171654 Complete R.H. front light case Not for USA and J /	-	1	Enquire
10	165915	L.H. gasket	165915 L.H. gasket	-	1	Enquire
11	164350	Headlight cable connection	164350 Headlight cable connection Not for USA, CDN and J	-	2	Enquire
12	155751	CLIP	155751 CLIP	-	2	Enquire
13	14151590	Lamp -Not for USA-	14151590 Lamp -Not for USA-	-	2	Enquire
14	14151095	Lamp -Valid for USA-	14151095 Lamp -Valid for USA-	-	2	Enquire
15	165911	Spring	165911 Spring	-	8	Enquire
