Name: Air conditioning compressor
Rating: 4.6 (1 reviews)

View All

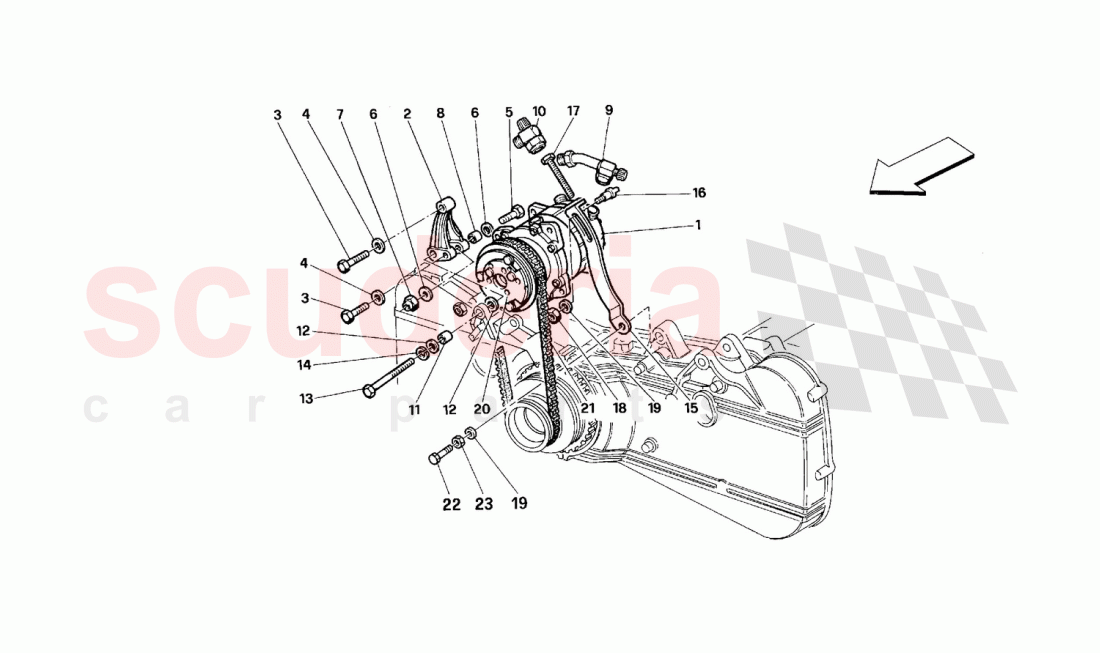

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	161891	Compressor	$1,475.94	To Order

Photo	Part No	Description	Price (each)	Stock
	122963	Support	$103.80	To Order

Photo	Part No	Description	Price (each)	Stock
	121537	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11288021	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	123180	Dowel	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	162636	Intake union	$87.17	To Order

Photo	Part No	Description	Price (each)	Stock
	162637	Outlet union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121100	Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103025	Washer	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	15541721	Screw	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	123181	Tension adjusting bracket	$112.50	To Order

Photo	Part No	Description	Price (each)	Stock
	123188	Pin for adjusting bracket	$195.45	To Order

Photo	Part No	Description	Price (each)	Stock
	125668	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	14496501	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	123813	Electromagnetic joint	$775.91	To Order

Photo	Part No	Description	Price (each)	Stock
	122973A	A.C. compressor control belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970921	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	161891	Compressor	161891 Compressor	$1,475.94	1
2	122963	Support	122963 Support	$103.80	1
3	121537	Screw	121537 Screw	-	2	Enquire
4	12601474	WASHER	12601474 WASHER	$0.03	2
5	11288021	SCREW	11288021 SCREW	$0.52 MSRP: ~~2.25~~ (76.9% off)	1
6	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	2
7	12574521	Nyloc Nut	12574521 Nyloc Nut	$0.92 MSRP: ~~2.00~~ (54% off)	1
8	123180	Dowel	123180 Dowel	$2.61	1
9	162636	Intake union	162636 Intake union	$87.17	1
10	162637	Outlet union	162637 Outlet union	-	1	Enquire
11	121100	Bushing	121100 Bushing	-	1	Enquire
12	103025	Washer	103025 Washer	$0.41	2
13	15541721	Screw	15541721 Screw	$0.81	1
14	127498	WASHER	127498 WASHER	$0.15 MSRP: ~~0.60~~ (75% off)	1
15	123181	Tension adjusting bracket	123181 Tension adjusting bracket	$112.50	1
16	123188	Pin for adjusting bracket	123188 Pin for adjusting bracket	$195.45 MSRP: ~~243.36~~ (19.7% off)	1
17	125668	SCREW	125668 SCREW	$1.07 MSRP: ~~2.31~~ (53.7% off)	1
18	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	1
19	14496501	WASHER	14496501 WASHER	$0.16	2
20	123813	Electromagnetic joint	123813 Electromagnetic joint	$775.91	1
21	122973A	A.C. compressor control belt	122973A A.C. compressor control belt	-	1	Enquire
22	15970921	SCREW	15970921 SCREW	$0.37 MSRP: ~~2.00~~ (81.5% off)	1
23	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	1
