Valves and relays of Ferrari Ferrari 512 M

View All

Ferrari 512 M - Valves and relays

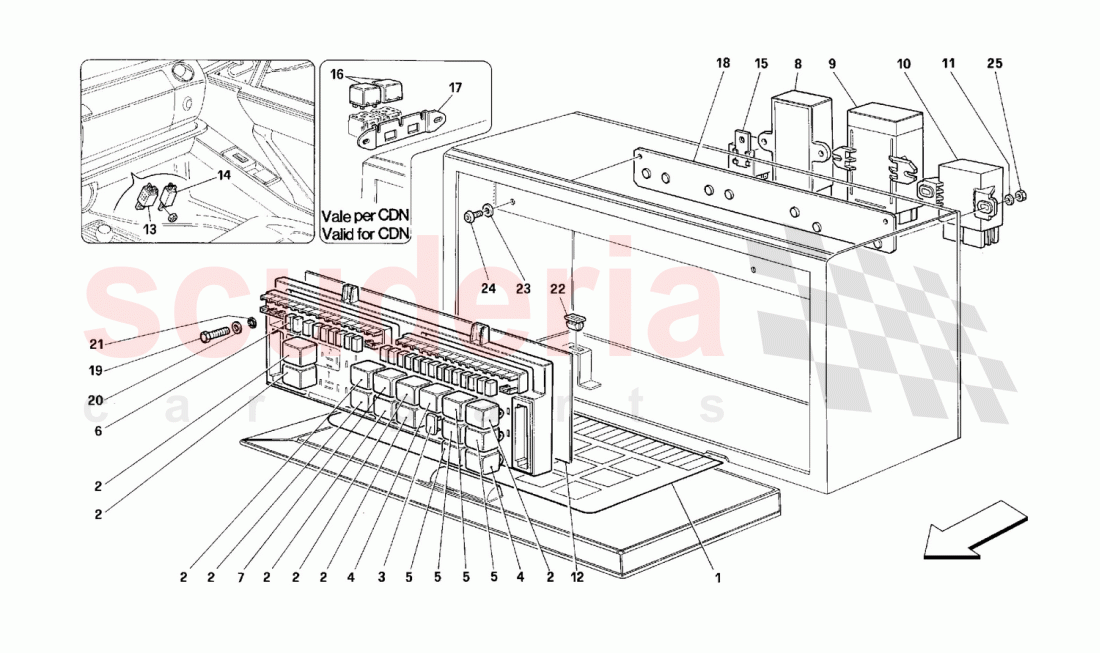

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	161552	Indication sheet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157991	A.C. ELECTRO FAN CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61936600	Jumper for relay	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157802	DOUBLE SWITCH RELAY 2x15 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175318	INJECTION DEVICE RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125243	20 AMP. FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157991	A.C. ELECTRO FAN CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150039	Actuator door control unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147177	Window regulator control unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61079400	A.C. system control unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116055	Rear cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137667	ACOUSTIC SIGNAL WITH ELECTROMAGNETIC SWITCH FOR BRAKES WARNING LIGHT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159265	DIRECTION LIGHTS AND EMERGENCY FLASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61827900	Wiper intermittence	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157992	DEVIATOR RELAY 30/20 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137669	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63677300	Control unit bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116857	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64686900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	61830700	CONTROL BRAKES WARNING LIGHT AND SAFETY BELTS ACOUSTIC SIGNAL	61830700 CONTROL BRAKES WARNING LIGHT AND SAFETY BELTS ACOUSTIC SIGNAL Valid for CDN	-	1	Enquire
-	125241	10 A FUSE	125241 10 A FUSE	-	7	Enquire
-	125240	7,5 AMP. FUSE	125240 7,5 AMP. FUSE	-	3	Enquire
-	126031	25 AMP. FUSE	126031 25 AMP. FUSE	-	3	Enquire
-	125242	15 AMP. FUSE	125242 15 AMP. FUSE	-	7	Enquire
-	161550	Control unit, assy	161550 Control unit, assy Not for CH	-	1	Enquire
-	163224	Control unit, assy	163224 Control unit, assy Valid for CH	-	1	Enquire
1	161552	Indication sheet	161552 Indication sheet	-	1	Enquire
2	157991	A.C. ELECTRO FAN CONDENSER	157991 A.C. ELECTRO FAN CONDENSER	-	8	Enquire
3	61936600	Jumper for relay	61936600 Jumper for relay	-	5	Enquire
4	157802	DOUBLE SWITCH RELAY 2x15 A.	157802 DOUBLE SWITCH RELAY 2x15 A.	-	2	Enquire
5	175318	INJECTION DEVICE RELAY	175318 INJECTION DEVICE RELAY	-	4	Enquire
6	125243	20 AMP. FUSE	125243 20 AMP. FUSE	-	4	Enquire
7	157991	A.C. ELECTRO FAN CONDENSER	157991 A.C. ELECTRO FAN CONDENSER Valid for CH	-	1	Enquire
8	150039	Actuator door control unit	150039 Actuator door control unit	-	1	Enquire
9	147177	Window regulator control unit	147177 Window regulator control unit	-	1	Enquire
10	61079400	A.C. system control unit	61079400 A.C. system control unit	-	1	Enquire
11	62769800	WASHER	62769800 WASHER	-	7	Enquire
12	116055	Rear cover	116055 Rear cover	-	1	Enquire
13	137667	ACOUSTIC SIGNAL WITH ELECTROMAGNETIC SWITCH FOR BRAKES WARNING LIGHT CONTROL	137667 ACOUSTIC SIGNAL WITH ELECTROMAGNETIC SWITCH FOR BRAKES WARNING LIGHT CONTROL Not for CDN	-	1	Enquire
14	159265	DIRECTION LIGHTS AND EMERGENCY FLASHER	159265 DIRECTION LIGHTS AND EMERGENCY FLASHER hazard	-	1	Enquire
15	61827900	Wiper intermittence	61827900 Wiper intermittence	-	1	Enquire
16	157992	DEVIATOR RELAY 30/20 A.	157992 DEVIATOR RELAY 30/20 A. Valid for CDN	-	2	Enquire
17	137669	BRACKET	137669 BRACKET	-	1	Enquire
18	63677300	Control unit bracket	63677300 Control unit bracket	-	1	Enquire
19	14304324	SCREW	14304324 SCREW	-	2	Enquire
20	10615274	WASHER	10615274 WASHER	-	2	Enquire
21	62769800	WASHER	62769800 WASHER	-	2	Enquire
22	116857	Spring	116857 Spring	-	2	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
24	64686900	SCREW	64686900 SCREW	-	2	Enquire
25	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	7	Enquire
