Name: REAR ACTIVE AERO
Rating: 4.1 (1 reviews)

REAR ACTIVE AERO of Ferrari Ferrari 488 Spider

View All

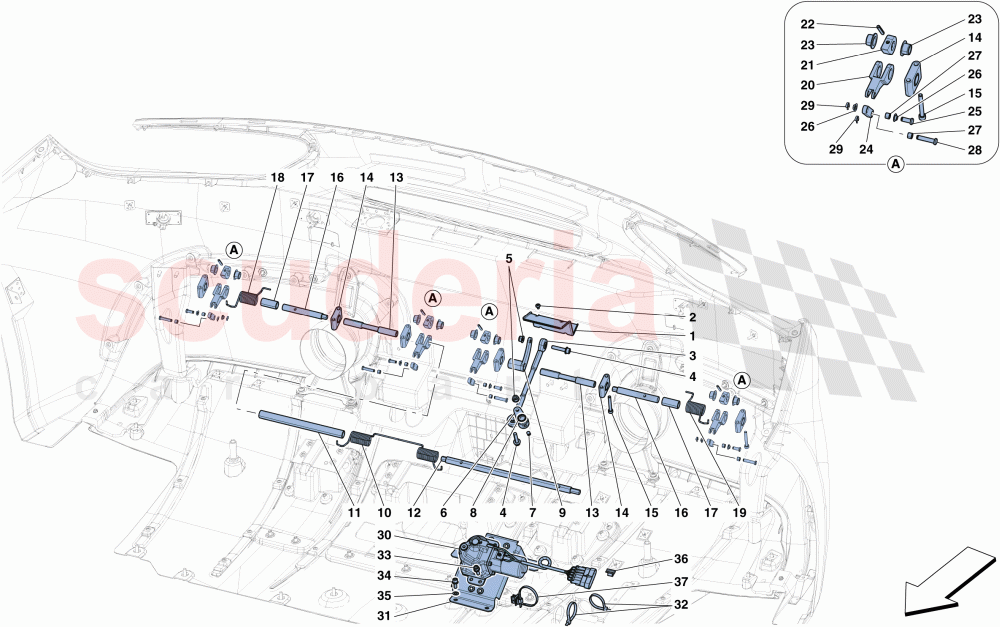

Ferrari 488 Spider - REAR ACTIVE AERO

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	309215	HEAT SHIELD	$11.70	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85950400	TIE-ROD	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	301909	SELF-LOCKING NUT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	318985	ACTUATOR CONTROL LEVER	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	301918	GRUB SCREW	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	14453181	GASKET	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	85709000	CENTRE RETURN SPRING	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	85709300	CENTRAL SPACER	$17.62	To Order

Photo	Part No	Description	Price (each)	Stock
	85708700	CENTRE SHAFT SECTION	$125.14	To Order

Photo	Part No	Description	Price (each)	Stock
	85708900	SHAFT MOUNT	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	301785	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	85708800	LATERAL SHAFT SECTION	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	85709400	LATERAL SPACER	$8.22	To Order

Photo	Part No	Description	Price (each)	Stock
	310109	RH RETURN SPRING	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	310110	LH RETURN SPRING	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	318981	HATCH ACTUATOR LINK	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	328330	CONTROL CAM	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	85711800	DRIVE PIN	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	85711700	BUSH	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	85709700	LATERAL LINK	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	306757	UPPER LINK PIN	$12.98	To Order

Photo	Part No	Description	Price (each)	Stock
	87804600	BUSH	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	85712200	BUSH FOR LINK PIN	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	85712100	LOWER LINK PINS	$17.18	To Order

Photo	Part No	Description	Price (each)	Stock
	306350	SAFETY CLIP	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	318998	ELECTRIC ACTUATOR	$1,624.62	To Order

Photo	Part No	Description	Price (each)	Stock
	85837700	ACTUATOR MOUNT	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	13579221	WASHER	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	309215	HEAT SHIELD	309215 HEAT SHIELD	$11.70	1
2	795930	SCREW	795930 SCREW M4 X 8	-	2	Enquire
3	85950400	TIE-ROD	85950400 TIE-ROD	$186.33	1
4	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	2
5	301909	SELF-LOCKING NUT	301909 SELF-LOCKING NUT	$1.65	2
6	318985	ACTUATOR CONTROL LEVER	318985 ACTUATOR CONTROL LEVER	$94.66	1
7	301918	GRUB SCREW	301918 GRUB SCREW	$0.83	1
8	14453181	GASKET	14453181 GASKET	$1.09	1
10	85709000	CENTRE RETURN SPRING	85709000 CENTRE RETURN SPRING	$32.08	1
11	85709300	CENTRAL SPACER	85709300 CENTRAL SPACER	$17.62	1
12	85708700	CENTRE SHAFT SECTION	85708700 CENTRE SHAFT SECTION	$125.14	1
14	85708900	SHAFT MOUNT	85708900 SHAFT MOUNT	$22.45	6
15	301785	SCREW	301785 SCREW	$0.71	12
16	85708800	LATERAL SHAFT SECTION	85708800 LATERAL SHAFT SECTION	$62.56	2
17	85709400	LATERAL SPACER	85709400 LATERAL SPACER	$8.22	2
18	310109	RH RETURN SPRING	310109 RH RETURN SPRING	$17.63	1
19	310110	LH RETURN SPRING	310110 LH RETURN SPRING	$17.63	1
20	318981	HATCH ACTUATOR LINK	318981 HATCH ACTUATOR LINK	$85.03	4
21	328330	CONTROL CAM	328330 CONTROL CAM	$4.80	4
22	85711800	DRIVE PIN	85711800 DRIVE PIN	$1.46	4
23	85711700	BUSH	85711700 BUSH	$3.23	8
24	85709700	LATERAL LINK	85709700 LATERAL LINK	$43.31	4
25	306757	UPPER LINK PIN	306757 UPPER LINK PIN	$12.98	4
26	87804600	BUSH	87804600 BUSH	$1.36	8
27	85712200	BUSH FOR LINK PIN	85712200 BUSH FOR LINK PIN	$1.77	8
28	85712100	LOWER LINK PINS	85712100 LOWER LINK PINS	$17.18	4
29	306350	SAFETY CLIP	306350 SAFETY CLIP	$1.46	8
30	318998	ELECTRIC ACTUATOR	318998 ELECTRIC ACTUATOR	$1,624.62	1
31	85837700	ACTUATOR MOUNT	85837700 ACTUATOR MOUNT	$78.61	1
32	10815787	CLAMP	10815787 CLAMP	$0.15	2
33	231619	SCREW	231619 SCREW M6 X 20	$0.31	4
34	248334	SCREW	248334 SCREW M6 X 14	$0.68	4
35	13579221	WASHER	13579221 WASHER	$0.55	4
36	303385	CLIP	303385 CLIP	$0.31	1
37	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	1
