REAR BUMPER of Ferrari Ferrari 488 Spider

View All

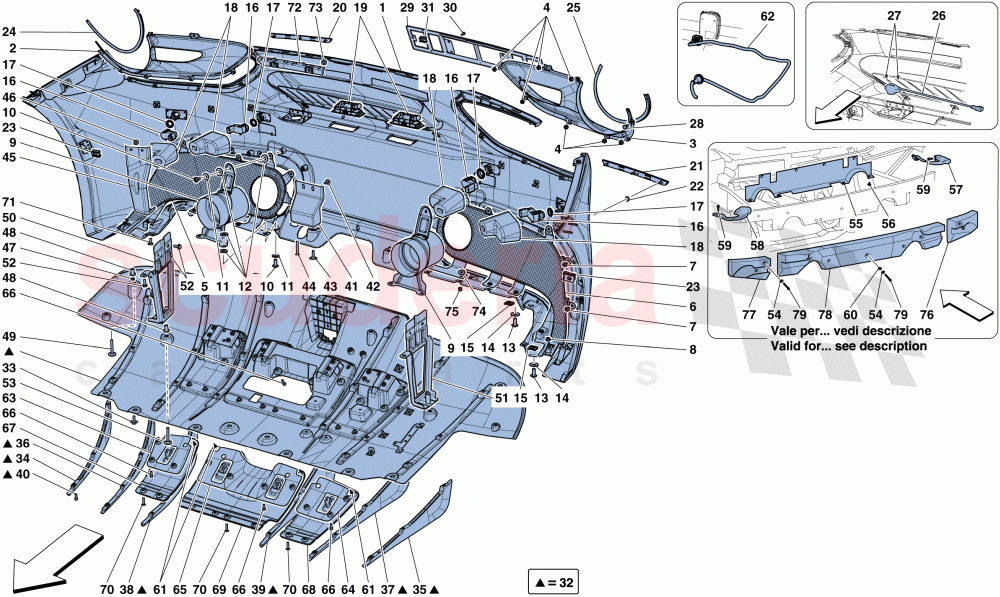

Ferrari 488 Spider - REAR BUMPER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86637810	COMPL. REAR BUMPER	Enquire	To Order

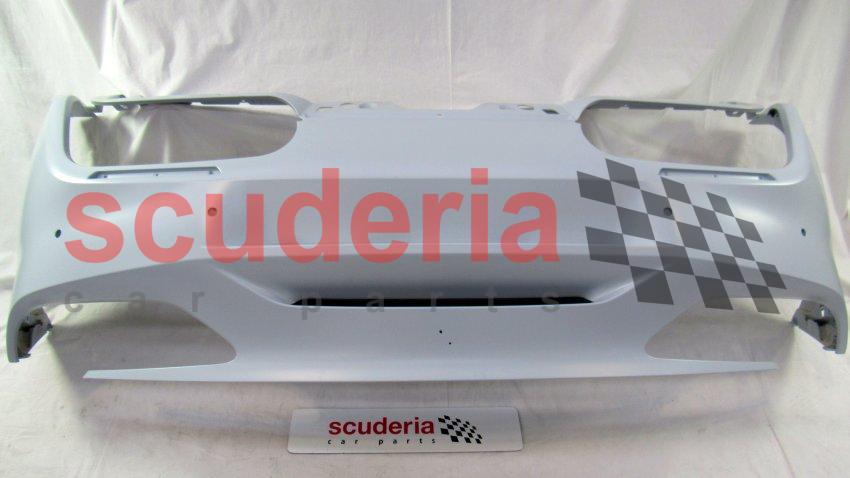

	86813610	Rear Bumper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86937700	RH LIGHT LATERAL SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86937600	LH LIGHT LATERAL SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940800	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86639000	LOWER RH GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

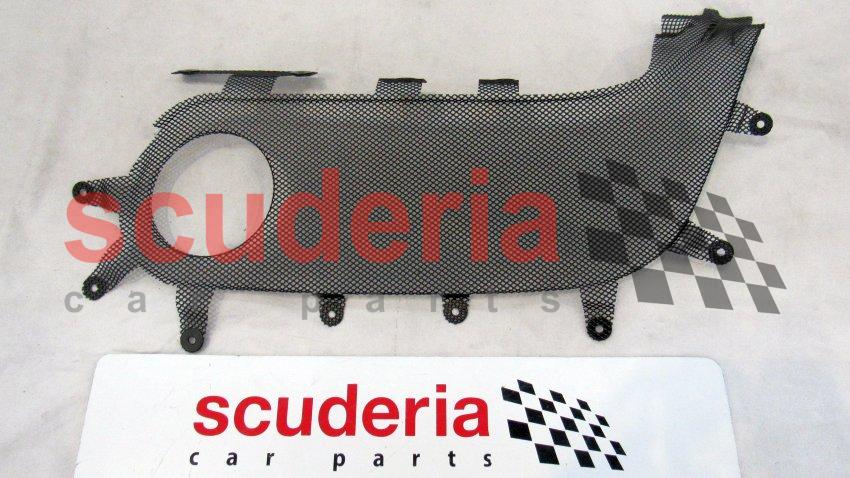

	86639100	Lower LH Grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940800	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86371000	COMPL. TAILPIPE TIP	Enquire	To Order
	86648400	COMPL. TAILPIPE TIP	Enquire	To Order
	86370800	COMPL. TAILPIPE TIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order
	67653800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87547900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14369274	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295361	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

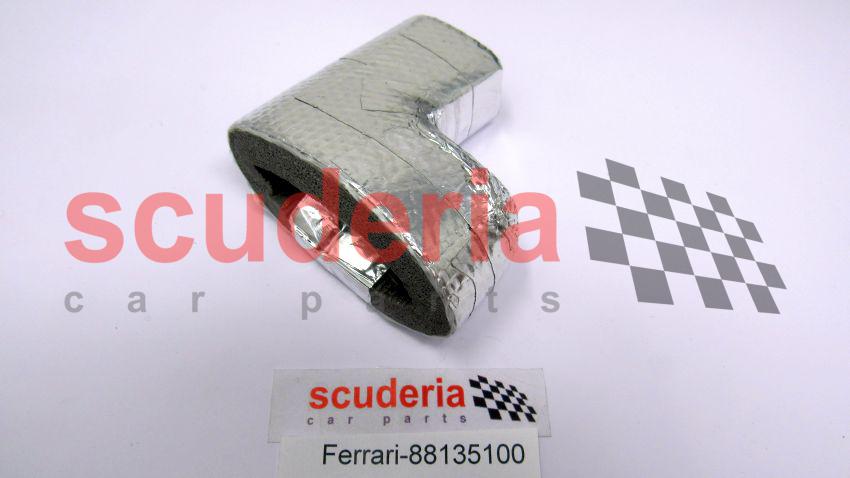

	88135100	PARKING SENSOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264480	LICENSE PLATE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

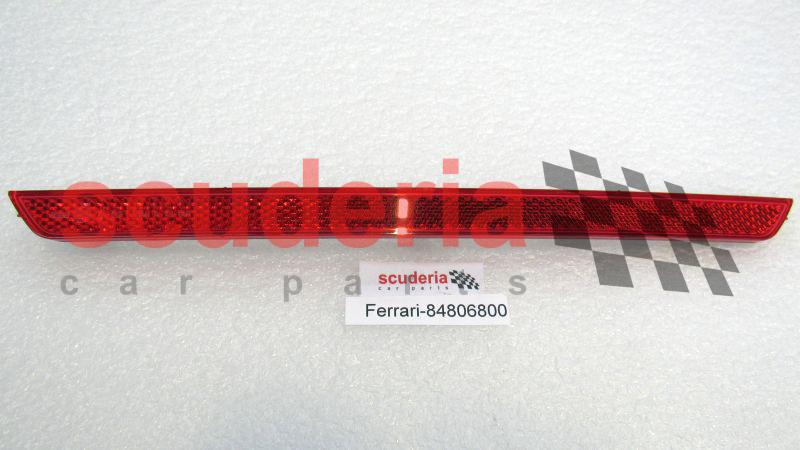

	84806800	RH REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

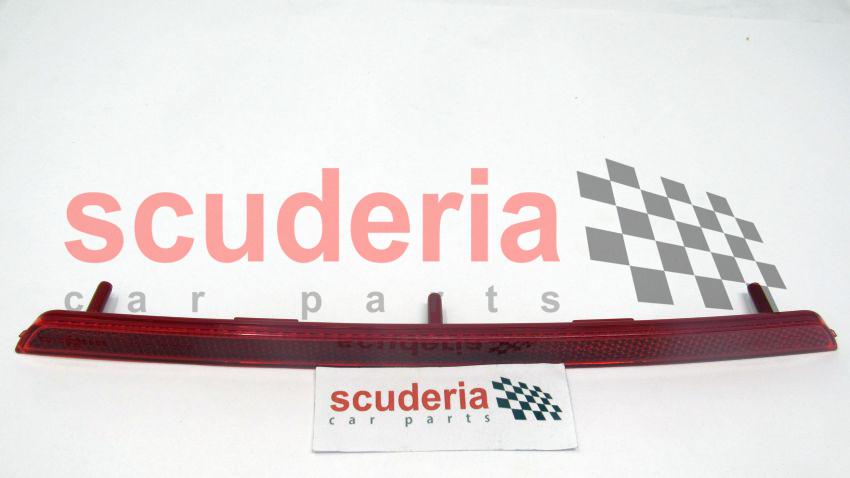

	84806900	LH REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84784600	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14371574	CLIP FOR SCREW	Enquire	To Order
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87380500	RH LIGHT SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87380400	LH LIGHT SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314630	MAGNETIC BATTERY CONDITIONER SEALED SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687909	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87387000	REAR LICENSE PLATE MOUNTING	Enquire	To Order
	87387300	REAR LICENSE PLATE MOUNTING	Enquire	To Order
	87386900	REAR LICENSE PLATE MOUNTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	15688075	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

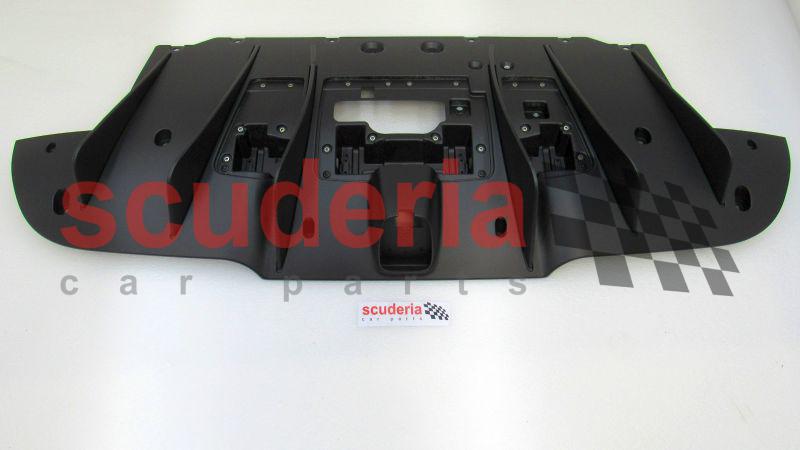

	872070	AERODYNAMIC EXTRACTOR	Enquire	To Order
	86371600	COMPL. AERODYNAMIC EXTRACTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

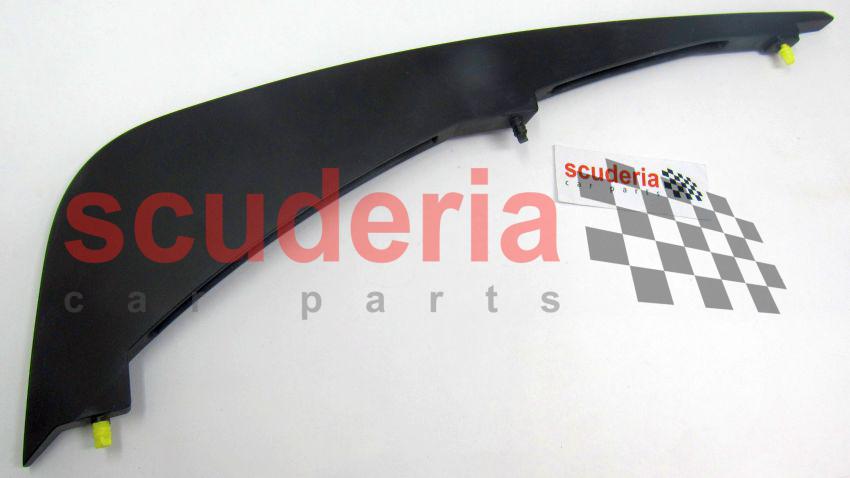

	86640100	RH Outer Fin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86640300	RH CENTRAL FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

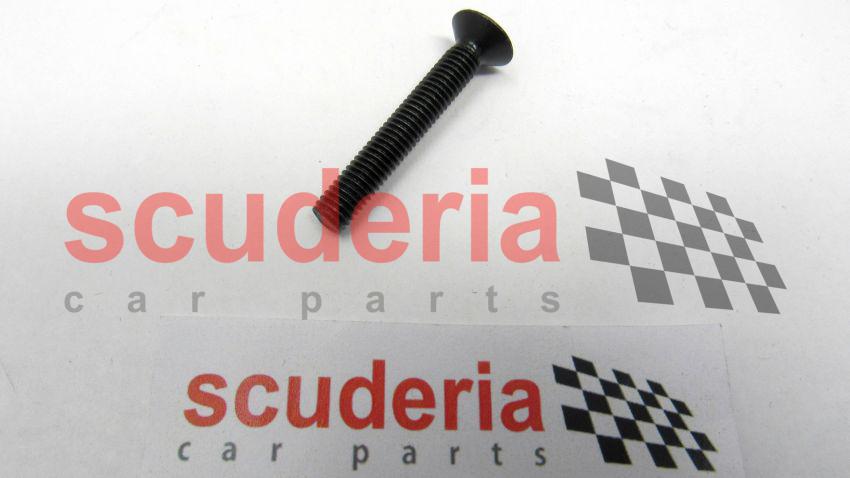

	83554200	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83314300	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320219	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85687400	SCREW M6 X 47	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86843900	COMPL. RH AERODYNAMIC UNDERTRAY FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86844100	COMPL. LH AERODYNAMIC UNDERTRAY FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85687400	SCREW M6 X 47	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87161000	REAR CROSS MEMBER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87804900	BRACKET UNDER RH TAILLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87804800	BRACKET UNDER LH TAILLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

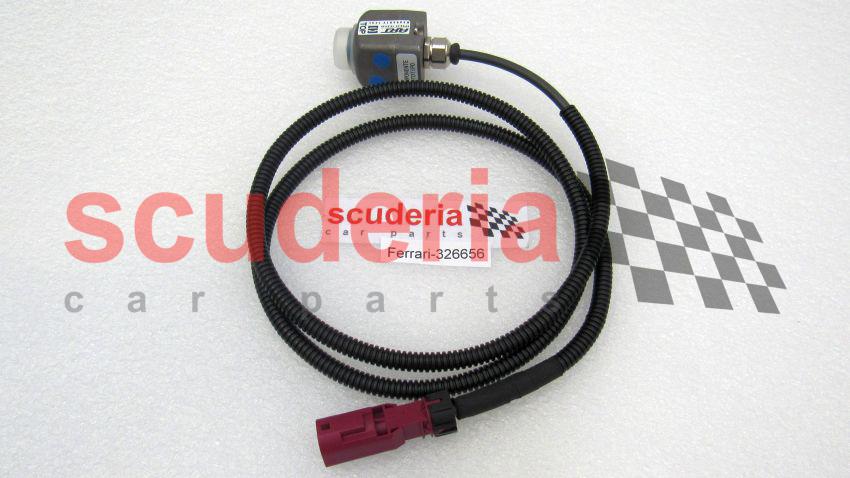

	326656	REAR CAMERA	Enquire	To Order
	310754	REAR CAMERA	Enquire	ARRIVING SOON
	310754	REAR CAMERA	Enquire	ARRIVING SOON

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86640700	RH ACTIVE AERO LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW M5 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86641000	RH LATERAL HATCH	Enquire	To Order
	86372500	RH LATERAL HATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86670300	RH SPOILER BRACKET	Enquire	To Order
	86647800	LH SPOILER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288610	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86844500	RH REAR IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86844700	LH REAR IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86844600	CENTRAL REAR IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305974	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86637810	COMPL. REAR BUMPER	86637810 COMPL. REAR BUMPER Applicable for Korea; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	86813610	Rear Bumper	86813610 Rear Bumper Not applicable for Korea; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	86937700	RH LIGHT LATERAL SURROUND	86937700 RH LIGHT LATERAL SURROUND Carbon	-	1	Enquire
3	86937600	LH LIGHT LATERAL SURROUND	86937600 LH LIGHT LATERAL SURROUND Carbon	-	1	Enquire
4	87940800	NUT	87940800 NUT	-	14	Enquire
5	86639000	LOWER RH GRILLE	86639000 LOWER RH GRILLE	-	1	Enquire
6	86639100	Lower LH Grille	86639100 Lower LH Grille	-	1	Enquire
7	289834	SCREW	289834 SCREW M6 X 10	-	14	Enquire
8	87940800	NUT	87940800 NUT	-	2	Enquire
9	86371000	COMPL. TAILPIPE TIP	86371000 COMPL. TAILPIPE TIP Titanium	-	2	Enquire
9	86648400	COMPL. TAILPIPE TIP	86648400 COMPL. TAILPIPE TIP	-	2	Enquire
9	86370800	COMPL. TAILPIPE TIP	86370800 COMPL. TAILPIPE TIP Black	-	2	Enquire
10	915271	SCREW	915271 SCREW M6 X 15	-	2	Enquire
10	67653800	SCREW	67653800 SCREW M6 X 25	-	4	Enquire
11	62769800	WASHER	62769800 WASHER	-	6	Enquire
12	87547900	WASHER	87547900 WASHER	-	12	Enquire
13	915271	SCREW	915271 SCREW M6 X 15	-	6	Enquire
14	62769800	WASHER	62769800 WASHER	-	6	Enquire
15	14369274	BRACKET	14369274 BRACKET	-	4	Enquire
16	295361	PARKING SENSOR	295361 PARKING SENSOR	-	4	Enquire
17	770452	SILICONE RING	770452 SILICONE RING	-	4	Enquire
18	88135100	PARKING SENSOR HEAT SHIELD	88135100 PARKING SENSOR HEAT SHIELD	-	4	Enquire
19	264480	LICENSE PLATE LIGHT	264480 LICENSE PLATE LIGHT	-	2	Enquire
20	84806800	RH REFLECTOR	84806800 RH REFLECTOR	-	1	Enquire
21	84806900	LH REFLECTOR	84806900 LH REFLECTOR	-	1	Enquire
22	84784600	WASHER	84784600 WASHER	-	6	Enquire
23	14371574	CLIP FOR SCREW	14371574 CLIP FOR SCREW Applicable for carbon bumpers	-	2	Enquire
23	62766300	CLIP	62766300 CLIP Not for carbon bumpers	-	2	Enquire
24	87380500	RH LIGHT SEAL	87380500 RH LIGHT SEAL Not for carbon bumpers	-	1	Enquire
25	87380400	LH LIGHT SEAL	87380400 LH LIGHT SEAL Not for carbon bumpers	-	1	Enquire
26	314630	MAGNETIC BATTERY CONDITIONER SEALED SOCKET	314630 MAGNETIC BATTERY CONDITIONER SEALED SOCKET	-	1	Enquire
27	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	2	Enquire
28	15687909	SCREW	15687909 SCREW	-	2	Enquire
29	87387000	REAR LICENSE PLATE MOUNTING	87387000 REAR LICENSE PLATE MOUNTING Applicable for CINA	-	1	Enquire
29	87387300	REAR LICENSE PLATE MOUNTING	87387300 REAR LICENSE PLATE MOUNTING Applicable for AUS	-	1	Enquire
29	87386900	REAR LICENSE PLATE MOUNTING	87386900 REAR LICENSE PLATE MOUNTING Applicable for USA, CDN, USA LIGHT	-	1	Enquire
29	87941900	REAR LICENSE PLATE MOUNTING	87941900 REAR LICENSE PLATE MOUNTING Applicable for GOLFO	-	1	Enquire
29	87387100	REAR LICENSE PLATE MOUNTING	87387100 REAR LICENSE PLATE MOUNTING Applicable for Korea; Applicable for EU GS, UK	-	1	Enquire
29	87387200	REAR LICENSE PLATE MOUNTING	87387200 REAR LICENSE PLATE MOUNTING Applicable for J	-	1	Enquire
30	15688075	SCREW	15688075 SCREW	-	4	Enquire
31	62766300	CLIP	62766300 CLIP Not for J	-	2	Enquire
32	872070	AERODYNAMIC EXTRACTOR	872070 AERODYNAMIC EXTRACTOR	-	1	Enquire
32	86371600	COMPL. AERODYNAMIC EXTRACTOR	86371600 COMPL. AERODYNAMIC EXTRACTOR Carbon	-	1	Enquire
33	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	-	8	Enquire
34	86640100	RH Outer Fin	86640100 RH Outer Fin	-	1	Enquire

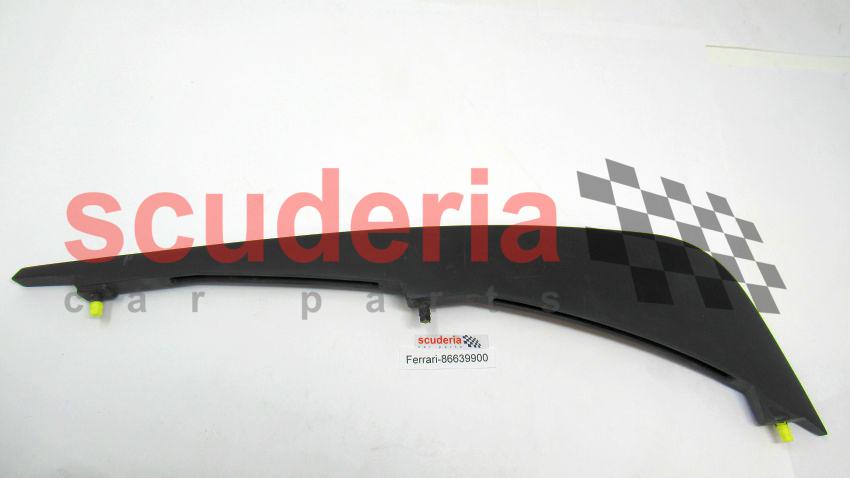

35	86639900	LH Outer Fin ARRIVING SOON	86639900 LH Outer Fin ARRIVING SOON	-	1	Enquire
36	86640300	RH CENTRAL FIN	86640300 RH CENTRAL FIN	-	1	Enquire

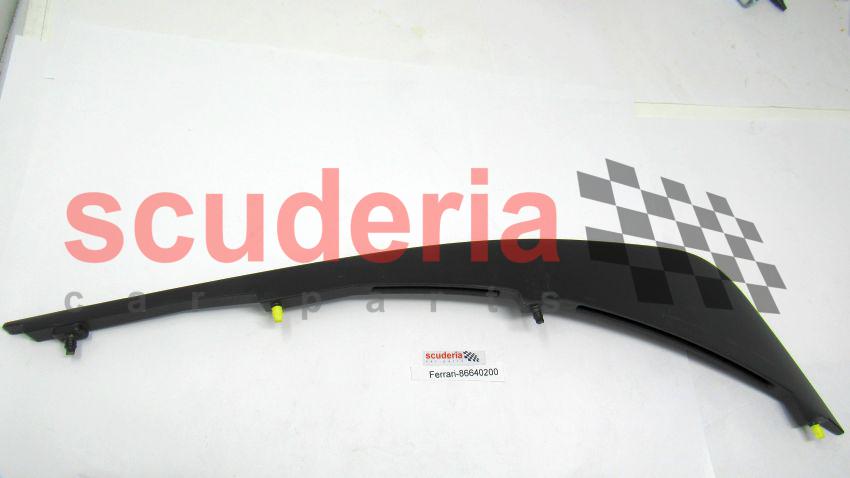

37	86640200	LH CENTRAL FIN	86640200 LH CENTRAL FIN	-	1	Enquire
38	86640500	RH INNER FIN	86640500 RH INNER FIN	-	1	Enquire

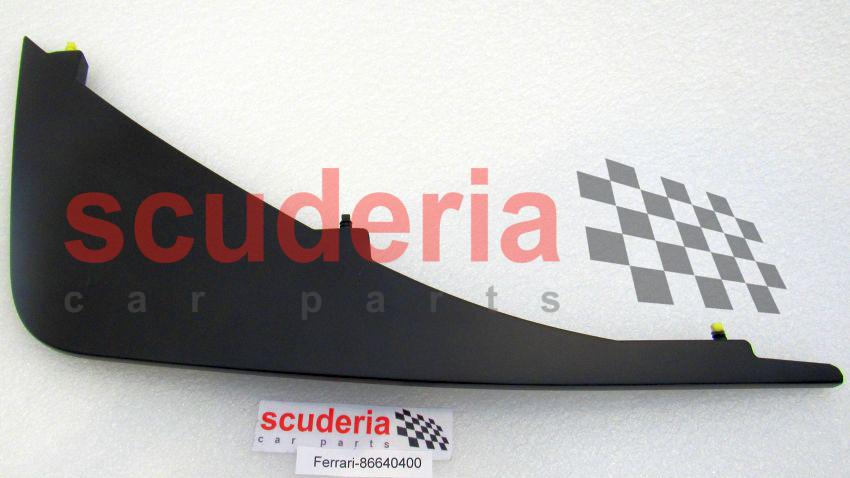

39	86640400	LH INNER FIN	86640400 LH INNER FIN	-	1	Enquire
40	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	20	Enquire
42	11625824	SCREW	11625824 SCREW M6 X 18	-	4	Enquire
43	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	2	Enquire
44	83554200	SCREW ARRIVING SOON	83554200 SCREW ARRIVING SOON	-	2	Enquire
46	11625824	SCREW	11625824 SCREW M6 X 18	-	4	Enquire
47	83314300	SHIM	83314300 SHIM	-	2	Enquire
48	320219	PIN	320219 PIN	-	4	Enquire
49	85687400	SCREW M6 X 47	85687400 SCREW M6 X 47 M6 X 47	-	2	Enquire
50	86843900	COMPL. RH AERODYNAMIC UNDERTRAY FASTENER BRACKET	86843900 COMPL. RH AERODYNAMIC UNDERTRAY FASTENER BRACKET	-	1	Enquire
51	86844100	COMPL. LH AERODYNAMIC UNDERTRAY FASTENER BRACKET	86844100 COMPL. LH AERODYNAMIC UNDERTRAY FASTENER BRACKET	-	1	Enquire
52	11625824	SCREW	11625824 SCREW M6 X 18	-	6	Enquire
53	85687400	SCREW M6 X 47	85687400 SCREW M6 X 47 M6 X 47	-	2	Enquire
54	14498801	WASHER	14498801 WASHER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	5	Enquire
55	87161000	REAR CROSS MEMBER HEAT SHIELD	87161000 REAR CROSS MEMBER HEAT SHIELD Applicable for USA, CDN, USA LIGHT	-	1	Enquire
56	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22; Applicable for USA, CDN, USA LIGHT	-	6	Enquire
57	87804900	BRACKET UNDER RH TAILLIGHT	87804900 BRACKET UNDER RH TAILLIGHT Applicable for USA, CDN, USA LIGHT	-	1	Enquire
58	87804800	BRACKET UNDER LH TAILLIGHT	87804800 BRACKET UNDER LH TAILLIGHT Applicable for USA, CDN, USA LIGHT	-	1	Enquire
59	11625524	SCREW	11625524 SCREW M6 X 12; Applicable for USA, CDN, USA LIGHT	-	6	Enquire
60	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	5	Enquire
61	84918500	RUBBER PAD	84918500 RUBBER PAD	-	6	Enquire
62	326656	REAR CAMERA	326656 REAR CAMERA Version with front and rear digital cameras; Also included with rear fog light tab.130 ref.8	-	1	Enquire
62	310754	REAR CAMERA ARRIVING SOON	310754 REAR CAMERA Version with analogue rear camera; Also included with rear fog light tab.130 ref.8; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183 ARRIVING SOON	-	1	Enquire
62	310754	REAR CAMERA ARRIVING SOON	310754 REAR CAMERA Version with analogue rear camera; Also included with rear fog light tab.130 ref.8; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 156184 ARRIVING SOON	-	1	Enquire
62	310754	REAR CAMERA ARRIVING SOON	310754 REAR CAMERA Version with analogue rear camera; Also included with rear fog light tab.130 ref.8; Not for USA, CDN, USA LIGHT ARRIVING SOON	-	1	Enquire
63	86640700	RH ACTIVE AERO LATERAL COVER	86640700 RH ACTIVE AERO LATERAL COVER	-	1	Enquire
64	86640800	LH ACTIVE AERO LATERAL COVER	86640800 LH ACTIVE AERO LATERAL COVER	-	1	Enquire
65	86640600	ACTIVE AERO CENTRE COVER	86640600 ACTIVE AERO CENTRE COVER	-	1	Enquire
66	16281827	SCREW M5 X 14	16281827 SCREW M5 X 14	-	10	Enquire
67	86641000	RH LATERAL HATCH	86641000 RH LATERAL HATCH	-	1	Enquire
67	86372500	RH LATERAL HATCH	86372500 RH LATERAL HATCH Carbon	-	1	Enquire
68	86372600	LH LATERAL HATCH	86372600 LH LATERAL HATCH Carbon	-	1	Enquire
68	86641200	LH LATERAL HATCH	86641200 LH LATERAL HATCH	-	1	Enquire
69	86640900	CENTRAL HATCH	86640900 CENTRAL HATCH	-	1	Enquire
69	86372400	CENTRAL HATCH	86372400 CENTRAL HATCH Carbon	-	1	Enquire
70	81591700	SCREW	81591700 SCREW M5 X 20; M5 X 20	-	8	Enquire
71	85199200	FIXING BUTTON	85199200 FIXING BUTTON	-	2	Enquire
72	86670300	RH SPOILER BRACKET	86670300 RH SPOILER BRACKET	-	1	Enquire
72	86647800	LH SPOILER BRACKET	86647800 LH SPOILER BRACKET	-	1	Enquire
73	11625824	SCREW	11625824 SCREW M6 X 18	-	4	Enquire
74	288610	WASHER	288610 WASHER	-	4	Enquire
75	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
76	86844500	RH REAR IMPACT ABSORBER	86844500 RH REAR IMPACT ABSORBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
77	86844700	LH REAR IMPACT ABSORBER	86844700 LH REAR IMPACT ABSORBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
78	86844600	CENTRAL REAR IMPACT ABSORBER	86844600 CENTRAL REAR IMPACT ABSORBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
79	14305974	SCREW	14305974 SCREW M6 X 45; Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	5	Enquire
