Doors - Power Window And Rear View Mirror

Ferrari 488 Spider

Find Your Part

Ferrari 488 Spider - DOORS - POWER WINDOW AND REAR VIEW MIRROR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86266400 FRONT RH DOOR WINDOW LIFT MECHANISM Enquire To Order
86266300 FRONT LH DOOR WINDOW LIFT MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
87012710 RH EXTERNAL REAR VIEW MIRROR Enquire To Order
86288010 LH EXTERNAL REAR VIEW MIRROR Enquire To Order
87012610 LH EXTERNAL REAR VIEW MIRROR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
303385 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
86775600 RH WINDOW LIFTER MOTOR Enquire To Order
86775500 LH WINDOW LIFT MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
255515 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
864414 LH EXTERNAL MIRROR TEMPERATURE SENSOR Enquire To Order
864415 LH EXTERNAL MIRROR TEMPERATURE SENSOR Enquire To Order
View All

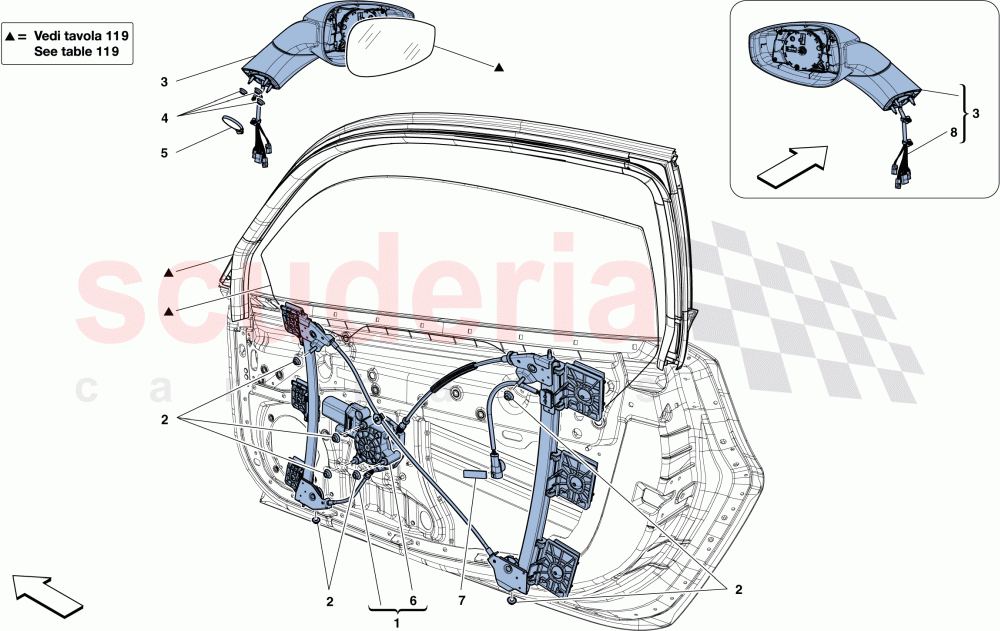

DOORS - POWER WINDOW AND REAR VIEW MIRROR of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 86266400
FRONT RH DOOR WINDOW LIFT MECHANISM 		- 1 Enquire
1 86266300
FRONT LH DOOR WINDOW LIFT MECHANISM 		- 1 Enquire
2 14059290
FLANGED NUT M6 		- 14 Enquire
3 87012710
RH EXTERNAL REAR VIEW MIRROR
Memory mirror for full electric seats 		- 1 Enquire
3 86288010
LH EXTERNAL REAR VIEW MIRROR 		- 1 Enquire
3 87012610
LH EXTERNAL REAR VIEW MIRROR
Memory mirror for full electric seats 		- 1 Enquire
3 86287910
RH EXTERNAL REAR VIEW MIRROR 		- 1 Enquire
4 14059290
FLANGED NUT M6 		- 6 Enquire
5 303385
CLIP 		- 2 Enquire
6 86775600
RH WINDOW LIFTER MOTOR 		- 1 Enquire
6 86775500
LH WINDOW LIFT MOTOR 		- 1 Enquire
7 255515
BUSH
100 x 50 mm 		- 2 Enquire
8 864414
LH EXTERNAL MIRROR TEMPERATURE SENSOR
Memory mirror for full electric seats 		- 1 Enquire
8 864415
LH EXTERNAL MIRROR TEMPERATURE SENSOR 		- 1 Enquire
