FRONT BUMPER of Ferrari Ferrari 488 Spider

View All

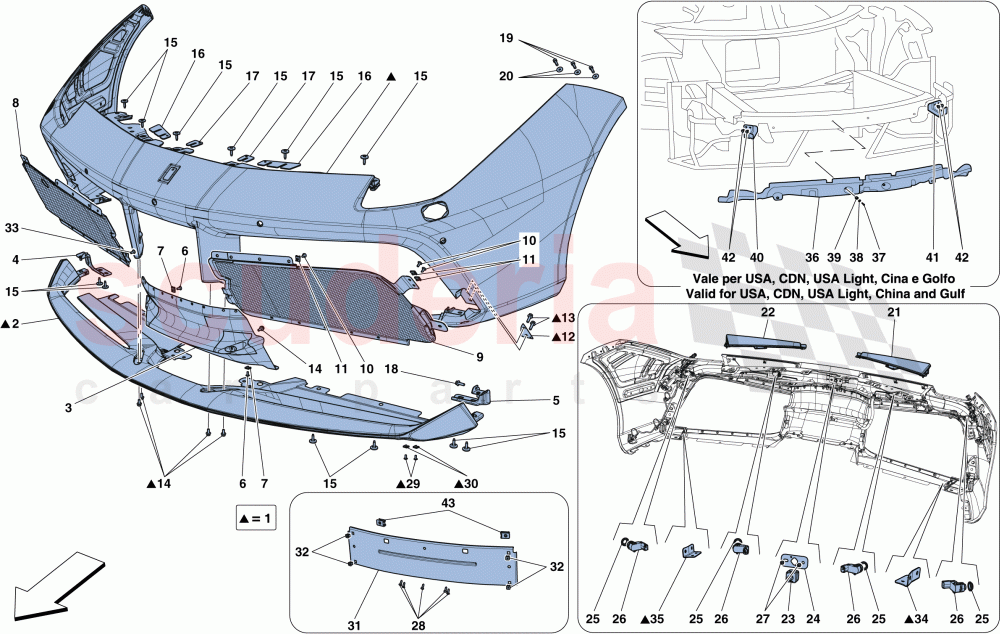

Ferrari 488 Spider - FRONT BUMPER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87973710	FRONT BUMPER	Enquire	To Order
	87852210	FRONT BUMPER	Enquire	To Order
	87852110	FRONT BUMPER	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86707910	Front Spoiler	Enquire	To Order
	86975110	Front Spoiler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86708600	RH CONNECTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86708700	LH CONNECTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169813	SCREW M5 X 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764200	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86709100	RH Front Air Intake Grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86709200	LH FRONT AIR INTAKE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169813	SCREW M5 X 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764200	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87281900	SPOILER REINFORCING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286134	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87328000	DOUBLE MOUNTING SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87327900	SINGLE FASTENER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order
	113113	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86707100	RH Luggage Complete Tub Grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86707400	LH Luggage Compartment Tub Grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326655	DIGITAL CAMERA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86886800	CAMERA FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295361	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688075	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169813	SCREW M5 X 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764200	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87500100	FRONT LICENSE PLATE MOUNT	Enquire	To Order
	87499900	FRONT LICENSE PLATE MOUNT	Enquire	To Order
	87410600	FRONT LICENSE PLATE MOUNT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14201980	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15533501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86928600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86928700	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86556100	FRONT BUMPER IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305974	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86836400	RH CRASH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86835600	LH CRASH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87973710	FRONT BUMPER	87973710 FRONT BUMPER Carbon spoiler; Version with parking sensors and front camera; Front camera and sensors ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87852210	FRONT BUMPER	87852210 FRONT BUMPER Carbon spoiler; Version with parking sensors and front camera; Front camera and sensors ordered separately; Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
1	87852110	FRONT BUMPER	87852110 FRONT BUMPER Carbon spoiler; Version with front camera; Front camera ordered separately; Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
1	87973510	FRONT BUMPER	87973510 FRONT BUMPER Carbon spoiler; Version with front camera; Front camera ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87973210	FRONT BUMPER	87973210 FRONT BUMPER Carbon spoiler; Version with parking sensors; Parking sensors ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87972610	FRONT BUMPER	87972610 FRONT BUMPER Carbon spoiler; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87851810	FRONT BUMPER	87851810 FRONT BUMPER Carbon spoiler; Version with parking sensors; Parking sensors ordered separately; Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
1	87851610	FRONT BUMPER	87851610 FRONT BUMPER Carbon spoiler; Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
1	87806210	Front Bumper	87806210 Front Bumper Version with parking sensors and front camera; Front camera and sensors ordered separately; Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
1	87970610	FRONT BUMPER	87970610 FRONT BUMPER Version with parking sensors and front camera; Front camera and sensors ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87970310	FRONT BUMPER	87970310 FRONT BUMPER Version with front camera; Front camera ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87970210	FRONT BUMPER	87970210 FRONT BUMPER Version with parking sensors; Parking sensors ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87806110	FRONT BUMPER	87806110 FRONT BUMPER Version with front camera; Front camera ordered separately; Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
1	87805910	FRONT BUMPER	87805910 FRONT BUMPER Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
1	87969610	FRONT BUMPER	87969610 FRONT BUMPER Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87806010	FRONT BUMPER	87806010 FRONT BUMPER Version with parking sensors; Parking sensors ordered separately; Applicable for Korea and Brazil; Applicable for EU GS, CINA, GOLFO, J, GD	-	1	Enquire
2	86707910	Front Spoiler	86707910 Front Spoiler	-	1	Enquire
2	86975110	Front Spoiler	86975110 Front Spoiler Carbon version	-	1	Enquire
4	86708600	RH CONNECTION BRACKET	86708600 RH CONNECTION BRACKET	-	1	Enquire
5	86708700	LH CONNECTION BRACKET	86708700 LH CONNECTION BRACKET	-	1	Enquire
6	169813	SCREW M5 X 12	169813 SCREW M5 X 12	-	16	Enquire
7	62764200	CLIP	62764200 CLIP	-	16	Enquire
8	86709100	RH Front Air Intake Grille	86709100 RH Front Air Intake Grille	-	1	Enquire
9	86709200	LH FRONT AIR INTAKE GRILLE	86709200 LH FRONT AIR INTAKE GRILLE	-	1	Enquire
10	169813	SCREW M5 X 12	169813 SCREW M5 X 12	-	18	Enquire
11	62764200	CLIP	62764200 CLIP	-	18	Enquire
12	87281900	SPOILER REINFORCING PLATE	87281900 SPOILER REINFORCING PLATE	-	2	Enquire
13	16286134	SCREW	16286134 SCREW	-	4	Enquire
14	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	6	Enquire
15	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	16	Enquire
16	87328000	DOUBLE MOUNTING SPACER	87328000 DOUBLE MOUNTING SPACER Not for UK	-	4	Enquire
17	87327900	SINGLE FASTENER SPACER	87327900 SINGLE FASTENER SPACER Not for UK	-	8	Enquire
18	85833700	SCREW	85833700 SCREW	-	2	Enquire
19	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Not for UK	-	6	Enquire
20	12643724	WASHER	12643724 WASHER No longer supplied; Replaced by 12647604	-	6	Enquire
20	113113	WASHER	113113 WASHER	-	6	Enquire
21	86707100	RH Luggage Complete Tub Grille	86707100 RH Luggage Complete Tub Grille	-	1	Enquire
22	86707400	LH Luggage Compartment Tub Grille	86707400 LH Luggage Compartment Tub Grille	-	1	Enquire
23	326655	DIGITAL CAMERA	326655 DIGITAL CAMERA Version with front camera	-	1	Enquire
24	86886800	CAMERA FASTENER BRACKET	86886800 CAMERA FASTENER BRACKET Version with front camera; Not for UK	-	1	Enquire
25	770452	SILICONE RING	770452 SILICONE RING Version with parking sensors	-	4	Enquire
26	295361	PARKING SENSOR	295361 PARKING SENSOR Version with parking sensors	-	4	Enquire
27	795930	SCREW	795930 SCREW M4 X 8; Version with front camera	-	2	Enquire
28	15688075	SCREW	15688075 SCREW	-	5	Enquire
29	169813	SCREW M5 X 12	169813 SCREW M5 X 12	-	4	Enquire
30	62764200	CLIP	62764200 CLIP	-	4	Enquire
31	87500100	FRONT LICENSE PLATE MOUNT	87500100 FRONT LICENSE PLATE MOUNT Applicable for AUS	-	1	Enquire
31	87499900	FRONT LICENSE PLATE MOUNT	87499900 FRONT LICENSE PLATE MOUNT Applicable for J	-	1	Enquire
31	87410600	FRONT LICENSE PLATE MOUNT	87410600 FRONT LICENSE PLATE MOUNT Applicable for CINA	-	1	Enquire
31	87392400	FRONT LICENSE PLATE MOUNT	87392400 FRONT LICENSE PLATE MOUNT Applicable for GOLFO	-	1	Enquire
31	87232200	FRONT LICENSE PLATE MOUNT	87232200 FRONT LICENSE PLATE MOUNT Applicable for USA, CDN, USA LIGHT	-	1	Enquire
31	86298400	Front License Plate Mount	86298400 Front License Plate Mount Applicable for ECE; Not for Italy and Russia; Applicable for Kuwait	-	1	Enquire
31	87624900	FRONT LICENSE PLATE MOUNT	87624900 FRONT LICENSE PLATE MOUNT Applicable for Italy	-	1	Enquire
31	86298700	FRONT LICENSE PLATE MOUNT	86298700 FRONT LICENSE PLATE MOUNT Applicable for Russia and Korea; Applicable for UK	-	1	Enquire
32	14201980	BLOCK	14201980 BLOCK Applicable for EU GS, USA, CDN, GOLFO, UK, USA LIGHT	-	4	Enquire
33	15533501	SCREW	15533501 SCREW	-	2	Enquire
34	86928600	BRACKET	86928600 BRACKET Applicable until depletion	-	1	Enquire
35	86928700	BRACKET	86928700 BRACKET Applicable until depletion	-	1	Enquire
36	86556100	FRONT BUMPER IMPACT ABSORBER	86556100 FRONT BUMPER IMPACT ABSORBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
37	14305974	SCREW	14305974 SCREW M6 X 45; Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	4	Enquire
38	14498801	WASHER	14498801 WASHER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	4	Enquire
39	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	4	Enquire
40	86836400	RH CRASH BRACKET	86836400 RH CRASH BRACKET Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
41	86835600	LH CRASH BRACKET	86835600 LH CRASH BRACKET Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
42	16286121	SCREW	16286121 SCREW M6 X 18; Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	4	Enquire
43	62766300	CLIP	62766300 CLIP Applicable for EU GS, CINA, UK	-	2	Enquire
