REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Find Your Part

Ferrari 430 Scuderia Spider 16M - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
238962 REAR SHOCK ABSORBER $4,151.32 To Order
Photo Part No Description Price (each) Stock
257179 SPRING $722.05 To Order
229955 SPRING $3,400.13 To Order
Photo Part No Description Price (each) Stock
245623 UPPER SPACER $48.12 To Order
Photo Part No Description Price (each) Stock
181408 LOWER SPACER $52.94 To Order
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $118.72 ARRIVING SOON
Photo Part No Description Price (each) Stock
174727 UPPER SPRING RETENTION CAP $295.68 To Order
Photo Part No Description Price (each) Stock
174728 SHOCK ABSORBER BUSHING $128.35 To Order
Photo Part No Description Price (each) Stock
174725 RING NUT, SHOCK ABSORBER $125.14 To Order
Photo Part No Description Price (each) Stock
174726 THREADED RING NUT $72.29 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.15 To Order
230083 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10460287 RUBBER RING $1.54 To Order
Photo Part No Description Price (each) Stock
222340 REAR BRAKE DISC $4,295.02 To Order
Photo Part No Description Price (each) Stock
212948 SILENT BLOCK BUSH FOR SHOCK ABSORBER $176.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
11306934 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
204974 SCREW $303.72 To Order
Photo Part No Description Price (each) Stock
129225 WASHER $1.65 To Order
Photo Part No Description Price (each) Stock
148020 NUT $4.46 To Order
Photo Part No Description Price (each) Stock
161109 RH Ball Tie Rod $123.54 To Order
161110 LH Spherical Tie-Rod $123.54 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
239584 REAR STABILISER BAR $1,922.70 To Order
Photo Part No Description Price (each) Stock
10791014 NUT $0.29 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
170716 RH Bar Buffer $67.38 To Order
Photo Part No Description Price (each) Stock
170717 LH Bar Buffer $57.75 To Order
Photo Part No Description Price (each) Stock
175861 LH ARM $288.81 To Order
Photo Part No Description Price (each) Stock
170950 ALLEN SCREW M10 X 1.25 $3.32 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
194134 Hub Bearing $755.98 To Order
Photo Part No Description Price (each) Stock
180591 SCREW $2.48 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
10732414 WASHER $8.22 To Order
Photo Part No Description Price (each) Stock
209184 NUT $11.52 To Order
Photo Part No Description Price (each) Stock
104370 SCREW $10.11 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
View All

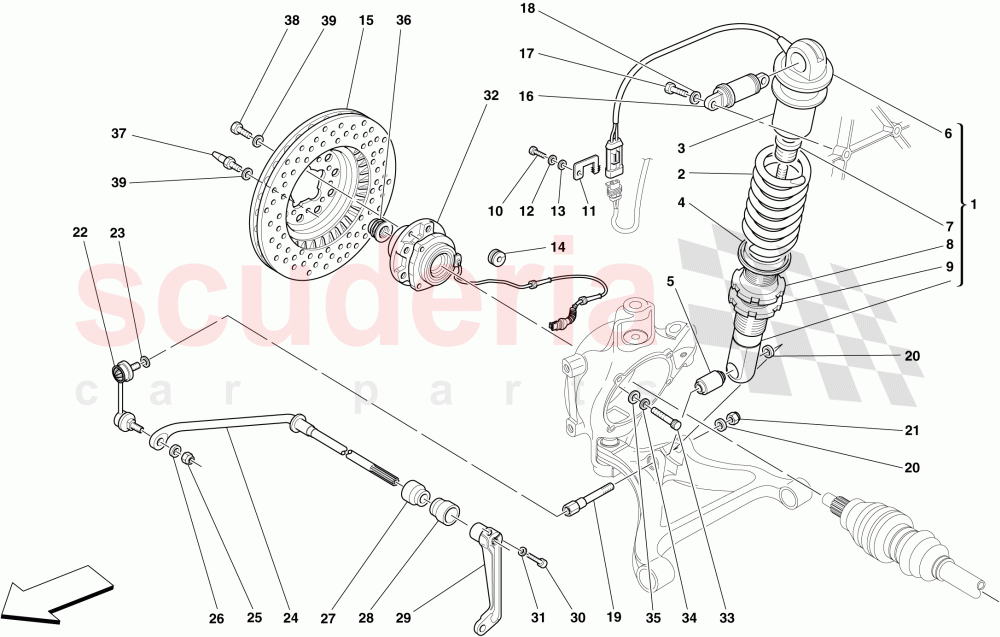

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 238962
REAR SHOCK ABSORBER 		$4,151.32 2
2 257179
SPRING
Steel; Alternative solution 		$722.05 2
2 229955
SPRING
Standard 		$3,400.13 2
3 245623
UPPER SPACER 		$48.12 2
4 181408
LOWER SPACER 		$52.94 (25.8% off) 2
5 157630
SHOCK ABSORBER BUSH
ARRIVING SOON 		$118.72 (22% off) 2
6 174727
UPPER SPRING RETENTION CAP 		$295.68 2
7 174728
SHOCK ABSORBER BUSHING 		$128.35 (25.5% off) 2
8 174725
RING NUT, SHOCK ABSORBER 		$125.14 2
9 174726
THREADED RING NUT 		$72.29 2
10 10977524
SCREW
No longer supplied; Replaced by 230083 		$0.15 2
10 230083
SCREW 		$1.43 2
11 162606
CLIP 		$1.36 (7.5% off) 2
12 127494
WASHER 		$0.08 (88.2% off) 2
13 12643724
WASHER 		$0.06 (88% off) 2
14 10460287
RUBBER RING 		$1.54 2
15 222340
REAR BRAKE DISC
Replace as a pair 		$4,295.02 (20% off) 2
16 212948
SILENT BLOCK BUSH FOR SHOCK ABSORBER
ARRIVING SOON 		$176.49 (20.9% off) 2
17 11306934
SCREW 		$0.57 (62% off) 4
18 160092
WASHER 		$0.28 (53.3% off) 4
19 204974
SCREW 		$303.72 2
20 129225
WASHER 		$1.65 (20.3% off) 4
21 148020
NUT 		$4.46 2
22 161109
RH Ball Tie Rod 		$123.54 (31% off) 1
22 161110
LH Spherical Tie-Rod 		$123.54 (24.3% off) 1
23 160092
WASHER 		$0.28 (53.3% off) 2
24 239584
REAR STABILISER BAR 		$1,922.70 1
25 10791014
NUT 		$0.29 2
26 12601474
WASHER 		$0.03 2
27 170716
RH Bar Buffer 		$67.38 (23% off) 1
28 170717
LH Bar Buffer 		$57.75 (20.8% off) 1
29 175861
LH ARM 		$288.81 1
30 170950
ALLEN SCREW M10 X 1.25 		$3.32 (31.3% off) 1
31 12601474
WASHER 		$0.03 1
32 194134
Hub Bearing 		$755.98 (6.7% off) 2
33 180591
SCREW 		$2.48 (37.2% off) 8
34 160092
WASHER 		$0.28 (53.3% off) 8
35 10732414
WASHER 		$8.22 (13.5% off) 8
36 209184
NUT 		$11.52 (85.9% off) 2
37 104370
SCREW 		$10.11 2
38 14306924
SCREW 		$0.75 2
39 127496
WASHER 		$0.06 (80% off) 4
