Rear Suspension - Arms

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200946 Rear Upper Suspension Lever $657.87 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 IN STOCK
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $128.35 IN STOCK
Photo Part No Description Price (each) Stock
178944 ADJUSTMENT PLATE $1.90 IN STOCK
178954 ADJUSTMENT PLATE $20.79 To Order
215621 ADJUSTMENT PLATE $2.87 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
209167 FLANBLOC $272.77 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.26 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
12628904 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
170155 THREADED ROD $16.84 To Order
Photo Part No Description Price (each) Stock
179556 SCREW $54.28 IN STOCK
Photo Part No Description Price (each) Stock
179330 RH REAR STUB AXLE $1,075.06 To Order
179328 LH REAR STUB AXLE $1,075.06 To Order
Photo Part No Description Price (each) Stock
200941 RH Rear Lower Suspension Lever $657.87 IN STOCK
200942 LH LOWER ARM $657.87 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 IN STOCK
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $128.35 IN STOCK
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.92 IN STOCK
Photo Part No Description Price (each) Stock
209166 FLANBLOC $320.90 IN STOCK
Photo Part No Description Price (each) Stock
182215 SCREW $6.45 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.93 IN STOCK
Photo Part No Description Price (each) Stock
181598 SCREW $73.80 IN STOCK
Photo Part No Description Price (each) Stock
194791 Complete - Tie Rod $3,730.48 To Order
Photo Part No Description Price (each) Stock
86768100 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
179556 SCREW $54.28 IN STOCK
Photo Part No Description Price (each) Stock
13582271 INSERT $7.73 To Order
Photo Part No Description Price (each) Stock
204248 NUT $37.65 To Order
Photo Part No Description Price (each) Stock
194794 ROD END FOR TIE-ROD $417.18 To Order
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $254.21 IN STOCK
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $317.66 IN STOCK
View All

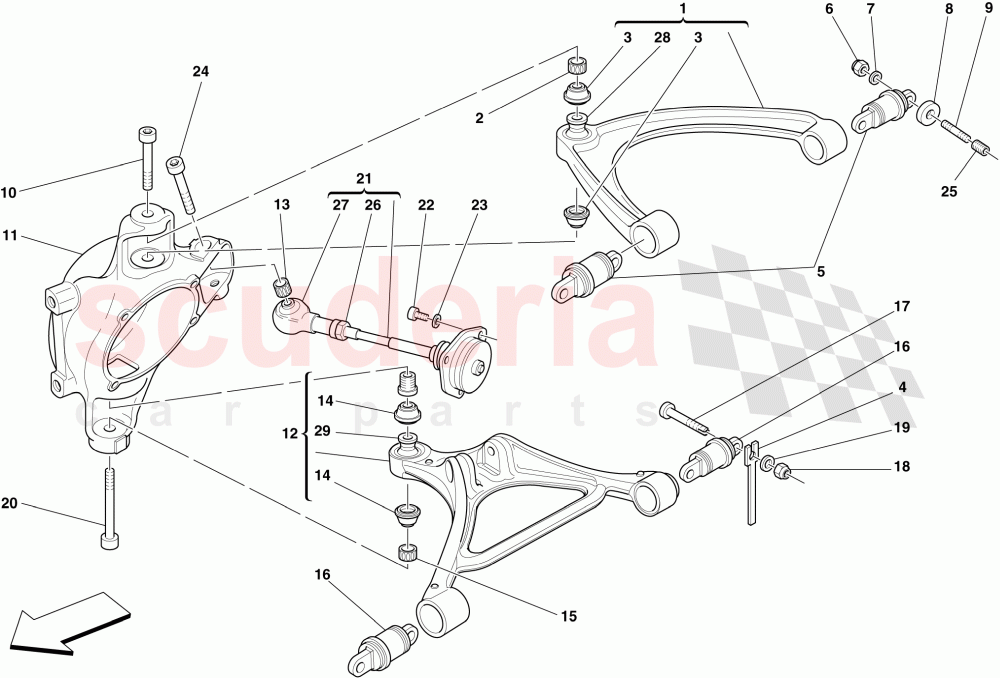

REAR SUSPENSION - ARMS of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200946
Rear Upper Suspension Lever 		$657.87 (1.4% off) 2
2 179555
COMPENSATOR RING BUSHING
IN STOCK 		$5.61 (11.9% off) 2
3 171848
Rubber Boot and Clip
IN STOCK 		$128.35 (26.3% off) 4
4 178944
ADJUSTMENT PLATE
Th. 3 mm; Installed if necessary
IN STOCK 		$1.90 2
4 178954
ADJUSTMENT PLATE
Th. 4 mm; Installed if necessary 		$20.79 2
4 215621
ADJUSTMENT PLATE
Th. 0.5 mm; Installed if necessary 		$2.87 (42.6% off) 2
4 178953
Adjustment plate
Th. 4 mm; Installed if necessary
IN STOCK 		$2.74 (39.1% off) 6
4 215549
ADJUSTMENT PLATE
Th. 5 mm; Installed if necessary
IN STOCK 		$3.36 6
4 178942
ADJUSTMENT PLATE
Th. 1 mm; Installed if necessary 		$17.86 2
4 178943
ADJUSTMENT PLATE
Th. 2 mm; Installed if necessary 		$14.85 2
4 175910
ADJUSTMENT PLATE
Th. 1 mm; Installed if necessary 		$7.91 6
4 175911
ADJUSTMENT PLATE
Th. 2 mm; Installed if necessary 		$9.81 6
4 175912
ADJUSTMENT PLATE
Th. 3 mm; Installed if necessary
IN STOCK 		$2.50 (52.8% off) 6
5 209167
FLANBLOC
IN STOCK 		$272.77 (28.3% off) 4
6 104030
NUT
IN STOCK 		$0.26 (74% off) 8
7 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 8
8 12628904
WASHER 		$0.23 8
9 170155
THREADED ROD 		$16.84 8
10 179556
SCREW
IN STOCK 		$54.28 2
11 179330
RH REAR STUB AXLE 		$1,075.06 1
11 179328
LH REAR STUB AXLE 		$1,075.06 (25.1% off) 1
12 200941
RH Rear Lower Suspension Lever
IN STOCK 		$657.87 (33.3% off) 1
12 200942
LH LOWER ARM 		$657.87 (44.2% off) 1
13 179555
COMPENSATOR RING BUSHING
IN STOCK 		$5.61 (11.9% off) 2
14 171847
Rubber Boot And Clip
IN STOCK 		$128.35 (26.3% off) 4
15 179554
COMPENSATOR RING
IN STOCK 		$5.92 (11.4% off) 2
16 209166
FLANBLOC
IN STOCK 		$320.90 (26.1% off) 4
17 182215
SCREW 		$6.45 8
18 12574521
Nyloc Nut
IN STOCK 		$0.92 (54% off) 8
19 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.93 8
20 181598
SCREW
IN STOCK 		$73.80 2
21 194791
Complete - Tie Rod 		$3,730.48 2
22 86768100
SCREW 		$0.47 6
23 84653800
WASHER
IN STOCK 		$5.53 6
24 179556
SCREW
IN STOCK 		$54.28 2
25 13582271
INSERT 		$7.73 (23.8% off) 8
26 204248
NUT 		$37.65 2
27 194794
ROD END FOR TIE-ROD 		$417.18 (23.7% off) 2
28 203633
Upper Ball Joint
IN STOCK 		$254.21 2
29 203632
Lower Ball Joint
IN STOCK 		$317.66 2
