HYDRAULIC SYSTEM AND ELECTROHYDRAULIC PUMP -Applicable for Spider 16M-

Find Your Part

Ferrari 430 Scuderia Spider 16M - HYDRAULIC SYSTEM AND ELECTROHYDRAULIC PUMP -Applicable for Spider 16M-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
66376000 ELECTROHYDRAULIC ECU $31,467.76 To Order
Photo Part No Description Price (each) Stock
66683600 SCREW $11.54 To Order
Photo Part No Description Price (each) Stock
66454700 Roof Frame Plate Main Cylinder $818.33 To Order
Photo Part No Description Price (each) Stock
66454100 Roof Frame Top Seal RH Secondary Cylinder and Pipes $850.42 To Order
Photo Part No Description Price (each) Stock
66454000 ROOF FRAME PLATE LH SECONDARY CYLINDER AND PIPES $850.42 To Order
Photo Part No Description Price (each) Stock
66453900 RH MAIN CYLINDER $1,267.62 To Order
Photo Part No Description Price (each) Stock
66453800 COMPLETE LH MAIN CYLINDER $914.60 To Order
Photo Part No Description Price (each) Stock
66454300 RH Rear Cylinder and Pipes $1,123.20 To Order
Photo Part No Description Price (each) Stock
66454200 LH Rear Cylinder and Pipes $1,214.60 To Order
Photo Part No Description Price (each) Stock
66686500 CLAMP $3.10 To Order
Photo Part No Description Price (each) Stock
66686600 CLAMP $2.25 To Order
Photo Part No Description Price (each) Stock
66686700 CLIP $4.88 To Order
Photo Part No Description Price (each) Stock
66686800 BRACKET $7.62 To Order
Photo Part No Description Price (each) Stock
66683900 SCREW $7.62 To Order
Photo Part No Description Price (each) Stock
67049000 CLIP $5.28 To Order
Photo Part No Description Price (each) Stock
67049100 CLAMP $3.68 To Order
Photo Part No Description Price (each) Stock
67049200 SHEATH $30.47 To Order
Photo Part No Description Price (each) Stock
67049300 PIPE RETAINMENT ELASTIC $43.31 To Order
Photo Part No Description Price (each) Stock
81060800 RH SUPPORT $256.72 To Order
81060900 LH SUPPORT $240.67 To Order
Photo Part No Description Price (each) Stock
81911600 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
11194779 WASHER $0.06 To Order
View All

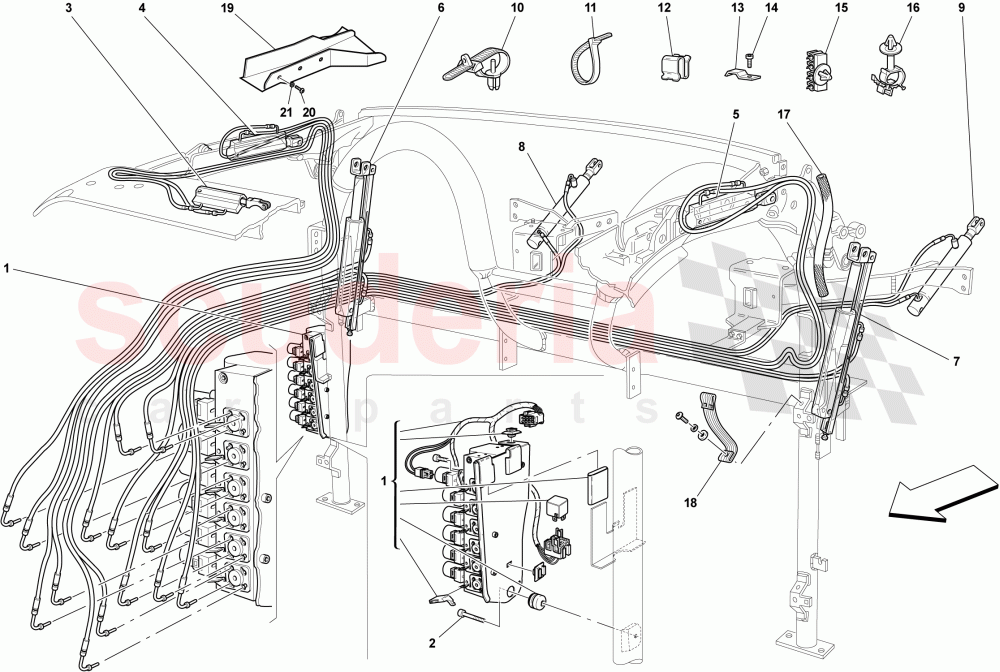

HYDRAULIC SYSTEM AND ELECTROHYDRAULIC PUMP -Applicable for Spider 16M- of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 66954300
COMPLETE HYDRAULIC SYSTEM 		$3,242.88 1
1 66376000
ELECTROHYDRAULIC ECU 		$31,467.76 1
2 66683600
SCREW 		$11.54 1
3 66454700
Roof Frame Plate Main Cylinder 		$818.33 (21.3% off) 1
4 66454100
Roof Frame Top Seal RH Secondary Cylinder and Pipes 		$850.42 (21.4% off) 1
5 66454000
ROOF FRAME PLATE LH SECONDARY CYLINDER AND PIPES 		$850.42 (21.4% off) 1
6 66453900
RH MAIN CYLINDER 		$1,267.62 1
7 66453800
COMPLETE LH MAIN CYLINDER 		$914.60 1
8 66454300
RH Rear Cylinder and Pipes 		$1,123.20 1
9 66454200
LH Rear Cylinder and Pipes 		$1,214.60 1
10 66686500
CLAMP 		$3.10 -
11 66686600
CLAMP 		$2.25 -
12 66686700
CLIP 		$4.88 -
13 66686800
BRACKET 		$7.62 -
14 66683900
SCREW 		$7.62 -
15 67049000
CLIP 		$5.28 -
16 67049100
CLAMP 		$3.68 -
17 67049200
SHEATH 		$30.47 2
18 67049300
PIPE RETAINMENT ELASTIC 		$43.31 2
19 81060800
RH SUPPORT 		$256.72 1
19 81060900
LH SUPPORT 		$240.67 1
20 81911600
SCREW 		$0.50 4
21 11194779
WASHER 		$0.06 4
