STEERING CONTROL of Ferrari Ferrari 430 Scuderia Spider 16M

View All

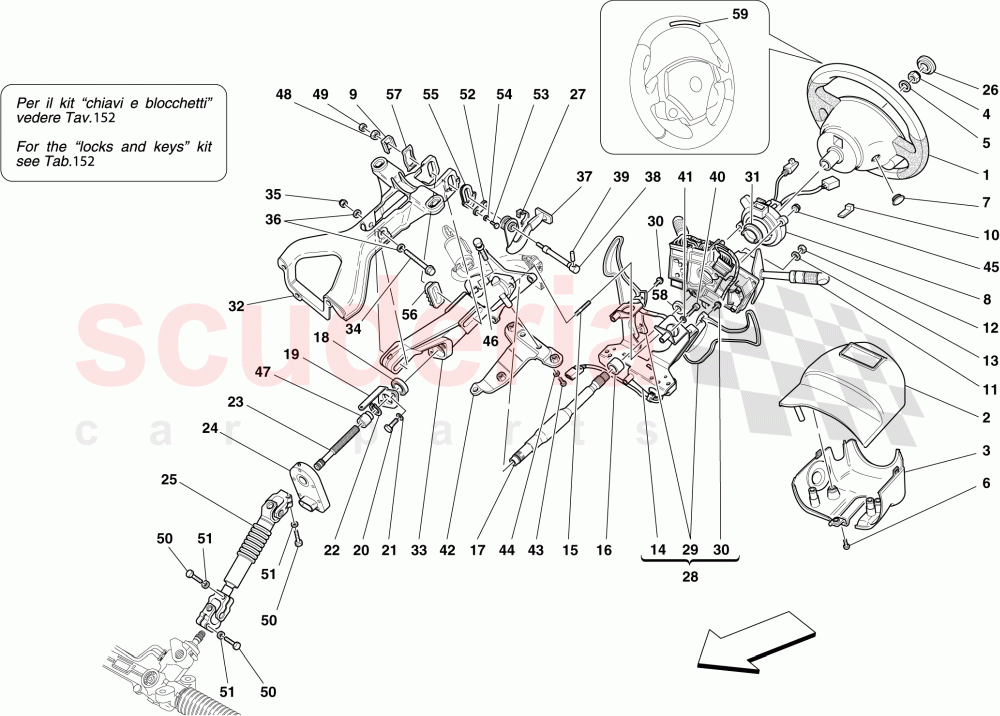

Ferrari 430 Scuderia Spider 16M - STEERING CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81846900	COMPLETE STEERING WHEEL AIRBAG.	$7,532.58	To Order
	81846500	COMPLETE STEERING WHEEL AIRBAG.	$7,532.58	To Order
	81846300	COMPLETE STEERING WHEEL AIRBAG.	Enquire	To Order

...and 23 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68097900	UPPER TRIM	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	68161600	LOWER COVER	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	299557	NUT	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	152034	WASHER	$6.90	To Order

Photo	Part No	Description	Price (each)	Stock
	15960507	SCREW	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	185486	CAP	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	213671	CLOCK SPRING CONTACT	$118.95	To Order

Photo	Part No	Description	Price (each)	Stock
	171529	MOBILE SPLINED SLIPPER	$121.93	To Order

Photo	Part No	Description	Price (each)	Stock
	135355	CONNECTOR	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	177585	STEERING COLUMN SWITCH ASSEMBLY	$387.47	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203317	GEAR SHIFT BRACKET	$370.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11001424	STUD BOLT	$3.83	To Order

Photo	Part No	Description	Price (each)	Stock
	199094	ROLLER BEARING	$65.84	To Order

Photo	Part No	Description	Price (each)	Stock
	197701	UPPER SHAFT STEERING COLUMN	$2,339.49	To Order

Photo	Part No	Description	Price (each)	Stock
	171540	BALL BEARING	$29.40	To Order

Photo	Part No	Description	Price (each)	Stock
	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	183993	LOWER COLUMN AXLE	$882.51	To Order

Photo	Part No	Description	Price (each)	Stock
	195590	STEERING ANGLE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171528	STEERING CARDAN SHAFT	$2,466.25	To Order

Photo	Part No	Description	Price (each)	Stock
	299558	NUT CAP	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	171531	PIN RETENTION SPRING	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	$3,175.09	To Order

Photo	Part No	Description	Price (each)	Stock
	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	$3,175.09	To Order

Photo	Part No	Description	Price (each)	Stock
	226092	SCREW	$2.03	To Order

Photo	Part No	Description	Price (each)	Stock
	199784	BUSHING	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	197702	STEERING COLUMN MOUNTING BRACKET	$946.70	To Order
	209191	STEERING COLUMN MOUNTING BRACKET	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	197700	COLUMN MOUNTING	$786.24	To Order

Photo	Part No	Description	Price (each)	Stock
	180632	SCREW	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	171535	TRIMMED LEVER	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	171503	ARM PIN	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	10336630	PIN	$106.08	To Order

Photo	Part No	Description	Price (each)	Stock
	13274611	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65164200	BRACKET	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	61002200	NUT	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	172563	ANTI-THEFT SYSTEM FASTENER SCREW	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	200970	RING NUT	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	171542	NUT	$7.26	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	192229	HEXAGONAL SCREW	$21.49	To Order

Photo	Part No	Description	Price (each)	Stock
	192230	WASHER	$6.81	To Order

Photo	Part No	Description	Price (each)	Stock
	171523	PLATE	$34.18	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	171544	ARM SIDE SLIPPER	$110.70	To Order

Photo	Part No	Description	Price (each)	Stock
	171501	SPLINED FIXED SLIPPER	$117.74	To Order

Photo	Part No	Description	Price (each)	Stock
	171502	SLIPPER SPRING	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	203213	WASHER	$4.52	To Order

Photo	Part No	Description	Price (each)	Stock
	214236	LED PLATE FOR STEERING WHEEL	$401.13	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81846900	COMPLETE STEERING WHEEL AIRBAG.	81846900 COMPLETE STEERING WHEEL AIRBAG. Leather; Without airbag module; Steering wheel hub and panel trimmed in carbon	$7,532.58	1
1	81846500	COMPLETE STEERING WHEEL AIRBAG.	81846500 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Tan; Without airbag module; Steering wheel hub and panel trimmed in carbon	$7,532.58	1
1	81846300	COMPLETE STEERING WHEEL AIRBAG.	81846300 COMPLETE STEERING WHEEL AIRBAG. Alcantara; FX Red; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81846400	COMPLETE STEERING WHEEL AIRBAG.	81846400 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Medium Blue; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81846100	COMPLETE STEERING WHEEL AIRBAG.	81846100 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Sand; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81846200	COMPLETE STEERING WHEEL AIRBAG.	81846200 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Sugar Paper; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81845900	COMPLETE STEERING WHEEL AIRBAG.	81845900 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Charcoal; Without airbag module; Steering wheel hub and panel trimmed in carbon	$7,532.58	1
1	81846000	COMPLETE STEERING WHEEL AIRBAG.	81846000 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Bordeaux; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81845700	COMPLETE STEERING WHEEL AIRBAG.	81845700 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Beige; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81845800	COMPLETE STEERING WHEEL AIRBAG.	81845800 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Dark Grey; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81845500	COMPLETE STEERING WHEEL AIRBAG.	81845500 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Dark Blue; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81845600	COMPLETE STEERING WHEEL AIRBAG.	81845600 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Cream; Without airbag module; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
1	81845300	COMPLETE STEERING WHEEL AIRBAG.	81845300 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Tan; Without airbag module	-	1	Enquire
1	81846800	COMPLETE STEERING WHEEL AIRBAG.	81846800 COMPLETE STEERING WHEEL AIRBAG. Leather; Without airbag module	$7,532.58	1
1	81845400	COMPLETE STEERING WHEEL AIRBAG.	81845400 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Black; Without airbag module; Steering wheel hub and panel trimmed in carbon	$7,532.58	1
1	81845000	COMPLETE STEERING WHEEL AIRBAG.	81845000 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Sugar Paper; Without airbag module	-	1	Enquire
1	81845100	COMPLETE STEERING WHEEL AIRBAG.	81845100 COMPLETE STEERING WHEEL AIRBAG. Alcantara; FX Red; Without airbag module	-	1	Enquire
1	81845200	COMPLETE STEERING WHEEL AIRBAG.	81845200 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Medium Blue; Without airbag module	-	1	Enquire
1	81844600	COMPLETE STEERING WHEEL AIRBAG.	81844600 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Dark Grey; Without airbag module	-	1	Enquire
1	81844700	COMPLETE STEERING WHEEL AIRBAG.	81844700 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Charcoal; Without airbag module	-	1	Enquire
1	81844800	COMPLETE STEERING WHEEL AIRBAG.	81844800 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Bordeaux; Without airbag module	-	1	Enquire
1	81844900	COMPLETE STEERING WHEEL AIRBAG.	81844900 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Sand; Without airbag module	-	1	Enquire
1	81844300	COMPLETE STEERING WHEEL AIRBAG.	81844300 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Dark Blue; Without airbag module	-	1	Enquire
1	81844400	COMPLETE STEERING WHEEL AIRBAG.	81844400 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Cream; Without airbag module	-	1	Enquire
1	81844500	COMPLETE STEERING WHEEL AIRBAG.	81844500 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Beige; Without airbag module	-	1	Enquire
1	81844200	COMPLETE STEERING WHEEL AIRBAG.	81844200 COMPLETE STEERING WHEEL AIRBAG. Alcantara; Black; Without airbag module	$7,532.58	1
2	68097900	UPPER TRIM	68097900 UPPER TRIM	$320.90	1
3	68161600	LOWER COVER	68161600 LOWER COVER	$401.13	1
4	299557	NUT	299557 NUT	$1.36	1
5	152034	WASHER	152034 WASHER	$6.90 MSRP: ~~8.50~~ (18.8% off)	1
6	15960507	SCREW	15960507 SCREW	$0.49 MSRP: ~~0.62~~ (21% off)	5
7	185486	CAP	185486 CAP	$3.94 MSRP: ~~4.52~~ (12.8% off)	2
8	213671	CLOCK SPRING CONTACT	213671 CLOCK SPRING CONTACT	$118.95 MSRP: ~~358.70~~ (66.8% off)	1
9	171529	MOBILE SPLINED SLIPPER	171529 MOBILE SPLINED SLIPPER	$121.93	1
10	135355	CONNECTOR	135355 CONNECTOR	$0.63	1
11	177585	STEERING COLUMN SWITCH ASSEMBLY	177585 STEERING COLUMN SWITCH ASSEMBLY	$387.47 MSRP: ~~650.76~~ (40.5% off)	1
12	15896470	NUT	15896470 NUT	$7.33	2
13	12604178	Washer	12604178 Washer	-	2	Enquire
14	203317	GEAR SHIFT BRACKET	203317 GEAR SHIFT BRACKET	$370.44	1
15	11001424	STUD BOLT	11001424 STUD BOLT	$3.83	2
16	199094	ROLLER BEARING	199094 ROLLER BEARING	$65.84	1
17	197701	UPPER SHAFT STEERING COLUMN	197701 UPPER SHAFT STEERING COLUMN	$2,339.49	1
18	171540	BALL BEARING	171540 BALL BEARING	$29.40	1
19	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	201016 COMPLETE STEERING SENSOR MOUNTING BRACKET	$114.66	1
20	10902224	SCREW M6 X 16	10902224 SCREW M6 X 16	$0.06 MSRP: ~~0.45~~ (86.7% off)	2
21	11181874	WASHER	11181874 WASHER	$0.02	2
22	11067376	SEEGER RING	11067376 SEEGER RING	$1.31	1
23	183993	LOWER COLUMN AXLE	183993 LOWER COLUMN AXLE	$882.51	1
24	195590	STEERING ANGLE SENSOR	195590 STEERING ANGLE SENSOR	-	1	Enquire
25	171528	STEERING CARDAN SHAFT	171528 STEERING CARDAN SHAFT	$2,466.25	1
26	299558	NUT CAP	299558 NUT CAP	$0.62	1
27	171531	PIN RETENTION SPRING	171531 PIN RETENTION SPRING	$52.94	1
28	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	226101 COMPLETE SHIFT F1 PADDLE ASSEMBLY Carbon	$3,175.09	1
29	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	226101 COMPLETE SHIFT F1 PADDLE ASSEMBLY Carbon	$3,175.09	1
30	226092	SCREW	226092 SCREW	$2.03	4
31	199784	BUSHING	199784 BUSHING	$8.33	1
32	197702	STEERING COLUMN MOUNTING BRACKET	197702 STEERING COLUMN MOUNTING BRACKET Not for GD	$946.70	1
32	209191	STEERING COLUMN MOUNTING BRACKET	209191 STEERING COLUMN MOUNTING BRACKET Applicable for GD	$609.73	1
33	197700	COLUMN MOUNTING	197700 COLUMN MOUNTING	$786.24	1
34	180632	SCREW	180632 SCREW	$14.28	1
35	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	1
36	12625224	WASHER	12625224 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	2
37	171535	TRIMMED LEVER	171535 TRIMMED LEVER	$465.32	1
38	171503	ARM PIN	171503 ARM PIN	$65.77	1
39	10336630	PIN	10336630 PIN	$106.08	1
40	13274611	SCREW	13274611 SCREW	$0.10	3
41	12604178	Washer	12604178 Washer	-	3	Enquire
42	65164200	BRACKET	65164200 BRACKET	$22.45	1
43	13273977	SCREW	13273977 SCREW	$0.28	3
44	62769800	WASHER	62769800 WASHER	$0.23 MSRP: ~~0.30~~ (23.3% off)	3
45	61002200	NUT	61002200 NUT	$0.58	2
46	172563	ANTI-THEFT SYSTEM FASTENER SCREW	172563 ANTI-THEFT SYSTEM FASTENER SCREW	$2.61 MSRP: ~~4.75~~ (45.1% off)	1
47	200970	RING NUT	200970 RING NUT	$94.66	1
48	171542	NUT	171542 NUT	$7.26	1
49	147985	NUT	147985 NUT	$0.16 MSRP: ~~0.50~~ (68% off)	1
50	192229	HEXAGONAL SCREW	192229 HEXAGONAL SCREW	$21.49	3
51	192230	WASHER	192230 WASHER	$6.81	3
52	171523	PLATE	171523 PLATE	$34.18	1
53	10977724	SCREW	10977724 SCREW	$0.06	2
54	11181574	WASHER	11181574 WASHER	$0.02	2
55	171544	ARM SIDE SLIPPER	171544 ARM SIDE SLIPPER	$110.70	1
56	171501	SPLINED FIXED SLIPPER	171501 SPLINED FIXED SLIPPER	$117.74	1
57	171502	SLIPPER SPRING	171502 SLIPPER SPRING	$60.96	1
58	203213	WASHER	203213 WASHER	$4.52	1
59	214236	LED PLATE FOR STEERING WHEEL	214236 LED PLATE FOR STEERING WHEEL	$401.13 MSRP: ~~512.16~~ (21.7% off)	1
