Tyre Pressure Monitoring System -Optional-

Ferrari 430 Scuderia

Find Your Part

Ferrari 430 Scuderia - TYRE PRESSURE MONITORING SYSTEM -Optional-

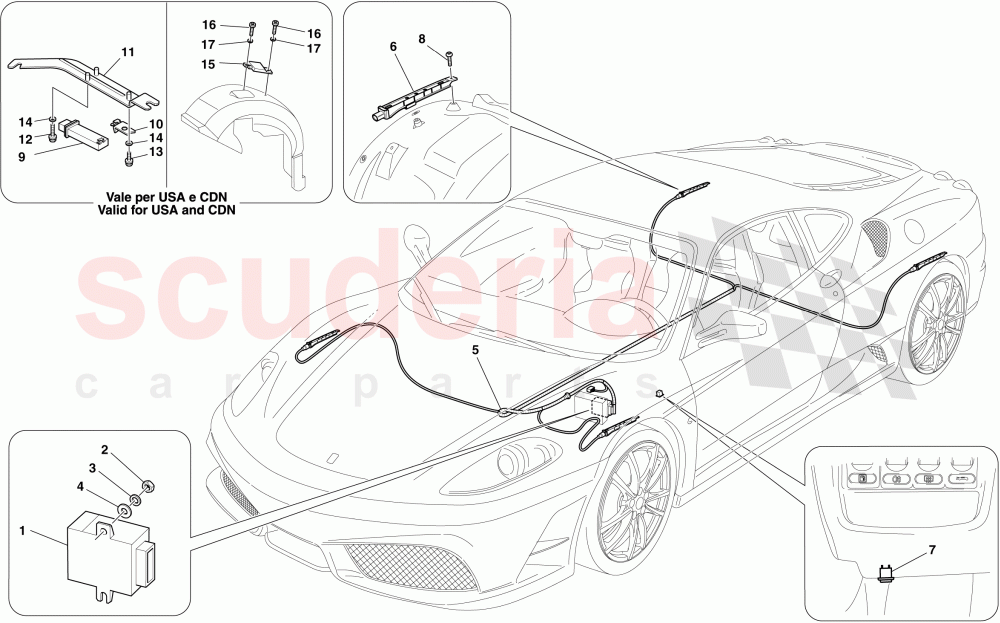

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
211763 TYRE PRESSURE MONITORING SYSTEM ECU Enquire To Order
244952 TYRE PRESSURE MONITORING SYSTEM ECU Enquire To Order
244952 TYRE PRESSURE MONITORING SYSTEM ECU Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14496324 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
238983 TYRE PRESSURE MONITORING SYSTEM CABLES Enquire To Order
238983 TYRE PRESSURE MONITORING SYSTEM CABLES Enquire To Order
208355 TYRE PRESSURE MONITORING SYSTEM CABLES Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
185184 TYRE PRESSURE MONITORING SYSTEM ANTENNA Enquire To Order
195588 TYRE PRESSURE MONITORING SYSTEM ANTENNA Enquire To Order
185184 TYRE PRESSURE MONITORING SYSTEM ANTENNA Enquire To Order
Photo Part No Description Price (each) Stock
208848 TYRE PRESSURE CALIBRATION BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
13299477 SCREW Enquire To Order
13299211 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
239463 TPMS ANTENNA Enquire To Order
239463 TPMS ANTENNA Enquire To Order
239463 TPMS ANTENNA Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
195646 CLIP Enquire To Order
195646 CLIP Enquire To Order
195646 CLIP Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80963800 ANTENNA MOUNTING BRACKET Enquire To Order
80963800 ANTENNA MOUNTING BRACKET Enquire To Order
80963800 ANTENNA MOUNTING BRACKET Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11625824 SCREW Enquire To Order
11625824 SCREW Enquire To Order
11625824 SCREW Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14304124 SCREW Enquire To Order
14304124 SCREW Enquire To Order
14304021 SCREW M5 X 10 Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67584200 WASHER Enquire To Order
67584200 WASHER Enquire To Order
67584200 WASHER Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
238985 TRIGGER Enquire To Order
238985 TRIGGER Enquire To Order
238985 TRIGGER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14304124 SCREW Enquire To Order
14304124 SCREW Enquire To Order
14304124 SCREW Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67584200 WASHER Enquire To Order
67584200 WASHER Enquire To Order
67584200 WASHER Enquire To Order
...and 5 more part variants. See table on right for more details.
View All
TYRE PRESSURE MONITORING SYSTEM -Optional- of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 211763
TYRE PRESSURE MONITORING SYSTEM ECU
Applicable for J 		- 1 Enquire
1 244952
TYRE PRESSURE MONITORING SYSTEM ECU
Applicable for CDN; Applicable from Ass. No. 75817 		- 1 Enquire
1 244952
TYRE PRESSURE MONITORING SYSTEM ECU
Not for USA, CDN; Applicable from Ass. No. 84423 		- 1 Enquire
1 211762
TYRE PRESSURE MONITORING SYSTEM ECU
Applicable for USA; Applicable up to Ass. No. 73780 		- 1 Enquire
1 211762
TYRE PRESSURE MONITORING SYSTEM ECU
Applicable for CDN; Applicable up to Ass. No. 75816 		- 1 Enquire
1 211762
TYRE PRESSURE MONITORING SYSTEM ECU
Not for USA, CDN; Applicable up to Ass. No. 84422 		- 1 Enquire
1 244952
TYRE PRESSURE MONITORING SYSTEM ECU
Applicable for USA; Applicable from Ass. No. 73781 		- 1 Enquire
2 319201
FUEL FILLER PIPE ASSEMBLY 		- 2 Enquire
3 12638124
WASHER 		- 2 Enquire
4 14496324
WASHER 		- 2 Enquire
5 238983
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for GD 		- 1 Enquire
5 238983
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for USA, CDN; Applicable from Ass. No. 84423 		- 1 Enquire
5 208355
TYRE PRESSURE MONITORING SYSTEM CABLES
Applicable for GD 		- 1 Enquire
5 192787
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for GD 		- 1 Enquire
5 192787
TYRE PRESSURE MONITORING SYSTEM CABLES
Not for USA, CDN; Applicable up to Ass. No. 84422 		- 1 Enquire
6 185184
TYRE PRESSURE MONITORING SYSTEM ANTENNA
Not for USA, CDN; Applicable up to Ass. No. 84422 		- 4 Enquire
6 195588
TYRE PRESSURE MONITORING SYSTEM ANTENNA
Applicable for J 		- 4 Enquire
6 185184
TYRE PRESSURE MONITORING SYSTEM ANTENNA
Not for J 		- 4 Enquire
7 208848
TYRE PRESSURE CALIBRATION BUTTON 		- 1 Enquire
8 13299477
SCREW
M5 X 16; Not for USA, CDN; Applicable up to Ass. No. 84422 		- 4 Enquire
8 13299211
SCREW
M5 X 12; Not for USA, CDN; Applicable up to Ass. No. 84422 		- 4 Enquire
9 239463
TPMS ANTENNA
Not for USA, CDN; Applicable from Ass. No. 84423 		- 2 Enquire
9 239463
TPMS ANTENNA
Not for J 		- 2 Enquire
9 239463
TPMS ANTENNA
Applicable for USA; Applicable from Ass. No. 73781 		- 2 Enquire
9 239463
TPMS ANTENNA
Applicable for CDN; Applicable from Ass. No. 75817 		- 2 Enquire
10 195646
CLIP
Applicable for USA; Applicable from Ass. No. 73781 		- 1 Enquire
10 195646
CLIP
Applicable for CDN; Applicable from Ass. No. 75817 		- 1 Enquire
10 195646
CLIP
Not for USA, CDN; Applicable from Ass. No. 84423 		- 1 Enquire
10 195646
CLIP
Not for J 		- 1 Enquire
11 80963800
ANTENNA MOUNTING BRACKET
Not for USA, CDN; Applicable from Ass. No. 84423 		- 1 Enquire
11 80963800
ANTENNA MOUNTING BRACKET
Not for J 		- 1 Enquire
11 80963800
ANTENNA MOUNTING BRACKET
Applicable for USA; Applicable from Ass. No. 73781 		- 1 Enquire
11 80963800
ANTENNA MOUNTING BRACKET
Applicable for CDN; Applicable from Ass. No. 75817 		- 1 Enquire
12 11625824
SCREW
Applicable for CDN; Applicable from Ass. No. 75817 		- 2 Enquire
12 11625824
SCREW
Not for USA, CDN; Applicable from Ass. No. 84423 		- 2 Enquire
12 11625824
SCREW
Not for J 		- 2 Enquire
12 11625824
SCREW
Applicable for USA; Applicable from Ass. No. 73781 		- 2 Enquire
13 14304124
SCREW
Applicable for CDN; Applicable from Ass. No. 75817 		- 2 Enquire
13 14304124
SCREW
Not for USA, CDN; Applicable from Ass. No. 84423 		- 2 Enquire
13 14304021
SCREW M5 X 10
Not for USA, CDN; Applicable from Ass. No. 84423 		- 2 Enquire
13 14304124
SCREW
Not for J 		- 2 Enquire
13 14304124
SCREW
Applicable for USA; Applicable from Ass. No. 73781 		- 2 Enquire
13 14304021
SCREW M5 X 10
Not for J 		- 2 Enquire
13 14304021
SCREW M5 X 10
Applicable for USA; Applicable from Ass. No. 73781 		- 2 Enquire
13 14304021
SCREW M5 X 10
Applicable for CDN; Applicable from Ass. No. 75817 		- 2 Enquire
14 67584200
WASHER
Th. 0.8 mm; Applicable for CDN; Applicable from Ass. No. 75817 		- 3 Enquire
14 67584200
WASHER
Th. 0.8 mm; Not for USA, CDN; Applicable from Ass. No. 84423 		- 3 Enquire
14 67584200
WASHER
Not for USA, CDN; Applicable from Ass. No. 84423 		- 3 Enquire
14 67584200
WASHER
Th. 0.8 mm; Not for J 		- 3 Enquire
14 67584200
WASHER
Th. 0.8 mm; Applicable for USA; Applicable from Ass. No. 73781 		- 3 Enquire
14 67584200
WASHER
Not for J 		- 3 Enquire
14 67584200
WASHER
Applicable for USA; Applicable from Ass. No. 73781 		- 3 Enquire
14 67584200
WASHER
Applicable for CDN; Applicable from Ass. No. 75817 		- 3 Enquire
15 238985
TRIGGER
Not for USA, CDN; Applicable from Ass. No. 84423 		- 2 Enquire
15 238985
TRIGGER
Not for J 		- 2 Enquire
15 238985
TRIGGER
Applicable for USA; Applicable from Ass. No. 73781 		- 2 Enquire
15 238985
TRIGGER
Applicable for CDN; Applicable from Ass. No. 75817 		- 2 Enquire
16 14304124
SCREW
Applicable for USA; Applicable from Ass. No. 73781 		- 4 Enquire
16 14304124
SCREW
Applicable for CDN; Applicable from Ass. No. 75817 		- 4 Enquire
16 14304124
SCREW
Not for USA, CDN; Applicable from Ass. No. 84423 		- 4 Enquire
16 14304021
SCREW M5 X 10
Applicable for CDN; Applicable from Ass. No. 75817 		- 4 Enquire
16 14304021
SCREW M5 X 10
Not for USA, CDN; Applicable from Ass. No. 84423 		- 4 Enquire
16 14304124
SCREW
Not for J 		- 4 Enquire
16 14304021
SCREW M5 X 10
Not for J 		- 4 Enquire
16 14304021
SCREW M5 X 10
Applicable for USA; Applicable from Ass. No. 73781 		- 4 Enquire
17 67584200
WASHER
Th. 0.8 mm; Applicable for CDN; Applicable from Ass. No. 75817 		- 4 Enquire
17 67584200
WASHER
Th. 0.8 mm; Not for USA, CDN; Applicable from Ass. No. 84423 		- 4 Enquire
17 67584200
WASHER
Not for USA, CDN; Applicable from Ass. No. 84423 		- 4 Enquire
17 67584200
WASHER
Th. 0.8 mm; Not for J 		- 4 Enquire
17 67584200
WASHER
Th. 0.8 mm; Applicable for USA; Applicable from Ass. No. 73781 		- 4 Enquire
17 67584200
WASHER
Not for J 		- 4 Enquire
17 67584200
WASHER
Applicable for USA; Applicable from Ass. No. 73781 		- 4 Enquire
17 67584200
WASHER
Applicable for CDN; Applicable from Ass. No. 75817 		- 4 Enquire
