INJECTION - IGNITION SYSTEM

Find Your Part

Ferrari 430 Scuderia - INJECTION - IGNITION SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
192637 Spark Plug NGK $32.38 To Order
Photo Part No Description Price (each) Stock
216542 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS $1,492.26 To Order
216543 COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS $1,492.26 To Order
Photo Part No Description Price (each) Stock
213635 ELECTRO-INJECTOR $335.98 To Order
Photo Part No Description Price (each) Stock
133902 O-Ring $5.77 To Order
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP $4.00 To Order
Photo Part No Description Price (each) Stock
249569 RH. CYLINDER BANK INJECTOR CABLES $1,132.41 To Order
249571 RH. CYLINDER BANK INJECTOR CABLES $2,512.83 To Order
237980 RH. CYLINDER BANK INJECTOR CABLES $946.83 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
249570 LH. CYLINDER BANK INJECTOR CABLES $2,502.80 To Order
242610 LH. CYLINDER BANK INJECTOR CABLES $1,235.52 To Order
242612 LH. CYLINDER BANK INJECTOR CABLES $1,091.11 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
224383 RH REAR SHIELD $46.52 To Order
224384 LH REAR SHIELD $46.52 To Order
Photo Part No Description Price (each) Stock
245205 IGNITION ECU $5,150.74 To Order
226587 IGNITION ECU $5,150.74 To Order
229081 IGNITION ECU $2,837.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
192535 RH BRACKET $27.26 To Order
200163 LH BRACKET $141.19 To Order
Photo Part No Description Price (each) Stock
81699800 BRACKET $258.00 To Order
233311 BRACKET $38.49 To Order
Photo Part No Description Price (each) Stock
244164 IONISING KNOCK SENSOR CONTROL UNIT $1,010.88 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
View All

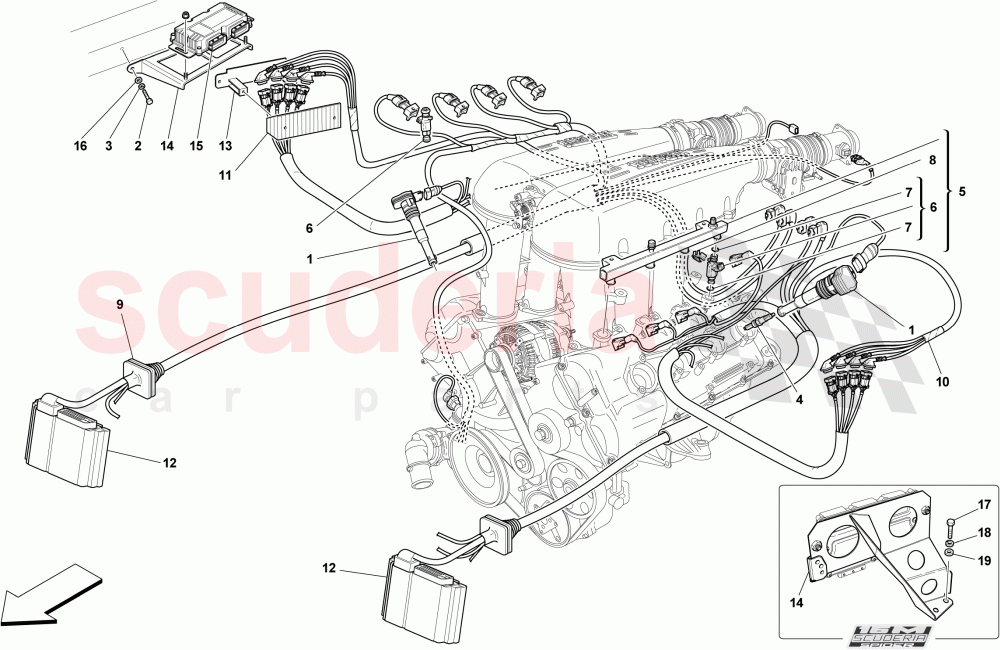

INJECTION - IGNITION SYSTEM of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 10902224
SCREW M6 X 16
Not for Spider 16M 		$0.06 (86.7% off) 3
3 11197774
WASHER
Not for Spider 16M 		$0.06 (80% off) 3
4 192637
Spark Plug NGK 		$32.38 8
5 216542
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS 		$1,492.26 1
5 216543
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS 		$1,492.26 1
6 213635
ELECTRO-INJECTOR 		$335.98 8
7 133902
O-Ring 		$5.77 (3.8% off) 4
8 144730
INJECTORS RETENTION CLIP 		$4.00 8
9 249569
RH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Not for USA, CDN 		$1,132.41 1
9 249571
RH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Applicable for USA, CDN 		$2,512.83 1
9 237980
RH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778 		$946.83 1
9 242611
RH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779 		$1,171.34 1
9 242613
RH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Applicable for USA, CDN 		$1,107.16 1
10 249570
LH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Applicable for USA, CDN 		$2,502.80 1
10 242610
LH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779 		$1,235.52 1
10 242612
LH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Applicable for USA, CDN 		$1,091.11 1
10 249568
LH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Not for USA, CDN 		$1,132.41 1
10 237979
LH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778 		$954.78 1
11 224383
RH REAR SHIELD
Not for Spider 16M 		$46.52 1
11 224384
LH REAR SHIELD
Not for Spider 16M 		$46.52 1
12 245205
IGNITION ECU
Applicable for Taiwan; Applicable for J 		$5,150.74 2
12 226587
IGNITION ECU
Not for USA, CDN, J 		$5,150.74 2
12 229081
IGNITION ECU
Applicable for USA, CDN; Applicable up to Ass. No. 80494 		$2,837.53 2
12 250923
IGNITION ECU
Applicable for USA, CDN; Applicable from Ass. No. 80495 		$1,887.07 2
13 192535
RH BRACKET
Not for Spider 16M 		$27.26 1
13 200163
LH BRACKET
Not for Spider 16M 		$141.19 1
14 81699800
BRACKET
Applicable for Spider 16M 		$258.00 1
14 233311
BRACKET
Not for Spider 16M 		$38.49 1
15 244164
IONISING KNOCK SENSOR CONTROL UNIT 		$1,010.88 1
16 12644424
WASHER
Not for Spider 16M 		$0.06 (85% off) 3
17 248334
SCREW
Applicable for Spider 16M 		$0.68 2
18 11197774
WASHER
Applicable for Spider 16M 		$0.06 (80% off) 2
19 10519424
WASHER
Applicable for Spider 16M 		$0.02 (92% off) 2
