ELECTRONIC ACCELERATOR PEDAL of Ferrari Ferrari 430 Scuderia

View All

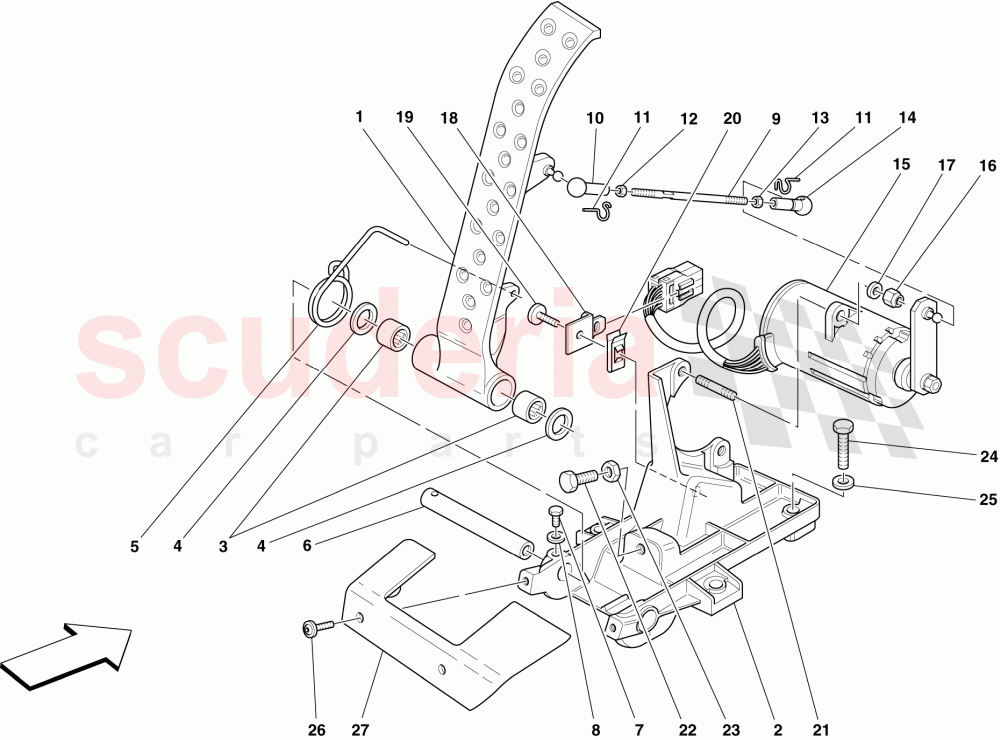

Ferrari 430 Scuderia - ELECTRONIC ACCELERATOR PEDAL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	196273	ACCELERATOR PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185452	ACCELERATOR PEDAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101677	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175351	PEDAL RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171468	ROLLER BEARING CAGE TRACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171466	ACCELERATOR COMMAND CONNECTOR	Enquire	To Order
	181258	ACCELERATOR COMMAND CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173999	BALL-JOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174001	SPRING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105586	LEFT NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174000	BALL-JOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170038	Accelerator Potentiometer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170925	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14071911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83851800	BRACKET FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500324	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69059100	ACCELERATOR PEDAL COVER	Enquire	To Order
	65709100	ACCELERATOR PEDAL COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	196273	ACCELERATOR PEDAL	196273 ACCELERATOR PEDAL	-	1	Enquire
2	185452	ACCELERATOR PEDAL MOUNTING	185452 ACCELERATOR PEDAL MOUNTING	-	1	Enquire
3	101677	ROLLER BEARING	101677 ROLLER BEARING	-	2	Enquire
4	84653800	WASHER	84653800 WASHER	-	2	Enquire
5	175351	PEDAL RETURN SPRING	175351 PEDAL RETURN SPRING	-	1	Enquire
6	171468	ROLLER BEARING CAGE TRACK	171468 ROLLER BEARING CAGE TRACK	-	1	Enquire
7	10977524	SCREW	10977524 SCREW	-	1	Enquire
8	12604178	Washer	12604178 Washer	-	1	Enquire
9	171466	ACCELERATOR COMMAND CONNECTOR	171466 ACCELERATOR COMMAND CONNECTOR Not for GD	-	1	Enquire
9	181258	ACCELERATOR COMMAND CONNECTOR	181258 ACCELERATOR COMMAND CONNECTOR Applicable for GD	-	1	Enquire
10	173999	BALL-JOINT HEAD	173999 BALL-JOINT HEAD	-	1	Enquire
11	174001	SPRING CLIP	174001 SPRING CLIP	-	2	Enquire
12	15896470	NUT	15896470 NUT	-	1	Enquire
13	105586	LEFT NUT	105586 LEFT NUT	-	1	Enquire
14	174000	BALL-JOINT HEAD	174000 BALL-JOINT HEAD	-	1	Enquire
15	170038	Accelerator Potentiometer	170038 Accelerator Potentiometer	-	1	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
17	10519424	WASHER	10519424 WASHER	-	2	Enquire
18	170925	CONNECTOR FASTENER BRACKET	170925 CONNECTOR FASTENER BRACKET	-	1	Enquire
19	14071911	SCREW	14071911 SCREW	-	1	Enquire
20	83851800	BRACKET FOR SCREW	83851800 BRACKET FOR SCREW	-	1	Enquire
21	11500324	STUD BOLT	11500324 STUD BOLT	-	2	Enquire
22	16043634	SCREW	16043634 SCREW	-	1	Enquire
23	16102314	NUT	16102314 NUT	-	1	Enquire
24	231625	SCREW	231625 SCREW	-	3	Enquire
25	127494	WASHER	127494 WASHER	-	3	Enquire
26	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	2	Enquire
27	69059100	ACCELERATOR PEDAL COVER	69059100 ACCELERATOR PEDAL COVER Applicable for GD	-	1	Enquire
27	65709100	ACCELERATOR PEDAL COVER	65709100 ACCELERATOR PEDAL COVER Not for GD	-	1	Enquire
