REAR PASSENGER COMPARTMENT ECUs of Ferrari Ferrari 430 Scuderia

View All

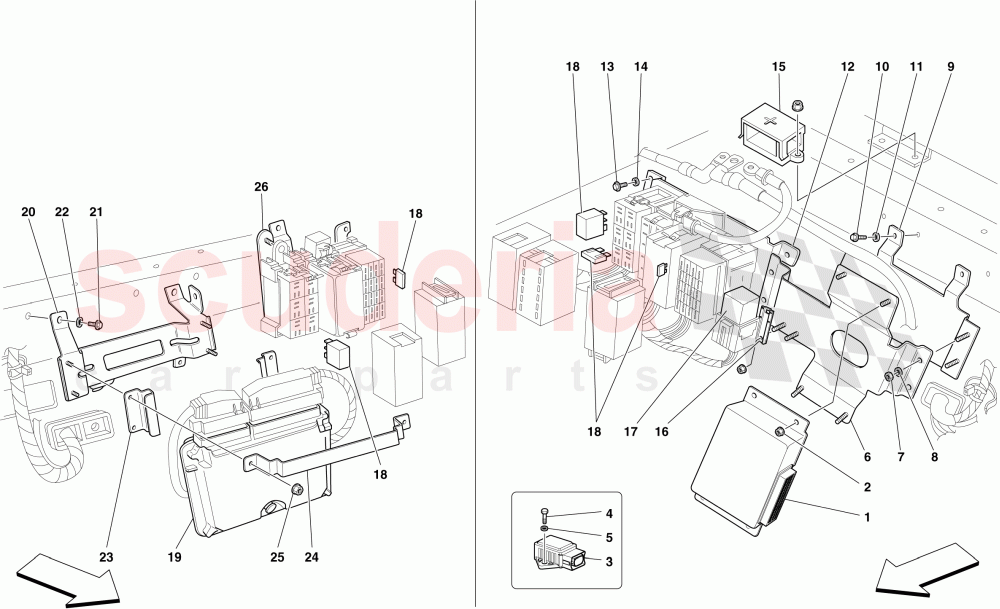

Ferrari 430 Scuderia - REAR PASSENGER COMPARTMENT ECUs

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	243241	DIFFERENTIAL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307688	YAW SENSOR	Enquire	To Order
	317783	YAW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81036000	LH UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81035700	LH LOWER BRACKET	Enquire	To Order
	67420900	LH LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81035600	LH. SIDE ECU FASTENING BRACKET	Enquire	To Order
	81035600	LH. SIDE ECU FASTENING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170114	TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155184	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233100	FUSE 12V 50A	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	170093	30 A MAXI FUSE	Enquire	To Order
	170061	50 A MAXI FUSE	Enquire	To Order
	172871	60 A MAXI FUSE	Enquire	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	254519	F1 GEARBOX CONTROL ECU	Enquire	To Order
	254520	F1 GEARBOX CONTROL ECU	Enquire	To Order
	254521	F1 GEARBOX CONTROL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81035800	RH LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81034700	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68277800	ECU FASTENER BRACKET	Enquire	To Order
	81036300	ECU FASTENING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81035900	RH BRACKET	Enquire	To Order
	81035900	RH BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	243241	DIFFERENTIAL ECU	243241 DIFFERENTIAL ECU	-	1	Enquire
2	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	4	Enquire
3	307688	YAW SENSOR	307688 YAW SENSOR Applicable until depletion	-	1	Enquire
3	317783	YAW SENSOR	317783 YAW SENSOR Applicable after depletion of 206070	-	1	Enquire
4	10902424	SCREW	10902424 SCREW	-	2	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
6	81036000	LH UPPER BRACKET	81036000 LH UPPER BRACKET Aluminium; Replaces 67505400	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
8	12643724	WASHER	12643724 WASHER	-	4	Enquire
9	81035700	LH LOWER BRACKET	81035700 LH LOWER BRACKET Aluminium; Applicable until depletion	-	1	Enquire
9	67420900	LH LOWER BRACKET	67420900 LH LOWER BRACKET Steel; Applicable after depletion of 81035700	-	1	Enquire
10	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	-	3	Enquire
11	12643724	WASHER	12643724 WASHER	-	3	Enquire
12	81035600	LH. SIDE ECU FASTENING BRACKET	81035600 LH. SIDE ECU FASTENING BRACKET Aluminium; Replaces 67420800; Not for USA, CDN	-	1	Enquire
12	81035600	LH. SIDE ECU FASTENING BRACKET	81035600 LH. SIDE ECU FASTENING BRACKET Steel; Applicable for USA, CDN	-	1	Enquire
13	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	-	6	Enquire
14	12643724	WASHER	12643724 WASHER	-	6	Enquire
15	170114	TERMINAL BLOCK	170114 TERMINAL BLOCK Also supplied with battery positive cable 233462	-	1	Enquire
16	155184	BRACKET	155184 BRACKET	-	1	Enquire
17	233100	FUSE 12V 50A ARRIVING SOON	233100 FUSE 12V 50A ARRIVING SOON	-	1	Enquire
18	170093	30 A MAXI FUSE	170093 30 A MAXI FUSE	-	2	Enquire
18	170061	50 A MAXI FUSE	170061 50 A MAXI FUSE	-	1	Enquire
18	172871	60 A MAXI FUSE	172871 60 A MAXI FUSE	-	2	Enquire
18	227285	20/10 A MICRO RELAY	227285 20/10 A MICRO RELAY	-	2	Enquire
18	172875	5 A MINI FUSE	172875 5 A MINI FUSE	-	4	Enquire
18	172876	7.5 A MINI FUSE	172876 7.5 A MINI FUSE	-	5	Enquire
18	172877	10 A MINI FUSE	172877 10 A MINI FUSE	-	11	Enquire
18	172878	15 A MINI FUSE	172878 15 A MINI FUSE	-	16	Enquire
18	172879	20 A MINI FUSE	172879 20 A MINI FUSE	-	2	Enquire
18	172881	30 A MINI FUSE	172881 30 A MINI FUSE	-	7	Enquire
18	227286	30 A MICRO RELAY	227286 30 A MICRO RELAY	-	4	Enquire
18	227285	20/10 A MICRO RELAY	227285 20/10 A MICRO RELAY	-	1	Enquire
18	227286	30 A MICRO RELAY	227286 30 A MICRO RELAY	-	11	Enquire
19	254519	F1 GEARBOX CONTROL ECU	254519 F1 GEARBOX CONTROL ECU Not for USA, CDN, J	-	1	Enquire
19	254520	F1 GEARBOX CONTROL ECU	254520 F1 GEARBOX CONTROL ECU With anti-knock SW; Applicable for USA, CDN	-	1	Enquire
19	254521	F1 GEARBOX CONTROL ECU	254521 F1 GEARBOX CONTROL ECU With anti-knock SW; Applicable for J	-	1	Enquire
20	81035800	RH LOWER BRACKET	81035800 RH LOWER BRACKET Aluminium; Replaces 67421000	-	1	Enquire
21	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	-	4	Enquire
22	12643724	WASHER	12643724 WASHER	-	4	Enquire
23	81034700	UPPER BRACKET	81034700 UPPER BRACKET Aluminium; Replaces 67420500	-	2	Enquire
24	68277800	ECU FASTENER BRACKET	68277800 ECU FASTENER BRACKET Applicable for J	-	1	Enquire
24	81036300	ECU FASTENING BRACKET	81036300 ECU FASTENING BRACKET Not for J	-	1	Enquire
25	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
26	81035900	RH BRACKET	81035900 RH BRACKET Aluminium; Replaces 67421100; Not for USA, CDN	-	1	Enquire
26	81035900	RH BRACKET	81035900 RH BRACKET Steel; Applicable for USA, CDN	-	1	Enquire
27	251453	DIODE	251453 DIODE Imagine not available	-	1	Enquire
