Ferrari 430 Scuderia - PNEUMATIC ACTUATOR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	195645	VACUUM ACCUMULATOR TANK	$203.04	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	$0.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	237943	PIPE	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	$102.68	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	178515	SOLENOID VALVE MOUNTING	$4.17	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127492	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	237946	PIPE	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	237945	PIPE	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	198275	RUBBER PIPE	$60.88	To Order

Photo	Part No	Description	Price (each)	Stock
	210351	PIPE FROM TANK TO LH SOLENOID VALVE	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	241986	COLLAR FOR HOSE UNION	$0.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178491	CONNECTOR	$24.77	To Order

Photo	Part No	Description	Price (each)	Stock
	222112	COMPLETE RH VACUUM PIPE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	222114	COMPLETE LH VACUUM PIPE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124406	PIPE FROM TANK TO CONNECTOR	$13.47	To Order
	169692	PIPE FROM TANK TO SOLENOID VALVE	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	200111	BRACKET	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	12544179	Washer	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	$10.26	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	$35.28	To Order

Photo	Part No	Description	Price (each)	Stock
	141546	CLIP	$0.23	To Order
	145543	CLIP	$0.19	IN STOCK

View All

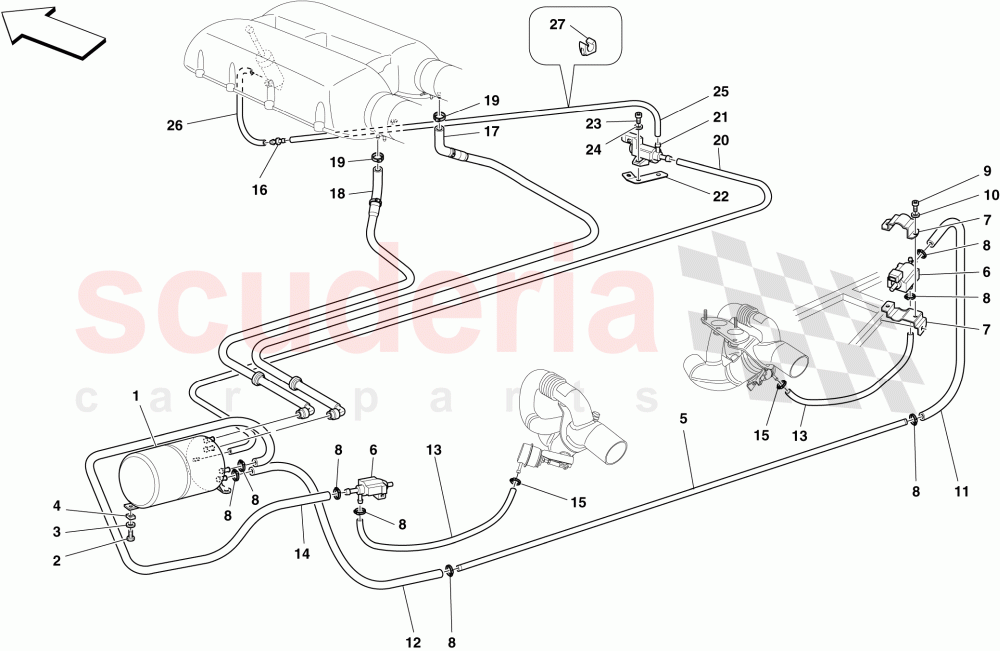

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	195645	VACUUM ACCUMULATOR TANK	195645 VACUUM ACCUMULATOR TANK	$203.04 MSRP: ~~267.29~~ (24% off)	1
2	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.15 MSRP: ~~0.70~~ (78.6% off)	3
3	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
4	12639724	WASHER IN STOCK	12639724 WASHER IN STOCK	$0.05 MSRP: ~~0.50~~ (90% off)	3
5	237943	PIPE	237943 PIPE	$36.89	1
6	178309	SOLENOID VALVE ARRIVING SOON	178309 SOLENOID VALVE ARRIVING SOON	$102.68 MSRP: ~~138.94~~ (26.1% off)	2
7	178515	SOLENOID VALVE MOUNTING	178515 SOLENOID VALVE MOUNTING	$4.17	2
8	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.57 MSRP: ~~1.07~~ (46.7% off)	8
9	88822200	SCREW IN STOCK	88822200 SCREW IN STOCK	$0.70	4
10	127492	WASHER	127492 WASHER	$0.02	4
11	237946	PIPE	237946 PIPE	$27.26	1
12	237945	PIPE	237945 PIPE	$40.10	1
13	198275	RUBBER PIPE	198275 RUBBER PIPE	$60.88	1
14	210351	PIPE FROM TANK TO LH SOLENOID VALVE	210351 PIPE FROM TANK TO LH SOLENOID VALVE	$107.49	1
15	241986	COLLAR FOR HOSE UNION IN STOCK	241986 COLLAR FOR HOSE UNION IN STOCK	$0.99	2
16	178491	CONNECTOR	178491 CONNECTOR	$24.77	1
17	222112	COMPLETE RH VACUUM PIPE	222112 COMPLETE RH VACUUM PIPE	$336.95	1
18	222114	COMPLETE LH VACUUM PIPE	222114 COMPLETE LH VACUUM PIPE	$336.95 MSRP: ~~516.16~~ (34.7% off)	1
19	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.57 MSRP: ~~1.07~~ (46.7% off)	2
20	124406	PIPE FROM TANK TO CONNECTOR	124406 PIPE FROM TANK TO CONNECTOR No longer supplied; Replaced by 169692	$13.47	1
20	169692	PIPE FROM TANK TO SOLENOID VALVE	169692 PIPE FROM TANK TO SOLENOID VALVE	$22.45	1
22	200111	BRACKET	200111 BRACKET	$77.00	1
23	14304124	SCREW	14304124 SCREW	$0.16 MSRP: ~~0.75~~ (78.7% off)	2
24	12544179	Washer	12544179 Washer	$0.55	2
25	122126	RUBBER PIPE	122126 RUBBER PIPE	$10.26	1
26	168248	RUBBER PIPE	168248 RUBBER PIPE	$35.28	1
27	141546	CLIP	141546 CLIP D. 8	$0.23	1
27	145543	CLIP IN STOCK	145543 CLIP D. 12 IN STOCK	$0.19 MSRP: ~~0.75~~ (74.7% off)	1
