Current Generator - Starting Motor

Ferrari 360 Spider

Find Your Part

Ferrari 360 Spider - CURRENT GENERATOR - STARTING MOTOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
179852 150 A. ALTERNATOR Enquire To Order
Photo Part No Description Price (each) Stock
15971324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
128944 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
201446 Belt Alternator-Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
180493 REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
179704 LOWER SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
179664 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
164469 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
177764 NUT Enquire To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 Enquire To Order
Photo Part No Description Price (each) Stock
172527 THREADED PIN Enquire To Order
Photo Part No Description Price (each) Stock
157289 Screw Enquire To Order
Photo Part No Description Price (each) Stock
172537 Belt Tightening Pulley Enquire To Order
Photo Part No Description Price (each) Stock
133216 NUT Enquire To Order
Photo Part No Description Price (each) Stock
102695 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
174508 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
213155 COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES Enquire To Order
Photo Part No Description Price (each) Stock
176903 PROTECTION BOOT Enquire To Order
Photo Part No Description Price (each) Stock
155073 CABLE FOR ENGINE-FRAME EARTH Enquire To Order
Photo Part No Description Price (each) Stock
183392 STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
179719 STARTER MOTOR SUPPORTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
15896470 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13517024 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
133989 NUT Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
176212 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
178067 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
164467 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
154803 PROTECTIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
149694 PIPE FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
10450690 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
View All

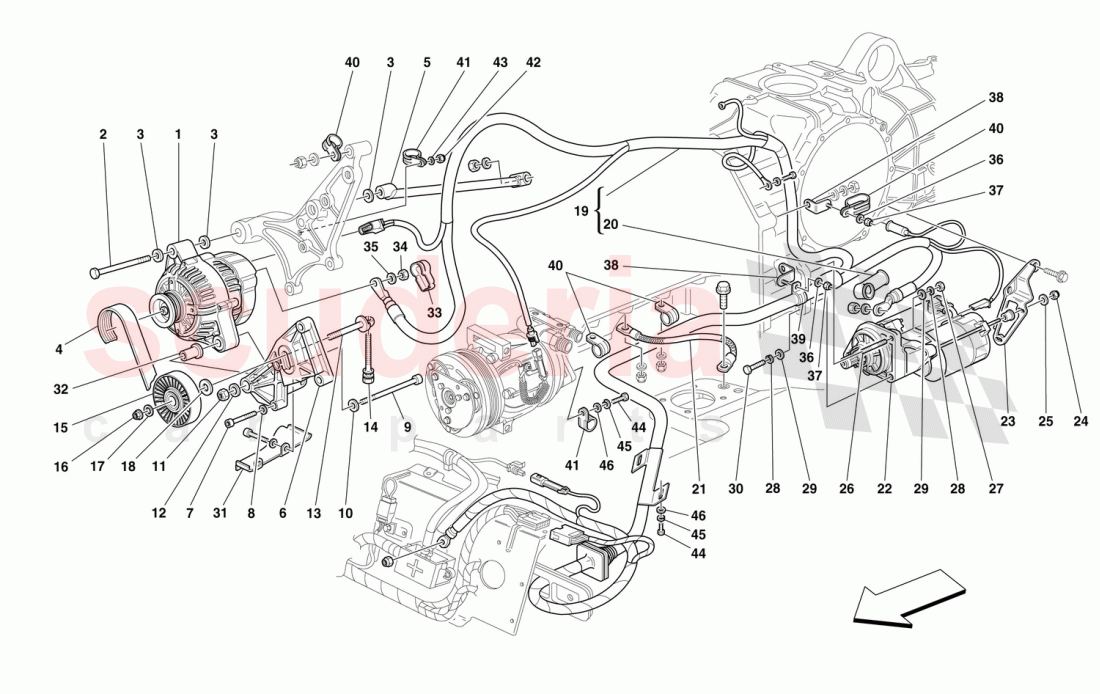

CURRENT GENERATOR - STARTING MOTOR of Ferrari Ferrari 360 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 213155
COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
MOTOR UTILITIES 		- 1 Enquire
- 14306724
SCREW 		- 2 Enquire
1 179852
150 A. ALTERNATOR 		- 1 Enquire
2 15971324
SCREW 		- 1 Enquire
3 128944
WASHER 		- 3 Enquire
4 201446
Belt Alternator-Water Pump
CONTROL BELT 		- 1 Enquire
5 180493
REAR BRACKET 		- 1 Enquire
6 179704
LOWER SUPPORT 		- 1 Enquire
7 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 1 Enquire
8 12601374
WASHER 		- 3 Enquire
9 179664
SCREW 		- 1 Enquire
10 164469
WASHER 		- 1 Enquire
11 177764
NUT 		- 1 Enquire
12 126648
WASHER D.10.5-21 X 2 		- 1 Enquire
13 172527
THREADED PIN 		- 1 Enquire
14 157289
Screw 		- 1 Enquire
15 172537
Belt Tightening Pulley 		- 1 Enquire
16 133216
NUT 		- 1 Enquire
17 102695
WASHER 		- 1 Enquire
18 174508
WASHER 		- 1 Enquire
19 213155
COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
MOTOR UTILITIES / Not as spare part / Replaced by 188108 		- 1 Enquire
20 176903
PROTECTION BOOT 		- 1 Enquire
21 155073
CABLE FOR ENGINE-FRAME EARTH 		- 1 Enquire
22 183392
STARTER MOTOR 		- 1 Enquire
23 179719
STARTER MOTOR SUPPORTING BRACKET
BRACKET 		- 1 Enquire
24 15896470
NUT 		- 2 Enquire
25 12643724
WASHER 		- 2 Enquire
26 13517024
STUD BOLT 		- 2 Enquire
27 133989
NUT 		- 2 Enquire
28 127496
WASHER 		- 3 Enquire
29 84653800
WASHER 		- 3 Enquire
30 176212
SCREW 		- 1 Enquire
31 178067
PLATE
Valid for cars with meccanical gearbox 		- 1 Enquire
32 164467
BUSHING 		- 1 Enquire
33 154803
PROTECTIVE CAP 		- 1 Enquire
34 14040711
NUT M8 FLANGED 		- 1 Enquire
35 12601374
WASHER 		- 1 Enquire
36 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
37 14059290
FLANGED NUT M6 		- 2 Enquire
38 149694
PIPE FASTENER BRACKET 		- 2 Enquire
39 291225
P clip Bracket With Sheath 		- 1 Enquire
40 10450690
BRACKET WITH SHEATH 		- 5 Enquire
41 10441790
BRACKET WITH SHEATH 		- 2 Enquire
42 14059290
FLANGED NUT M6 		- 1 Enquire
43 10519424
WASHER 		- 1 Enquire
44 10902424
SCREW 		- 2 Enquire
45 127494
WASHER 		- 2 Enquire
46 13577724
WASHER 		- 2 Enquire
