SECONDARY AIR SYSTEM -Valid for USA MY 2000, USA MY 2001, CDN MY 2000 and CDN MY 2001- of Ferrari Ferrari 360 Spider

View All

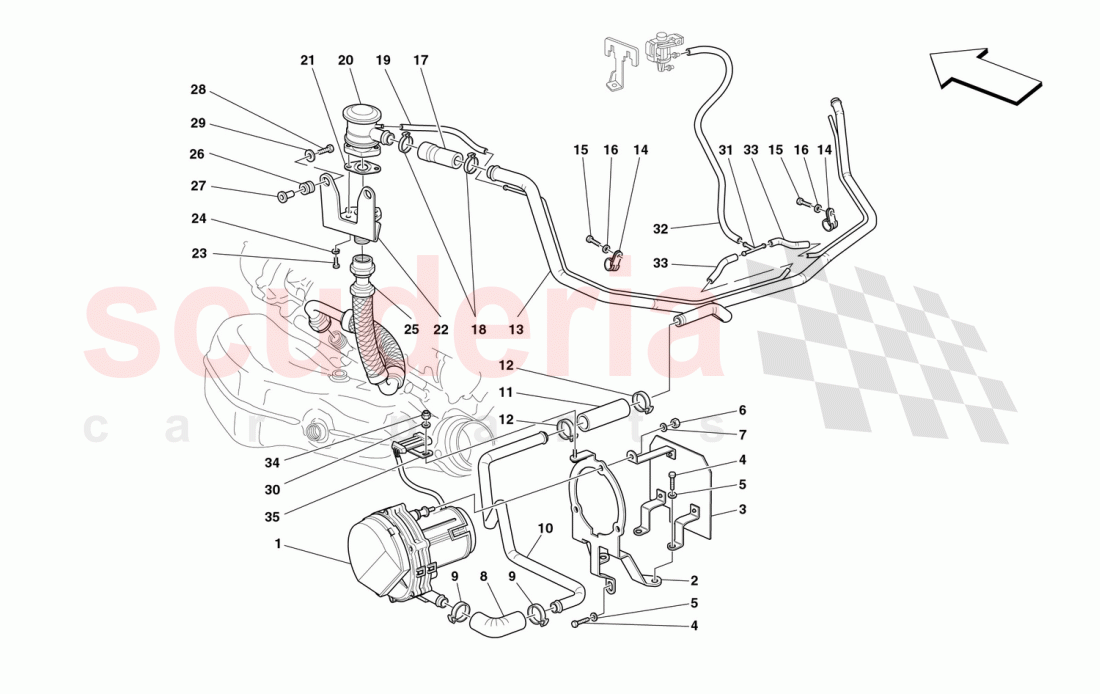

Ferrari 360 Spider - SECONDARY AIR SYSTEM -Valid for USA MY 2000, USA MY 2001, CDN MY 2000 and CDN MY 2001-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	181197	Secondary Air Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182759	BRACKET FOR PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181988	SHIELD FOR PUMP PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181994	AIR PUMP CONNECTION SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181963	PIPE FROM PUMP TO SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155116	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183326	AIR DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175223	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147119	Rubber pipe from R.H. cut-off	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171175	SECONDARY AIR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172303	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179489	COMPLETE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183730	CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161816257691	THREE-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147120	Rubber pipe from L.H. manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147121	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	181197	Secondary Air Pump	181197 Secondary Air Pump	-	1	Enquire
2	182759	BRACKET FOR PUMP	182759 BRACKET FOR PUMP	-	1	Enquire
3	181988	SHIELD FOR PUMP PROTECTION	181988 SHIELD FOR PUMP PROTECTION	-	1	Enquire
4	10902224	SCREW	10902224 SCREW	-	3	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
7	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
8	181994	AIR PUMP CONNECTION SLEEVE	181994 AIR PUMP CONNECTION SLEEVE SLEEVE	-	1	Enquire
9	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
10	181963	PIPE FROM PUMP TO SLEEVE	181963 PIPE FROM PUMP TO SLEEVE	-	1	Enquire
11	155116	SLEEVE	155116 SLEEVE	-	1	Enquire
12	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
13	183326	AIR DELIVERY TUBE	183326 AIR DELIVERY TUBE	-	1	Enquire
14	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	2	Enquire
15	10902224	SCREW	10902224 SCREW	-	2	Enquire
16	12643724	WASHER	12643724 WASHER	-	2	Enquire
17	175223	RUBBER HOSE	175223 RUBBER HOSE	-	2	Enquire
18	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
19	147119	Rubber pipe from R.H. cut-off	147119 Rubber pipe from R.H. cut-off	-	2	Enquire
20	171175	SECONDARY AIR VALVE	171175 SECONDARY AIR VALVE	-	2	Enquire
21	172303	GASKET	172303 GASKET	-	2	Enquire
22	179489	COMPLETE BRACKET	179489 COMPLETE BRACKET	-	2	Enquire
23	10902224	SCREW	10902224 SCREW	-	4	Enquire
24	127494	WASHER	127494 WASHER	-	2	Enquire
25	183730	CONNECTION PIPE	183730 CONNECTION PIPE	-	2	Enquire
26	177576	CABLE GROMMET	177576 CABLE GROMMET	-	4	Enquire
27	149707	SPACER	149707 SPACER	-	4	Enquire
28	231620	SCREW	231620 SCREW	-	4	Enquire
29	12643724	WASHER	12643724 WASHER	-	4	Enquire
30	10519224	WASHER	10519224 WASHER	-	1	Enquire
31	161816257691	THREE-WAY UNION	161816257691 THREE-WAY UNION	-	1	Enquire
32	147120	Rubber pipe from L.H. manifold	147120 Rubber pipe from L.H. manifold	-	1	Enquire
33	147121	RUBBER PIPE	147121 RUBBER PIPE	-	2	Enquire
34	62790300	NUT	62790300 NUT	-	1	Enquire
35	155751	CLIP	155751 CLIP	-	1	Enquire
