INJECTION DEVICE - IGNITION of Ferrari Ferrari 360 Spider

View All

Ferrari 360 Spider - INJECTION DEVICE - IGNITION

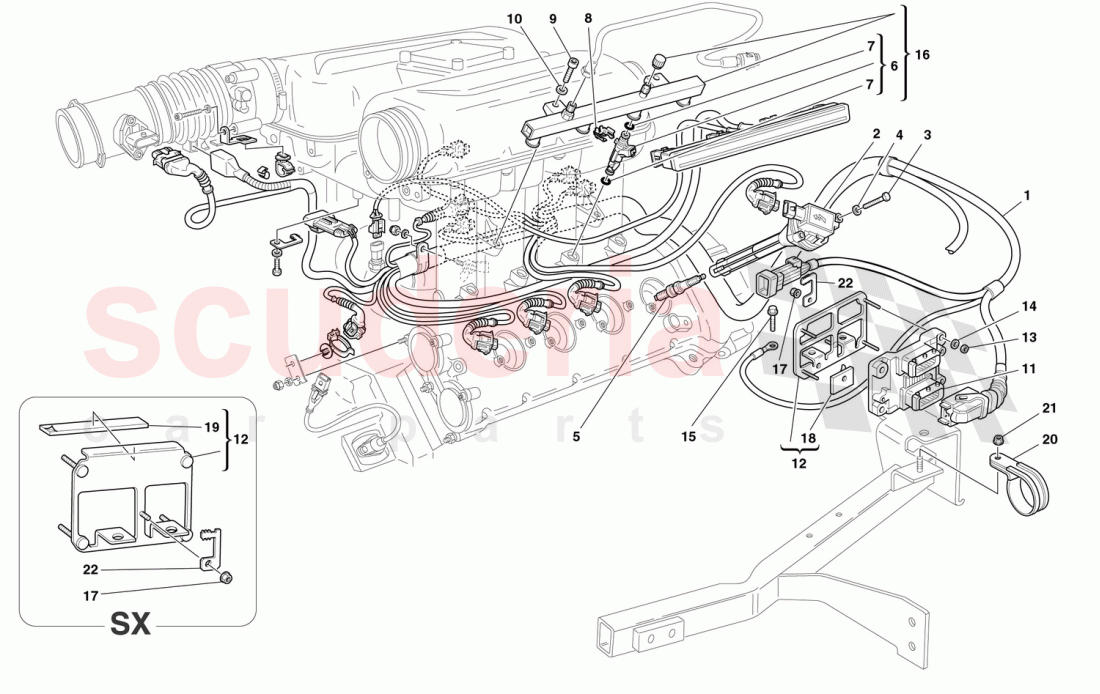

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	179167	RH SIDE ENGINE CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

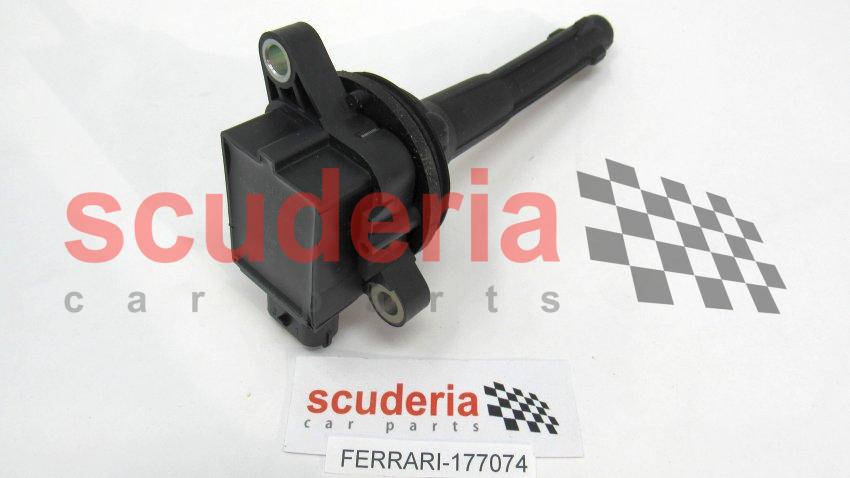

	177074	Single Ignition Coil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192637	Spark Plug NGK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock

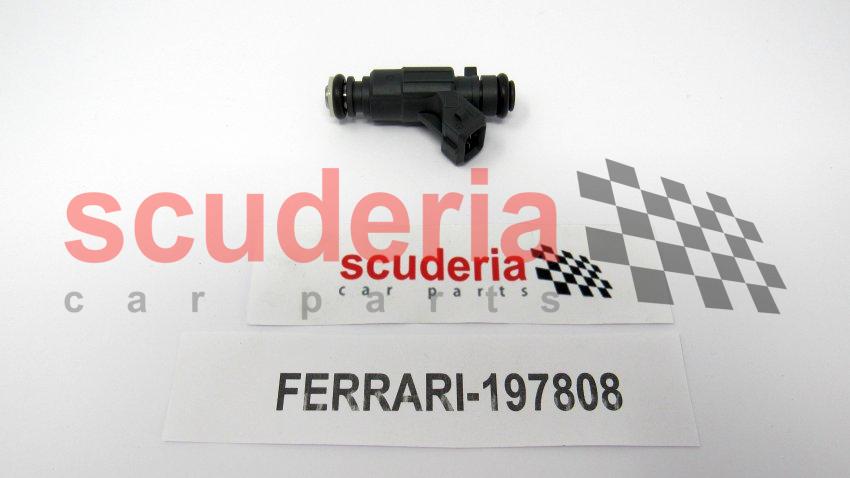

	197808	Electro-Injector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144730	INJECTORS RETENTION CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178285	CONTROL UNIT IGNITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186400	R.H. PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198347	RH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186398	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186397	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124034	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	198348	LH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS	198348 LH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS WITH ELECTRO-INJECTORS	-	1	Enquire
-	178784	CONTROL UNIT IGNITION	178784 CONTROL UNIT IGNITION Valid for F1- -Valid for AUS / Not for USA and CDN /	-	2	Enquire
-	181642	CONTROL UNIT IGNITION	181642 CONTROL UNIT IGNITION Valid for F1 / Valid for USA and CDN /	-	2	Enquire
-	186399	L.H. PLATE	186399 L.H. PLATE	-	1	Enquire
-	209974	CONTROL UNIT IGNITION	209974 CONTROL UNIT IGNITION Valid for F1 / Valid for catalyzed cars- -Not for USA, CDN and AUS / Valid for EU GS F1 and J F1 / from car Ass.Nr.39347 / Valid for GB F1 from car / Ass.Nr.39122	-	2	Enquire
-	182630	CONTROL UNIT IGNITION	182630 CONTROL UNIT IGNITION Valid for F1 / Valid for not catalyzed cars / Not for USA, CDN and AUS /	-	2	Enquire
-	178768	CONTROL UNIT IGNITION	178768 CONTROL UNIT IGNITION Not for F1- -Valid for AUS / Not for USA and CDN /	-	2	Enquire
-	180700	CONTROL UNIT IGNITION -Not for F1-	180700 CONTROL UNIT IGNITION -Not for F1- Not for F1 / Valid for USA and CDN /	-	2	Enquire
-	178765	CONTROL UNIT IGNITION	178765 CONTROL UNIT IGNITION Valid for F1 / Valid for catalyzed cars- -Not for USA, CDN and AUS / Valid for EU GS F1 and J F1 till / car Ass.Nr.39346 / Valid for GB F1 till car / Ass.Nr.39121	-	2	Enquire
-	180101	CONTROL UNIT IGNITION	180101 CONTROL UNIT IGNITION Not for F1 / Valid for not catalyzed cars / Not for USA, CDN and AUS /	-	2	Enquire
-	209973	CONTROL UNIT IGNITION	209973 CONTROL UNIT IGNITION Not for F1- -Valid for catalyzed cars / Not for USA, CDN and AUS / Valid for EU GS not F1 and J not F1 / from car Ass.Nr.39140 / Valid for GB not F1 from car / Ass.Nr.39240	-	2	Enquire
-	179168	LH SIDE ENGINE CONNECTING CABLES	179168 LH SIDE ENGINE CONNECTING CABLES CABLES	-	1	Enquire
1	179167	RH SIDE ENGINE CONNECTING CABLES	179167 RH SIDE ENGINE CONNECTING CABLES CABLES	-	1	Enquire
2	177074	Single Ignition Coil	177074 Single Ignition Coil	-	8	Enquire
3	10902534	SCREW	10902534 SCREW	-	16	Enquire
4	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	16	Enquire
5	192637	Spark Plug NGK ARRIVING SOON	192637 Spark Plug NGK ARRIVING SOON	-	8	Enquire
6	197808	Electro-Injector	197808 Electro-Injector	-	8	Enquire
7	133902	O-Ring	133902 O-Ring	-	16	Enquire
8	144730	INJECTORS RETENTION CLIP	144730 INJECTORS RETENTION CLIP	-	8	Enquire
9	14306424	SCREW	14306424 SCREW	-	4	Enquire
10	12601374	WASHER	12601374 WASHER	-	4	Enquire
11	178285	CONTROL UNIT IGNITION	178285 CONTROL UNIT IGNITION Not for F1 / Valid for catalyzed cars- -Not for USA, CDN and AUS / Valid for EU GS not F1 and J not F1 / till car Ass.Nr.39139 / Valid for GB not F1 till car / Ass.Nr.39239	-	2	Enquire
12	186400	R.H. PLATE	186400 R.H. PLATE	-	1	Enquire
13	15896470	NUT	15896470 NUT	-	8	Enquire
14	12604178	Washer	12604178 Washer	-	8	Enquire
15	86574700	SCREW	86574700 SCREW	-	4	Enquire
16	198347	RH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS	198347 RH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS WITH ELECTRO-INJECTORS	-	1	Enquire
17	14059211	NUT	14059211 NUT	-	2	Enquire
18	186398	RUBBER THICKNESS	186398 RUBBER THICKNESS	-	1	Enquire
19	186397	RUBBER THICKNESS	186397 RUBBER THICKNESS	-	1	Enquire
20	124034	BRACKET WITH SHEATH	124034 BRACKET WITH SHEATH	-	2	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
22	162606	CLIP	162606 CLIP	-	2	Enquire
