Find Your Part

TIMING - TAPPETS AND SHIELDS of Ferrari Ferrari 360 Spider

View All

Ferrari 360 Spider - TIMING - TAPPETS AND SHIELDS

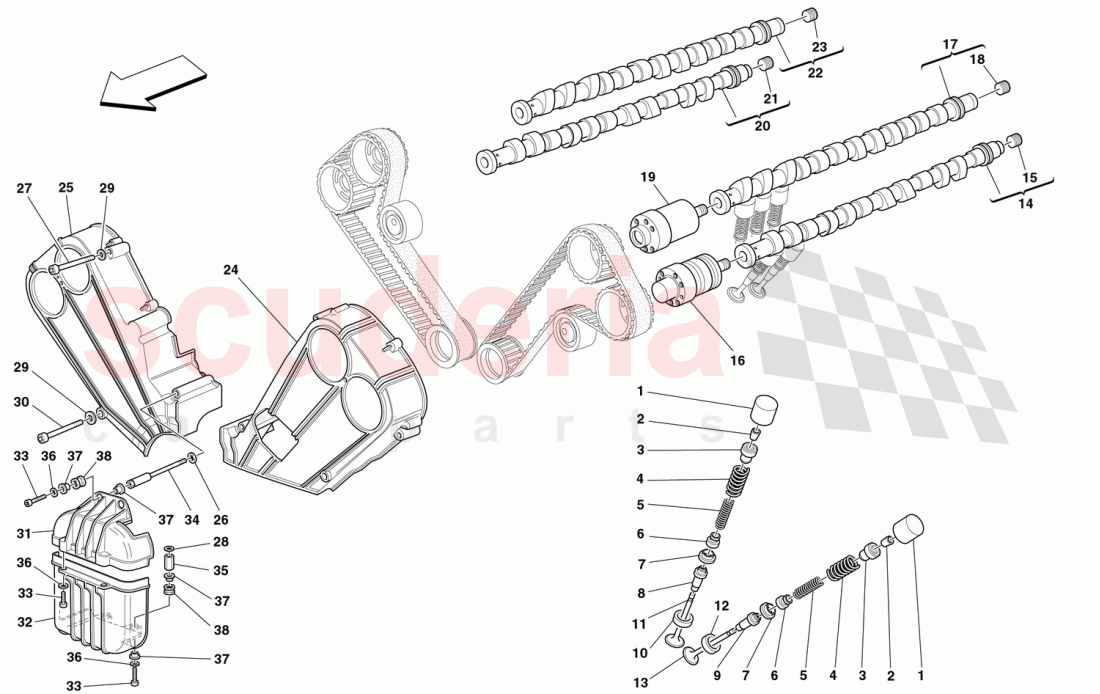

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	195017	TAPPET FOR VALVE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157986	COTTER FOR VALVE SPRING CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157989	UPPER CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180192	OUTER SPRING FOR VALVE RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180208	INNER SPRING FOR VALVE RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172466	LOWER CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176437	INTAKE VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176438	EXHAUST VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6179281	INTAKE VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175157	INTAKE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6173433	EXHAUST SEMI MACHINED VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342320	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206081	COMPLETE LH EXHAUST CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190042	Exhaust Phase Variator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206080	COMPLETE LH INDUCTION DISTRIBUTION CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176101	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206079	COMPLETE RH EXHAUST CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206078	COMPLETE RH INDUCTION DISTRIBUTION CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180305	L.H. COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169736	R.H. COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167266	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175732	SCREW -Valid from engine Nr. 81801-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184949	UPPER DEADENING SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184950	Lower Deadening Shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183900	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183899	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184641	CABLE GROMMET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	190042	Exhaust Phase Variator	190042 Exhaust Phase Variator	-	2	Enquire
-	176484	EXHAUST VALVE GUIDE - OVERSIZED	176484 EXHAUST VALVE GUIDE - OVERSIZED OVERSIZED	-	16	Enquire
-	180360	LOWER CUP	180360 LOWER CUP OVERSIZED	-	40	Enquire
-	176483	INTAKE VALVE GUIDE - OVERSIZED	176483 INTAKE VALVE GUIDE - OVERSIZED OVERSIZED	-	24	Enquire
1	195017	TAPPET FOR VALVE CONTROL	195017 TAPPET FOR VALVE CONTROL	-	40	Enquire
2	157986	COTTER FOR VALVE SPRING CUP	157986 COTTER FOR VALVE SPRING CUP	-	80	Enquire
3	157989	UPPER CUP	157989 UPPER CUP	-	40	Enquire
4	180192	OUTER SPRING FOR VALVE RETURN	180192 OUTER SPRING FOR VALVE RETURN RETURN	-	40	Enquire
5	180208	INNER SPRING FOR VALVE RETURN	180208 INNER SPRING FOR VALVE RETURN RETURN	-	40	Enquire
6	221473	OIL SEAL	221473 OIL SEAL	-	40	Enquire
7	172466	LOWER CUP	172466 LOWER CUP	-	40	Enquire
8	176437	INTAKE VALVE GUIDE	176437 INTAKE VALVE GUIDE	-	24	Enquire
9	176438	EXHAUST VALVE GUIDE	176438 EXHAUST VALVE GUIDE	-	16	Enquire
10	6179281	INTAKE VALVE SEAT	6179281 INTAKE VALVE SEAT	-	24	Enquire
11	175157	INTAKE VALVE	175157 INTAKE VALVE	-	24	Enquire
12	6173433	EXHAUST SEMI MACHINED VALVE SEAT	6173433 EXHAUST SEMI MACHINED VALVE SEAT	-	16	Enquire
13	342320	EXHAUST VALVE	342320 EXHAUST VALVE	-	16	Enquire
14	206081	COMPLETE LH EXHAUST CAM SHAFT	206081 COMPLETE LH EXHAUST CAM SHAFT CAM SHAFT	-	1	Enquire
15	10269550	THREADED PLUG	10269550 THREADED PLUG	-	1	Enquire
16	190042	Exhaust Phase Variator	190042 Exhaust Phase Variator Not as spare part / Replaced by 190042	-	2	Enquire
17	206080	COMPLETE LH INDUCTION DISTRIBUTION CAM SHAFT	206080 COMPLETE LH INDUCTION DISTRIBUTION CAM SHAFT DISTRIBUTION CAM SHAFT	-	1	Enquire
18	10269550	THREADED PLUG	10269550 THREADED PLUG	-	1	Enquire
19	176101	BUSHING	176101 BUSHING	-	2	Enquire
20	206079	COMPLETE RH EXHAUST CAM SHAFT	206079 COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT	-	1	Enquire
21	10269550	THREADED PLUG	10269550 THREADED PLUG	-	1	Enquire
22	206078	COMPLETE RH INDUCTION DISTRIBUTION CAM SHAFT	206078 COMPLETE RH INDUCTION DISTRIBUTION CAM SHAFT DISTRIBUTION CAM SHAFT	-	1	Enquire
23	10269550	THREADED PLUG	10269550 THREADED PLUG	-	1	Enquire
24	180305	L.H. COVER	180305 L.H. COVER	-	1	Enquire
25	169736	R.H. COVER	169736 R.H. COVER	-	1	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
27	167266	SCREW	167266 SCREW	-	4	Enquire
28	12604474	WASHER	12604474 WASHER	-	2	Enquire
29	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
30	175732	SCREW -Valid from engine Nr. 81801-	175732 SCREW -Valid from engine Nr. 81801-	-	2	Enquire
31	184949	UPPER DEADENING SHIELD	184949 UPPER DEADENING SHIELD SHIELD	-	1	Enquire

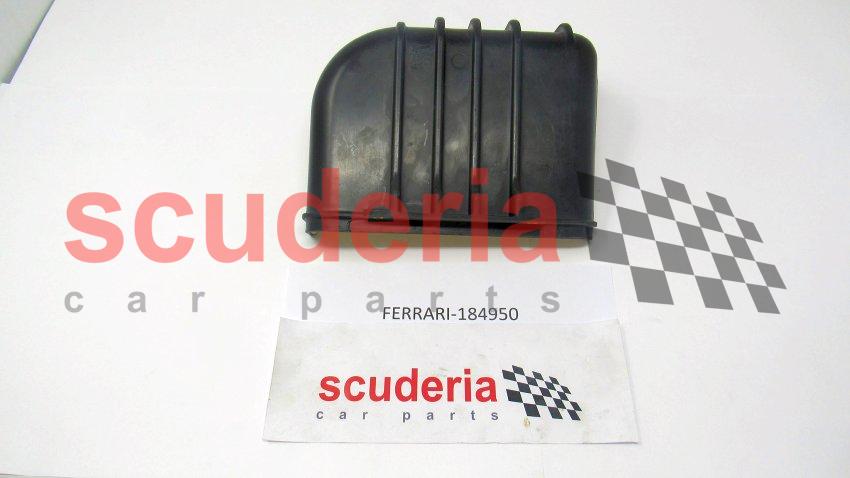

32	184950	Lower Deadening Shield	184950 Lower Deadening Shield SHIELD	-	1	Enquire
33	231620	SCREW	231620 SCREW	-	6	Enquire
34	183900	STUD	183900 STUD	-	2	Enquire
35	183899	STUD	183899 STUD	-	2	Enquire
36	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
37	819489	FLANGED BUSHING	819489 FLANGED BUSHING	-	8	Enquire
38	184641	CABLE GROMMET	184641 CABLE GROMMET	-	4	Enquire
