Water Pump And Oil/Water Heat Exchanger

Ferrari 360 Spider

Find Your Part

Ferrari 360 Spider - WATER PUMP AND OIL/WATER HEAT EXCHANGER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
194105 WATER PUMP BODY Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
171926 THERMOSTATIC VALVE COVER Enquire To Order
Photo Part No Description Price (each) Stock
137873 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
149279 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
950840 WATER THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
132349 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
10297760 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
176045 WATER PUMP ROTOR Enquire To Order
Photo Part No Description Price (each) Stock
100436 BLIND NUT Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13540924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
176173 WATER PUMP COVER Enquire To Order
Photo Part No Description Price (each) Stock
137868 O-Ring Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
183759 Water Pump Seal Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
143742 BEARING WITH SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
10202320 Woodruff Key Enquire To Order
Photo Part No Description Price (each) Stock
11059976 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
177207 WATER PUMP CONTROL PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
12646821 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
106227 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
176046 BUSHING FOR BYPASS Enquire To Order
Photo Part No Description Price (each) Stock
176047 SPRING FOR BYPASS Enquire To Order
Photo Part No Description Price (each) Stock
147278 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
176048 CAP FOR BYPASS SPRING Enquire To Order
Photo Part No Description Price (each) Stock
11058376 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
180846 Water-Oil Heat Exchanger Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
187173 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
153430 CLAMP D.70-90MM Enquire To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
169526 WATER OUTLET MANIFOLD CONNECTION DUCT Enquire To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
10298460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
169564 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
169749 COMPLETE WATER OUTLET MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
141332 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
180296 SMALL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
179698 BELT TIGHTENING BEARING Enquire To Order
Photo Part No Description Price (each) Stock
15970921 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11190574 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14302824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
201446 Belt Alternator-Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
9162535 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
101044 O-RING Enquire To Order
View All

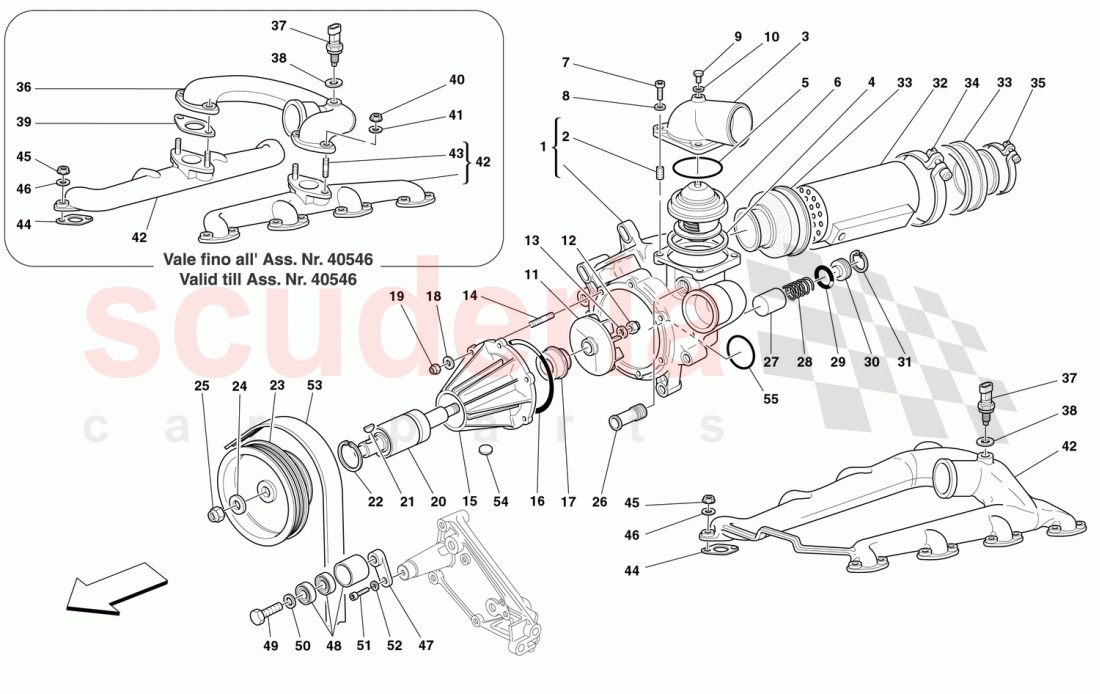

WATER PUMP AND OIL/WATER HEAT EXCHANGER of Ferrari Ferrari 360 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 179748
COMPLETE WATER OUTLET MANIFOLD
MANIFOLD / Valid from Ass. Nr. 40547 		- 2 Enquire
1 194105
WATER PUMP BODY 		- 1 Enquire
2 13525470
THREADED INSERT 		- 4 Enquire
3 171926
THERMOSTATIC VALVE COVER 		- 1 Enquire
4 137873
O-Ring 		- 1 Enquire
5 149279
O-Ring 		- 1 Enquire
6 950840
WATER THERMOSTAT 		- 1 Enquire
7 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 4 Enquire
8 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
9 132349
CONNECTOR 		- 1 Enquire
10 10297760
GASKET 		- 1 Enquire
11 176045
WATER PUMP ROTOR 		- 1 Enquire
12 100436
BLIND NUT 		- 1 Enquire
13 84653800
WASHER 		- 1 Enquire
14 13540924
STUD BOLT 		- 6 Enquire
15 176173
WATER PUMP COVER 		- 1 Enquire
16 137868
O-Ring
ARRIVING SOON 		- 1 Enquire
17 183759
Water Pump Seal 		- 1 Enquire
18 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 6 Enquire
19 14059290
FLANGED NUT M6 		- 6 Enquire
20 143742
BEARING WITH SHAFT 		- 1 Enquire
21 10202320
Woodruff Key 		- 1 Enquire
22 11059976
SEEGER RING 		- 1 Enquire
23 177207
WATER PUMP CONTROL PULLEY 		- 1 Enquire
24 12646821
WASHER 		- 1 Enquire
25 102742
Nyloc Nut M10 x 1.25 x 10mm
ARRIVING SOON 		- 1 Enquire
26 106227
Fitting 		- 1 Enquire
27 176046
BUSHING FOR BYPASS 		- 1 Enquire
28 176047
SPRING FOR BYPASS 		- 1 Enquire
29 147278
O-Ring 		- 1 Enquire
30 176048
CAP FOR BYPASS SPRING 		- 1 Enquire
31 11058376
SEEGER RING 		- 1 Enquire
32 180846
Water-Oil Heat Exchanger
ARRIVING SOON 		- 1 Enquire
33 187173
SLEEVE 		- 2 Enquire
34 153430
CLAMP D.70-90MM 		- 2 Enquire
35 13000790
SCREW COLLAR 		- 2 Enquire
36 169526
WATER OUTLET MANIFOLD CONNECTION DUCT
CONNECTION DUCT / Valid till Ass. Nr. 40546 		- 1 Enquire
37 180137
TEMPERATURE SENSOR
SENSOR 		- 1 Enquire
38 10298460
GASKET 		- 1 Enquire
39 169564
GASKET
Valid till Ass. Nr. 40546 		- 2 Enquire
40 14040711
NUT M8 FLANGED
Valid till Ass. Nr. 40546 		- 4 Enquire
41 12601374
WASHER
Valid till Ass. Nr. 40546 		- 4 Enquire
42 169749
COMPLETE WATER OUTLET MANIFOLD
MANIFOLD / Valid till Ass. Nr. 40546 		- 2 Enquire
43 13516824
STUD BOLT
Valid till Ass. Nr. 40546 		- 4 Enquire
44 141332
GASKET 		- 8 Enquire
45 14059290
FLANGED NUT M6 		- 16 Enquire
46 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 16 Enquire
47 180296
SMALL PLATE 		- 1 Enquire
48 179698
BELT TIGHTENING BEARING 		- 1 Enquire
49 15970921
SCREW 		- 1 Enquire
50 11190574
WASHER 		- 1 Enquire
51 14302824
SCREW 		- 1 Enquire
52 986899
WASHER 		- 1 Enquire
53 201446
Belt Alternator-Water Pump
CONTROL BELT 		- 1 Enquire
54 9162535
THREADED PLUG 		- 1 Enquire
55 101044
O-RING 		- 1 Enquire
