LAY SHAFT GEARS of Ferrari Ferrari 360 Modena

View All

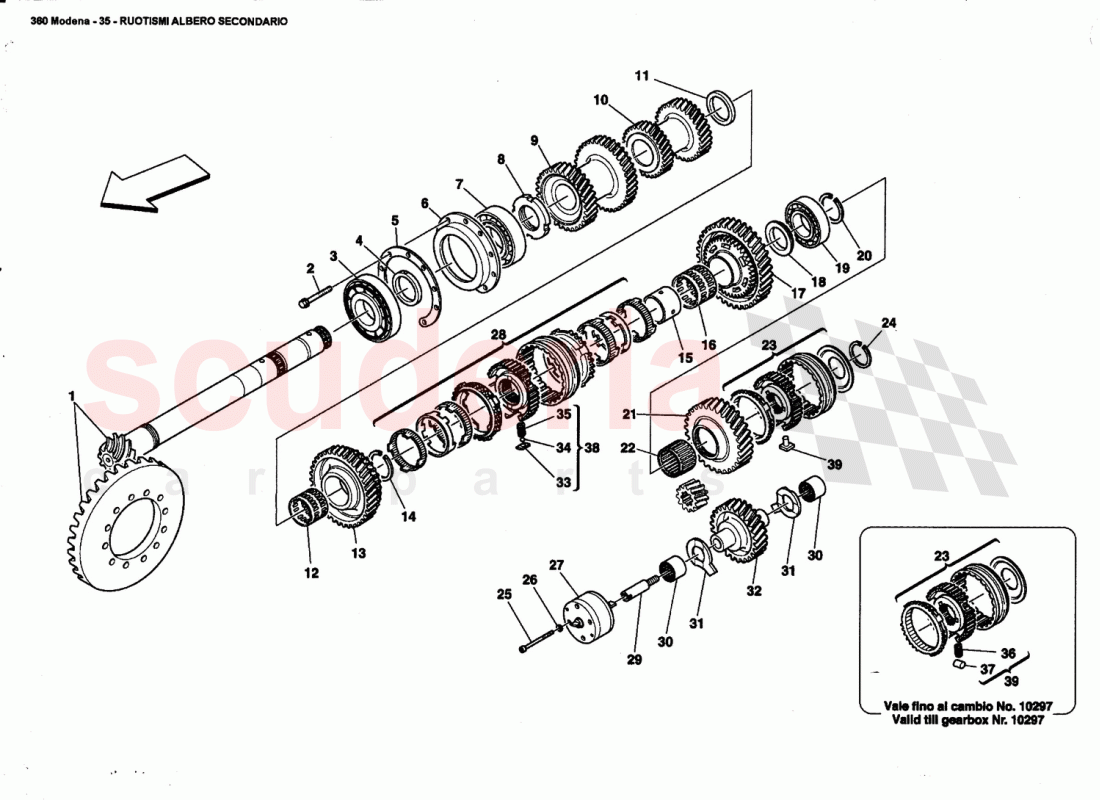

Ferrari 360 Modena - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	185023	COMPETE BEVEL SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849234	SCREW	Enquire	To Order
	16287730	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185022	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185045	RING ADJUSTER	Enquire	To Order
	185046	RING ADJUSTER	Enquire	To Order
	185047	RING ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185042	RING ADJUSTER	Enquire	To Order
	185043	RING ADJUSTER	Enquire	To Order
	185044	RING ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185020	BEARING MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185021	Roller Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196667	GEARBOX RING NUT M45 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185018	3rd AND 4th SPEED GEAR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185017	5th AND 6th DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185039	RING	Enquire	To Order
	183974	RING	Enquire	To Order
	185038	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184014	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183946	2nd SPEED GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183976	SNAP RING	Enquire	To Order
	185036	SNAP RING	Enquire	To Order
	185037	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183971	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184016	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183945	1st SPEED GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185041	RING	Enquire	To Order
	183972	CENTRE BEARING	Enquire	To Order
	185040	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184020	Roller Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184042	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201140	REVERSE GEAR	Enquire	To Order
	185168	REVERSE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184018	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326260	REVERSE SPEED SYNCHRONISER	Enquire	To Order
	185167	REVERSE GEAR COMPLETE SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184041	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10571379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185048	BEARBOX OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185164	COMPLETE 1st AND 2nd SPEED SYNCHRONISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185050	PUMP DRIVE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184017	DRAWN CUP NEEDLE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183975	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183969	IDLE GEAR FOR REVERSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184991	PAD FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184989	SPRING FOR BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185015	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185016	ROLL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193440	SYNCHROREVERSE/BLOCKS REPLACEMENT KIT	Enquire	To Order
	188321	SPRING/ROLL/SYNCHRO REVERSE GEAR KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	185023	COMPETE BEVEL SET	185023 COMPETE BEVEL SET	-	1	Enquire
2	849234	SCREW	849234 SCREW Not as spare part / Replaced by 16287730	-	9	Enquire
2	16287730	SCREW	16287730 SCREW	-	9	Enquire
3	185022	ROLLER BEARING	185022 ROLLER BEARING	-	1	Enquire
4	185045	RING ADJUSTER	185045 RING ADJUSTER Thickness mm. 7,10	-	1	Enquire
4	185046	RING ADJUSTER	185046 RING ADJUSTER Thickness mm. 6,85 / Possible fitting	-	1	Enquire
4	185047	RING ADJUSTER	185047 RING ADJUSTER Thickness mm. 6,60 / Possible fitting	-	1	Enquire
5	185042	RING ADJUSTER	185042 RING ADJUSTER Thickness mm. 2,8	-	1	Enquire
5	185043	RING ADJUSTER	185043 RING ADJUSTER Thickness mm. 2,5 / Possible fitting	-	1	Enquire
5	185044	RING ADJUSTER	185044 RING ADJUSTER Thickness mm. 2,2 / Possible fitting	-	1	Enquire
6	185020	BEARING MOUNTING	185020 BEARING MOUNTING	-	1	Enquire
7	185021	Roller Bearing	185021 Roller Bearing	-	1	Enquire
8	196667	GEARBOX RING NUT M45 X 1.5	196667 GEARBOX RING NUT M45 X 1.5	-	1	Enquire
9	185018	3rd AND 4th SPEED GEAR CONTROL	185018 3rd AND 4th SPEED GEAR CONTROL GEAR	-	1	Enquire
10	185017	5th AND 6th DRIVEN GEAR	185017 5th AND 6th DRIVEN GEAR GEAR	-	1	Enquire
11	185039	RING	185039 RING Thickness mm. 3,60 / Possible fitting	-	1	Enquire
11	183974	RING	183974 RING Thickness mm. 4,30	-	1	Enquire
11	185038	RING	185038 RING Thickness mm. 3,95 / Possible fitting	-	1	Enquire
12	184014	ROLLER BEARING CAGE	184014 ROLLER BEARING CAGE	-	1	Enquire
13	183946	2nd SPEED GEAR	183946 2nd SPEED GEAR	-	1	Enquire
14	183976	SNAP RING	183976 SNAP RING Thickness mm. 2,10	-	1	Enquire
14	185036	SNAP RING	185036 SNAP RING Thickness mm. 1,85 / Possible fitting	-	1	Enquire
14	185037	SNAP RING	185037 SNAP RING Thickness mm. 1,60 / Possible fitting	-	1	Enquire
15	183971	BUSHING	183971 BUSHING	-	1	Enquire
16	184016	ROLLER BEARING CAGE	184016 ROLLER BEARING CAGE	-	1	Enquire
17	183945	1st SPEED GEAR	183945 1st SPEED GEAR	-	1	Enquire
18	185041	RING	185041 RING Thickness mm. 4,60 / Possible fitting	-	1	Enquire
18	183972	CENTRE BEARING	183972 CENTRE BEARING Thickness mm. 5,10	-	1	Enquire
18	185040	RING	185040 RING Thickness mm. 4,85 / Possible fitting	-	1	Enquire
19	184020	Roller Bearing	184020 Roller Bearing	-	1	Enquire
20	184042	SNAP RING	184042 SNAP RING	-	1	Enquire
21	201140	REVERSE GEAR	201140 REVERSE GEAR Valid from gearbox No. 10298	-	1	Enquire
21	185168	REVERSE GEAR	185168 REVERSE GEAR Valid till gearbox No. 10297	-	1	Enquire
22	184018	ROLLER BEARING CAGE	184018 ROLLER BEARING CAGE	-	1	Enquire
23	326260	REVERSE SPEED SYNCHRONISER	326260 REVERSE SPEED SYNCHRONISER SYNCHRONIZER / Valid from gearbox No. 10298	-	1	Enquire
23	185167	REVERSE GEAR COMPLETE SYNCHRONIZER	185167 REVERSE GEAR COMPLETE SYNCHRONIZER SYNCHRONIZER / Vale till gearbox No. 10297	-	1	Enquire
24	184041	SNAP RING	184041 SNAP RING	-	1	Enquire
25	14303624	SCREW	14303624 SCREW	-	4	Enquire
26	10571379	WASHER	10571379 WASHER	-	4	Enquire
27	185048	BEARBOX OIL PUMP	185048 BEARBOX OIL PUMP	-	1	Enquire
28	185164	COMPLETE 1st AND 2nd SPEED SYNCHRONISER	185164 COMPLETE 1st AND 2nd SPEED SYNCHRONISER SYNCHRONIZER	-	1	Enquire
29	185050	PUMP DRIVE SHAFT	185050 PUMP DRIVE SHAFT	-	1	Enquire
30	184017	DRAWN CUP NEEDLE BEARING	184017 DRAWN CUP NEEDLE BEARING	-	2	Enquire
31	183975	RING	183975 RING	-	2	Enquire
32	183969	IDLE GEAR FOR REVERSE	183969 IDLE GEAR FOR REVERSE	-	1	Enquire
33	184991	PAD FOR SYNCHRONIZER	184991 PAD FOR SYNCHRONIZER Not as spare part / Replaced by 188320 / See ref.38 /	-	3	Enquire
34	184997	BALL	184997 BALL Not as spare part / Replaced by 188320 / See ref.38	-	3	Enquire
35	184989	SPRING FOR BALL	184989 SPRING FOR BALL Not as spare part / Replaced by 188320 / See ref.38	-	3	Enquire
36	185015	SPRING	185015 SPRING Not as spare part / Replaced by 188321 / See ref.39	-	3	Enquire
37	185016	ROLL	185016 ROLL Not as spare part / Replaced by 188321 / See ref.39	-	3	Enquire
38	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	188320 SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT SPRING REPLACEMENT KIT	-	1	Enquire
39	193440	SYNCHROREVERSE/BLOCKS REPLACEMENT KIT	193440 SYNCHROREVERSE/BLOCKS REPLACEMENT KIT KIT / Valid from gearbox No. 10298	-	1	Enquire
39	188321	SPRING/ROLL/SYNCHRO REVERSE GEAR KIT	188321 SPRING/ROLL/SYNCHRO REVERSE GEAR KIT KIT / Vale till gearbox No. 10297	-	1	Enquire
