Find Your Part

MAIN SHAFT GEARS of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - MAIN SHAFT GEARS

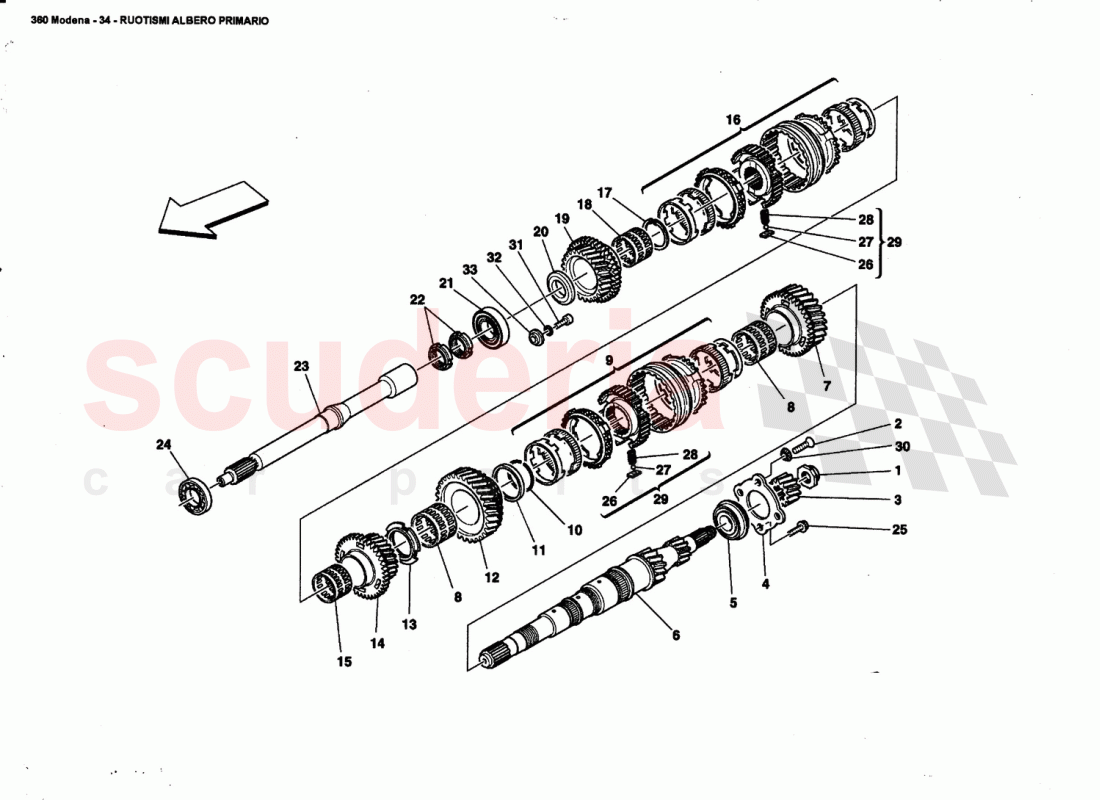

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	183967	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14442021	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183966	REVERSE DRIVING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183984	REAR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184019	ROLLER BALL BEARING 30x72x19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183964	MAIN SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183949	5th SPEED GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184015	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185166	COMPLETE 5th AND 6th SPEED SYNCHRONISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184011	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183970	6th GEAR SHIM'	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183950	PINION FOR 6th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184010	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183947	3rd SPEED GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184014	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185165	COMPLETE 3rd AND 4th SPEED SYNCHRONISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184042	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184005	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183948	4th SPEED GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183973	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184021	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184012	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183965	CLUTCH SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184013	BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184991	PAD FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184989	SPRING FOR BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606979	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183985	BUSHING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	183967	RING NUT	183967 RING NUT	-	1	Enquire
2	14442021	SCREW	14442021 SCREW	-	2	Enquire
3	183966	REVERSE DRIVING GEAR	183966 REVERSE DRIVING GEAR	-	1	Enquire
4	183984	REAR PLATE	183984 REAR PLATE	-	1	Enquire
5	184019	ROLLER BALL BEARING 30x72x19	184019 ROLLER BALL BEARING 30x72x19	-	1	Enquire
6	183964	MAIN SHAFT	183964 MAIN SHAFT	-	1	Enquire
7	183949	5th SPEED GEAR	183949 5th SPEED GEAR	-	1	Enquire
8	184015	ROLLER BEARING CAGE	184015 ROLLER BEARING CAGE	-	2	Enquire
9	185166	COMPLETE 5th AND 6th SPEED SYNCHRONISER	185166 COMPLETE 5th AND 6th SPEED SYNCHRONISER SYNCHRONIZER	-	1	Enquire
10	184011	SNAP RING	184011 SNAP RING	-	1	Enquire
11	183970	6th GEAR SHIM'	183970 6th GEAR SHIM' 6th GEAR	-	1	Enquire
12	183950	PINION FOR 6th GEAR	183950 PINION FOR 6th GEAR	-	1	Enquire
13	184010	RING	184010 RING	-	1	Enquire
14	183947	3rd SPEED GEAR	183947 3rd SPEED GEAR	-	1	Enquire
15	184014	ROLLER BEARING CAGE	184014 ROLLER BEARING CAGE	-	1	Enquire
16	185165	COMPLETE 3rd AND 4th SPEED SYNCHRONISER	185165 COMPLETE 3rd AND 4th SPEED SYNCHRONISER SYNCHRONIZER	-	1	Enquire
17	184042	SNAP RING	184042 SNAP RING	-	1	Enquire
18	184005	ROLLER BEARING CAGE	184005 ROLLER BEARING CAGE	-	1	Enquire
19	183948	4th SPEED GEAR	183948 4th SPEED GEAR	-	1	Enquire
20	183973	WASHER	183973 WASHER	-	1	Enquire
21	184021	ROLLER BEARING	184021 ROLLER BEARING	-	1	Enquire
22	184012	RING NUT	184012 RING NUT	-	2	Enquire
23	183965	CLUTCH SHAFT	183965 CLUTCH SHAFT	-	1	Enquire
24	184013	BALL BEARING	184013 BALL BEARING	-	1	Enquire
25	13839224	SCREW	13839224 SCREW	-	2	Enquire
26	184991	PAD FOR SYNCHRONIZER	184991 PAD FOR SYNCHRONIZER Not as spare part / Replaced by 188320 / See ref. 29 /	-	6	Enquire
27	184997	BALL	184997 BALL Not as spare part / Replaced by 188320 / See ref. 29	-	6	Enquire
28	184989	SPRING FOR BALL	184989 SPRING FOR BALL Not as spare part / Replaced by 188320 / See ref. 29	-	6	Enquire
29	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	188320 SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT SPRING REPLACEMENT KIT	-	2	Enquire
30	12606979	WASHER	12606979 WASHER	-	2	Enquire
31	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
32	238108	WASHER	238108 WASHER	-	1	Enquire
33	183985	BUSHING	183985 BUSHING	-	1	Enquire
