Outside Gearbox Controls

Ferrari 360 Modena

Find Your Part

Ferrari 360 Modena - OUTSIDE GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181751 GEARBOX CONTROL HOUSING $423.89 To Order
Photo Part No Description Price (each) Stock
16044024 SCREW $0.37 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
180936 GEAR LEVER $673.92 To Order
Photo Part No Description Price (each) Stock
174967 BUSH $277.19 IN STOCK
Photo Part No Description Price (each) Stock
147561 SPRING $105.04 To Order
Photo Part No Description Price (each) Stock
199070 BUSHING $106.24 To Order
Photo Part No Description Price (each) Stock
13896070 PIN $6.90 To Order
Photo Part No Description Price (each) Stock
160480 GEAR LEVER KNOB $304.86 IN STOCK
Photo Part No Description Price (each) Stock
108010 CHECKNUT $25.59 IN STOCK
Photo Part No Description Price (each) Stock
176626 PIVOT $652.12 IN STOCK
Photo Part No Description Price (each) Stock
176425 PIN $354.19 To Order
Photo Part No Description Price (each) Stock
172934 VIBRATION DAMPER $60.96 To Order
Photo Part No Description Price (each) Stock
176642 ARM $149.21 To Order
Photo Part No Description Price (each) Stock
176419 PIN $61.46 To Order
Photo Part No Description Price (each) Stock
14160570 PIN $7.99 To Order
Photo Part No Description Price (each) Stock
172918 SAFETY RING $6.90 To Order
Photo Part No Description Price (each) Stock
179844 GEAR SELECTOR $3,799.67 To Order
Photo Part No Description Price (each) Stock
159357 Screw $4.70 IN STOCK
Photo Part No Description Price (each) Stock
181752 REAR BUSHING $76.81 To Order
181753 FRONT BUSHING $109.91 IN STOCK
176904 PLUG $129.66 To Order
Photo Part No Description Price (each) Stock
177029 LATERAL ADJUSTER SCREW $67.38 To Order
Photo Part No Description Price (each) Stock
177027 LATERAL SPRING $78.16 To Order
Photo Part No Description Price (each) Stock
177028 SPRING RETAINER CAP $3.55 To Order
Photo Part No Description Price (each) Stock
11058976 SNAP RING $9.51 IN STOCK
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
182268 COMPLETE GEARBOX CONTROL CABLES $1,737.76 To Order
180701 COMPLETE GEARBOX CONTROL CABLES $1,737.76 To Order
Photo Part No Description Price (each) Stock
14567187 BUTTON $0.19 IN STOCK
Photo Part No Description Price (each) Stock
177812 CABLE RETAINER BRACKET $43.24 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
177105 SUPPORT FOR LEVERAGE $32.35 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
178840 ARM $336.95 To Order
178840 ARM $336.95 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $65.77 To Order
Photo Part No Description Price (each) Stock
178423 SHIM $2.89 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.66 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
171677 ROLLER BEARING $15.25 To Order
Photo Part No Description Price (each) Stock
174984 BUSHING $28.74 To Order
Photo Part No Description Price (each) Stock
171671 WASHER $3.86 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
16044024 SCREW $0.37 IN STOCK
Photo Part No Description Price (each) Stock
171673 SHIM $21.80 To Order
Photo Part No Description Price (each) Stock
174911 FORK $168.45 To Order
Photo Part No Description Price (each) Stock
174974 PIN $36.66 IN STOCK
Photo Part No Description Price (each) Stock
11065676 Seeger Ring $0.05 To Order
11065674 SEEGER RING $0.03 To Order
Photo Part No Description Price (each) Stock
184022 EXTERNAL CONTROL ASSEMBLY $3,653.75 IN STOCK
Photo Part No Description Price (each) Stock
178423 SHIM $2.89 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $65.77 To Order
Photo Part No Description Price (each) Stock
174912 FORK $169.39 To Order
Photo Part No Description Price (each) Stock
178932 ARM $377.10 To Order
178932 ARM $377.10 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $65.77 To Order
Photo Part No Description Price (each) Stock
181067 F1 GEARBOX CONTROL DASHBOARD $2,405.28 To Order
181068 F1 GEARBOX CONTROL DASHBOARD $2,471.21 To Order
Photo Part No Description Price (each) Stock
68123900 SCREW $6.63 To Order
Photo Part No Description Price (each) Stock
182237 BUSHING $42.61 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
219570 SHIM $176.49 IN STOCK
Photo Part No Description Price (each) Stock
180127 PLUG $37.65 To Order
Photo Part No Description Price (each) Stock
187873 R.H. JOINT $150.82 IN STOCK
Photo Part No Description Price (each) Stock
187874 L.H. JOINT $117.12 To Order
Photo Part No Description Price (each) Stock
187875 LOCK RING $11.88 IN STOCK
Photo Part No Description Price (each) Stock
182435 COMPLETE RUBBER JOINT $33.19 To Order
Photo Part No Description Price (each) Stock
182391 NUT $14.28 IN STOCK
View All

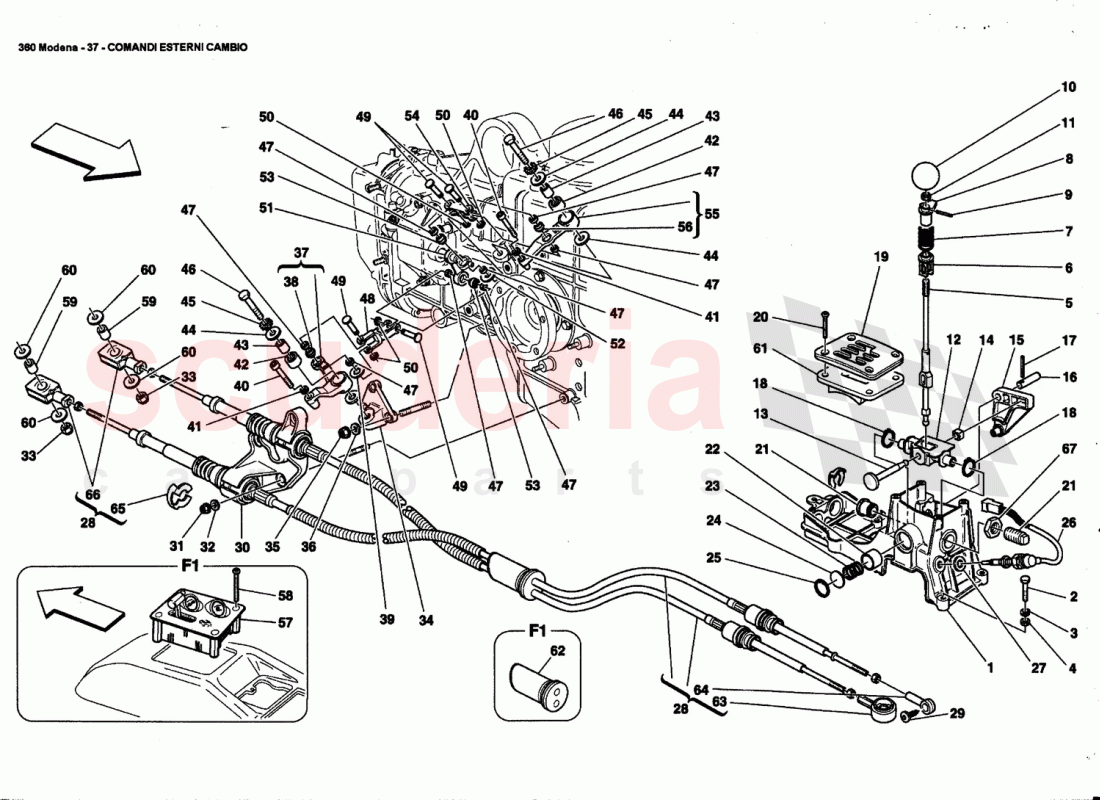

OUTSIDE GEARBOX CONTROLS of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 181751
GEARBOX CONTROL HOUSING 		$423.89 1
2 16044024
SCREW
IN STOCK 		$0.37 (57.5% off) 4
3 12601374
WASHER
IN STOCK 		$0.02 (92% off) 4
4 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 4
5 180936
GEAR LEVER 		$673.92 1
6 174967
BUSH
IN STOCK 		$277.19 (31.8% off) 1
7 147561
SPRING 		$105.04 1
8 199070
BUSHING 		$106.24 (37.5% off) 1
9 13896070
PIN 		$6.90 1
10 160480
GEAR LEVER KNOB
IN STOCK 		$304.86 (36% off) 1
11 108010
CHECKNUT
IN STOCK 		$25.59 (12.7% off) 1
12 176626
PIVOT
IN STOCK 		$652.12 (6% off) 1
13 176425
PIN 		$354.19 1
14 172934
VIBRATION DAMPER 		$60.96 1
15 176642
ARM 		$149.21 (29.5% off) 1
16 176419
PIN 		$61.46 1
17 14160570
PIN 		$7.99 1
18 172918
SAFETY RING
Not for F1 		$6.90 2
19 179844
GEAR SELECTOR
Not for F1 		$3,799.67 1
20 159357
Screw
Not for F1
IN STOCK 		$4.70 (2.1% off) 4
21 181752
REAR BUSHING
Valid for gearbox control 181751 / 		$76.81 1
21 181753
FRONT BUSHING
Valid for gearbox control 181751 /
IN STOCK 		$109.91 1
21 176904
PLUG
Not for F1 / Valid for gearbox control 176418 / 		$129.66 2
22 177029
LATERAL ADJUSTER SCREW
Not for F1 		$67.38 1
23 177027
LATERAL SPRING
Not for F1 		$78.16 1
24 177028
SPRING RETAINER CAP
Not for F1 		$3.55 1
25 11058976
SNAP RING
Not for F1
IN STOCK 		$9.51 1
26 115980A
SWITCH
Not for F1 		- 1 Enquire
27 84653800
WASHER
Not for F1
IN STOCK 		$5.53 1
28 182268
COMPLETE GEARBOX CONTROL CABLES
CABLES / Not for F1 / Valid from Ass. Nr. 35397 		$1,737.76 1
28 180701
COMPLETE GEARBOX CONTROL CABLES
CABLES / Not for F1 / Replaces 178220 / Valid till Ass. Nr. 35396 		$1,737.76 1
29 14567187
BUTTON
Not for F1
IN STOCK 		$0.19 (67.8% off) 1
30 177812
CABLE RETAINER BRACKET
Not for F1 		$43.24 1
31 14059290
FLANGED NUT M6
Not for F1
IN STOCK 		$1.43 3
32 10519424
WASHER
Not for F1
IN STOCK 		$0.02 (92% off) 3
33 14059290
FLANGED NUT M6
Not for F1
IN STOCK 		$1.43 2
34 177105
SUPPORT FOR LEVERAGE
Not for F1 		$32.35 1
35 14040711
NUT
IN STOCK 		$0.42 3
36 12638524
WASHER
IN STOCK 		$0.06 (76% off) 3
37 178840
ARM
/ Valid from Ass. Nr. 35397 		$336.95 1
37 178840
ARM
/ Valid till Ass. Nr. 35396 		$336.95 1
38 109407
BALL-JOINT 		$65.77 1
39 178423
SHIM 		$2.89 1
40 231625
SCREW
IN STOCK 		$0.66 2
41 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
42 171677
ROLLER BEARING 		$15.25 2
43 174984
BUSHING 		$28.74 2
44 171671
WASHER
IN STOCK 		$3.86 (38% off) 4
45 12601374
WASHER
IN STOCK 		$0.02 (92% off) 2
46 16044024
SCREW
IN STOCK 		$0.37 (57.5% off) 2
47 171673
SHIM 		$21.80 8
48 174911
FORK 		$168.45 1
49 174974
PIN
IN STOCK 		$36.66 4
50 11065676
Seeger Ring
/ Not as spare part / Replaced by 11065674 		$0.05 (93.3% off) 4
50 11065674
SEEGER RING 		$0.03 4
51 184022
EXTERNAL CONTROL ASSEMBLY
/ Not as spare part / Replaced by 184022 / See tab. 35 ref. 6
IN STOCK 		$3,653.75 1
52 178423
SHIM 		$2.89 1
53 109407
BALL-JOINT 		$65.77 2
54 174912
FORK 		$169.39 1
55 178932
ARM
/ Valid till Ass. Nr. 35396 		$377.10 1
55 178932
ARM
/ Valid from Ass. Nr. 35397 		$377.10 1
56 109407
BALL-JOINT 		$65.77 1
57 181067
F1 GEARBOX CONTROL DASHBOARD
Valid for F1 / Not for GD 		$2,405.28 (25.6% off) 1
57 181068
F1 GEARBOX CONTROL DASHBOARD
Valid for F1 / Valid for GD 		$2,471.21 1
58 68123900
SCREW
Valid for F1 		$6.63 4
59 182237
BUSHING
IN STOCK 		$42.61 2
60 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
61 219570
SHIM
IN STOCK 		$176.49 1
62 180127
PLUG
Valid for F1 		$37.65 1
63 187873
R.H. JOINT
IN STOCK 		$150.82 1
64 187874
L.H. JOINT 		$117.12 1
65 187875
LOCK RING
IN STOCK 		$11.88 2
66 182435
COMPLETE RUBBER JOINT 		$33.19 (26.2% off) 2
67 182391
NUT
Valid for gearbox control 181751 /
IN STOCK 		$14.28 1
