Ferrari 360 Modena - F1 CLUTCH HYDRAULIC CONTROL -Valid far F1-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181160 COMPLETE HYDRAULIC ACTUATOR $13,769.95 To Order
Photo Part No Description Price (each) Stock
11501024 STUD BOLT $1.07 To Order
Photo Part No Description Price (each) Stock
11500724 STUD BOLT $1.36 To Order
Photo Part No Description Price (each) Stock
103038 DOWEL $1.36 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
179340 PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407- $1,315.75 To Order
Photo Part No Description Price (each) Stock
179342 PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408- $1,508.31 To Order
Photo Part No Description Price (each) Stock
179343 PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409- $1,299.71 To Order
Photo Part No Description Price (each) Stock
179344 PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410- $1,572.49 To Order
Photo Part No Description Price (each) Stock
179345 PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411- $1,267.62 To Order
Photo Part No Description Price (each) Stock
179348 PIPE FROM PUMP TO BLOCK $786.24 To Order
Photo Part No Description Price (each) Stock
171454 PIPE UNION $51.91 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.16 To Order
Photo Part No Description Price (each) Stock
179346 PROTECTIVE SHEATH $525.32 To Order
Photo Part No Description Price (each) Stock
171454 PIPE UNION $51.91 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.16 To Order
Photo Part No Description Price (each) Stock
175667 BLOCK $42.98 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
171755 WASHER $0.42 To Order
Photo Part No Description Price (each) Stock
70001184 FEMALE COUPLING -Not as spare part- -Replaced by 210469- $561.59 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.16 To Order
Photo Part No Description Price (each) Stock
171630 UNION-Valid for F1- $68.48 To Order
Photo Part No Description Price (each) Stock
152954 BLEED NIPPLE SCREW $6.37 To Order
Photo Part No Description Price (each) Stock
152955 PROTECTIVE CAP $5.67 To Order
Photo Part No Description Price (each) Stock
242682 UPPER ACTUATOR MOUNTING BRACKET $18.67 To Order
Photo Part No Description Price (each) Stock
13516424 STUD BOLT $29.71 To Order
Photo Part No Description Price (each) Stock
248092 BRACKET KIT $1,111.08 To Order
174260 LOWER ACTUATOR SUPPORT BRACKET $11.31 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
180807 PIPES SUPPORTING BRACKET $14.28 To Order
Photo Part No Description Price (each) Stock
181614 SHIELD SUPPORTING BRACKET $7.52 To Order
Photo Part No Description Price (each) Stock
177384 SHIELD FOR ACTUATOR PROTECTION $417.18 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
180782 PIPES SUPPORTING BRACKET $3.55 To Order
Photo Part No Description Price (each) Stock
186685 BLOCK MOUNTING BRACKET $4.30 To Order
Photo Part No Description Price (each) Stock
124034 BRACKET WITH SHEATH $2.61 To Order
Photo Part No Description Price (each) Stock
13540724 STUD BOLT $0.49 To Order
Photo Part No Description Price (each) Stock
181325 Gearbox Selection Sensor $1,651.12 To Order
Photo Part No Description Price (each) Stock
181325 Gearbox Selection Sensor $1,651.12 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
180744 SENSOR PROTECTION SHIELD $387.02 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
164565 FIXING CLIP $0.21 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
181344 BRACKET $2.97 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
14496324 WASHER $3.23 To Order
Photo Part No Description Price (each) Stock
65891200 NUT WITH CAGE $2.01 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
11500624 STUD BOLT $0.58 To Order
Photo Part No Description Price (each) Stock
10903224 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.33 To Order
Photo Part No Description Price (each) Stock
176142 BLOCK SUPPORT BRACKET $5.83 To Order
Photo Part No Description Price (each) Stock
248088 RECIRCULATION PIPE KIT $288.81 To Order
Photo Part No Description Price (each) Stock
192911 POTENTIOMETER SUPPORT $19.24 To Order
View All

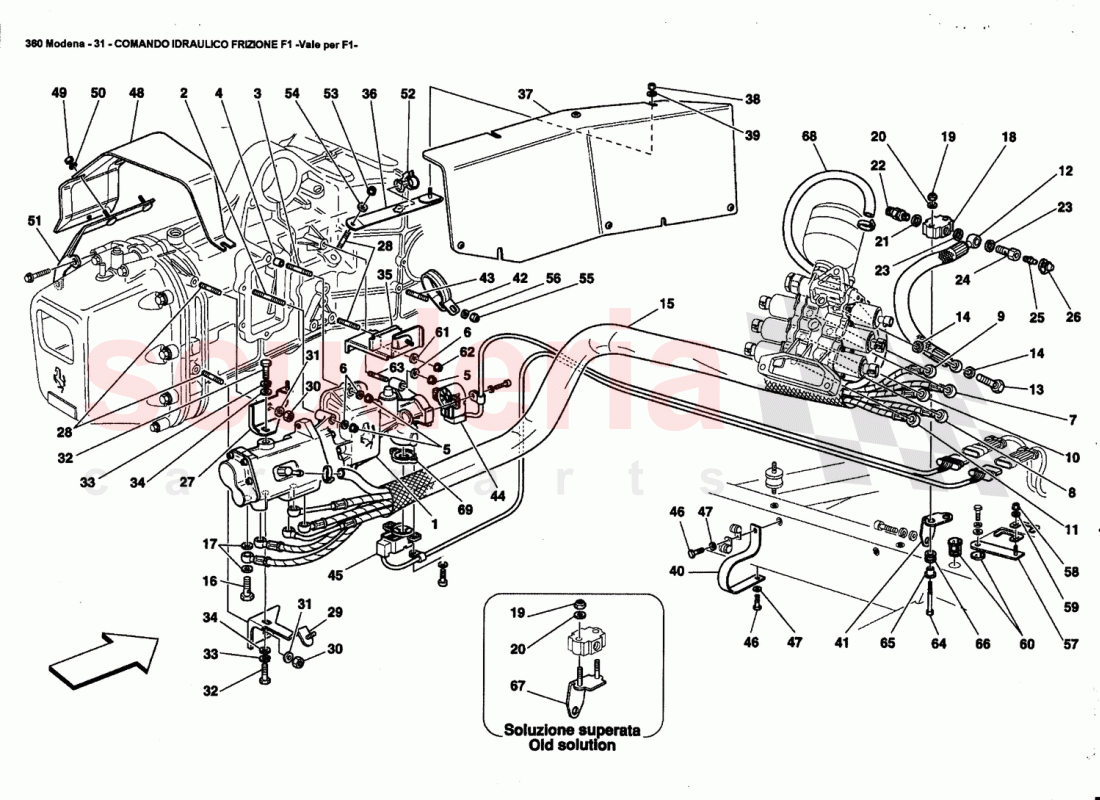

F1 CLUTCH HYDRAULIC CONTROL -Valid far F1- of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 181161
F1 GEARBOX SYSTEM COMPONENTS KIT
COMPONENTS KIT 		$20,707.11 1
1 181160
COMPLETE HYDRAULIC ACTUATOR 		$13,769.95 1
2 11501024
STUD BOLT 		$1.07 (81.1% off) 4
3 11500724
STUD BOLT 		$1.36 2
4 103038
DOWEL 		$1.36 2
5 14059290
FLANGED NUT M6 		$1.51 8
6 11197774
WASHER 		$0.06 (80% off) 8
7 179340
PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407- 		$1,315.75 1
8 179342
PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408- 		$1,508.31 (24.8% off) 1
9 179343
PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409- 		$1,299.71 1
10 179344
PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410- 		$1,572.49 1
11 179345
PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411- 		$1,267.62 1
12 179348
PIPE FROM PUMP TO BLOCK 		$786.24 1
13 171454
PIPE UNION 		$51.91 6
14 10261060
GASKET COPPER 12 - 16 X 1.5 		$0.16 (67.3% off) 12
15 179346
PROTECTIVE SHEATH 		$525.32 1
16 171454
PIPE UNION 		$51.91 5
17 10261060
GASKET COPPER 12 - 16 X 1.5 		$0.16 (67.3% off) 10
18 175667
BLOCK 		$42.98 1
19 14059290
FLANGED NUT M6 		$1.51 2
20 11197774
WASHER 		$0.06 (80% off) 2
21 171755
WASHER 		$0.42 1
22 70001184
FEMALE COUPLING -Not as spare part- -Replaced by 210469- 		$561.59 1
23 10261060
GASKET COPPER 12 - 16 X 1.5 		$0.16 (67.3% off) 2
24 171630
UNION-Valid for F1- 		$68.48 1
25 152954
BLEED NIPPLE SCREW 		$6.37 1
26 152955
PROTECTIVE CAP 		$5.67 (24.4% off) 1
27 242682
UPPER ACTUATOR MOUNTING BRACKET
BRACKET 		$18.67 1
28 13516424
STUD BOLT 		$29.71 2
29 248092
BRACKET KIT
BRACKET 		$1,111.08 1
29 174260
LOWER ACTUATOR SUPPORT BRACKET
BRACKET / Valid till stock exhaustion 		$11.31 1
30 14040711
NUT 		$0.41 2
31 127496
WASHER 		$0.06 (80% off) 2
32 16043124
SCREW 		$0.18 2
33 127496
WASHER 		$0.06 (80% off) 2
34 84653800
WASHER 		$5.75 2
35 180807
PIPES SUPPORTING BRACKET 		$14.28 1
36 181614
SHIELD SUPPORTING BRACKET 		$7.52 1
37 177384
SHIELD FOR ACTUATOR PROTECTION
PROTECTION 		$417.18 1
38 15896470
NUT 		$7.33 4
39 12637824
WASHER 		$0.06 (88% off) 4
40 180782
PIPES SUPPORTING BRACKET 		$3.55 2
41 186685
BLOCK MOUNTING BRACKET 		$4.30 1
42 124034
BRACKET WITH SHEATH 		$2.61 1
43 13540724
STUD BOLT 		$0.49 1
44 181325
Gearbox Selection Sensor 		$1,651.12 1
45 181325
Gearbox Selection Sensor 		$1,651.12 1
46 81591700
SCREW 		$2.22 4
47 10519424
WASHER 		$0.02 (92% off) 4
48 180744
SENSOR PROTECTION SHIELD 		$387.02 1
49 15896470
NUT 		$7.33 2
50 12637824
WASHER 		$0.06 (88% off) 2
51 180745
SHIELD MOUNTING BRACKET 		$57.75 1
52 164565
FIXING CLIP 		$0.21 (61.8% off) 1
53 14040711
NUT 		$0.41 1
54 12638524
WASHER 		$0.06 (76% off) 2
55 14059290
FLANGED NUT M6 		$1.51 1
56 12643724
WASHER 		$0.06 (88% off) 1
57 181344
BRACKET 		$2.97 1
58 319201
FUEL FILLER PIPE ASSEMBLY 		$770.19 1
59 14496324
WASHER 		$3.23 1
60 65891200
NUT WITH CAGE 		$2.01 4
61 12638524
WASHER 		$0.06 (76% off) 2
62 14040711
NUT 		$0.41 2
63 11500624
STUD BOLT 		$0.58 (42% off) 2
64 10903224
SCREW 		$0.28 (30% off) 2
65 149707
SPACER 		$1.17 (33.1% off) 2
66 177576
CABLE GROMMET 		$2.33 2
67 176142
BLOCK SUPPORT BRACKET 		$5.83 1
68 248088
RECIRCULATION PIPE KIT 		$288.81 1
69 192911
POTENTIOMETER SUPPORT 		$19.24 1
