Name: CLUTCH AND CONTROLS -Not far F1-
Rating: 4.0 (1 reviews)

CLUTCH AND CONTROLS -Not far F1- of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - CLUTCH AND CONTROLS -Not far F1-

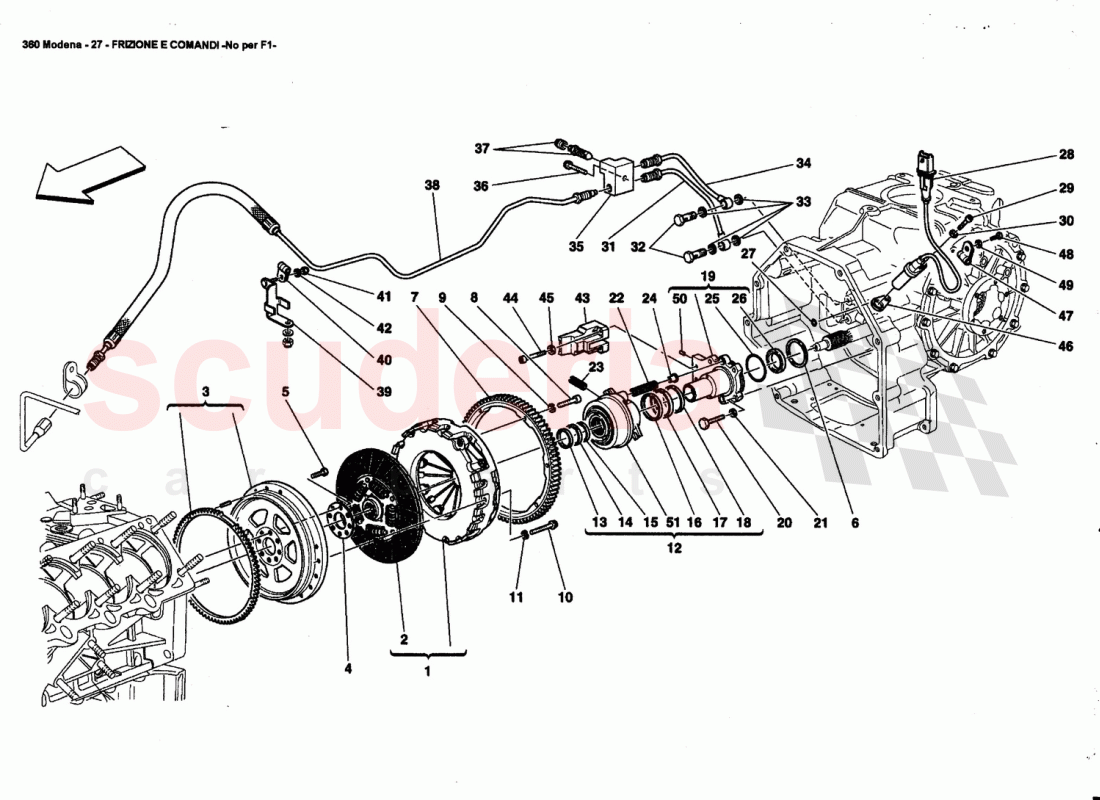

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	201680	Complete Clutch	$2,668.24	To Order

Photo	Part No	Description	Price (each)	Stock
	201680	Complete Clutch	$2,668.24	To Order

Photo	Part No	Description	Price (each)	Stock
	181596	Engine Flywheel	$1,395.98	To Order

Photo	Part No	Description	Price (each)	Stock
	215963	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201755	Bolt Hex Head M10 x 1.25	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	173360	SHIM	$21.25	To Order

Photo	Part No	Description	Price (each)	Stock
	186157	RING GEAR	$561.59	To Order

Photo	Part No	Description	Price (each)	Stock
	186196	Ring Gear Bolt M6 x 24	$9.06	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	178739	Screw	$12.72	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	172970	Scraper Ring	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	170416	Ring	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	172972	Seal Ring	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	154508	Sealing Ring 44mm	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	154507	Ring	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	154551	Scrapper Ring	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	207539	Complete Bearing Mounting Flange	$1,243.66	To Order

Photo	Part No	Description	Price (each)	Stock
	16052024	Screw	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	155207	Pre-Tightening Springs	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14604170	SPRING PIN	$0.44	To Order
	14604170	SPRING PIN	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	155206	SHIM	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	136140	O-RING D.50.52 X 1	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	172363	Gasket	$12.03	To Order

Photo	Part No	Description	Price (each)	Stock
	233118	O-RING D.6 X 2.2	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	182194	RPM Sensor	$81.67	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	242066	CLUTCH CONTROL PIPE	$139.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11903811	HOSE CONNECTOR	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	242074	BLEED SYSTEM PIPE	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	235706	Union Block	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	16286324	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	$6.37	To Order

Photo	Part No	Description	Price (each)	Stock
	175133	CLUTCH CONTROL HOSE	$293.40	To Order

Photo	Part No	Description	Price (each)	Stock
	178342	TUBE FASTENING BRACKET	$97.72	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10730114	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	950760	SUPPORT	$112.61	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	182896	THICKNESS	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	65928500	THREADED PLUG	$24.47	To Order

Photo	Part No	Description	Price (each)	Stock
	234943	Thrust Bearing	$1,203.43	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	201680	Complete Clutch	201680 Complete Clutch	$2,668.24	1
2	201680	Complete Clutch	201680 Complete Clutch	$2,668.24	1
3	181596	Engine Flywheel	181596 Engine Flywheel	$1,395.98 MSRP: ~~1,785.00~~ (21.8% off)	1
4	215963	WASHER	215963 WASHER	-	1	Enquire
5	201755	Bolt Hex Head M10 x 1.25	201755 Bolt Hex Head M10 x 1.25	$1.18 MSRP: ~~1.95~~ (39.5% off)	8
6	173360	SHIM	173360 SHIM Possible fitting	$21.25 MSRP: ~~24.38~~ (12.8% off)	2
7	186157	RING GEAR	186157 RING GEAR Valid from car Ass. Nr. 43022 (gearbox No. 7922)	$561.59 MSRP: ~~713.89~~ (21.3% off)	1
8	186196	Ring Gear Bolt M6 x 24	186196 Ring Gear Bolt M6 x 24 For 6 holes ring gear q.ty 6	$9.06 MSRP: ~~9.44~~ (4% off)	3
9	127494	WASHER	127494 WASHER For 3 holes ring gear	$0.08 MSRP: ~~0.68~~ (88.2% off)	3
9	11197774	WASHER	11197774 WASHER For 6 holes ring gear	$0.06 MSRP: ~~0.30~~ (80% off)	6
10	178739	Screw	178739 Screw	$12.72	15
11	238108	WASHER	238108 WASHER	$0.47 MSRP: ~~0.65~~ (27.7% off)	15
13	172970	Scraper Ring	172970 Scraper Ring	$24.05 MSRP: ~~25.16~~ (4.4% off)	1
14	170416	Ring	170416 Ring	$2.24 MSRP: ~~2.59~~ (13.5% off)	1
15	172972	Seal Ring	172972 Seal Ring	$24.05 MSRP: ~~25.22~~ (4.6% off)	1
16	154508	Sealing Ring 44mm	154508 Sealing Ring 44mm	$43.31 MSRP: ~~54.22~~ (20.1% off)	1
17	154507	Ring	154507 Ring	$4.18 MSRP: ~~5.05~~ (17.2% off)	1
18	154551	Scrapper Ring	154551 Scrapper Ring	$28.87 MSRP: ~~29.85~~ (3.3% off)	1
19	207539	Complete Bearing Mounting Flange	207539 Complete Bearing Mounting Flange	$1,243.66 MSRP: ~~1,356.73~~ (8.3% off)	1
20	16052024	Screw	16052024 Screw	$2.58 MSRP: ~~3.75~~ (31.2% off)	4
21	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
22	155207	Pre-Tightening Springs	155207 Pre-Tightening Springs	$9.00	2
23	14604170	SPRING PIN	14604170 SPRING PIN Not as spare part / Replaced by 14604170	$0.44 MSRP: ~~0.75~~ (41.3% off)	1
23	14604170	SPRING PIN	14604170 SPRING PIN	$0.44 MSRP: ~~0.75~~ (41.3% off)	1
24	155206	SHIM	155206 SHIM	$3.32 MSRP: ~~4.18~~ (20.6% off)	2
25	136140	O-RING D.50.52 X 1	136140 O-RING D.50.52 X 1	$1.41 MSRP: ~~1.50~~ (6% off)	1
26	172363	Gasket	172363 Gasket	$12.03 MSRP: ~~24.25~~ (50.4% off)	1
27	233118	O-RING D.6 X 2.2	233118 O-RING D.6 X 2.2	$9.00	2
28	182194	RPM Sensor	182194 RPM Sensor	$81.67 MSRP: ~~111.23~~ (26.6% off)	2
29	248334	SCREW	248334 SCREW	$0.68	2
30	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
31	242066	CLUTCH CONTROL PIPE	242066 CLUTCH CONTROL PIPE	$139.03 MSRP: ~~180.20~~ (22.8% off)	1
32	11903811	HOSE CONNECTOR	11903811 HOSE CONNECTOR	$4.39	2
33	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	4
34	242074	BLEED SYSTEM PIPE	242074 BLEED SYSTEM PIPE	$141.19	1
35	235706	Union Block	235706 Union Block	$256.72	1
36	16286324	SCREW	16286324 SCREW	$0.65	1
37	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	$6.37	1
38	175133	CLUTCH CONTROL HOSE	175133 CLUTCH CONTROL HOSE	$293.40 MSRP: ~~399.95~~ (26.6% off)	1
39	178342	TUBE FASTENING BRACKET	178342 TUBE FASTENING BRACKET	$97.72	1
40	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH	$1.46	1
41	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
42	10730114	WASHER	10730114 WASHER	$0.31	1
43	950760	SUPPORT	950760 SUPPORT	$112.61	1
44	14304424	SCREW	14304424 SCREW	$0.19	2
45	62769800	WASHER	62769800 WASHER	$0.23 MSRP: ~~0.30~~ (23.3% off)	2
46	182896	THICKNESS	182896 THICKNESS	$0.31	2
47	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH	$1.46	1
48	10977724	SCREW	10977724 SCREW	$0.06	1
49	12637824	WASHER	12637824 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	1
50	65928500	THREADED PLUG	65928500 THREADED PLUG	$24.47	2
51	234943	Thrust Bearing	234943 Thrust Bearing	$1,203.43	1
