Front Seats - Racing Seat

Ferrari 296 GTB USA

Find Your Part

Ferrari 296 GTB USA - FRONT SEATS - RACING SEAT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
917520 BUCKLE SECTION $224.63 To Order
Photo Part No Description Price (each) Stock
884801 SPECIAL SCREW $1.78 To Order
Photo Part No Description Price (each) Stock
66155100 COVER $5.75 To Order
Photo Part No Description Price (each) Stock
82140000 SCREW $3.06 To Order
Photo Part No Description Price (each) Stock
900726 SEAT ARCH $401.13 To Order
Photo Part No Description Price (each) Stock
955855 COMPLETE MANUAL GUIDE $3,514.05 To Order
955857 COMPLETE MANUAL GUIDE $3,514.05 To Order
Photo Part No Description Price (each) Stock
894026 SCUFF GUARD $13.47 To Order
Photo Part No Description Price (each) Stock
900603 SEAT ADJUSTMENT KNOB $272.77 To Order
Photo Part No Description Price (each) Stock
900604 RH COVER PANEL FOR LH SEAT BACKREST $110.70 To Order
900605 RH COVER PANEL FOR RH SEAT BACKREST $97.86 To Order
Photo Part No Description Price (each) Stock
900606 LH COVER PANEL FOR LH SEAT BACKREST $97.86 To Order
900679 LH COVER PANEL FOR RH SEAT BACKREST $110.70 To Order
Photo Part No Description Price (each) Stock
900688 LH REAR BACKREST CASING $160.44 To Order
Photo Part No Description Price (each) Stock
900705 RH REAR BACKREST CASING $160.44 To Order
Photo Part No Description Price (each) Stock
900706 CASING FASTENER SCREW KIT $71.51 To Order
Photo Part No Description Price (each) Stock
900709 BACKREST ADJUSTMENT ROD Enquire To Order
Photo Part No Description Price (each) Stock
900720 BUCKLE STALK FASTENER KIT $188.53 To Order
Photo Part No Description Price (each) Stock
900723 COMPLETE LH SEAT WIRING HARNESS $134.77 To Order
900724 COMPLETE RH SEAT WIRING HARNESS Enquire To Order
55021533 COMPLETE SEAT WIRING HARNESS $673.92 To Order
Photo Part No Description Price (each) Stock
947642 SEAT ROD STOP $33.68 To Order
View All

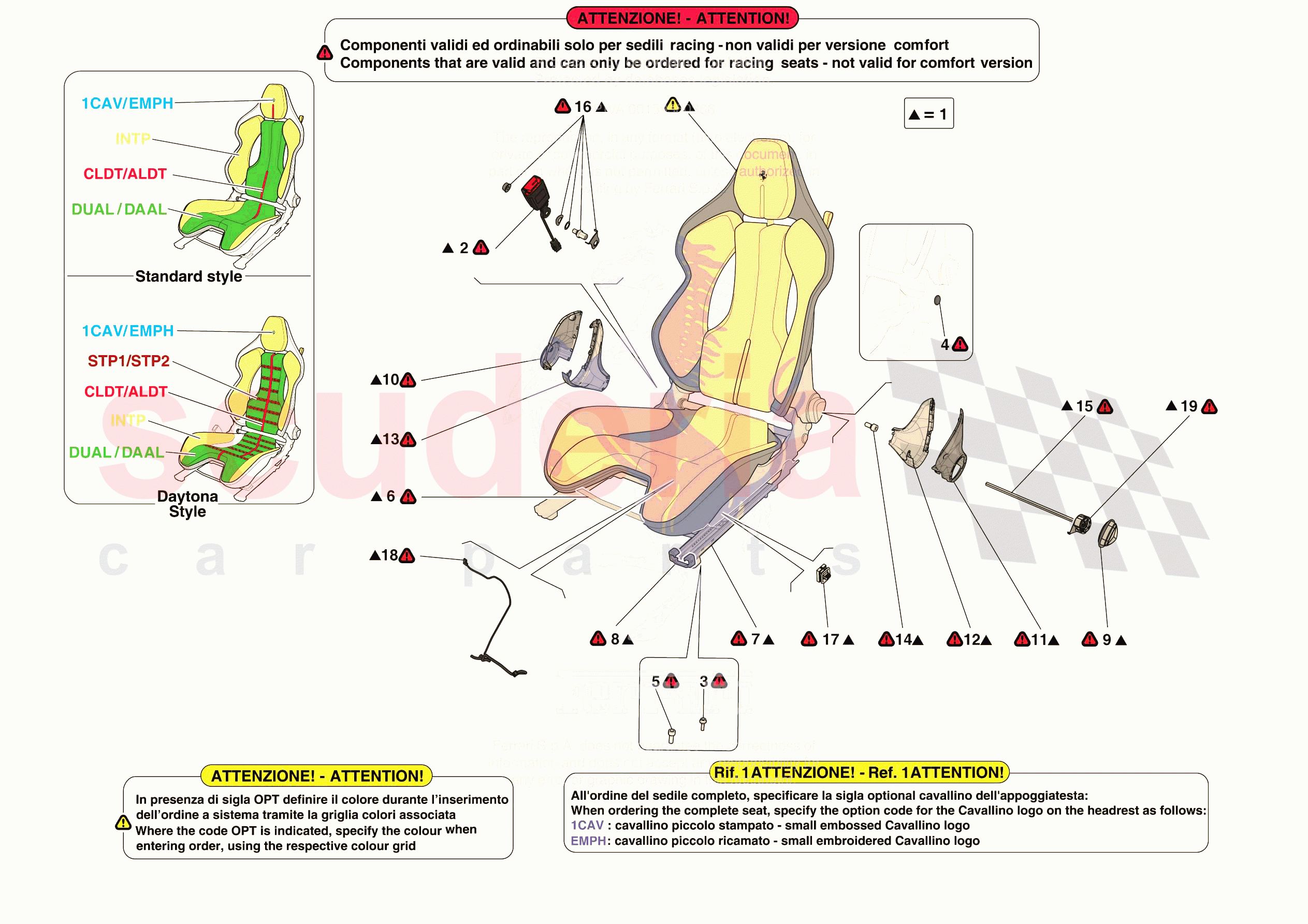

FRONT SEATS - RACING SEAT of Ferrari Ferrari 296 GTB USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0002 917520
BUCKLE SECTION 		$224.63 2
0003 884801
SPECIAL SCREW
M10 x 1.25 		$1.78 8
0004 66155100
COVER 		$5.75 (25.9% off) 2
0005 82140000
SCREW
M10 X 1.25 X 25 		$3.06 (27.1% off) 8
0006 900726
SEAT ARCH 		$401.13 2
0007 955855
COMPLETE MANUAL GUIDE
Without seat tilt mechanism 		$3,514.05 4
0007 955857
COMPLETE MANUAL GUIDE
With seat tilt mechanism 		$3,514.05 2
0008 894026
SCUFF GUARD 		$13.47 4
0009 900603
SEAT ADJUSTMENT KNOB 		$272.77 2
0010 900604
RH COVER PANEL FOR LH SEAT BACKREST 		$110.70 1
0010 900605
RH COVER PANEL FOR RH SEAT BACKREST 		$97.86 1
0011 900606
LH COVER PANEL FOR LH SEAT BACKREST 		$97.86 1
0011 900679
LH COVER PANEL FOR RH SEAT BACKREST 		$110.70 1
0012 900688
LH REAR BACKREST CASING 		$160.44 2
0013 900705
RH REAR BACKREST CASING 		$160.44 2
0014 900706
CASING FASTENER SCREW KIT 		$71.51 1
0015 900709
BACKREST ADJUSTMENT ROD 		- 2 Enquire
0016 900720
BUCKLE STALK FASTENER KIT 		$188.53 1
0018 900723
COMPLETE LH SEAT WIRING HARNESS
Driver side 		$134.77 1
0018 900724
COMPLETE RH SEAT WIRING HARNESS
Driver side 		- 1 Enquire
0018 55021533
COMPLETE SEAT WIRING HARNESS
Passenger side 		$673.92 1
0019 947642
SEAT ROD STOP 		$33.68 1
