Ferrari 296 GTB USA - DASHBOARD - SUBSTRUCTURE -NOT FOR RHD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
970361 COMPLETE CROSS MEMBER $4,155.89 To Order
Photo Part No Description Price (each) Stock
970166 COMPL. CENTRE BRACKET $57.75 To Order
Photo Part No Description Price (each) Stock
970190 RH SATELLITE BRACKET $20.84 To Order
Photo Part No Description Price (each) Stock
970196 LH SATELLITE BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
970311 COMPL. SUPPORT BASE $134.77 To Order
Photo Part No Description Price (each) Stock
85441400 PLATE $5.35 To Order
Photo Part No Description Price (each) Stock
970217 FASTENER BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
970162 COMPL. LOWER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
970278 COMPL. BODY COMPUTER BRACKET $56.14 To Order
831957 COMPL. BODY COMPUTER BRACKET $85.03 To Order
Photo Part No Description Price (each) Stock
970191 LOWER BRACKET FOR LOWER STEERING COLUMN TRIM $126.75 To Order
851447 LOWER MANUAL STEERING COLUMN BRACKET $137.98 To Order
86592000 LOWER BRACKET FOR LOWER STEERING COLUMN TRIM $51.33 To Order
Photo Part No Description Price (each) Stock
800059 UPPER BRACKET FOR LOWER STEERING COLUMN TRIM $14.91 To Order
851446 UPPER MANUAL STEERING COLUMN BRACKET $40.10 To Order
86431600 UPPER BRACKET FOR LOWER STEERING COLUMN TRIM $15.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
837930 UPPER STEERING COLUMN TRIM BRACKET $13.94 To Order
Photo Part No Description Price (each) Stock
800751 UNDERDASHBOARD BRACKET $19.24 To Order
Photo Part No Description Price (each) Stock
983659 COMPL. LATERAL REINFORCEMENT CONNECTION $49.73 To Order
Photo Part No Description Price (each) Stock
970236 COMPLETE UPPER BRACKET OF RH DEFROSTER SUBSTRUCTURE $25.66 To Order
Photo Part No Description Price (each) Stock
970255 COMPLETE UPPER BRACKET OF LH DEFROSTER SUBSTRUCTURE $59.35 To Order
Photo Part No Description Price (each) Stock
970237 COMPL. RH DUCT FASTENER BRACKET $83.42 To Order
Photo Part No Description Price (each) Stock
970203 COMPL. FASTENER BRACKET FOR RH LOWER COVER $22.45 To Order
Photo Part No Description Price (each) Stock
970187 RH LATERAL CASTING FASTENER BRACKET $8.66 To Order
Photo Part No Description Price (each) Stock
970131 COMPL. LH DRIVER SIDE DUCT SURROUND BRACKET. $81.82 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
914630 COMPL. LH LOWER COVER BRACKET ASSEMBLY. $60.85 To Order
Photo Part No Description Price (each) Stock
970341 COMPL. HVAC UNIT MOUNTING BRACKET $62.56 To Order
Photo Part No Description Price (each) Stock
81911600 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
985847 LH CONDUIT FASTENER BRACKET $32.08 To Order
Photo Part No Description Price (each) Stock
970154 COMPL. REAR SUPPORT BRACKET $150.82 To Order
Photo Part No Description Price (each) Stock
970354 COMPL. FASTENER BRACKET $17.63 To Order
Photo Part No Description Price (each) Stock
970128 COMPL. BRACKET ON TOP COVER $15.24 To Order
Photo Part No Description Price (each) Stock
970274 COMPL. UPPER BRACKET $35.28 To Order
Photo Part No Description Price (each) Stock
783444 COMPL. RH DRIVER SIDE BRACKET $240.67 To Order
Photo Part No Description Price (each) Stock
831906 COMPL. RH PASSENGER SIDE BRACKET $27.26 To Order
Photo Part No Description Price (each) Stock
888362 LH PASSENGER SIDE BRACKET $78.61 To Order
Photo Part No Description Price (each) Stock
831901 RH BRACKET UNDER GLOVE COMPARTMENT $25.66 To Order
Photo Part No Description Price (each) Stock
783490 COMPL. CENTRE DRIVER SIDE BRACKET $48.12 To Order
Photo Part No Description Price (each) Stock
783446 COMPL. BRACKET $31.90 To Order
Photo Part No Description Price (each) Stock
783437 COMPL. BRACKET $18.83 To Order
Photo Part No Description Price (each) Stock
783330 BRACKET $67.38 To Order
Photo Part No Description Price (each) Stock
783301 COMPL. BRACKET $101.07 To Order
Photo Part No Description Price (each) Stock
783457 STRUCTURAL REINFORCEMENT $154.03 To Order
Photo Part No Description Price (each) Stock
783460 COMPL. RH CONNECTION BRACKET $18.83 To Order
Photo Part No Description Price (each) Stock
914628 COMPL. LH LOWER CAP FASTENER BRACKET $46.52 To Order
Photo Part No Description Price (each) Stock
914627 LH LOWER CAP FASTENER BRACKET $17.39 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
945930 MYFERRARI CONNECT ECU BRACKET $57.75 To Order
945930 MYFERRARI CONNECT ECU BRACKET $57.75 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
View All

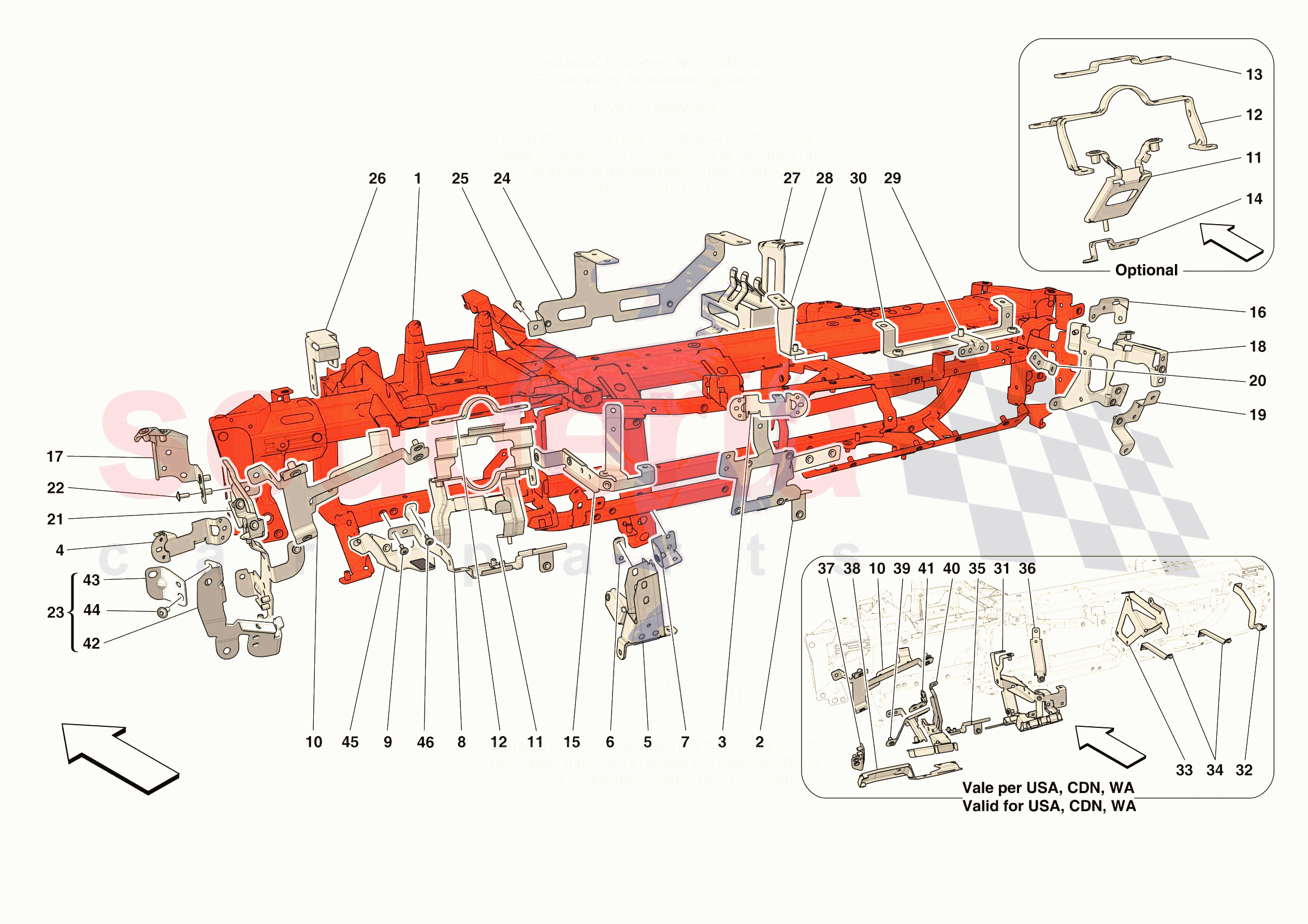

DASHBOARD - SUBSTRUCTURE -NOT FOR RHD- of Ferrari Ferrari 296 GTB USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 970361
COMPLETE CROSS MEMBER 		$4,155.89 1
0002 970166
COMPL. CENTRE BRACKET 		$57.75 1
0003 970190
RH SATELLITE BRACKET 		$20.84 1
0004 970196
LH SATELLITE BRACKET 		- 1 Enquire
0005 970311
COMPL. SUPPORT BASE 		$134.77 1
0006 85441400
PLATE 		$5.35 1
0007 970217
FASTENER BRACKET 		$24.05 1
0008 970162
COMPL. LOWER BRACKET 		- 1 Enquire
0009 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 2
0010 970278
COMPL. BODY COMPUTER BRACKET 		$56.14 1
0010 831957
COMPL. BODY COMPUTER BRACKET 		$85.03 1
0011 970191
LOWER BRACKET FOR LOWER STEERING COLUMN TRIM
Applies until depletion 		$126.75 1
0011 851447
LOWER MANUAL STEERING COLUMN BRACKET
For vehicles up to Ass.ly No. 202020, also order bracket 851446 ref. 12; Applicable after depletion of 970191 		$137.98 1
0011 86592000
LOWER BRACKET FOR LOWER STEERING COLUMN TRIM
Applicable for full electric seats or full electric seats with ventilation 		$51.33 1
0012 800059
UPPER BRACKET FOR LOWER STEERING COLUMN TRIM
No longer supplied - Replaced by 851446 		$14.91 1
0012 851446
UPPER MANUAL STEERING COLUMN BRACKET
For vehicles up to Ass.ly No. 202020, also order bracket 851447 ref. 11 		$40.10 1
0012 86431600
UPPER BRACKET FOR LOWER STEERING COLUMN TRIM
Applicable for full electric seats or full electric seats with ventilation 		$15.07 1
0012 851482
UPPER ELEC. ADJ. STEERING COLUMN BRACKET
Applicable for full electric seats or full electric seats with ventilation 		$41.70 1
0013 837930
UPPER STEERING COLUMN TRIM BRACKET
Applicable for full electric seats or full electric seats with ventilation 		$13.94 1
0014 800751
UNDERDASHBOARD BRACKET
Applicable for full electric seats or full electric seats with ventilation 		$19.24 1
0015 983659
COMPL. LATERAL REINFORCEMENT CONNECTION 		$49.73 1
0016 970236
COMPLETE UPPER BRACKET OF RH DEFROSTER SUBSTRUCTURE 		$25.66 1
0017 970255
COMPLETE UPPER BRACKET OF LH DEFROSTER SUBSTRUCTURE 		$59.35 1
0018 970237
COMPL. RH DUCT FASTENER BRACKET 		$83.42 1
0019 970203
COMPL. FASTENER BRACKET FOR RH LOWER COVER 		$22.45 1
0020 970187
RH LATERAL CASTING FASTENER BRACKET 		$8.66 1
0021 970131
COMPL. LH DRIVER SIDE DUCT SURROUND BRACKET. 		$81.82 1
0022 85833900
SCREW
M5 X 12
IN STOCK 		$0.36 4
0022 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 4
0023 914630
COMPL. LH LOWER COVER BRACKET ASSEMBLY.
Applies until depletion 		$60.85 1
0024 970341
COMPL. HVAC UNIT MOUNTING BRACKET 		$62.56 1
0025 81911600
SCREW
M6 X 1 X 18 		$0.47 3
0026 985847
LH CONDUIT FASTENER BRACKET 		$32.08 1
0027 970154
COMPL. REAR SUPPORT BRACKET 		$150.82 1
0028 970354
COMPL. FASTENER BRACKET 		$17.63 1
0029 970128
COMPL. BRACKET ON TOP COVER 		$15.24 1
0030 970274
COMPL. UPPER BRACKET 		$35.28 1
0031 783444
COMPL. RH DRIVER SIDE BRACKET 		$240.67 1
0032 831906
COMPL. RH PASSENGER SIDE BRACKET 		$27.26 1
0033 888362
LH PASSENGER SIDE BRACKET 		$78.61 1
0034 831901
RH BRACKET UNDER GLOVE COMPARTMENT 		$25.66 2
0035 783490
COMPL. CENTRE DRIVER SIDE BRACKET 		$48.12 1
0036 783446
COMPL. BRACKET 		$31.90 1
0037 783437
COMPL. BRACKET 		$18.83 1
0038 783330
BRACKET 		$67.38 1
0039 783301
COMPL. BRACKET 		$101.07 1
0040 783457
STRUCTURAL REINFORCEMENT 		$154.03 1
0041 783460
COMPL. RH CONNECTION BRACKET 		$18.83 1
0042 914628
COMPL. LH LOWER CAP FASTENER BRACKET 		$46.52 1
0043 914627
LH LOWER CAP FASTENER BRACKET 		$17.39 1
0044 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 1
0045 945930
MYFERRARI CONNECT ECU BRACKET
Version with MyFerrari Connect Hardware Readiness 		$57.75 1
0045 945930
MYFERRARI CONNECT ECU BRACKET 		$57.75 1
0046 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 2
