FRONT SUBSTRUCTURE of Ferrari Ferrari 296 GTB USA

View All

Ferrari 296 GTB USA - FRONT SUBSTRUCTURE

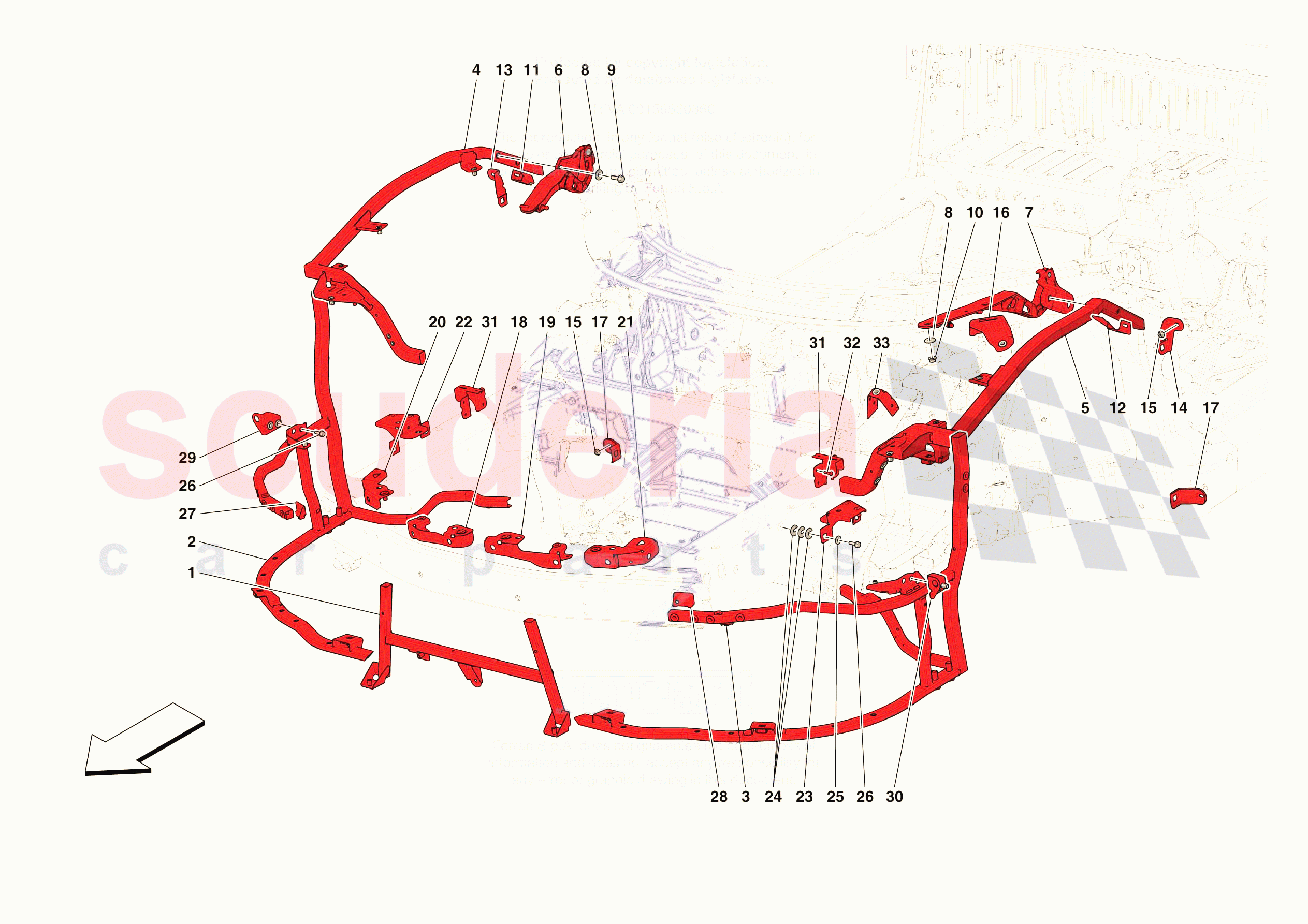

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985957745	COMPL. CENTRE TRELLIS FRAME	$722.05	To Order

Photo	Part No	Description	Price (each)	Stock
	985957709	COMPL. RH FRONT SUBFRAME	$1,914.27	To Order

Photo	Part No	Description	Price (each)	Stock
	985957693	LH FRONT SUBFRAME	$1,927.11	To Order

Photo	Part No	Description	Price (each)	Stock
	985957644	RH FENDER MOUNTING	$1,091.11	To Order

Photo	Part No	Description	Price (each)	Stock
	985957678	LH FENDER MOUNTING	$1,059.02	To Order

Photo	Part No	Description	Price (each)	Stock
	957565	RH FRONT LID HINGE	$689.96	To Order

Photo	Part No	Description	Price (each)	Stock
	957566	COMPL. LH FRONT LID HINGE	$688.05	To Order

Photo	Part No	Description	Price (each)	Stock
	13578301	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	957583	RH BRACKET FOR ADJUSTER	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	957585	LH BRACKET FOR ADJUSTER	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	957579	RH UPPER DOOR JAMB MOUNTING BRACKET	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	957580	LH UPPER DOOR JAMB MOUNTING BRACKET	$27.21	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	890415	COMPL. LH WINDSCREEN WIPER MOUNTING BRACKET	$42.98	To Order
	883584	COMPL. RH WINDSCREEN WIPER MOUNTING BRACKET	$47.28	To Order

Photo	Part No	Description	Price (each)	Stock
	957578	LOWER DOOR JAMB MOUNTING BRACKET	$22.92	To Order
	889088	LOWER DOOR JAMB MOUNTING BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	985968674	COMPL. RH INNER BUMPER MOUNT	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	985968676	LH INNER BUMPER MOUNT	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	985957685	RH BUMPER MOUNT	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	985957681	COMPL. LH BUMPER MOUNT	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	802319	RH INNER HEADLAMP FASTENER BRACKET	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	957576	COMPL. LH INNER HEADLAMP FASTENER BRACKET	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	87583800	ADJUSTMENT SHIM	$1.85	To Order
	87583800	ADJUSTMENT SHIM	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	957589	RH LATERAL TRELLIS MOUNTING BRACKET	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	957590	LH LATERAL TRELLIS MOUNTING BRACKET	$27.21	To Order

Photo	Part No	Description	Price (each)	Stock
	746852	LOWER FASTENER BRACKET FOR RH HEADLAMP	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	746851	COMPL. LOWER FASTENER BRACKET FOR LH HEADLAMP	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	957588	UPPER TUBE ADJUSTER BRACKET	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	14639591	RIVET	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	957594	COMPL. SCUTTLE DRAIN-LH WIPER MOTOR BRACKET	$44.91	To Order
	786450	COMPL. SCUTTLE DRAIN-RH WIPER MOTOR BRACKET	$42.98	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985957745	COMPL. CENTRE TRELLIS FRAME	985957745 COMPL. CENTRE TRELLIS FRAME	$722.05	1
0002	985957709	COMPL. RH FRONT SUBFRAME	985957709 COMPL. RH FRONT SUBFRAME	$1,914.27	1
0003	985957693	LH FRONT SUBFRAME	985957693 LH FRONT SUBFRAME	$1,927.11	1
0004	985957644	RH FENDER MOUNTING	985957644 RH FENDER MOUNTING	$1,091.11	1
0005	985957678	LH FENDER MOUNTING	985957678 LH FENDER MOUNTING	$1,059.02	1
0006	957565	RH FRONT LID HINGE	957565 RH FRONT LID HINGE	$689.96	1
0007	957566	COMPL. LH FRONT LID HINGE	957566 COMPL. LH FRONT LID HINGE	$688.05	1
0008	13578301	WASHER	13578301 WASHER	$0.08	8
0009	16287524	SCREW	16287524 SCREW M8 X 25	$1.36	4
0010	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	4
0011	957583	RH BRACKET FOR ADJUSTER	957583 RH BRACKET FOR ADJUSTER	$22.45	1
0012	957585	LH BRACKET FOR ADJUSTER	957585 LH BRACKET FOR ADJUSTER	$22.45	1
0013	957579	RH UPPER DOOR JAMB MOUNTING BRACKET	957579 RH UPPER DOOR JAMB MOUNTING BRACKET	$27.26	1
0014	957580	LH UPPER DOOR JAMB MOUNTING BRACKET	957580 LH UPPER DOOR JAMB MOUNTING BRACKET	$27.21	1
0015	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6 X 6	$1.51	4
0016	890415	COMPL. LH WINDSCREEN WIPER MOUNTING BRACKET	890415 COMPL. LH WINDSCREEN WIPER MOUNTING BRACKET	$42.98	1
0016	883584	COMPL. RH WINDSCREEN WIPER MOUNTING BRACKET	883584 COMPL. RH WINDSCREEN WIPER MOUNTING BRACKET	$47.28	1
0017	957578	LOWER DOOR JAMB MOUNTING BRACKET	957578 LOWER DOOR JAMB MOUNTING BRACKET Applies until depletion	$22.92	2
0017	889088	LOWER DOOR JAMB MOUNTING BRACKET	889088 LOWER DOOR JAMB MOUNTING BRACKET Applicable after depletion of 957578	$24.05	2
0018	985968674	COMPL. RH INNER BUMPER MOUNT	985968674 COMPL. RH INNER BUMPER MOUNT	$208.58	1
0019	985968676	LH INNER BUMPER MOUNT	985968676 LH INNER BUMPER MOUNT	$208.58	1
0020	985957685	RH BUMPER MOUNT	985957685 RH BUMPER MOUNT	$176.49	1
0021	985957681	COMPL. LH BUMPER MOUNT	985957681 COMPL. LH BUMPER MOUNT	$176.49	1
0022	802319	RH INNER HEADLAMP FASTENER BRACKET	802319 RH INNER HEADLAMP FASTENER BRACKET	$52.94	1
0023	957576	COMPL. LH INNER HEADLAMP FASTENER BRACKET	957576 COMPL. LH INNER HEADLAMP FASTENER BRACKET	$70.59	1
0024	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM Th. 1 mm	$1.85	18
0024	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM Th. 1 mm	$1.85	18
0025	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	22
0026	16286121	SCREW	16286121 SCREW M6 X 20	$0.70 MSRP: ~~1.35~~ (48.1% off)	22
0027	957589	RH LATERAL TRELLIS MOUNTING BRACKET	957589 RH LATERAL TRELLIS MOUNTING BRACKET	$27.26	1
0028	957590	LH LATERAL TRELLIS MOUNTING BRACKET	957590 LH LATERAL TRELLIS MOUNTING BRACKET	$27.21	1
0029	746852	LOWER FASTENER BRACKET FOR RH HEADLAMP	746852 LOWER FASTENER BRACKET FOR RH HEADLAMP	$25.66	1
0030	746851	COMPL. LOWER FASTENER BRACKET FOR LH HEADLAMP	746851 COMPL. LOWER FASTENER BRACKET FOR LH HEADLAMP	$25.79	1
0031	957588	UPPER TUBE ADJUSTER BRACKET	957588 UPPER TUBE ADJUSTER BRACKET	$25.66	2
0032	14639591	RIVET	14639591 RIVET	$1.56	10
0033	957594	COMPL. SCUTTLE DRAIN-LH WIPER MOTOR BRACKET	957594 COMPL. SCUTTLE DRAIN-LH WIPER MOTOR BRACKET	$44.91	1
0033	786450	COMPL. SCUTTLE DRAIN-RH WIPER MOTOR BRACKET	786450 COMPL. SCUTTLE DRAIN-RH WIPER MOTOR BRACKET	$42.98	1
