LATERAL AIR INTAKES of Ferrari Ferrari 296 GTB USA

View All

Ferrari 296 GTB USA - LATERAL AIR INTAKES

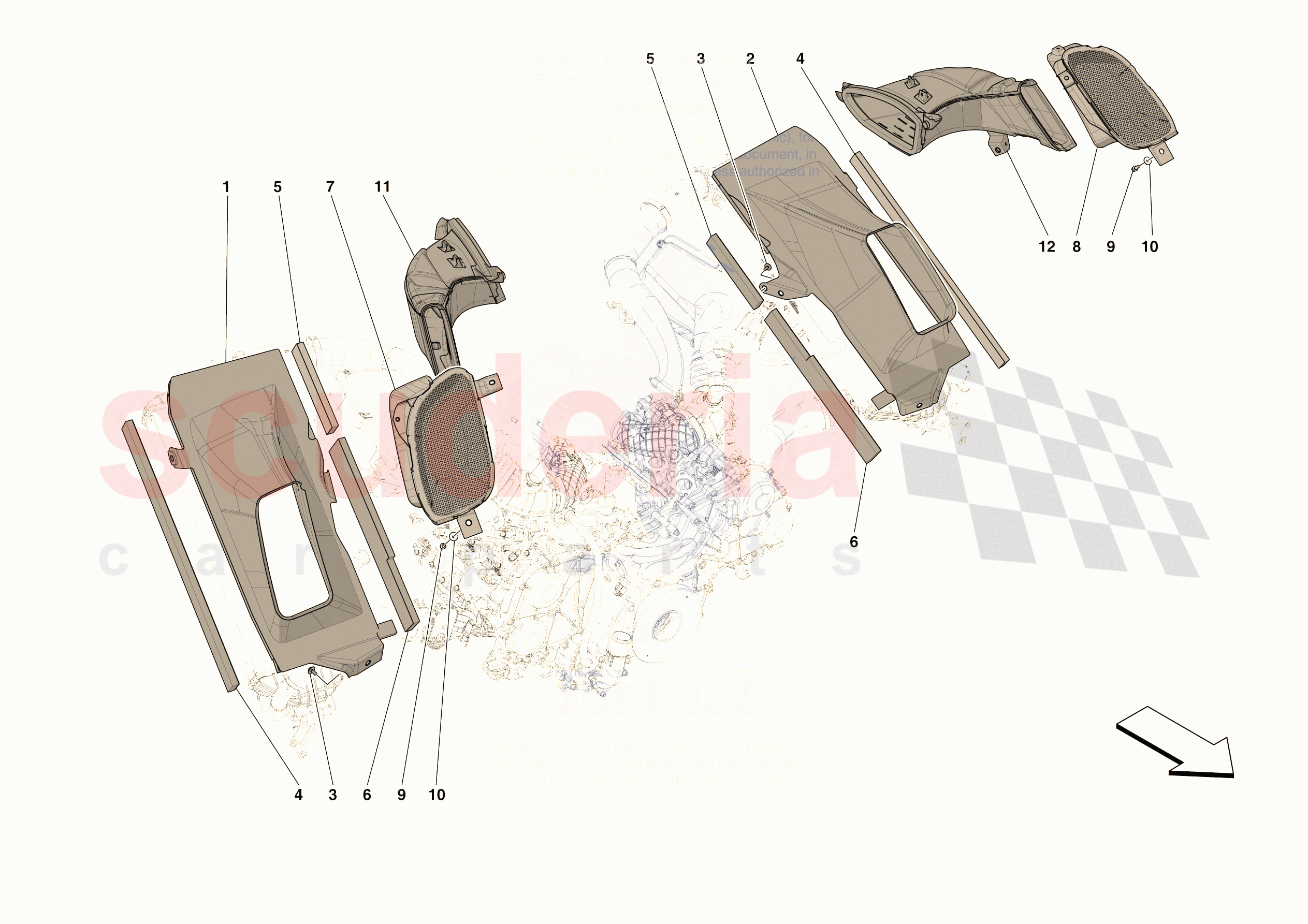

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	979581	COMPL. RH INTERCOOLER DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	979608	COMPL. LH INTERCOOLER DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	979587	LATERAL INTERCOOLER DUCT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	979596	LATERAL GASKET OF UPPER INTERCOOLER DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	979588	LATERAL GASKET OF LOWER INTERCOOLER DUCT	Enquire	To Order
	871639	LATERAL GASKET OF LOWER INTERCOOLER DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	793371	COMPL. RH LATERAL AIR INTAKE SURROUND	Enquire	To Order
	948261	COMPL. RH LATERAL AIR INTAKE SURROUND	Enquire	To Order
	70007648	COMPL. RH LATERAL AIR INTAKE SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	793372	COMPL. LH LATERAL AIR INTAKE SURROUND	Enquire	To Order
	948259	COMPL. LH LATERAL AIR INTAKE SURROUND	Enquire	To Order
	70007649	COMPL. LH LATERAL AIR INTAKE SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83182500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	979586	COMPL. RH AIR FILTER DUCT	Enquire	To Order
	793366	COMPL. RH AIR FILTER DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	979595	COMPL. LH AIR FILTER DUCT	Enquire	To Order
	793368	COMPL. LH AIR FILTER DUCT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	979581	COMPL. RH INTERCOOLER DUCT	979581 COMPL. RH INTERCOOLER DUCT	-	1	Enquire
0002	979608	COMPL. LH INTERCOOLER DUCT	979608 COMPL. LH INTERCOOLER DUCT	-	1	Enquire
0003	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 18	-	12	Enquire
0004	979587	LATERAL INTERCOOLER DUCT GASKET	979587 LATERAL INTERCOOLER DUCT GASKET	-	2	Enquire
0005	979596	LATERAL GASKET OF UPPER INTERCOOLER DUCT	979596 LATERAL GASKET OF UPPER INTERCOOLER DUCT	-	2	Enquire
0006	979588	LATERAL GASKET OF LOWER INTERCOOLER DUCT	979588 LATERAL GASKET OF LOWER INTERCOOLER DUCT No longer supplied - Replaced by 871639	-	2	Enquire
0006	871639	LATERAL GASKET OF LOWER INTERCOOLER DUCT	871639 LATERAL GASKET OF LOWER INTERCOOLER DUCT	-	2	Enquire
0007	793371	COMPL. RH LATERAL AIR INTAKE SURROUND	793371 COMPL. RH LATERAL AIR INTAKE SURROUND Applies until depletion	-	1	Enquire
0007	948261	COMPL. RH LATERAL AIR INTAKE SURROUND	948261 COMPL. RH LATERAL AIR INTAKE SURROUND For vehicles up to Ass.ly No. 204857 also order LH duct 793368 ref. 12, RH duct 793366 ref. 11 and LH surround 948259 ref. 8; Applicable after depletion of 793371	-	1	Enquire
0007	70007648	COMPL. RH LATERAL AIR INTAKE SURROUND	70007648 COMPL. RH LATERAL AIR INTAKE SURROUND Painted version - GPE1 - GPE1 for colour selection of paint finish - For vehicles up to Ass.ly No. 204857 also order LH duct 793368 ref. 12, RH duct 793366 ref. 11 and LH surround 70007649 ref. 8 - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0008	793372	COMPL. LH LATERAL AIR INTAKE SURROUND	793372 COMPL. LH LATERAL AIR INTAKE SURROUND Applies until depletion	-	1	Enquire
0008	948259	COMPL. LH LATERAL AIR INTAKE SURROUND	948259 COMPL. LH LATERAL AIR INTAKE SURROUND For vehicles up to Ass.ly No. 204857 also order LH duct 793368 ref. 12, RH duct 793366 ref. 11 and RH surround 948261 ref. 7; Applicable after depletion of 793372	-	1	Enquire
0008	70007649	COMPL. LH LATERAL AIR INTAKE SURROUND	70007649 COMPL. LH LATERAL AIR INTAKE SURROUND Painted version - GPE1 - GPE1 for colour selection of paint finish - For vehicles up to Ass.ly No. 204857 also order LH duct 793368 ref. 12, RH duct 793366 ref. 11 and RH surround 70007648 ref. 7 - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0009	83182500	SCREW	83182500 SCREW M6 X 18	-	6	Enquire
0010	860172	WASHER	860172 WASHER	-	6	Enquire
0011	979586	COMPL. RH AIR FILTER DUCT	979586 COMPL. RH AIR FILTER DUCT No longer supplied - Replaced by 793366	-	1	Enquire
0011	793366	COMPL. RH AIR FILTER DUCT	793366 COMPL. RH AIR FILTER DUCT For vehicles up to Ass.ly No. 204857 also order LH duct 793368 ref. 12, RH surround 948261 ref. 7 and LH surround 948259 ref. 8	-	1	Enquire
0012	979595	COMPL. LH AIR FILTER DUCT	979595 COMPL. LH AIR FILTER DUCT No longer supplied - Replaced by 793368	-	1	Enquire
0012	793368	COMPL. LH AIR FILTER DUCT	793368 COMPL. LH AIR FILTER DUCT For vehicles up to Ass.ly No. 204857 also order RH duct 793366 ref. 11, RH surround 948261 ref. 7 and LH surround 948259 ref. 8	-	1	Enquire
