Find Your Part

door panel of Bentley Bentley Continental GTC (2006-2010)

View All

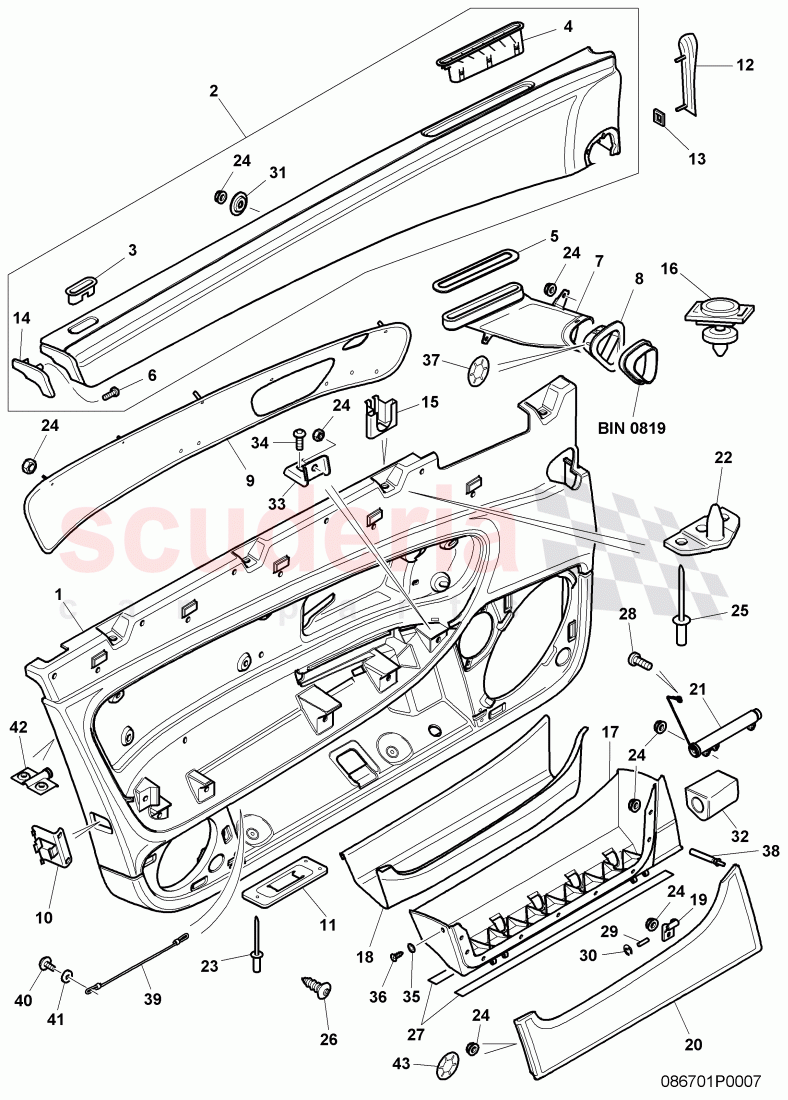

Bentley Continental GTC (2006-2010) - door panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W7867015A	door trim panels	Enquire
	3W7867016A	door trim panels	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867101	housing (centre)	Enquire
	3W7867102	housing (centre)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867677A	shaped part for anti-theft alarm system	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8819695A	grille, side window	Enquire
	3W8819696A	grille, side window	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0819079B	bracket for trim, side window	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0819869A	air guide channel	Enquire
	3W0819870A	air guide channel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868463E	grille, door panel, D - 20.04.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867013D	insert piece	Enquire
	3W3867014D	insert piece	Enquire
	3W3867317G	insert piece	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W3868093A	bracket, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867191B	bracket, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867425	trim cover, Waistrail	Enquire
	3W7867426	trim cover, Waistrail	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91093601	clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867347	housing (centre) end cap	Enquire
	3W7867348	housing (centre) end cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867899A	carrier mounting clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0868241	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867131C	stowage box	Enquire
	3W3867132C	stowage box	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867413B	sound abs. for door trim panel	Enquire
	3W3867414B	sound abs. for door trim panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868667C	hinge, bag	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867085C	trim for stowage dish, bag, D - 21.05.2007>>	Enquire
	3W3867086C	trim for stowage dish, bag, D - 21.05.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8868193A	damper, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868467C	Locating pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91083301	Pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000678	Locknut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90994201	pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90986802	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867881	sound absorber, strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867721	pivot pin, hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867299	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868424A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3837735	torch bracket	Enquire
	3W3837736	torch bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867177	bracket, armrest	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90807402	hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91091301	cup washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10655201	tapping screw, csk.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868517	locking washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867847	damper, stop	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867749	retaining cable	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90562401	tapping screw, fill. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0115211	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867339A	guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90833001	lock washer, FQA-TEIL	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W7867015A	door trim panels	3W7867015A door trim panels left,	-	1	Enquire
1	3W7867016A	door trim panels	3W7867016A door trim panels right,	-	1	Enquire
2	3W7867101	housing (centre)	3W7867101 housing (centre) left front,	-	1	Enquire
2	3W7867102	housing (centre)	3W7867102 housing (centre) right front,	-	1	Enquire
3	3W0867677A	shaped part for anti-theft alarm system	3W0867677A shaped part for anti-theft alarm system	-	2	Enquire
4	3W8819695A	grille, side window	3W8819695A grille, side window left,	-	1	Enquire
4	3W8819696A	grille, side window	3W8819696A grille, side window right,	-	1	Enquire
5	3W0819079B	bracket for trim, side window	3W0819079B bracket for trim, side window	-	2	Enquire
6	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt ST4X12,	-	6	Enquire
7	3W0819869A	air guide channel	3W0819869A air guide channel left,	-	1	Enquire
7	3W0819870A	air guide channel	3W0819870A air guide channel right,	-	1	Enquire
8	3W0868463E	grille, door panel, D - 20.04.2015>>	3W0868463E grille, door panel, D - 20.04.2015>>	-	2	Enquire
9	3W3867013D	insert piece	3W3867013D insert piece left, Diamond, Pattern, PR-4AM,4AN	-	1	Enquire
9	3W3867014D	insert piece	3W3867014D insert piece right, Diamond, Pattern, PR-4AM,4AN	-	1	Enquire
9	3W3867317G	insert piece	3W3867317G insert piece left, leather, PR-4AD	-	1	Enquire
9	3W3867318G	insert piece	3W3867318G insert piece right, leather, PR-4AD	-	1	Enquire
9	3W3867021B	insert, veneered	3W3867021B insert, veneered left, PR-3LW	-	1	Enquire
9	3W3867022B	insert, veneered	3W3867022B insert, veneered right, PR-3LW	-	1	Enquire
9	3W3867021DU63	insert piece (manufactured to order, refer to the colour table on bics)	3W3867021DU63 insert piece (manufactured to order, refer to the colour table on bics) left, PR-4AW	-	1	Enquire
9	3W3867022DU63	insert piece (manufactured to order, refer to the colour table on bics)	3W3867022DU63 insert piece (manufactured to order, refer to the colour table on bics) right, PR-4AW	-	1	Enquire
10	3W3868093A	bracket, door	3W3868093A bracket, door front,	-	2	Enquire
11	3W3867191B	bracket, door	3W3867191B bracket, door	-	2	Enquire
12	3W7867425	trim cover, Waistrail	3W7867425 trim cover, Waistrail left front,	-	1	Enquire
12	3W7867426	trim cover, Waistrail	3W7867426 trim cover, Waistrail right front,	-	1	Enquire
13	N91093601	clamping washer	N91093601 clamping washer A4.5,	-	4	Enquire
14	3W7867347	housing (centre) end cap	3W7867347 housing (centre) end cap left,	-	1	Enquire
14	3W7867348	housing (centre) end cap	3W7867348 housing (centre) end cap right,	-	1	Enquire
15	3W0867899A	carrier mounting clip	3W0867899A carrier mounting clip	-	8	Enquire
16	6Q0868241	clip	6Q0868241 clip	-	8	Enquire
17	3W3867131C	stowage box	3W3867131C stowage box left front,	-	1	Enquire
17	3W3867132C	stowage box	3W3867132C stowage box right front,	-	1	Enquire
18	3W3867413B	sound abs. for door trim panel	3W3867413B sound abs. for door trim panel left front, inner,	-	1	Enquire
18	3W3867414B	sound abs. for door trim panel	3W3867414B sound abs. for door trim panel right front, inner,	-	1	Enquire
19	3W0868667C	hinge, bag	3W0868667C hinge, bag front,	-	2	Enquire
20	3W3867085C	trim for stowage dish, bag, D - 21.05.2007>>	3W3867085C trim for stowage dish, bag, D - 21.05.2007>> left front, outer,	-	1	Enquire
20	3W3867086C	trim for stowage dish, bag, D - 21.05.2007>>	3W3867086C trim for stowage dish, bag, D - 21.05.2007>> right front, outer,	-	1	Enquire
21	3W8868193A	damper, door	3W8868193A damper, door front,	-	1	Enquire
22	3W0868467C	Locating pin	3W0868467C Locating pin	-	4	Enquire
23	N91083301	Pop rivet	N91083301 Pop rivet A3.2X14,	-	3	Enquire
24	WHT000678	Locknut	WHT000678 Locknut M5,	-	57	Enquire
25	N90994201	pop rivet	N90994201 pop rivet	-	2	Enquire
26	N90986802	Hexagon socket head panel bolt	N90986802 Hexagon socket head panel bolt ST4,2X13,0,	-	4	Enquire
27	3W3867881	sound absorber, strip	3W3867881 sound absorber, strip	-	2	Enquire
28	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt ST4X12,	-	3	Enquire
29	3W0867721	pivot pin, hinge	3W0867721 pivot pin, hinge	-	2	Enquire
30	3W0867299	clamp	3W0867299 clamp	-	4	Enquire
31	3W0868424A	bracket	3W0868424A bracket front,	-	5	Enquire
32	3W3837735	torch bracket	3W3837735 torch bracket right,	-	1	Enquire
32	3W3837736	torch bracket	3W3837736 torch bracket left,	-	1	Enquire
33	3W0867177	bracket, armrest	3W0867177 bracket, armrest	-	2	Enquire
34	N90807402	hex socket oval head collared	N90807402 hex socket oval head collared M5X18,	-	4	Enquire
35	N91091301	cup washer	N91091301 cup washer 4,5X10X0,3,	-	2	Enquire
36	N10655201	tapping screw, csk.	N10655201 tapping screw, csk. 3.5X13,	-	2	Enquire
37	3W0868517	locking washer	3W0868517 locking washer	-	8	Enquire
38	3W0867847	damper, stop	3W0867847 damper, stop	-	2	Enquire
39	3W3867749	retaining cable	3W3867749 retaining cable	-	1	Enquire
40	N90562401	tapping screw, fill. hd.	N90562401 tapping screw, fill. hd.	-	1	Enquire
41	N0115211	washer	N0115211 washer M3,	-	1	Enquire
42	3W3867339A	guide	3W3867339A guide	-	2	Enquire
43	N90833001	lock washer, FQA-TEIL	N90833001 lock washer, FQA-TEIL 5X13,3,	-	9	Enquire
