Bentley Continental GTC (2006-2010) - Water hose with heating, valve

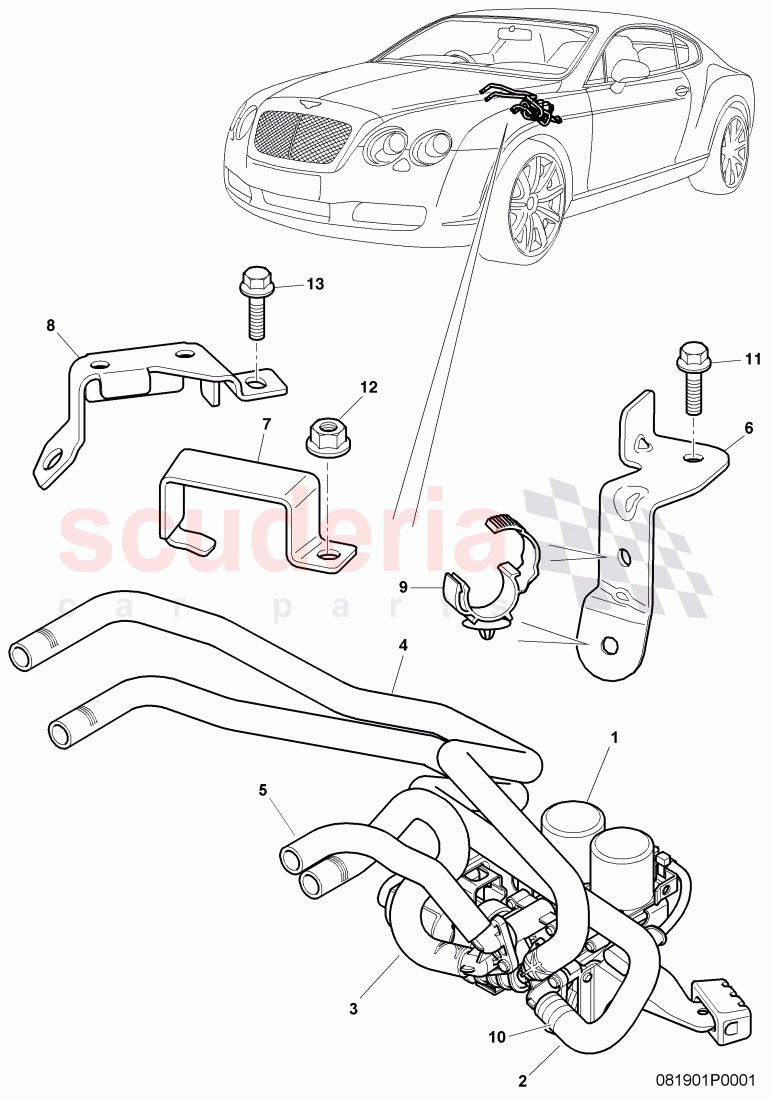

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3D1959617D	valve unit, D - 11.12.2006>>	Enquire
	3D2959617C	valve unit, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D2819371	coolant hose	Enquire
	3W1819371A	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1819370A	coolant hose	Enquire
	3W2819370	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D2819373	coolant hose	Enquire
	3W1819373A	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D1819372B	coolant hose	Enquire
	3W2819372	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1819827	bracket, clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D2819148	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D2819147	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	1C0422705A	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2819139	spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90631003	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10465702	locating bolt D - 11.12.2006>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3D1959617D	valve unit, D - 11.12.2006>>	3D1959617D valve unit, D - 11.12.2006>> lhd, PR-L0L	-	1	Enquire
1	3D2959617C	valve unit, D - 11.12.2006>>	3D2959617C valve unit, D - 11.12.2006>> rhd, PR-L0R	-	1	Enquire
2	3D2819371	coolant hose	3D2819371 coolant hose supply, left rhd, PR-L0R	-	1	Enquire
2	3W1819371A	coolant hose	3W1819371A coolant hose supply, left lhd, PR-L0L	-	1	Enquire
3	3W1819370A	coolant hose	3W1819370A coolant hose supply, right lhd, PR-L0L	-	1	Enquire
3	3W2819370	coolant hose	3W2819370 coolant hose supply, right rhd, PR-L0R	-	1	Enquire
4	3D2819373	coolant hose	3D2819373 coolant hose return, left rhd, PR-L0R	-	1	Enquire
4	3W1819373A	coolant hose	3W1819373A coolant hose return, left lhd, PR-L0L	-	1	Enquire
5	3D1819372B	coolant hose	3D1819372B coolant hose return, right lhd, PR-L0L	-	1	Enquire
5	3W2819372	coolant hose	3W2819372 coolant hose return, right rhd, PR-L0R	-	1	Enquire
6	3W1819827	bracket, clamp	3W1819827 bracket, clamp lhd, PR-L0L	-	1	Enquire
7	3D2819148	bracket	3D2819148 bracket rhd, PR-L0R	-	1	Enquire
8	3D2819147	bracket	3D2819147 bracket rhd, PR-L0R	-	1	Enquire
9	1C0422705A	Clip	1C0422705A Clip	-	2	Enquire
10	3W2819139	spring band clamp	3W2819139 spring band clamp	-	4	Enquire
11	N90631003	hexagon head bolt (combi)	N90631003 hexagon head bolt (combi) M6X12,0, lhd, PR-L0L	-	1	Enquire
12	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	1	Enquire
13	N10465702	locating bolt D - 11.12.2006>>	N10465702 locating bolt D - 11.12.2006>> M6X12,	-	2	Enquire
