dashboard, dashboard carrier of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - dashboard, dashboard carrier

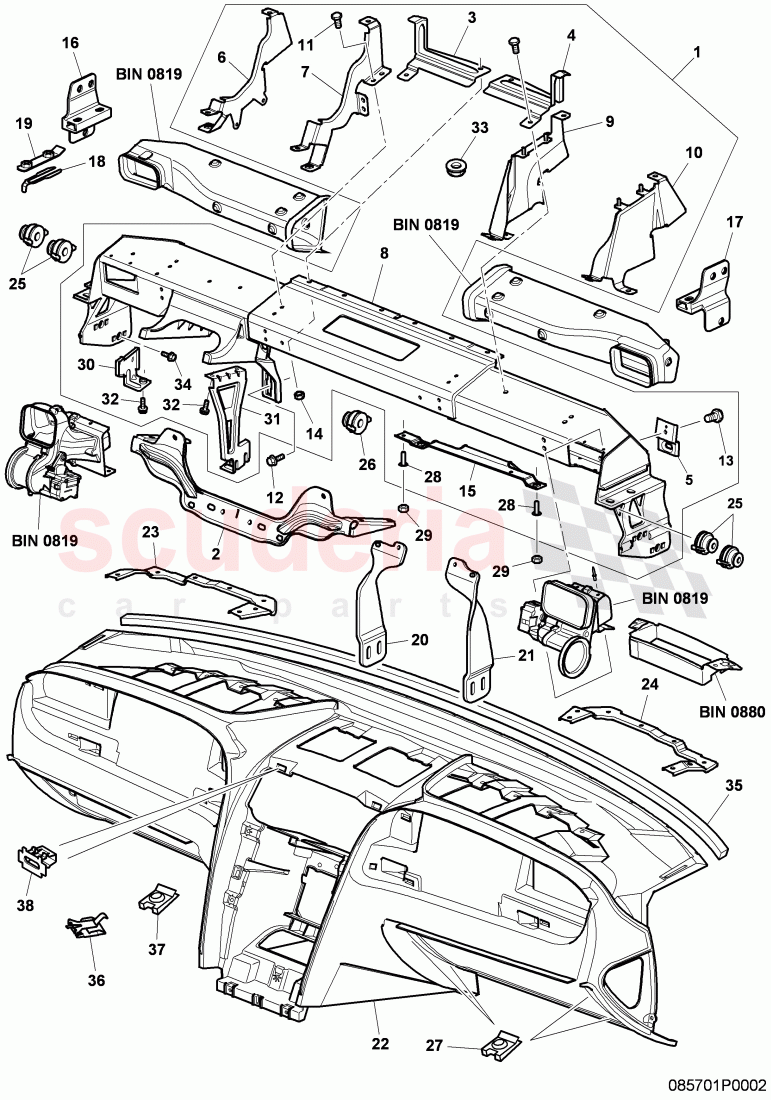

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W1857017AB	cross member for dashbord, D - 17.09.2012>>	Enquire
	3W2857017R	cross member for dash panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857056A	bracket, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857071B	bracket, cross tube, D >> - 08.04.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857072B	bracket, cross tube, D >> - 08.04.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857195A	support glove compartment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1805333C	bracket, door	Enquire
	3W2805334C	bracket, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1805334C	bracket, door	Enquire
	3W2805333C	bracket, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1857025G	cross tube	Enquire
	3W2857025G	cross tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1880263D	bracket	Enquire
	3W2880263D	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1857017AB	cross member for dashbord, D - 17.09.2012>>	Enquire
	3W2880264E	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90997001	oval head countersunk bolt with multi-point socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10140203	bolt, hex. hd. (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90780901	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0880778	bearing bracket for glove compartment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857953C	securing bracket cross member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857954C	securing bracket cross member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857173	distance piece cross tube	Enquire
	3D0857173A	spacer washer, cross tube	Enquire
	3D0857173B	spacer washer, cross tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857955A	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8858788	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8858787	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3857669	dashboard	Enquire
	3W3857669B	dashboard	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0858781C	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0858782C	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857049A	adjustment part	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0419645	adjusting element	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90356204	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0863954	adjuster, (height adjustment)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10155210	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1880357	bracket, bracket	Enquire
	3W2880357	bracket, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1880358	bracket, bracket	Enquire
	3W2880358A	bracket, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90750603	bolt, hex. hd. with shoulder,, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90798601	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863197A	sealing strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857327A	setting bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698801	Speed nut Included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M3858153	spring clip, D >> - 30.08.2011	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W1857017AB	cross member for dashbord, D - 17.09.2012>>	3W1857017AB cross member for dashbord, D - 17.09.2012>> lhd, PR-L0L	-	1	Enquire
1	3W2857017R	cross member for dash panel	3W2857017R cross member for dash panel rhd, PR-L0R	-	1	Enquire
2	3W0857056A	bracket, F 3W-C-071 643>>, F ZA-C-071 643>>	3W0857056A bracket, F 3W-C-071 643>>, F ZA-C-071 643>>	-	1	Enquire
3	3W0857071B	bracket, cross tube, D >> - 08.04.2013	3W0857071B bracket, cross tube, D >> - 08.04.2013 left,	-	1	Enquire
4	3W0857072B	bracket, cross tube, D >> - 08.04.2013	3W0857072B bracket, cross tube, D >> - 08.04.2013 right,	-	1	Enquire
5	3D0857195A	support glove compartment	3D0857195A support glove compartment	-	2	Enquire
6	3W1805333C	bracket, door	3W1805333C bracket, door lhd, drivers side, PR-L0L	-	1	Enquire
6	3W2805334C	bracket, door	3W2805334C bracket, door rhd, drivers side, PR-L0R	-	1	Enquire
7	3W1805334C	bracket, door	3W1805334C bracket, door lhd, passenger side, PR-L0L	-	1	Enquire
7	3W2805333C	bracket, door	3W2805333C bracket, door rhd, passenger side, PR-L0R	-	1	Enquire
8	3W1857025G	cross tube	3W1857025G cross tube lhd, PR-L0L	-	1	Enquire
8	3W2857025G	cross tube	3W2857025G cross tube rhd, PR-L0R	-	1	Enquire
9	3W1880263D	bracket	3W1880263D bracket left lhd, PR-L0L	-	1	Enquire
9	3W2880263D	bracket	3W2880263D bracket left rhd, PR-L0R	-	1	Enquire
10	3W1857017AB	cross member for dashbord, D - 17.09.2012>>	3W1857017AB cross member for dashbord, D - 17.09.2012>> right lhd, PR-L0L	-	1	Enquire
10	3W2880264E	bracket	3W2880264E bracket right rhd, PR-L0R	-	1	Enquire
11	N90997001	oval head countersunk bolt with multi-point socket head	N90997001 oval head countersunk bolt with multi-point socket head M6X10,	-	17	Enquire
12	N10140203	bolt, hex. hd. (combi.)	N10140203 bolt, hex. hd. (combi.) M8X45,00 S1, lhd, PR-L0L	-	1	Enquire
13	N90780901	oval hexagon socket head bolt	N90780901 oval hexagon socket head bolt M6X16,	-	11	Enquire
14	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	2	Enquire
15	3W0880778	bearing bracket for glove compartment	3W0880778 bearing bracket for glove compartment	-	1	Enquire
16	3D0857953C	securing bracket cross member	3D0857953C securing bracket cross member left,	-	1	Enquire
17	3D0857954C	securing bracket cross member	3D0857954C securing bracket cross member right,	-	1	Enquire
18	3D0857173	distance piece cross tube	3D0857173 distance piece cross tube 1MM,	-	2	Enquire
18	3D0857173A	spacer washer, cross tube	3D0857173A spacer washer, cross tube 2MM,	-	2	Enquire
18	3D0857173B	spacer washer, cross tube	3D0857173B spacer washer, cross tube 3MM,	-	2	Enquire
19	3D0857955A	retaining plate	3D0857955A retaining plate	-	2	Enquire
20	3W8858788	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	3W8858788 support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>> right,	-	1	Enquire
21	3W8858787	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	3W8858787 support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>> left,	-	1	Enquire
22	3W3857669	dashboard	3W3857669 dashboard lhd, PR-L0L	-	1	Enquire
22	3W3857669B	dashboard	3W3857669B dashboard rhd, PR-L0R	-	1	Enquire
23	3W0858781C	retaining plate	3W0858781C retaining plate left,	-	1	Enquire
24	3W0858782C	retaining plate	3W0858782C retaining plate right,	-	1	Enquire
25	3D0857049A	adjustment part	3D0857049A adjustment part	-	4	Enquire
26	3D0419645	adjusting element	3D0419645 adjusting element lhd, PR-L0L	-	1	Enquire
27	N90356204	Speed nut	N90356204 Speed nut M5X17X17,	-	4	Enquire
28	3W0863954	adjuster, (height adjustment)	3W0863954 adjuster, (height adjustment) dash panel, box,	-	2	Enquire
29	N10155210	hexagon nut	N10155210 hexagon nut M10,	-	2	Enquire
30	3W1880357	bracket, bracket	3W1880357 bracket, bracket lhd, outer, PR-L0L	-	1	Enquire
30	3W2880357	bracket, bracket	3W2880357 bracket, bracket rhd, outer, PR-L0R	-	1	Enquire
31	3W1880358	bracket, bracket	3W1880358 bracket, bracket lhd, inner, PR-L0L	-	1	Enquire
31	3W2880358A	bracket, bracket	3W2880358A bracket, bracket rhd, inner, PR-L0R	-	1	Enquire
32	N90750603	bolt, hex. hd. with shoulder,, self-locking	N90750603 bolt, hex. hd. with shoulder,, self-locking	-	2	Enquire
33	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	4	Enquire
34	N90798601	hexagon head bolt (combi)	N90798601 hexagon head bolt (combi) M8X47,	-	4	Enquire
35	3W5863197A	sealing strip	3W5863197A sealing strip	-	1	Enquire
36	3W0857327A	setting bracket	3W0857327A setting bracket	-	3	Enquire
37	N90698801	Speed nut Included in position:	N90698801 Speed nut Included in position:	-	5	Enquire
38	7M3858153	spring clip, D >> - 30.08.2011	7M3858153 spring clip, D >> - 30.08.2011	-	2	Enquire
