quarter trim panel of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - quarter trim panel

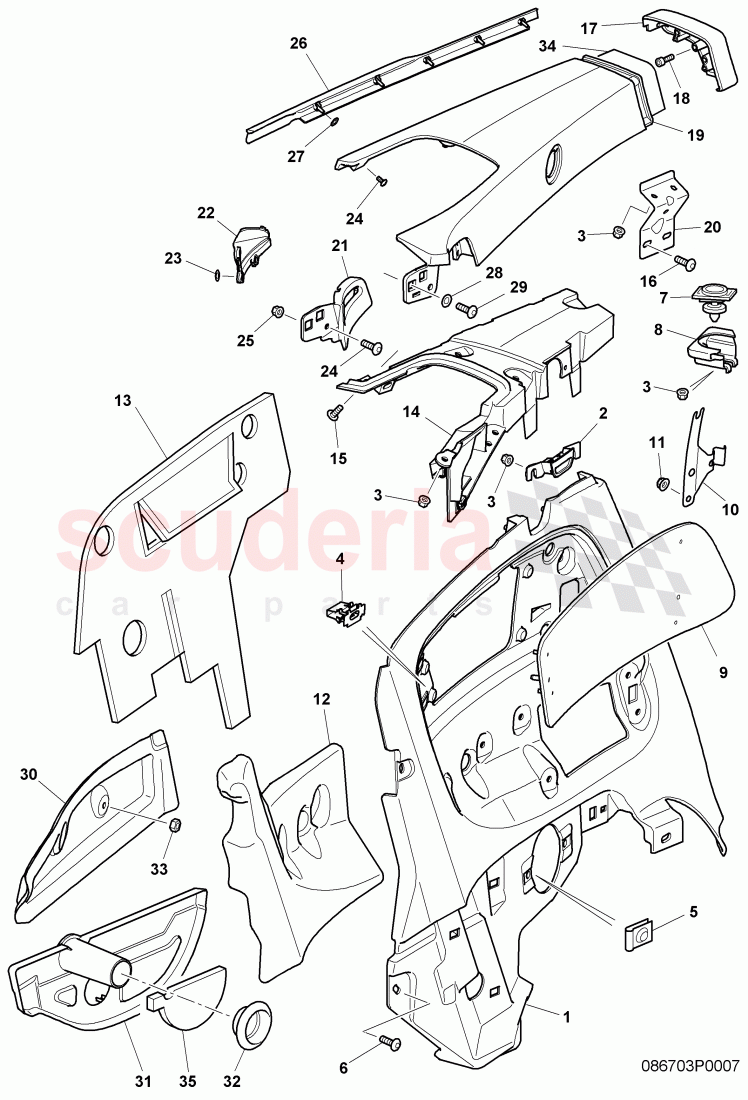

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W7867043	quarter trim panel	Enquire
	3W7867044	quarter trim panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867915C	mounting plate	Enquire
	3W7867916C	mounting plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000678	Locknut	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M3858153	spring clip, D >> - 30.08.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90937201	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire
	N91063701	hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0868241	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867899A	carrier mounting clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867117B	insert piece	Enquire
	3W7867118B	insert piece	Enquire
	3W7867117C	insert piece	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W0868563	clamp, right rear	Enquire
	3W0868564	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7868301C	sound absorber for rear panel	Enquire
	3W7868302C	sound absorber for rear panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867831	sound deadening plate	Enquire
	3W7867832	sound deadening plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867941B	support element	Enquire
	3W7867942B	support element	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91063701	hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7837865B	sealing cap	Enquire
	3W7837866F	END CAP WAISTRAIL RH	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7868087B	Moulding, right rear	Enquire
	3W7868088B	Moulding, right rear	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867735	bracket, support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7868899	mounting plate	Enquire
	3W7868900	Installation plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7868855	carrier plate, right rear	Enquire
	3W7868856	carrier plate, right rear	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91135001	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90917104	Hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10632901	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7868935A	trim stripe for side panel	Enquire
	3W7868936A	trim stripe for side panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868517	locking washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01169215	Washer, only to be used with:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10430103	Hexagon socket flat head bolt	Enquire
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7845523A	water deflector	Enquire
	3W7845524A	water deflector	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7845511C	water deflector	Enquire
	3W7845512C	water deflector	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10115101	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90947201	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7863965	plastic foam, sound abs. for door trim panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7863966	plastic foam, water deflector	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W7867043	quarter trim panel	3W7867043 quarter trim panel left,	-	1	Enquire
1	3W7867044	quarter trim panel	3W7867044 quarter trim panel right,	-	1	Enquire
2	3W7867915C	mounting plate	3W7867915C mounting plate left,	-	1	Enquire
2	3W7867916C	mounting plate	3W7867916C mounting plate right,	-	1	Enquire
3	WHT000678	Locknut	WHT000678 Locknut M5,	-	16	Enquire
4	7M3858153	spring clip, D >> - 30.08.2011	7M3858153 spring clip, D >> - 30.08.2011	-	2	Enquire
5	N90937201	speed nut	N90937201 speed nut ST4,2X15X10,	-	2	Enquire
6	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	5	Enquire
6	N91063701	hex socket oval head collared	N91063701 hex socket oval head collared M5X14,	-	5	Enquire
7	6Q0868241	clip	6Q0868241 clip	-	1	Enquire
8	3W0867899A	carrier mounting clip	3W0867899A carrier mounting clip	-	1	Enquire
9	3W7867117B	insert piece	3W7867117B insert piece left, leather, PR-4AD,4AM,, 4AN,4AP	-	1	Enquire
9	3W7867118B	insert piece	3W7867118B insert piece right, leather, PR-4AD,4AM,, 4AN,4AP	-	1	Enquire
9	3W7867117C	insert piece	3W7867117C insert piece left, veneered, PR-3LW	-	1	Enquire
9	3W7867118C	insert piece	3W7867118C insert piece right, veneered, PR-3LW	-	1	Enquire
9	3W7868109D	insert piece (manufactured to order, refer to the colour table on bics)	3W7868109D insert piece (manufactured to order, refer to the colour table on bics) left, PR-4AW	-	1	Enquire
9	3W7868110D	insert piece (manufactured to order, refer to the colour table on bics)	3W7868110D insert piece (manufactured to order, refer to the colour table on bics) right, PR-4AW	-	1	Enquire
10	3W0868563	clamp, right rear	3W0868563 clamp, right rear left rear,	-	1	Enquire
10	3W0868564	clamp	3W0868564 clamp right rear,	-	1	Enquire
11	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	N10334801 shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 M4,	-	2	Enquire
12	3W7868301C	sound absorber for rear panel	3W7868301C sound absorber for rear panel left,	-	1	Enquire
12	3W7868302C	sound absorber for rear panel	3W7868302C sound absorber for rear panel right,	-	1	Enquire
13	3W7867831	sound deadening plate	3W7867831 sound deadening plate left,	-	1	Enquire
13	3W7867832	sound deadening plate	3W7867832 sound deadening plate right,	-	1	Enquire
14	3W7867941B	support element	3W7867941B support element left,	-	1	Enquire
14	3W7867942B	support element	3W7867942B support element right,	-	1	Enquire
15	N10442003	self-tapping screw	N10442003 self-tapping screw ST4,5X13,0,	-	1	Enquire
16	N91063701	hex socket oval head collared	N91063701 hex socket oval head collared M5X14,	-	3	Enquire
17	3W7837865B	sealing cap	3W7837865B sealing cap left rear,	-	1	Enquire
17	3W7837866F	END CAP WAISTRAIL RH	3W7837866F END CAP WAISTRAIL RH right,	-	1	Enquire
18	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12,	-	3	Enquire
19	3W7868087B	Moulding, right rear	3W7868087B Moulding, right rear left rear,	-	1	Enquire
19	3W7868088B	Moulding, right rear	3W7868088B Moulding, right rear right,	-	1	Enquire
20	3W7867735	bracket, support	3W7867735 bracket, support	-	2	Enquire
21	3W7868899	mounting plate	3W7868899 mounting plate left,	-	1	Enquire
21	3W7868900	Installation plate	3W7868900 Installation plate right,	-	1	Enquire
22	3W7868855	carrier plate, right rear	3W7868855 carrier plate, right rear left,	-	1	Enquire
22	3W7868856	carrier plate, right rear	3W7868856 carrier plate, right rear right,	-	1	Enquire
23	N91135001	Clamping washer	N91135001 Clamping washer B3.00X9.70,	-	3	Enquire
24	N90917104	Hex socket oval head collared	N90917104 Hex socket oval head collared M5X18,0,	-	3	Enquire
25	N10632901	hex. nut with washer	N10632901 hex. nut with washer M5,	-	1	Enquire
26	3W7868935A	trim stripe for side panel	3W7868935A trim stripe for side panel left,	-	1	Enquire
26	3W7868936A	trim stripe for side panel	3W7868936A trim stripe for side panel right,	-	1	Enquire
27	3W0868517	locking washer	3W0868517 locking washer	-	5	Enquire
28	N01169215	Washer, only to be used with:	N01169215 Washer, only to be used with:	-	2	Enquire
29	N10430103	Hexagon socket flat head bolt	N10430103 Hexagon socket flat head bolt	-	2	Enquire
29	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	2	Enquire
30	3W7845523A	water deflector	3W7845523A water deflector left upper,	-	1	Enquire
30	3W7845524A	water deflector	3W7845524A water deflector right upper,	-	1	Enquire
31	3W7845511C	water deflector	3W7845511C water deflector left lower,	-	1	Enquire
31	3W7845512C	water deflector	3W7845512C water deflector right lower,	-	1	Enquire
32	N10115101	sealing cap	N10115101 sealing cap 30MM,	-	2	Enquire
33	N90947201	Hexagon nut	N90947201 Hexagon nut	-	7	Enquire
34	3W7863965	plastic foam, sound abs. for door trim panel	3W7863965 plastic foam, sound abs. for door trim panel left, right,	-	2	Enquire
35	3W7863966	plastic foam, water deflector	3W7863966 plastic foam, water deflector left, right,	-	2	Enquire
