heat shield of Bentley Bentley Continental GTC (2006-2010)

View All

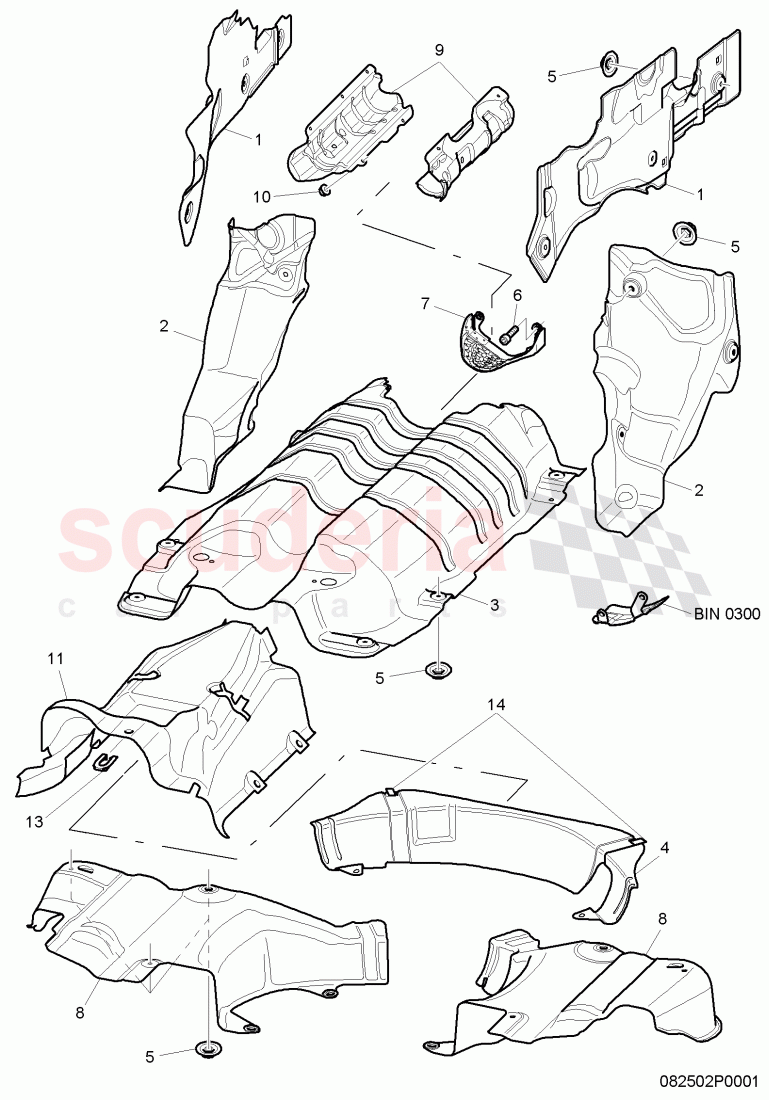

Bentley Continental GTC (2006-2010) - heat shield

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0825641D	heat shield for side, member	Enquire
	3W0825642D	heat shield for side, member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825661E	heat shield for side, member, D - 14.11.2011>>	Enquire
	3W0825662F	heat shield for side, member, D - 14.11.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0301059	shield for catalyst, F >> 3W-D-082 508, F >> ZA-D-082 508	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825705A	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90708803	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91010201	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0301325A	guard plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825711C	heatshield, sound damper pan, D - 04.03.2013>>	Enquire
	3W7825712A	heatshield, sound damper pan	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C253036J	heat shield exhaust manifolds	Enquire
	7C253037G	heat shield exhaust manifolds	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0201308F	guard plate for fuel tank	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90070303	retaining washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90834301	Clip nut	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0825641D	heat shield for side, member	3W0825641D heat shield for side, member left front,	-	1	Enquire
1	3W0825642D	heat shield for side, member	3W0825642D heat shield for side, member right front,	-	1	Enquire
2	3W0825661E	heat shield for side, member, D - 14.11.2011>>	3W0825661E heat shield for side, member, D - 14.11.2011>> left rear,	-	1	Enquire
2	3W0825662F	heat shield for side, member, D - 14.11.2011>>	3W0825662F heat shield for side, member, D - 14.11.2011>> right rear,	-	1	Enquire
3	3W0301059	shield for catalyst, F >> 3W-D-082 508, F >> ZA-D-082 508	3W0301059 shield for catalyst, F >> 3W-D-082 508, F >> ZA-D-082 508	-	1	Enquire
4	3W7825705A	heat shield	3W7825705A heat shield rear center,	-	1	Enquire
5	N90708803	speed nut	N90708803 speed nut 5,	-	22	Enquire
6	N91010201	oval hexagon socket head bolt	N91010201 oval hexagon socket head bolt M8X20,	-	2	Enquire
7	4E0301325A	guard plate	4E0301325A guard plate front,	-	1	Enquire
8	3W7825711C	heatshield, sound damper pan, D - 04.03.2013>>	3W7825711C heatshield, sound damper pan, D - 04.03.2013>> left rear,	-	1	Enquire
8	3W7825712A	heatshield, sound damper pan	3W7825712A heatshield, sound damper pan right rear,	-	1	Enquire
9	7C253036J	heat shield exhaust manifolds	7C253036J heat shield exhaust manifolds Cylinder 1-6,	-	1	Enquire
9	7C253037G	heat shield exhaust manifolds	7C253037G heat shield exhaust manifolds cylinders 7-12,	-	1	Enquire
10	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	N10248003 socket hd. screw with, collar, D - 11.12.2006>> M6X14,	-	10	Enquire
11	3D0201308F	guard plate for fuel tank	3D0201308F guard plate for fuel tank	-	1	Enquire
13	N90070303	retaining washer	N90070303 retaining washer M10,	-	5	Enquire
14	N90834301	Clip nut	N90834301 Clip nut	-	2	Enquire
