Find Your Part

underbody lining of Bentley Bentley Bentayga (2015-2020)

View All

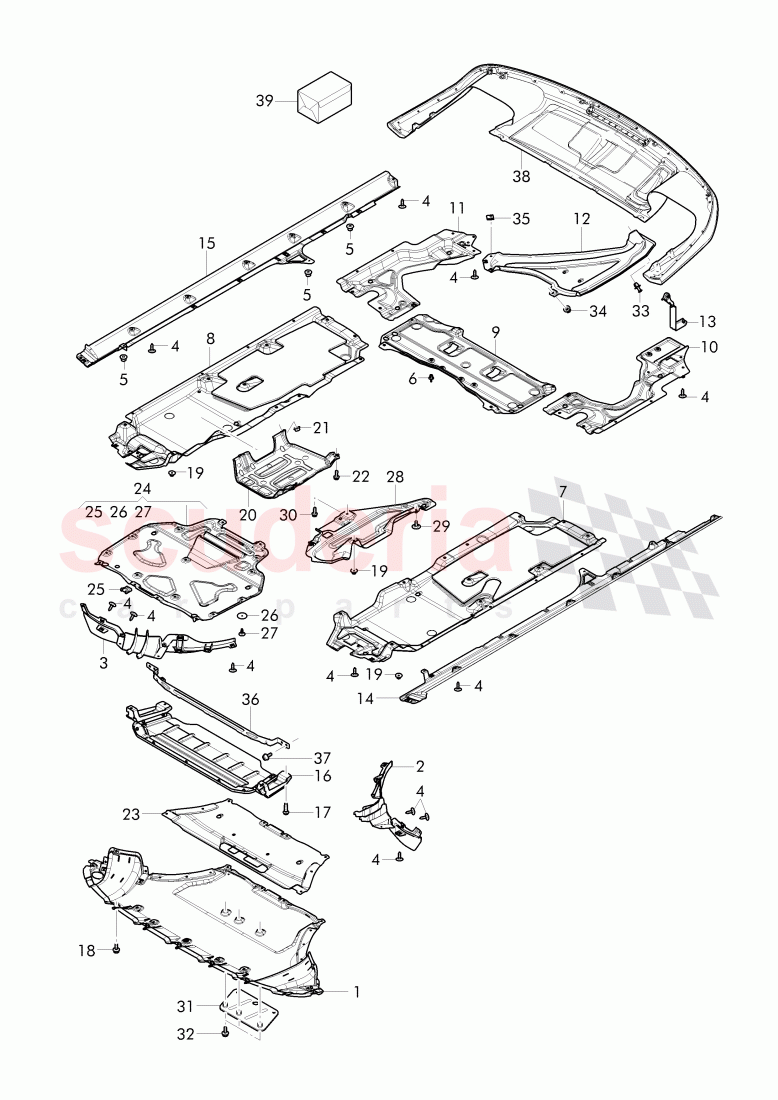

Bentley Bentayga (2015-2020) - underbody lining

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	36A825235	underbody lining	Enquire
	36A825235B	underbody lining	Enquire
	36A825235A	underbody lining	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90775001	Hexagon socket head panel bolt alternatively, you can use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10015101	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0385494	Spreader rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825205S	underbody lining, D - 03.10.2016>>	Enquire
	4M0825205S	underbody lining, D - 03.10.2016>>	Enquire
	4M0825205S	underbody lining, D - 03.10.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825206M	underbody lining, D - 03.10.2016>>	Enquire
	4M0825206J	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0804033F	cover	Enquire
	4M0804033E	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825213J	underbody lining, D - 09.05.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825214J	underbody lining, D - 09.05.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825219E	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825343C	bracket, D - 01.05.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A825211	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A825212B	UNDERBODY TRIM	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A825199C	coverplate for engine	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91215101	bolt, with polygon socket hd., (combi.), D - 31.07.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90900402	Hex socket oval head collared M6x20	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90757901	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825912	shield, battery	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10609201	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10642101	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M1825235C	coverplate for engine	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825236AK	NOISE INSULATION	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0805922A	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002227	rubber washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	8W0805121	dowel pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0825285K	sound baffle, D - MJ 2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8W0805121	dowel pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0863788	rivet, D - MJ 2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A825111	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90900402	Hex socket oval head collared M6x20	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0501329	rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90757901	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10433701	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A825199D	coverplate for engine, D - MJ 2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91215101	bolt, with polygon socket hd., (combi.), D - 31.07.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A071611G	rear diffusor	Enquire
	36A071611H	rear diffusor, for vehicles with, towing attachment	Enquire
	36A071611J	rear diffusor, for vehicles with, towing attachment	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A071753	1 set of securing parts	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	36A825235	underbody lining	36A825235 underbody lining front, PR-1SA+9M0	-	1	Enquire
1	36A825235B	underbody lining	36A825235B underbody lining front, PR-1SA+9M9	-	1	Enquire
1	36A825235A	underbody lining	36A825235A underbody lining front, PR-1SF+9M0	-	1	Enquire
1	36A825235C	underbody lining	36A825235C underbody lining front, PR-1SF+9M9	-	1	Enquire
4	N90775001	Hexagon socket head panel bolt alternatively, you can use:	N90775001 Hexagon socket head panel bolt alternatively, you can use: ST4.8X16,	-	-	Enquire
5	N10015101	Hexagon nut	N10015101 Hexagon nut M5,	-	-	Enquire
6	N0385494	Spreader rivet	N0385494 Spreader rivet A8X12,	-	4	Enquire
7	4M0825205S	underbody lining, D - 03.10.2016>>	4M0825205S underbody lining, D - 03.10.2016>> left, PR-1SF	-	1	Enquire
7	4M0825205S	underbody lining, D - 03.10.2016>>	4M0825205S underbody lining, D - 03.10.2016>> left, PR-T0Q+1SA+, 1A2	-	1	Enquire
7	4M0825205S	underbody lining, D - 03.10.2016>>	4M0825205S underbody lining, D - 03.10.2016>> left, PR-0F3+1SA+, 1VJ	-	1	Enquire
8	4M0825206M	underbody lining, D - 03.10.2016>>	4M0825206M underbody lining, D - 03.10.2016>> right, PR-1SF	-	1	Enquire
8	4M0825206J	underbody lining	4M0825206J underbody lining right, PR-1SA	-	1	Enquire
9	4M0804033F	cover	4M0804033F cover PR-1SF	-	1	Enquire
9	4M0804033E	cover	4M0804033E cover PR-1SA	-	1	Enquire
10	4M0825213J	underbody lining, D - 09.05.2016>>	4M0825213J underbody lining, D - 09.05.2016>> left,	-	1	Enquire
11	4M0825214J	underbody lining, D - 09.05.2016>>	4M0825214J underbody lining, D - 09.05.2016>> right,	-	1	Enquire
12	4M0825219E	underbody lining	4M0825219E underbody lining right rear,	-	1	Enquire
13	4M0825343C	bracket, D - 01.05.2017>>	4M0825343C bracket, D - 01.05.2017>> left,	-	1	Enquire
14	36A825211	underbody lining	36A825211 underbody lining left,	-	1	Enquire
15	36A825212B	UNDERBODY TRIM	36A825212B UNDERBODY TRIM right,	-	1	Enquire
16	36A825199C	coverplate for engine	36A825199C coverplate for engine PR-FN4	-	1	Enquire
17	N91215101	bolt, with polygon socket hd., (combi.), D - 31.07.2017>>	N91215101 bolt, with polygon socket hd., (combi.), D - 31.07.2017>> M8X25, PR-FN4	-	4	Enquire
18	N90900402	Hex socket oval head collared M6x20	N90900402 Hex socket oval head collared M6x20 M6X20,	-	5	Enquire
19	N90757901	Hexagon collar nut	N90757901 Hexagon collar nut E5,	-	-	Enquire
20	4M0825912	shield, battery	4M0825912 shield, battery PR-1SF	-	1	Enquire
21	N10609201	Hexagon collar nut	N10609201 Hexagon collar nut M8,	-	2	Enquire
22	N10642101	bolt, hex. hd. with shoulder	N10642101 bolt, hex. hd. with shoulder M8X25,	-	2	Enquire
23	4M1825235C	coverplate for engine	4M1825235C coverplate for engine lhd, PR-1SF+1P0	-	1	Enquire
24	4M0825236AK	NOISE INSULATION	4M0825236AK NOISE INSULATION	-	1	Enquire
25	8K0805922A	speed nut	8K0805922A speed nut 5MM,	-	4	Enquire
26	WHT002227	rubber washer	WHT002227 rubber washer 3X25X1,5,	-	11	Enquire
27	8W0805121	dowel pin	8W0805121 dowel pin	-	11	Enquire
28	4M0825285K	sound baffle, D - MJ 2018>>	4M0825285K sound baffle, D - MJ 2018>> left, PR-0F3+0K0+, 1VJ	-	1	Enquire
29	8W0805121	dowel pin	8W0805121 dowel pin PR-0F3+0K0+, 1VJ	-	3	Enquire
30	8K0863788	rivet, D - MJ 2018>>	8K0863788 rivet, D - MJ 2018>> PR-0F3+0K0+, 1VJ	-	1	Enquire
31	36A825111	bracket	36A825111 bracket PR-1P0	-	1	Enquire
32	N90900402	Hex socket oval head collared M6x20	N90900402 Hex socket oval head collared M6x20 M6X20,	-	2	Enquire
33	8K0501329	rivet	8K0501329 rivet	-	1	Enquire
34	N90757901	Hexagon collar nut	N90757901 Hexagon collar nut 5,	-	1	Enquire
35	N10433701	Speed nut	N10433701 Speed nut 4,8X18,6X16,	-	2	Enquire
36	36A825199D	coverplate for engine, D - MJ 2018>>	36A825199D coverplate for engine, D - MJ 2018>> PR-FM0	-	1	Enquire
37	N91215101	bolt, with polygon socket hd., (combi.), D - 31.07.2017>>	N91215101 bolt, with polygon socket hd., (combi.), D - 31.07.2017>> M8X25, PR-FM0	-	4	Enquire
38	36A071611G	rear diffusor	36A071611G rear diffusor Carbon fibre, PR-1D0,1D8+, 6GB	-	1	Enquire
38	36A071611H	rear diffusor, for vehicles with, towing attachment	36A071611H rear diffusor, for vehicles with, towing attachment Carbon fibre, ECE, PR-1D9+6GB	-	1	Enquire
38	36A071611J	rear diffusor, for vehicles with, towing attachment	36A071611J rear diffusor, for vehicles with, towing attachment Carbon fibre, ROW, PR-1D1,1D6+, 6GB	-	1	Enquire
39	36A071753	1 set of securing parts	36A071753 1 set of securing parts PR-6GB	-	1	Enquire
