Bentley Bentayga (2015-2020) - doors, door seal, window slot seal

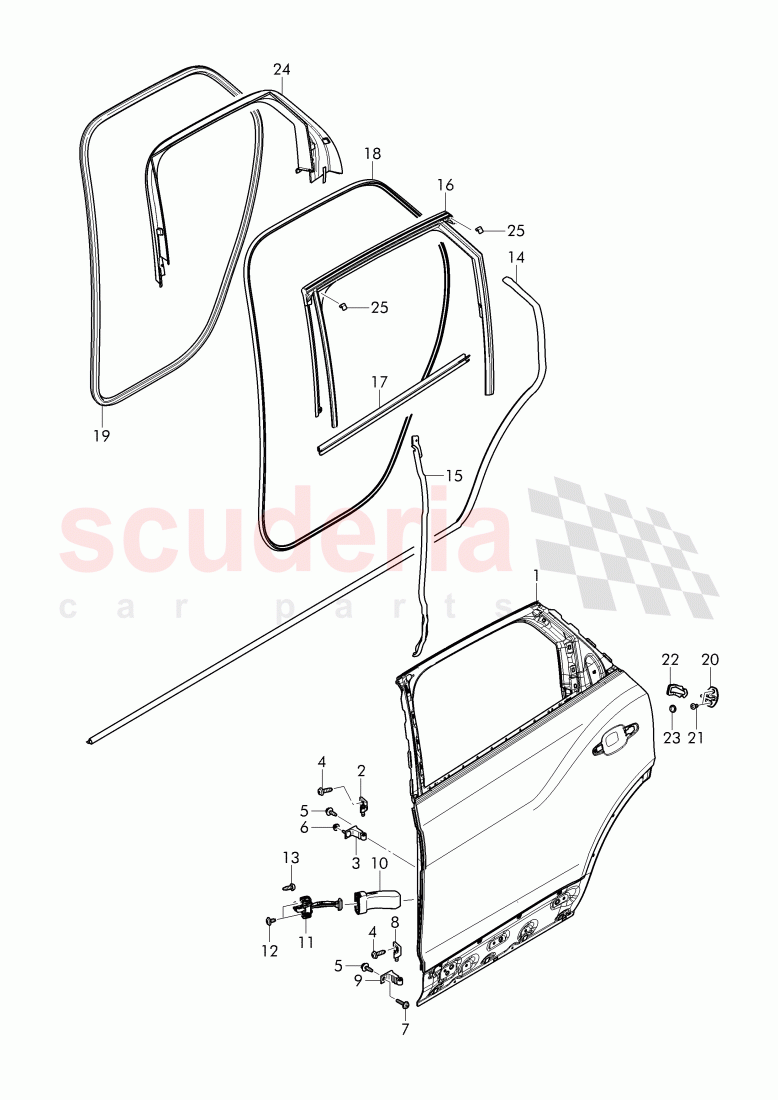

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	36A833051A	door	Enquire
	36A833052A	door	Enquire

Photo	Part No	Description	Price (each)	Stock
	8S0833407A	Door hinge half- Upper part Included in position:	Enquire
	8S0833408A	Door hinge half- Upper part Included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0831403A	Hinge halves	Enquire
	4M0831404A	Hinge halves	Enquire

Photo	Part No	Description	Price (each)	Stock
	8H0831701	Hex socket head collared bolt alternatively, you can use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01953010	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004869	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000042A	Hex socket head collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	8S0833405A	Door hinge half- Upper part Included in position:	Enquire
	8S0833406A	Door hinge half- Upper part Included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	8S0833403A	Hinge halves	Enquire
	8S0833404A	Hinge halves	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A839267	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A839249	check rod - door	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003237	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003497	Hexagon socket oval head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A839119A	seal for sill panel	Enquire
	36A839120A	seal for sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A839717B	door seal, inner	Enquire
	36A839718B	door seal, inner	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A839431B	window guide with, window slot seal, D - 10.04.2017>>	Enquire
	36A839432B	window guide with, window slot seal, D - 10.04.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A839479	Door trim strip	Enquire
	36A839480	Door trim strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A839911A	door seal, (adhesive)	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A833721B	door seal, inner	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0837033A	Lock striker	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91017402	countersunk multi-point socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0837087	Underlay Door lock	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0837111	Cover cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A867603A	trim for door window frame	Enquire
	36A867604A	trim for door window frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A837732D	clip, Trim for window frame	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	36A833051A	door	36A833051A door left rear,	-	1	Enquire
1	36A833052A	door	36A833052A door right rear,	-	1	Enquire
2	8S0833407A	Door hinge half- Upper part Included in position:	8S0833407A Door hinge half- Upper part Included in position: left upper,	-	1	Enquire
2	8S0833408A	Door hinge half- Upper part Included in position:	8S0833408A Door hinge half- Upper part Included in position: right upper,	-	1	Enquire
3	4M0831403A	Hinge halves	4M0831403A Hinge halves left upper,	-	1	Enquire
3	4M0831404A	Hinge halves	4M0831404A Hinge halves right upper,	-	1	Enquire
4	8H0831701	Hex socket head collared bolt alternatively, you can use:	8H0831701 Hex socket head collared bolt alternatively, you can use: M10X34,	-	4	Enquire
5	N01953010	bolt, hex. hd. with shoulder	N01953010 bolt, hex. hd. with shoulder M8X25,	-	4	Enquire
6	WHT004869	hex. nut with washer	WHT004869 hex. nut with washer M8,	-	2	Enquire
7	WHT000042A	Hex socket head collared bolt	WHT000042A Hex socket head collared bolt M8X36,	-	2	Enquire
8	8S0833405A	Door hinge half- Upper part Included in position:	8S0833405A Door hinge half- Upper part Included in position: left lower,	-	1	Enquire
8	8S0833406A	Door hinge half- Upper part Included in position:	8S0833406A Door hinge half- Upper part Included in position: right lower,	-	1	Enquire
9	8S0833403A	Hinge halves	8S0833403A Hinge halves left upper,	-	1	Enquire
9	8S0833404A	Hinge halves	8S0833404A Hinge halves right upper,	-	1	Enquire
10	36A839267	cover	36A839267 cover left a. right, rear,	-	2	Enquire
11	36A839249	check rod - door	36A839249 check rod - door left a. right,	-	2	Enquire
12	WHT003237	Hexagon socket flat head bolt	WHT003237 Hexagon socket flat head bolt M6X12,	-	4	Enquire
13	WHT003497	Hexagon socket oval head bolt (combi)	WHT003497 Hexagon socket oval head bolt (combi) M8X23,	-	2	Enquire
14	36A839119A	seal for sill panel	36A839119A seal for sill panel left,	-	1	Enquire
14	36A839120A	seal for sill panel	36A839120A seal for sill panel right,	-	1	Enquire
15	36A839717B	door seal, inner	36A839717B door seal, inner left,	-	1	Enquire
15	36A839718B	door seal, inner	36A839718B door seal, inner right,	-	1	Enquire
16	36A839431B	window guide with, window slot seal, D - 10.04.2017>>	36A839431B window guide with, window slot seal, D - 10.04.2017>> left,	-	1	Enquire
16	36A839432B	window guide with, window slot seal, D - 10.04.2017>>	36A839432B window guide with, window slot seal, D - 10.04.2017>> right,	-	1	Enquire
17	36A839479	Door trim strip	36A839479 Door trim strip left,	-	1	Enquire
17	36A839480	Door trim strip	36A839480 Door trim strip right,	-	1	Enquire
18	36A839911A	door seal, (adhesive)	36A839911A door seal, (adhesive) left a. right,	-	2	Enquire
19	36A833721B	door seal, inner	36A833721B door seal, inner left a. right,	-	2	Enquire
20	4M0837033A	Lock striker	4M0837033A Lock striker	-	2	Enquire
21	N91017402	countersunk multi-point socket head bolt	N91017402 countersunk multi-point socket head bolt M8X22,	-	4	Enquire
22	4M0837087	Underlay Door lock	4M0837087 Underlay Door lock	-	2	Enquire
23	4H0837111	Cover cap	4H0837111 Cover cap	-	2	Enquire
24	36A867603A	trim for door window frame	36A867603A trim for door window frame left rear,	-	1	Enquire
24	36A867604A	trim for door window frame	36A867604A trim for door window frame right rear,	-	1	Enquire
25	36A837732D	clip, Trim for window frame	36A837732D clip, Trim for window frame	-	4	Enquire
