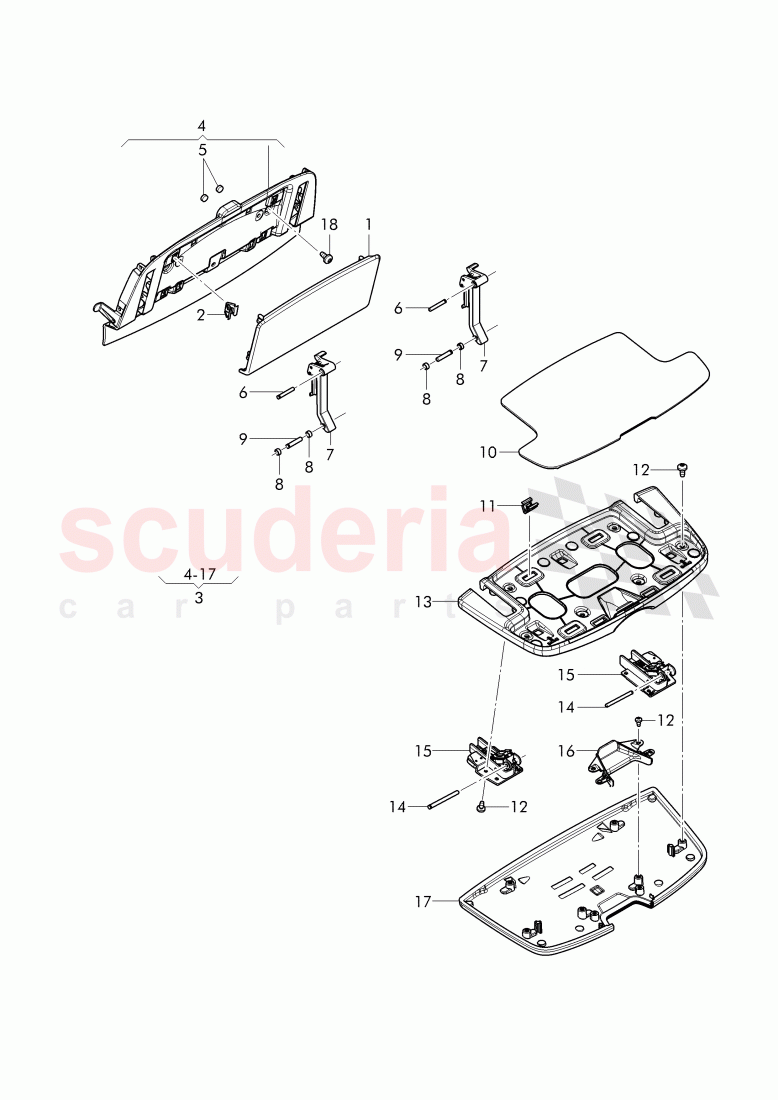

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W5882813A	insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5882519	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A881861	folding table, assembly	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881745	mounting plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0885731	Magnets	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881267D	pin - hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0881221	hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881195A	thrust washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881267C	pin - hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0882099	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	6N0863151	Spring clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10587402	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881107	frame, folding table	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881267E	pin - hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0887617	trim plate for finger plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A881759	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10633202	fillister hd. bolt	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W5882813A	insert	3W5882813A insert	-	1	Enquire
2	3W5882519	Clip	3W5882519 Clip	-	4	Enquire
3	36A881861	folding table, assembly	36A881861 folding table, assembly	-	1	Enquire
4	3W5881745	mounting plate	3W5881745 mounting plate	-	2	Enquire
5	3W0885731	Magnets	3W0885731 Magnets	-	2	Enquire
6	3W5881267D	pin - hinge	3W5881267D pin - hinge upper,	-	2	Enquire
7	4W0881221	hinge	4W0881221 hinge upper,	-	2	Enquire
8	3W5881195A	thrust washer	3W5881195A thrust washer	-	4	Enquire
9	3W5881267C	pin - hinge	3W5881267C pin - hinge	-	2	Enquire
10	4W0882099	cover	4W0882099 cover inner,	-	1	Enquire
11	6N0863151	Spring clip	6N0863151 Spring clip	-	4	Enquire
12	N10587402	round hd. screw	N10587402 round hd. screw M4X8,	-	16	Enquire
13	3W5881107	frame, folding table	3W5881107 frame, folding table	-	1	Enquire
14	3W5881267E	pin - hinge	3W5881267E pin - hinge lower,	-	2	Enquire
15	4W0881605	hinge, lower part	4W0881605 hinge, lower part left,	-	1	Enquire
15	4W0881606	hinge, lower part	4W0881606 hinge, lower part right,	-	1	Enquire
16	4W0887617	trim plate for finger plate	4W0887617 trim plate for finger plate	-	1	Enquire
17	36A881759	cover	36A881759 cover outer, veneered,	-	1	Enquire
18	N10633202	fillister hd. bolt	N10633202 fillister hd. bolt 4,8X19,	-	3	Enquire
19	36A881180A	spacer	36A881180A spacer	-	1	Enquire
