seat frame (electrically, adjustable) of Bentley Bentley Bentayga (2015-2020)

View All

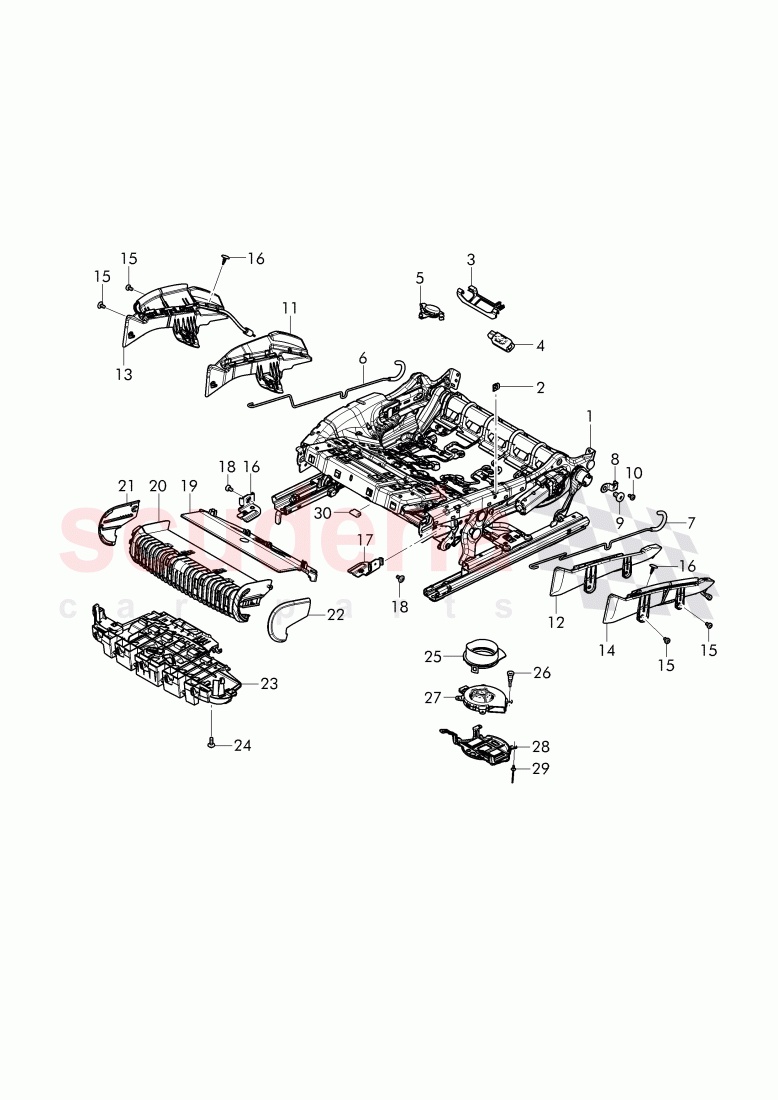

Bentley Bentayga (2015-2020) - seat frame (electrically, adjustable)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0881105AD	seat frame (electrically, adjustable), D - 17.07.2017>>	Enquire
	4M0881106AD	seat frame (electrically, adjustable), D - 17.07.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91236001	Screw with int. serrations	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881547	Holder for light	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8947409	LED light	Enquire
	3W8947409	LED light	Enquire
	8W0947415C	light, D - MJ 2018>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8S0963553D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881482A	upholstery wire	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881481A	upholstery wire	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881665	Bar for trim retainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881508	Bracket for seat pan for seat:	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881507	Bracket for seat pan for seat:	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881618	Seat side support adjustment for seat:	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881617	Seat side support adjustment for seat:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0881635E	Clip Retainer for trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0881286	Retaining bracket	Enquire
	4H0881297	Retaining bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737107	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881152	Cover for seat adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881959	Carrier for seat adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A881792	trim for seat cushion depth extension	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A881791	trim for seat cushion depth extension	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0882775	Tie-bar for seat, adjustment	Enquire
	4M0882776	Tie-bar for seat, adjustment	Enquire
	4M0882776A	Tie-bar for seat, adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91074201	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A885521	Air guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0941117	Securing element	Enquire

Photo	Part No	Description	Price (each)	Stock
	4N0963575A	ventliation motor D - 01.04.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8W0881367	Protective cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90931101	Pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5882236	Clip	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0881105AD	seat frame (electrically, adjustable), D - 17.07.2017>>	4M0881105AD seat frame (electrically, adjustable), D - 17.07.2017>> left,	-	1	Enquire
1	4M0881106AD	seat frame (electrically, adjustable), D - 17.07.2017>>	4M0881106AD seat frame (electrically, adjustable), D - 17.07.2017>> right,	-	1	Enquire
2	N91236001	Screw with int. serrations	N91236001 Screw with int. serrations M10X80,	-	4	Enquire
3	4M0881547	Holder for light	4M0881547 Holder for light left a. right,	-	1	Enquire
4	3W8947409	LED light	3W8947409 LED light left a. right,	-	1	Enquire
4	3W8947409	LED light	3W8947409 LED light left a. right, PR-QQ0	-	1	Enquire
4	8W0947415C	light, D - MJ 2018>>	8W0947415C light, D - MJ 2018>> left, PR-QQ2	-	1	Enquire
4	8W0947415D	light, D - MJ 2018>>	8W0947415D light, D - MJ 2018>> right, PR-QQ2	-	1	Enquire
5	8S0963553D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	8S0963553D Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>> left a. right,	-	1	Enquire
6	4M0881482A	upholstery wire	4M0881482A upholstery wire right,	-	1	Enquire
7	4M0881481A	upholstery wire	4M0881481A upholstery wire left,	-	1	Enquire
8	4M0881665	Bar for trim retainer	4M0881665 Bar for trim retainer outer,	-	1	Enquire
9	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	WHT002796B Socket head bolt with multi- point inner drive, self-lock. M10X16,	-	1	Enquire
10	N10170303	round hd. screw	N10170303 round hd. screw M6X10,	-	1	Enquire
11	4M0881508	Bracket for seat pan for seat:	4M0881508 Bracket for seat pan for seat: right, PR-3L5+4D0	-	1	Enquire
12	4M0881507	Bracket for seat pan for seat:	4M0881507 Bracket for seat pan for seat: left, PR-3L5+4D0	-	1	Enquire
13	4M0881618	Seat side support adjustment for seat:	4M0881618 Seat side support adjustment for seat: right, PR-3PN+4D2,, 4D5	-	1	Enquire
14	4M0881617	Seat side support adjustment for seat:	4M0881617 Seat side support adjustment for seat: left, PR-3PN+4D2,, 4D5	-	1	Enquire
15	N10170303	round hd. screw	N10170303 round hd. screw	-	4	Enquire
16	3W0881635E	Clip Retainer for trim	3W0881635E Clip Retainer for trim	-	2	Enquire
17	4H0881286	Retaining bracket	4H0881286 Retaining bracket right,	-	1	Enquire
17	4H0881297	Retaining bracket	4H0881297 Retaining bracket left,	-	1	Enquire
18	N90737107	Oval hexagon socket head bolt	N90737107 Oval hexagon socket head bolt M6X12,	-	2	Enquire
19	4M0881152	Cover for seat adjustment	4M0881152 Cover for seat adjustment	-	1	Enquire
20	4M0881959	Carrier for seat adjustment	4M0881959 Carrier for seat adjustment	-	1	Enquire
21	36A881792	trim for seat cushion depth extension	36A881792 trim for seat cushion depth extension right,	-	1	Enquire
22	36A881791	trim for seat cushion depth extension	36A881791 trim for seat cushion depth extension left,	-	1	Enquire
23	4M0882775	Tie-bar for seat, adjustment	4M0882775 Tie-bar for seat, adjustment left, PR-6A0	-	1	Enquire
23	4M0882776	Tie-bar for seat, adjustment	4M0882776 Tie-bar for seat, adjustment right, PR-6A0	-	1	Enquire
23	4M0882776A	Tie-bar for seat, adjustment	4M0882776A Tie-bar for seat, adjustment right, PR-6A4	-	1	Enquire
24	N91074201	Hexagon socket head bolt	N91074201 Hexagon socket head bolt M5X16,	-	2	Enquire
25	36A885521	Air guide	36A885521 Air guide PR-4D2,4D5	-	1	Enquire
26	4H0941117	Securing element	4H0941117 Securing element PR-4D2,4D5	-	4	Enquire
27	4N0963575A	ventliation motor D - 01.04.2019>>	4N0963575A ventliation motor D - 01.04.2019>> PR-4D2,4D5	-	1	Enquire
28	8W0881367	Protective cap	8W0881367 Protective cap PR-4D2,4D5	-	1	Enquire
29	N90931101	Pop rivet	N90931101 Pop rivet A3.2X8,	-	2	Enquire
30	3W5882236	Clip	3W5882236 Clip left a. right,	-	3	Enquire
