Air Conditioner With Electronic Regulation

Bentley Bentayga (2015-2020)

Find Your Part

Bentley Bentayga (2015-2020) - air conditioner with electronic regulation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0820004 air conditioner Enquire
Photo Part No Description Price (each) Stock
4M0820027 intake duct Enquire
Photo Part No Description Price (each) Stock
WHT000703 Hexagon socket oval head panel bolt (combi) Enquire
Photo Part No Description Price (each) Stock
4M0820511A motor for adjustment Enquire
Photo Part No Description Price (each) Stock
4M0820024 blower housing Enquire
Photo Part No Description Price (each) Stock
4H0898002 1 set of levers Enquire
Photo Part No Description Price (each) Stock
4M0820329 air distribution housing Enquire
Photo Part No Description Price (each) Stock
4H0820513A drain valve Enquire
Photo Part No Description Price (each) Stock
4M0820105 evaporator Enquire
Photo Part No Description Price (each) Stock
4M0820521 Fan control Enquire
Photo Part No Description Price (each) Stock
4H0898037B heater core Enquire
Photo Part No Description Price (each) Stock
4M0898037D 1 set of tubes for heat, exchanger Enquire
Photo Part No Description Price (each) Stock
4H0898037C 1 set: pipe retainers Enquire
Photo Part No Description Price (each) Stock
4H0820098 grommet Enquire
Photo Part No Description Price (each) Stock
4H0862234 push-on connector Enquire
Photo Part No Description Price (each) Stock
4M0971569 harness for electronically, regulated air conditioner Enquire
Photo Part No Description Price (each) Stock
1K0907543E Temperature sensor Enquire
View All

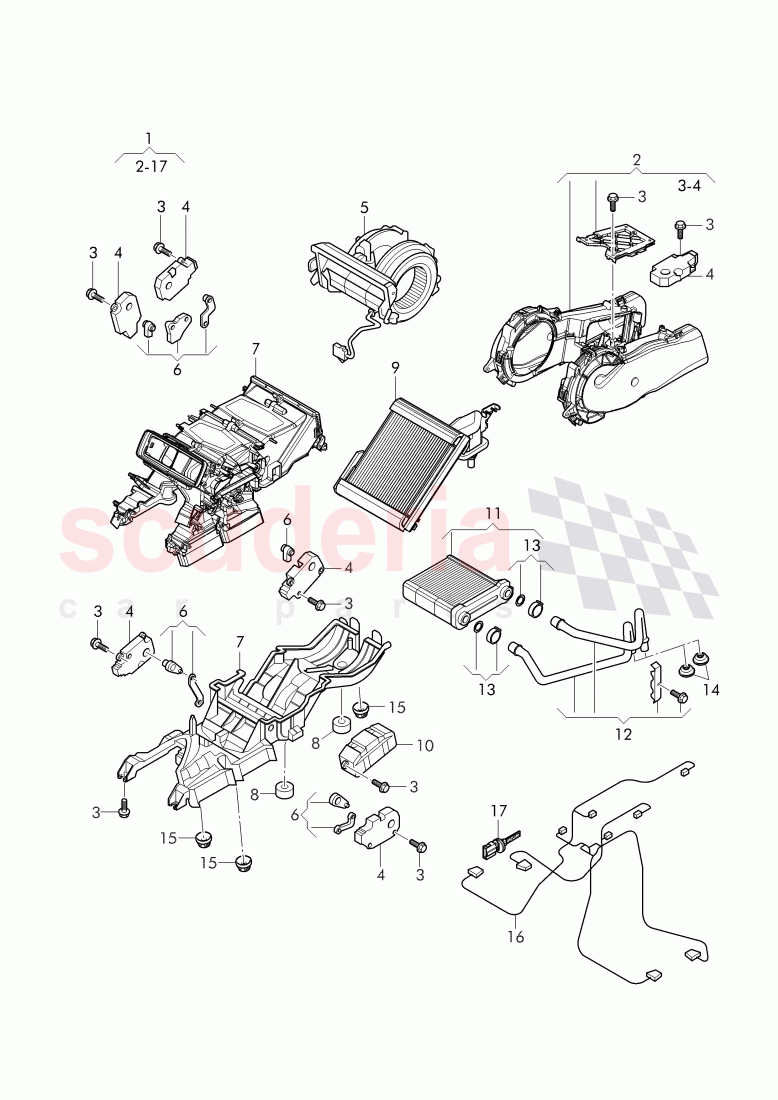

air conditioner with electronic regulation of Bentley Bentley Bentayga (2015-2020) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0820004
air conditioner
rear, 		- 1 Enquire
2 4M0820027
intake duct 		- 1 Enquire
3 WHT000703
Hexagon socket oval head panel bolt (combi)
4X15, 		- - Enquire
4 4M0820511A
motor for adjustment 		- 7 Enquire
5 4M0820024
blower housing 		- 1 Enquire
6 4H0898002
1 set of levers 		- 1 Enquire
7 4M0820329
air distribution housing 		- 1 Enquire
8 4H0820513A
drain valve 		- 2 Enquire
9 4M0820105
evaporator 		- 1 Enquire
10 4M0820521
Fan control 		- 1 Enquire
11 4H0898037B
heater core 		- 1 Enquire
12 4M0898037D
1 set of tubes for heat, exchanger 		- 1 Enquire
13 4H0898037C
1 set: pipe retainers 		- 1 Enquire
14 4H0820098
grommet 		- 2 Enquire
15 4H0862234
push-on connector 		- 3 Enquire
16 4M0971569
harness for electronically, regulated air conditioner 		- 1 Enquire
17 1K0907543E
Temperature sensor 		- 4 Enquire
