Name: Front Seatbelt Assembly (Pyro Restraint)
Rating: 4.4 (1 reviews)

Front Seatbelt Assembly (Pyro Restraint) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Front Seatbelt Assembly (Pyro Restraint)

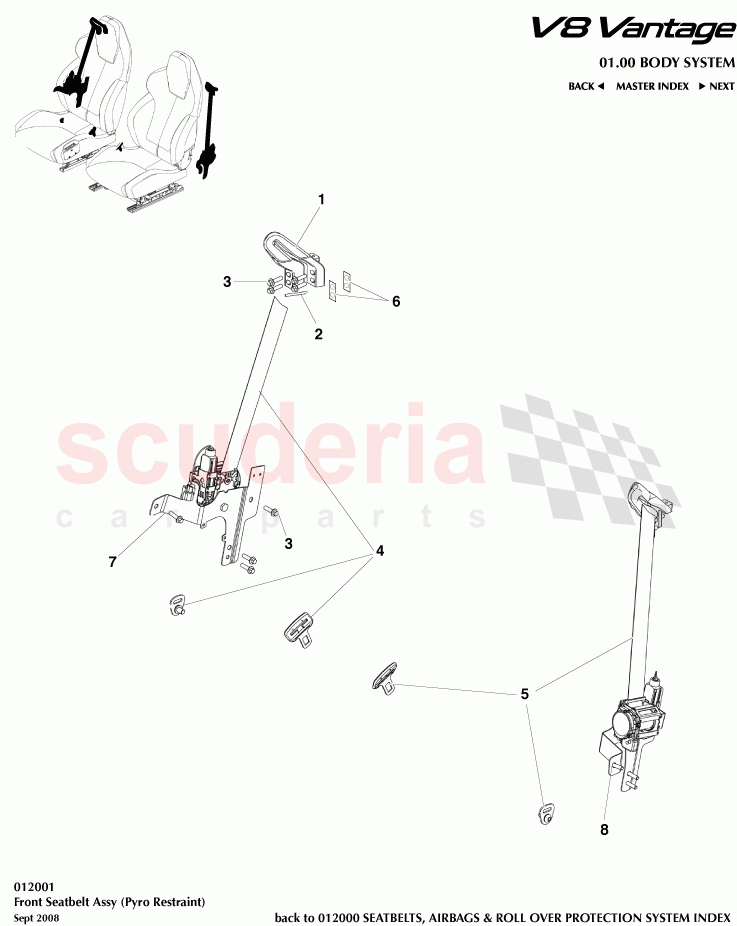

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G33L611B10CA	CONV D-LOOP RH	$1,196.98	To Order
	6G33L611B11CA	CONV D-LOOP LH	$1,196.98	To Order
	6G33611B10CA	D LOOP RH	$1,218.84	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G335784AA	Pin, Front Seatbelt Guide	$18.01	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33611B68ABW	FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL)	$1,168.49	To Order
	6G33611B71ABW	SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL)	$1,168.49	To Order
	6G33611B68BBW	SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT)	$1,168.49	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G33611B70ACW	FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL)	$1,168.49	To Order
	6G33611B69ACW	FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL)	$1,168.49	To Order
	6G33611B70BCW	Seatbelt Retractor assy, LHD, Driver's	$1,168.49	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G33610D36AA	Plate, Front Seatbelt Anchor Bracket	$5.21	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3360258AB	REINF FRT ST BEL RH	$42.47	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3360259AB	REINF FRT ST BEL LH	$38.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	6G33L611B10CA	CONV D-LOOP RH	6G33L611B10CA CONV D-LOOP RH	$1,196.98	1
1	6G33L611B11CA	CONV D-LOOP LH	6G33L611B11CA CONV D-LOOP LH	$1,196.98	1
1	6G33611B10CA	D LOOP RH	6G33611B10CA D LOOP RH	$1,218.84	1
1	6G33611B11CA	D LOOP LH	6G33611B11CA D LOOP LH	$1,218.84	1
2	6G335784AA	Pin, Front Seatbelt Guide	6G335784AA Pin, Front Seatbelt Guide	$18.01	2
3	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	$0.71	16
4	6G33611B68ABW	FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL)	6G33611B68ABW FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL) Warm charcoal	$1,168.49	1
4	6G33611B71ABW	SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL)	6G33611B71ABW SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL) Warm charcoal	$1,168.49	1
4	6G33611B68BBW	SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT)	6G33611B68BBW SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT) Flint	$1,168.49	1
4	6G33611B71BBW	SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT)	6G33611B71BBW SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT) Flint	$1,038.19	1
5	6G33611B70ACW	FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL)	6G33611B70ACW FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL) Warm charcoal	$1,168.49	1
5	6G33611B69ACW	FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL)	6G33611B69ACW FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL) Warm charcoal	$1,168.49	1
5	6G33611B70BCW	Seatbelt Retractor assy, LHD, Driver's	6G33611B70BCW Seatbelt Retractor assy, LHD, Driver's Flint	$1,168.49	1
5	6G33611B69BCW	SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT)	6G33611B69BCW SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT) Flint	$1,171.86	1
6	6G33610D36AA	Plate, Front Seatbelt Anchor Bracket	6G33610D36AA Plate, Front Seatbelt Anchor Bracket	$5.21	4
7	6G3360258AB	REINF FRT ST BEL RH	6G3360258AB REINF FRT ST BEL RH	$42.47	1
8	6G3360259AB	REINF FRT ST BEL LH	6G3360259AB REINF FRT ST BEL LH	$38.56	1
