Name: Console Panel with Armrest Stowage (Manual) (2008)
Rating: 4.1 (1 reviews)

Console Panel with Armrest Stowage (Manual) (2008) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Console Panel with Armrest Stowage (Manual) (2008)

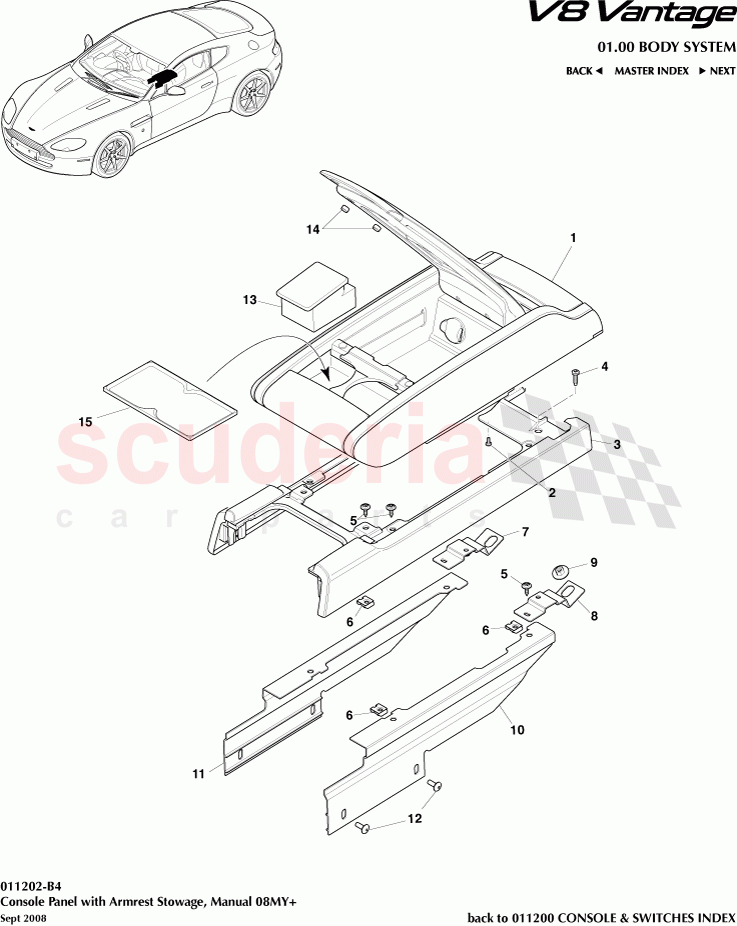

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G33C045C76AAW	PAD ASY CONSOLE A/REST STWG	$2,726.66	To Order
	9G33C045C76ABW	FRONT CONSOLE WITH STOWAGE	$2,797.87	To Order

Photo	Part No	Description	Price (each)	Stock
	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4367446AAW	Panel Assy, Rear Console	$654.36	To Order

Photo	Part No	Description	Price (each)	Stock
	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	$3.64	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	$2.80	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313522AA	Bracket, Stowage Compartment Mounting, RH	$10.04	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	$10.04	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B05AB	Reinforcement Assy, Console Panel, LH	$70.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B04AB	Reinforcement Assy, Console Panel, RH	$70.96	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	9G33044J16AAW	ELBOW SUPPORT CENTRE CONSOLE	$360.20	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4323697AA	Magnet and Bumpstop Set	$15.30	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43040K60AA	MAT - PHONE SHELF	$13.44	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	8G33C045C76AAW	PAD ASY CONSOLE A/REST STWG	8G33C045C76AAW PAD ASY CONSOLE A/REST STWG 08MY	$2,726.66	1
1	9G33C045C76ABW	FRONT CONSOLE WITH STOWAGE	9G33C045C76ABW FRONT CONSOLE WITH STOWAGE 09MY	$2,797.87	1
2	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	$0.37	4
3	CG4367446AAW	Panel Assy, Rear Console	CG4367446AAW Panel Assy, Rear Console	$654.36	1
4	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	701556PK Screw M5 x 16 Pan Head (Pack of 10)	$3.64	2
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	$2.80	6
6	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	$1.25	6
7	8G4313522AA	Bracket, Stowage Compartment Mounting, RH	8G4313522AA Bracket, Stowage Compartment Mounting, RH	$10.04	1
8	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	8G4313523AA Bracket, Stowage Compartment Mounting, LH	$10.04	1
9	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	$5.58	2
10	4G43043B05AB	Reinforcement Assy, Console Panel, LH	4G43043B05AB Reinforcement Assy, Console Panel, LH	$70.96	1
11	4G43043B04AB	Reinforcement Assy, Console Panel, RH	4G43043B04AB Reinforcement Assy, Console Panel, RH	$70.96	1
12	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	4
13	9G33044J16AAW	ELBOW SUPPORT CENTRE CONSOLE	9G33044J16AAW ELBOW SUPPORT CENTRE CONSOLE 09MY	$360.20	1
14	8G4323697AA	Magnet and Bumpstop Set	8G4323697AA Magnet and Bumpstop Set	$15.30	2
15	8G43040K60AA	MAT - PHONE SHELF	8G43040K60AA MAT - PHONE SHELF	$13.44	1
