Aston Martin V8 Vantage (upto 2016) - Console Panel with Cupholder

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33045C77BAW Armrest pad assy, console Enquire To Order
8G33L045C76BAW PAD ASY CNSL A/REST STWG $2,726.66 To Order
8G33L045C76ABW PAD ASY CNSL A/REST STWG $2,726.66 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8G33L067446AAW PNL ASY RR CNSL $945.20 To Order
8G33C067446BAW Panel assy, rear console Enquire To Order
4G4367446ACW PANEL ASSEMBLY REAR CONSOLE $879.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43043B05AB Reinforcement Assy, Console Panel, LH $70.96 To Order
Photo Part No Description Price (each) Stock
4G43043B04AB Reinforcement Assy, Console Panel, RH $70.96 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.25 IN STOCK
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.05 IN STOCK
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 IN STOCK
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE $0.75 IN STOCK
Photo Part No Description Price (each) Stock
8G4329765AB Cup holder assy, complete Enquire To Order
6G33046B94AB INSERT CUP HOLDER $13.44 To Order
703176PK SCREW-M4x6 CHROME FREE PACK OF 10 $24.16 To Order
View All

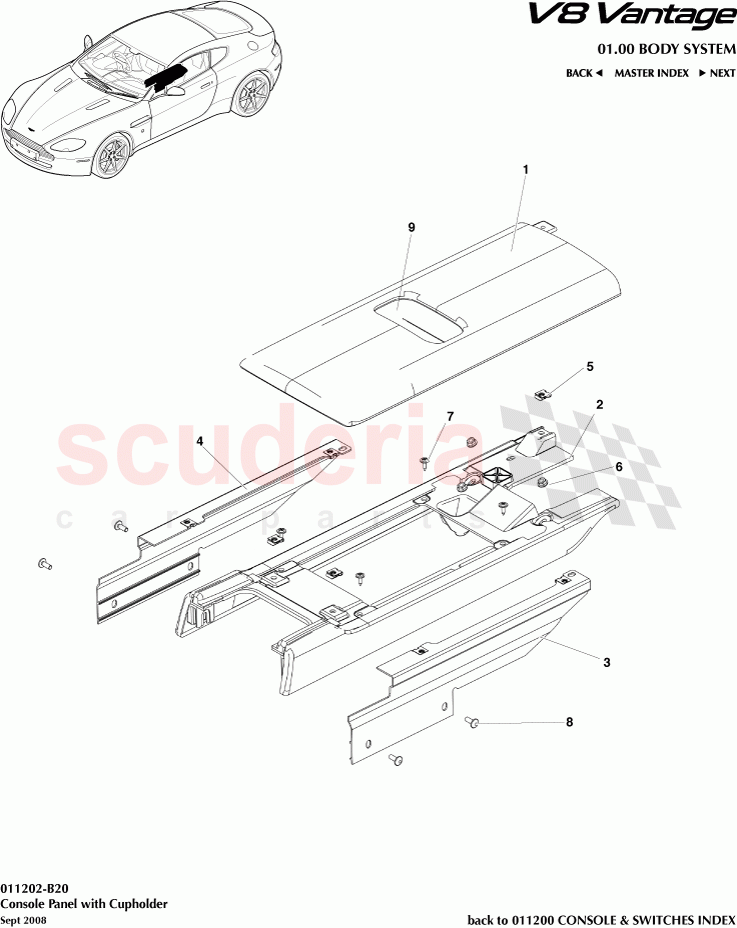

Console Panel with Cupholder of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G33045C77BAW
Armrest pad assy, console
Warwick leather 		- 1 Enquire
1 8G33L045C76BAW
PAD ASY CNSL A/REST STWG
Roadster 08MY 		$2,726.66 1
1 8G33L045C76ABW
PAD ASY CNSL A/REST STWG
Roadster 08MY 		$2,726.66 1
1 8G33C045C76BAW
PAD ASY CONSOLE A/REST STWG
Coupe 08MY 		$2,726.66 1
1 8G33C045C76ABW
PAD ASY CONSOLE A/REST STWG
Coupe 08MY 		$2,982.52 1
1 6G33045C77AAW
PAD ASSEMBLY CONSOLE ARMREST
Standard 		$5,979.43 1
1 4G43045C76BBW
PAD ASSY CONSOLE ARMREST
Roadster 		$1,622.03 1
2 8G33L067446AAW
PNL ASY RR CNSL
Roadster 08MY 		$945.20 1
2 8G33C067446BAW
Panel assy, rear console
Coupe 08MY 		- 1 Enquire
2 4G4367446ACW
PANEL ASSEMBLY REAR CONSOLE
Roadster 		$879.39 1
2 6G3367446BAW
PANEL ASSEMBLY REAR CONSOLE
Coupe 		$2,046.08 1
3 4G43043B05AB
Reinforcement Assy, Console Panel, LH 		$70.96 1
4 4G43043B04AB
Reinforcement Assy, Console Panel, RH 		$70.96 1
5 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.25 4
6 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$1.05 3
7 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.80 4
8 703149
SCREW M6x16 PAN FLG TORX CHROME FRE
IN STOCK 		$0.75 4
9 8G4329765AB
Cup holder assy, complete
08MY 		- 1 Enquire
9 6G33046B94AB
INSERT CUP HOLDER 		$13.44 1
9 703176PK
SCREW-M4x6 CHROME FREE PACK OF 10 		$24.16 3
