Instrument Panel, Centre Stack, SAT NAV of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Instrument Panel, Centre Stack, SAT NAV

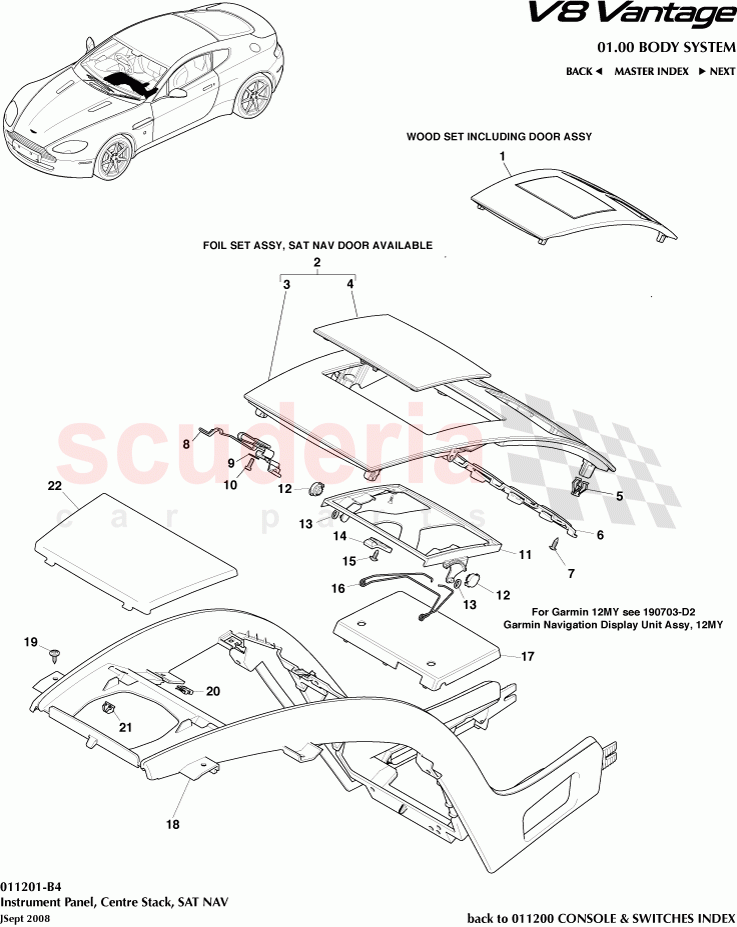

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G436910619	VENEER FITTING KIT	Enquire	To Order
	BD33045J10CC	NAV SRRND BLK CF	Enquire	To Order
	BD33045J10DC	VNR NAV AUTO/BLK CF	Enquire	To Order

...and 28 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CG33047A04JA	Bezel assy, Weave Alloy, AUTO, Sat nav	Enquire	To Order
	CG43047A04DA	Bezel assy, Double Apex Alloy, MANUAL, Sat nav	Enquire	To Order
	AG43047A04DA	Nav surround and door assy, Manual	Enquire	To Order

...and 18 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CG33045H43GA	NAV SURROUND ASSY 1943-G-1040	Enquire	To Order
	BG33045G37AA	DR CNSL NAV 1943-G-1040	Enquire	To Order
	CG43045H43DA	Nav surround, Double apex alloy, MANUAL, Sat nav	Enquire	To Order

...and 21 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3314A462AJ	RETAINER CONTROL SWITCH - VENEER	Enquire	To Order
	8D3314A462BH	RETAINER CONTROL SWITCH - FOIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703027	SCREW M4x10 PAN HD TORX S/TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43204A34AB	Clip, Console Tether Strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707137	SCREW-M4 x 12 PAN HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3338392AA	SPINDLE DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314163AA	LOCATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33104101BA	M4 THRD FORM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436911546	RTI COVER-NAV DISPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3355210ADW	Panel assy, instrument centre	Enquire	To Order
	6G3355210ACW	PANEL ASSY CENTRE	Enquire	To Order
	9G3355210ADW	Panel assy, instrument centre	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704764	Nut, Push-on, M4.2 x 1.41	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	Enquire	To Order
	4G43C046A26ACW	GRILL INSTRUMENT PANEL RADIO PLATINUM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G436910619	VENEER FITTING KIT	4G436910619 VENEER FITTING KIT Reqd when retro fitting wood veneer options.	-	1	Enquire
1	BD33045J10CC	NAV SRRND BLK CF	BD33045J10CC NAV SRRND BLK CF V8S/ 12.25MY Carbon Edition	-	1	Enquire
1	BD33045J10DC	VNR NAV AUTO/BLK CF	BD33045J10DC VNR NAV AUTO/BLK CF V8S/ 12.25MY Carbon Edition	-	1	Enquire
1	4G43045K18PB	NAVIGATION SURROUND - PIANO	4G43045K18PB NAVIGATION SURROUND - PIANO 07MY	-	1	Enquire
1	4G43045K18PB	NAVIGATION SURROUND - PIANO	4G43045K18PB NAVIGATION SURROUND - PIANO 08MY	-	1	Enquire
1	CG43045J10PE	NAV SURROUND PIANO	CG43045J10PE NAV SURROUND PIANO 09MY	-	1	Enquire
1	CG43045J10PE	NAV SURROUND PIANO	CG43045J10PE NAV SURROUND PIANO 12MY	-	1	Enquire
1	4G43045K18EB	NAVIGATION SURROUND - MAHOGANY	4G43045K18EB NAVIGATION SURROUND - MAHOGANY 08MY	-	1	Enquire
1	CG43045J10EE	NAV SURROUND - MAH	CG43045J10EE NAV SURROUND - MAH 09MY	-	1	Enquire
1	4G43045K18NB	NAVIGATION SURROUND - PIANO	4G43045K18NB NAVIGATION SURROUND - PIANO 07MY	-	1	Enquire
1	4G43045K18NB	NAVIGATION SURROUND - PIANO	4G43045K18NB NAVIGATION SURROUND - PIANO 08MY	-	1	Enquire
1	CG43045J10NE	SAT NAV TRIM SURROUND BLACK	CG43045J10NE SAT NAV TRIM SURROUND BLACK 09MY	-	1	Enquire
1	CG43045J10NE	SAT NAV TRIM SURROUND BLACK	CG43045J10NE SAT NAV TRIM SURROUND BLACK 12MY	-	1	Enquire
1	4G43045K18EB	NAVIGATION SURROUND - MAHOGANY	4G43045K18EB NAVIGATION SURROUND - MAHOGANY 07MY	-	1	Enquire
1	4G43045K18DB	NAVIGATION SURROUND - WALNUT	4G43045K18DB NAVIGATION SURROUND - WALNUT 08MY	-	1	Enquire
1	CG43045J10DE	NAV SURROUND-WALNUT	CG43045J10DE NAV SURROUND-WALNUT 09MY	-	1	Enquire
1	4G43045K18BB	NAVIGATION SURROUND - MAHOGANY	4G43045K18BB NAVIGATION SURROUND - MAHOGANY 08MY	-	1	Enquire
1	CG43045J10BE	NAV SURROUND - MAH	CG43045J10BE NAV SURROUND - MAH 09MY	-	1	Enquire
1	4G43045K18FB	NAVIGATION SURROUND - BAMBOO	4G43045K18FB NAVIGATION SURROUND - BAMBOO 08MY	-	1	Enquire
1	CG43045J10FD	NAV SURROUND -BAMBOO	CG43045J10FD NAV SURROUND -BAMBOO 09MY	-	1	Enquire
1	4G43045K18DB	NAVIGATION SURROUND - WALNUT	4G43045K18DB NAVIGATION SURROUND - WALNUT 07MY	-	1	Enquire
1	4G43045K18BB	NAVIGATION SURROUND - MAHOGANY	4G43045K18BB NAVIGATION SURROUND - MAHOGANY 07MY	-	1	Enquire
1	4G43045K18FB	NAVIGATION SURROUND - BAMBOO	4G43045K18FB NAVIGATION SURROUND - BAMBOO 07MY	-	1	Enquire
1	4G43045K18AB	NAVIGATION SURROUND - WALNUT	4G43045K18AB NAVIGATION SURROUND - WALNUT 08MY	-	1	Enquire
1	CG43045J10AE	NAV SURROUND -WALNUT	CG43045J10AE NAV SURROUND -WALNUT 09MY	-	1	Enquire
1	4G43045K18CB	NAVIGATION SURROUND - BAMBOO	4G43045K18CB NAVIGATION SURROUND - BAMBOO 08MY	-	1	Enquire
1	CG43045J10CE	NAV SURROUND - BAMBO	CG43045J10CE NAV SURROUND - BAMBO 09MY	-	1	Enquire
1	4G43045K18AB	NAVIGATION SURROUND - WALNUT	4G43045K18AB NAVIGATION SURROUND - WALNUT 07MY	-	1	Enquire
1	4G43045K18CB	NAVIGATION SURROUND - BAMBOO	4G43045K18CB NAVIGATION SURROUND - BAMBOO 07MY	-	1	Enquire
1	6G3310E991AB	BZL NAV SYS - RHS	6G3310E991AB BZL NAV SYS - RHS 08MY	-	1	Enquire
1	6G3310E992AB	BZL NAV SYS - LHS	6G3310E992AB BZL NAV SYS - LHS 08MY	-	1	Enquire
2	CG33047A04JA	Bezel assy, Weave Alloy, AUTO, Sat nav	CG33047A04JA Bezel assy, Weave Alloy, AUTO, Sat nav VANTAGE S, 12MY	-	1	Enquire
2	CG43047A04DA	Bezel assy, Double Apex Alloy, MANUAL, Sat nav	CG43047A04DA Bezel assy, Double Apex Alloy, MANUAL, Sat nav 12MY	-	1	Enquire
2	AG43047A04DA	Nav surround and door assy, Manual	AG43047A04DA Nav surround and door assy, Manual N420	-	1	Enquire
2	CG33047A04HA	Bezel assy, Micro-spin Alloy, MANUAL, Sat nav	CG33047A04HA Bezel assy, Micro-spin Alloy, MANUAL, Sat nav 12MY	-	1	Enquire
2	6G33045H43FAW	NAV SURROUND ASSY - MANUAL SAT NAV	6G33045H43FAW NAV SURROUND ASSY - MANUAL SAT NAV N400	-	1	Enquire
2	CG43047A04CA	Bezel assy, Double Apex Alloy, AUTO, Sat nav	CG43047A04CA Bezel assy, Double Apex Alloy, AUTO, Sat nav 12MY	-	1	Enquire
2	AG43047A04CA	Nav surround and door assy, Auto	AG43047A04CA Nav surround and door assy, Auto N420	-	1	Enquire
2	CG33047A04GA	Bezel assy, Micro-spin Alloy, AUTO, Sat nav	CG33047A04GA Bezel assy, Micro-spin Alloy, AUTO, Sat nav 12MY	-	1	Enquire
2	6G33045H43DAW	NAV SURROUND ASSY MAN - SAT NAV	6G33045H43DAW NAV SURROUND ASSY MAN - SAT NAV 08MY	-	1	Enquire
2	6G33045H43EAW	NAV SURROUND ASSY AUTO - SAT NAV	6G33045H43EAW NAV SURROUND ASSY AUTO - SAT NAV N400	-	1	Enquire
2	6G33045H43CAW	NAV SURROUND ASSY	6G33045H43CAW NAV SURROUND ASSY 08MY	-	1	Enquire
2	CG33047A04DA	Bezel assy, Prism Alloy, MANUAL, Sat nav	CG33047A04DA Bezel assy, Prism Alloy, MANUAL, Sat nav 12MY	-	1	Enquire
2	AG33047A04DA	BZL ASY I/PNL CNTR - MANUAL SAT NAV ASSEMBLY	AG33047A04DA BZL ASY I/PNL CNTR - MANUAL SAT NAV ASSEMBLY 10MY	-	1	Enquire
2	6G33045H43BBW	NAV SURROUND ASSY	6G33045H43BBW NAV SURROUND ASSY 08MY	-	1	Enquire
2	CG33047A04PA	Bezel assy, Gun Metal, MANUAL, Sat nav	CG33047A04PA Bezel assy, Gun Metal, MANUAL, Sat nav 12MY	-	1	Enquire
2	CG33047A04CA	BZL ASY I/PNL CNTR - SAT - AUTO SAT NAV	CG33047A04CA BZL ASY I/PNL CNTR - SAT - AUTO SAT NAV 12MY	-	1	Enquire
2	9G33047A04DA	Bezel assy, gun metal, manual Sat nav	9G33047A04DA Bezel assy, gun metal, manual Sat nav 09MY	-	1	Enquire
2	AG33047A04CA	Bezel assy, prism alloy, auto Sat nav	AG33047A04CA Bezel assy, prism alloy, auto Sat nav 10MY	-	1	Enquire
2	6G33045H43ABW	NAV SURROUND ASSY	6G33045H43ABW NAV SURROUND ASSY 08MY	-	1	Enquire
2	CG33047A04NA	Bezel assy, Gun Metal, AUTO, Sat nav	CG33047A04NA Bezel assy, Gun Metal, AUTO, Sat nav 12MY	-	1	Enquire
2	9G33047A04CA	BZL ASY I/PNL CNTR - SAT	9G33047A04CA BZL ASY I/PNL CNTR - SAT 09MY	-	1	Enquire
3	CG33045H43GA	NAV SURROUND ASSY 1943-G-1040	CG33045H43GA NAV SURROUND ASSY 1943-G-1040 VANTAGE S, 12MY	-	1	Enquire
3	BG33045G37AA	DR CNSL NAV 1943-G-1040	BG33045G37AA DR CNSL NAV 1943-G-1040 VANTAGE S, 12MY	-	1	Enquire
3	CG43045H43DA	Nav surround, Double apex alloy, MANUAL, Sat nav	CG43045H43DA Nav surround, Double apex alloy, MANUAL, Sat nav 12MY	-	1	Enquire
3	CG33045H43FA	Nav surround, Micro-spin Alloy, MANUAL, Sat nav	CG33045H43FA Nav surround, Micro-spin Alloy, MANUAL, Sat nav 12MY	-	1	Enquire
3	CG43045H43CA	VENEER NAV SURROUND ASSY AUTO NEW WOOD	CG43045H43CA VENEER NAV SURROUND ASSY AUTO NEW WOOD 12MY	-	1	Enquire
3	CG33045H43EA	Nav surround, Micro-spin Alloy, AUTO, Sat nav	CG33045H43EA Nav surround, Micro-spin Alloy, AUTO, Sat nav 12MY	-	1	Enquire
3	CG33045H43BA	NAV SURROUND ASSY MANUAL	CG33045H43BA NAV SURROUND ASSY MANUAL 12MY	-	1	Enquire
3	CG33045H43MA	Surround assy, Gun Metal	CG33045H43MA Surround assy, Gun Metal 12MY	-	1	Enquire
3	CG33045H43AB	Nav surround, Prism Alloy, AUTO, Sat nav	CG33045H43AB Nav surround, Prism Alloy, AUTO, Sat nav 12MY	-	1	Enquire
3	9G33045H43BB	NAV SURROUND ASSY	9G33045H43BB NAV SURROUND ASSY 09MY	-	1	Enquire
3	AG43045H43DA	NAY SURROUND ASSY MAN	AG43045H43DA NAY SURROUND ASSY MAN N420	-	1	Enquire
3	AG43045H43LA	Nav surround, Gun Metal, AUTO, Sat Nav	AG43045H43LA Nav surround, Gun Metal, AUTO, Sat Nav 12MY	-	1	Enquire
3	9G33045H43AA	NAV SURROUND ASSY	9G33045H43AA NAV SURROUND ASSY 09MY	-	1	Enquire
3	AG43045H43CA	ALLOY FINISH EXCLUSIVE VH300	AG43045H43CA ALLOY FINISH EXCLUSIVE VH300 N420	-	1	Enquire
3	6G33045G37CAW	DR CNSL NAV SPEC ED NAV LID	6G33045G37CAW DR CNSL NAV SPEC ED NAV LID N400	-	1	Enquire
3	AG33045H43BA	NAV SURROUND ASSY MANUAL	AG33045H43BA NAV SURROUND ASSY MANUAL 10MY	-	1	Enquire
3	AG33045H43AA	NAV SURROUND ASSY AUTO	AG33045H43AA NAV SURROUND ASSY AUTO 10MY	-	1	Enquire
3	6G33045G37BAW	DR CNSL NAV	6G33045G37BAW DR CNSL NAV 08MY	-	1	Enquire
3	9G33045G37AA	DR CNSL NAV	9G33045G37AA DR CNSL NAV 09MY	-	1	Enquire
3	AG43045G37AA	DOOR CONSOLE NAV	AG43045G37AA DOOR CONSOLE NAV N420	-	1	Enquire
3	CG33045G37DA	Door, console navigation, Gun Metal	CG33045G37DA Door, console navigation, Gun Metal 12MY	-	1	Enquire
3	AG33045G37BA	Door, micro spin alloy	AG33045G37BA Door, micro spin alloy 12MY	-	1	Enquire
3	9G33045G37AA	DR CNSL NAV	9G33045G37AA DR CNSL NAV 12MY	-	1	Enquire
3	AG33045G37AA	DR CNSL NAV	AG33045G37AA DR CNSL NAV 10MY	-	1	Enquire
5	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	4	Enquire
6	8D3314A462AJ	RETAINER CONTROL SWITCH - VENEER	8D3314A462AJ RETAINER CONTROL SWITCH - VENEER	-	1	Enquire
6	8D3314A462BH	RETAINER CONTROL SWITCH - FOIL	8D3314A462BH RETAINER CONTROL SWITCH - FOIL	-	1	Enquire
7	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	12	Enquire
8	CG43204A34AB	Clip, Console Tether Strap	CG43204A34AB Clip, Console Tether Strap 12MY	-	2	Enquire
9	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	9D3346662AA Washer, 14mm, 43 ID 14 OD 0.8 Thk 12MY	-	2	Enquire
10	707137	SCREW-M4 x 12 PAN HD	707137 SCREW-M4 x 12 PAN HD 12MY	-	1	Enquire
11	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	6G3318C917AB BRACKET - NAVIGATION MOUNTING	-	1	Enquire
12	6G3338392AA	SPINDLE DAMPER	6G3338392AA SPINDLE DAMPER	-	2	Enquire
13	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	6G338979AA WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	-	2	Enquire
14	6G3314163AA	LOCATOR	6G3314163AA LOCATOR	-	1	Enquire
15	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	2	Enquire
16	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	6G3319363AE SPRING TORSION 100 x 75 x 1.8	-	1	Enquire
17	4G436911546	RTI COVER-NAV DISPLY	4G436911546 RTI COVER-NAV DISPLY	-	2	Enquire
18	9G3355210ADW	Panel assy, instrument centre	9G3355210ADW Panel assy, instrument centre 9.5MY	-	1	Enquire
18	6G3355210ACW	PANEL ASSY CENTRE	6G3355210ACW PANEL ASSY CENTRE 08MY	-	1	Enquire
18	9G3355210ADW	Panel assy, instrument centre	9G3355210ADW Panel assy, instrument centre 09MY	-	1	Enquire
18	CG3355210AAW	PANEL ASSEMBLY CENTRE	CG3355210AAW PANEL ASSEMBLY CENTRE 12MY	-	1	Enquire
18	6G3355210AAW	PANEL ASSY CENTRE	6G3355210AAW PANEL ASSY CENTRE	-	1	Enquire
19	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	14	Enquire
20	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	6	Enquire
21	704764	Nut, Push-on, M4.2 x 1.41	704764 Nut, Push-on, M4.2 x 1.41	-	2	Enquire
22	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	9D33C046A26AC Grille Assy, Centre Speaker, Instrument Panel 9.5MY	-	1	Enquire
22	4G43C046A26ACW	GRILL INSTRUMENT PANEL RADIO PLATINUM	4G43C046A26ACW GRILL INSTRUMENT PANEL RADIO PLATINUM	-	1	Enquire
