Instrument Panel, Centre Stack of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Instrument Panel, Centre Stack

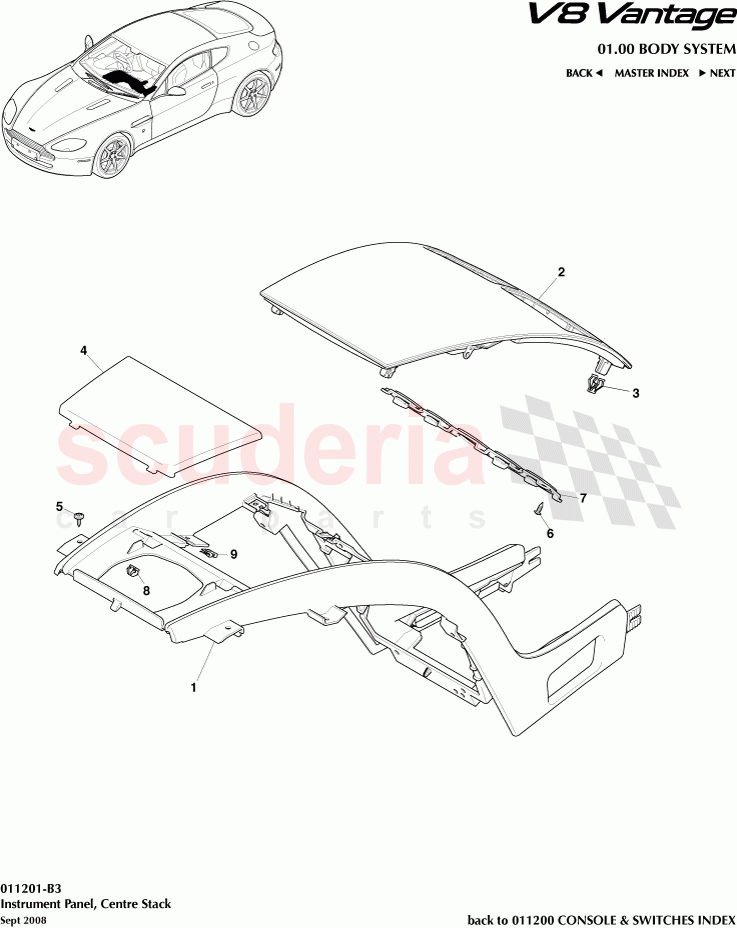

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G3355210ADW	Panel assy, instrument centre	Enquire	To Order
	6G3355210ACW	PANEL ASSY CENTRE	Enquire	To Order
	9G3355210ADW	Panel assy, instrument centre	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	BD33045J10EC	BZL ASY I/PNL CONTR	Enquire	To Order
	BD33045J10FC	BZL ASY I/PNL CONTR	Enquire	To Order
	CG33047A04RA	Bezel assy, Weave Alloy, AUTO	Enquire	To Order

...and 48 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	Enquire	To Order
	4G43C046A26ACW	GRILL INSTRUMENT PANEL RADIO PLATINUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703170	SCREW 4x8 PAN T/H CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314A462AB	Retainer, control switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704764	Nut, Push-on, M4.2 x 1.41	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G3355210ADW	Panel assy, instrument centre	9G3355210ADW Panel assy, instrument centre 9.5MY	-	1	Enquire
1	6G3355210ACW	PANEL ASSY CENTRE	6G3355210ACW PANEL ASSY CENTRE 08MY	-	1	Enquire
1	9G3355210ADW	Panel assy, instrument centre	9G3355210ADW Panel assy, instrument centre 09MY	-	1	Enquire
1	CG3355210AAW	PANEL ASSEMBLY CENTRE	CG3355210AAW PANEL ASSEMBLY CENTRE 12MY	-	1	Enquire
1	6G3355210AAW	PANEL ASSY CENTRE	6G3355210AAW PANEL ASSY CENTRE	-	1	Enquire
2	BD33045J10EC	BZL ASY I/PNL CONTR	BD33045J10EC BZL ASY I/PNL CONTR V8S/ 12.25MY Carbon Edition	-	1	Enquire
2	BD33045J10FC	BZL ASY I/PNL CONTR	BD33045J10FC BZL ASY I/PNL CONTR V8S/ 12.25MY Carbon Edition	-	1	Enquire
2	CG33047A04RA	Bezel assy, Weave Alloy, AUTO	CG33047A04RA Bezel assy, Weave Alloy, AUTO VANTAGE S, 12MY	-	1	Enquire
2	6G33047A04JAW	BZL ASY I/PNL CNTRL SAT MAN - NON NAV	6G33047A04JAW BZL ASY I/PNL CNTRL SAT MAN - NON NAV N400	-	1	Enquire
2	6G33047A04KAW	BZL ASY I/PNL CNTRL SAT - AUTO NON NAV	6G33047A04KAW BZL ASY I/PNL CNTRL SAT - AUTO NON NAV N400	-	1	Enquire
2	AG43047A04BA	BEZL ASSY I/PNL MAN	AG43047A04BA BEZL ASSY I/PNL MAN N420	-	1	Enquire
2	CG33047A04FA	Bezel assy, Micro-spin Alloy, MANUAL	CG33047A04FA Bezel assy, Micro-spin Alloy, MANUAL 12MY	-	1	Enquire
2	CG43047A04BA	Bezel assy, Double Apex Alloy MANUAL	CG43047A04BA Bezel assy, Double Apex Alloy MANUAL 12MY	-	1	Enquire
2	4G43045K18RB	BZL ASY I/PNL CONTR - PIANO	4G43045K18RB BZL ASY I/PNL CONTR - PIANO 07MY	-	1	Enquire
2	4G43045K18RB	BZL ASY I/PNL CONTR - PIANO	4G43045K18RB BZL ASY I/PNL CONTR - PIANO 08MY	-	1	Enquire
2	CG43045J10UE	BZL ASY I/PNL CONTR	CG43045J10UE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	AG43047A04AA	BEZL ASSY I/PNL AUTO	AG43047A04AA BEZL ASSY I/PNL AUTO N420	-	1	Enquire
2	CG43047A04AA	Bezel assy, Double Apex Alloy AUTO	CG43047A04AA Bezel assy, Double Apex Alloy AUTO 12MY	-	1	Enquire
2	4G43045K18QB	BZL ASY I/PNL CONTR - PIANO	4G43045K18QB BZL ASY I/PNL CONTR - PIANO 07MY	-	1	Enquire
2	6G33047A04DAW	BZL ASY I/PNL CNTRL - MAN NON NAV	6G33047A04DAW BZL ASY I/PNL CNTRL - MAN NON NAV 07MY	-	1	Enquire
2	4G43045K18QB	BZL ASY I/PNL CONTR - PIANO	4G43045K18QB BZL ASY I/PNL CONTR - PIANO 08MY	-	1	Enquire
2	CG43045J10RE	BZL ASY I/PNL CONTR	CG43045J10RE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	9G33047A04BB	BZL ASY I/PNL CNTR - MAN	9G33047A04BB BZL ASY I/PNL CNTR - MAN 09MY	-	1	Enquire
2	4G43045K18LB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18LB BZL ASY I/PNL CONTR - MAHOGANY 07MY	-	1	Enquire
2	4G43045K18LB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18LB BZL ASY I/PNL CONTR - MAHOGANY 08MY	-	1	Enquire
2	CG43045J10LE	BZL ASY I/PNL CONTR	CG43045J10LE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	6G33047A04CAW	BZL ASY I/PNL CNTRL - SAT	6G33047A04CAW BZL ASY I/PNL CNTRL - SAT 07MY	-	1	Enquire
2	9G33047A04AB	BZL ASY I/PNL CNTRL- AUTO	9G33047A04AB BZL ASY I/PNL CNTRL- AUTO 09MY	-	1	Enquire
2	AG33047A04BA	BZL ASY I/PNL CNTR - MANUAL NON NAV EURO 1813-F-1050 FIN	AG33047A04BA BZL ASY I/PNL CNTR - MANUAL NON NAV EURO 1813-F-1050 FIN 10MY	-	1	Enquire
2	CG33047A04BA	Bezel assy, Prism Alloy, MANUAL	CG33047A04BA Bezel assy, Prism Alloy, MANUAL 12MY	-	1	Enquire
2	CG43045J10UE	BZL ASY I/PNL CONTR	CG43045J10UE BZL ASY I/PNL CONTR 12MY	-	1	Enquire
2	4G43045K18KB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18KB BZL ASY I/PNL CONTR - WALNUT 07MY	-	1	Enquire
2	4G43045K18HB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18HB BZL ASY I/PNL CONTR - MAHOGANY 07MY	-	1	Enquire
2	4G43045K18MB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18MB BZL ASY I/PNL CONTR - BAMBOO 07MY	-	1	Enquire
2	4G43045K18KB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18KB BZL ASY I/PNL CONTR - WALNUT 08MY	-	1	Enquire
2	CG43045J10KE	BZL ASY I/PNL CONTR	CG43045J10KE BZL ASY I/PNL CONTR 09MY	-	1	Enquire
2	4G43045K18HB	BZL ASY I/PNL CONTR - MAHOGANY	4G43045K18HB BZL ASY I/PNL CONTR - MAHOGANY 08MY	-	1	Enquire
2	CG43045J10HD	Centre Bezel Assy, Instrument Panel, Mahogany	CG43045J10HD Centre Bezel Assy, Instrument Panel, Mahogany 09MY	-	1	Enquire
2	4G43045K18MB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18MB BZL ASY I/PNL CONTR - BAMBOO 08MY	-	1	Enquire
2	CG43045J10MD	BZL ASY I/PNL CONTRO	CG43045J10MD BZL ASY I/PNL CONTRO 09MY	-	1	Enquire
2	6G33047A04BBW	BEZEL ASSY I/PNL MAN MAN - NON NAV	6G33047A04BBW BEZEL ASSY I/PNL MAN MAN - NON NAV 07MY	-	1	Enquire
2	9G43047A05DAW	Bezel assy, alloy, MANUAL, Standard	9G43047A05DAW Bezel assy, alloy, MANUAL, Standard 09MY	-	1	Enquire
2	AG33047A04AA	NON NAV BZL ASY I/PNL CNTRL- AUTO EURO 1813-F-1050 FIN	AG33047A04AA NON NAV BZL ASY I/PNL CNTRL- AUTO EURO 1813-F-1050 FIN 10MY	-	1	Enquire
2	CG33047A04AA	Bezel assy, Prism Alloy, AUTO	CG33047A04AA Bezel assy, Prism Alloy, AUTO 12MY	-	1	Enquire
2	CG43045J10RE	BZL ASY I/PNL CONTR	CG43045J10RE BZL ASY I/PNL CONTR 12MY	-	1	Enquire
2	4G43045K18GB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18GB BZL ASY I/PNL CONTR - WALNUT 07MY	-	1	Enquire
2	4G43045K18JB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18JB BZL ASY I/PNL CONTR - BAMBOO 07MY	-	1	Enquire
2	4G43045K18GB	BZL ASY I/PNL CONTR - WALNUT	4G43045K18GB BZL ASY I/PNL CONTR - WALNUT 08MY	-	1	Enquire
2	CG43045J10GD	Centre Bezel Assy, Instrument Panel, Walnut	CG43045J10GD Centre Bezel Assy, Instrument Panel, Walnut 09MY	-	1	Enquire
2	4G43045K18JB	BZL ASY I/PNL CONTR - BAMBOO	4G43045K18JB BZL ASY I/PNL CONTR - BAMBOO 08MY	-	1	Enquire
2	CG43045J10JD	Centre Bezel Assy, Instrument Panel, Bamboo	CG43045J10JD Centre Bezel Assy, Instrument Panel, Bamboo 09MY	-	1	Enquire
2	CG33047A04MA	Bezel assy, Gun Metal	CG33047A04MA Bezel assy, Gun Metal 12MY	-	1	Enquire
2	CG33047A04EA	Bezel assy, Micro-spin Alloy	CG33047A04EA Bezel assy, Micro-spin Alloy 12MY	-	1	Enquire
2	6G33047A04ABW	BEZEL ASSY I/PNL MAN	6G33047A04ABW BEZEL ASSY I/PNL MAN 07MY	-	1	Enquire
2	9G43047A05CAW	Bezel assy, alloy, AUTO, Standard	9G43047A05CAW Bezel assy, alloy, AUTO, Standard 08MY	-	1	Enquire
2	CG33047A04LA	Bezel assy, Gun Metal AUTO	CG33047A04LA Bezel assy, Gun Metal AUTO 12MY	-	1	Enquire
3	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	4	Enquire
4	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	9D33C046A26AC Grille Assy, Centre Speaker, Instrument Panel 9.5MY	-	1	Enquire
4	4G43C046A26ACW	GRILL INSTRUMENT PANEL RADIO PLATINUM	4G43C046A26ACW GRILL INSTRUMENT PANEL RADIO PLATINUM	-	1	Enquire
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	14	Enquire
6	703170	SCREW 4x8 PAN T/H CHROME FREE	703170 SCREW 4x8 PAN T/H CHROME FREE	-	6	Enquire
7	6G3314A462AB	Retainer, control switch	6G3314A462AB Retainer, control switch	-	1	Enquire
8	704764	Nut, Push-on, M4.2 x 1.41	704764 Nut, Push-on, M4.2 x 1.41	-	2	Enquire
9	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	6	Enquire
